Resting 12 channel Tablet PC Resting ECG

12 Channel Tablet PC Resting ECG

Hardware:

Tablet PC Specification:

1. 9.7 inch capacitive touch screen, can support a multi drop touch, high screen resolution: 1024 * 768

2. Processor: Intel Atom N550, dual-core, 1.5GHz frequency, 2GB internal memory, 32GB SSD, High speed operation.

3. Wireless WIFI function, can use wireless Internet and do data transmission at anytime, anywhere. (need WIFI environment support).

4. Network Mode: Support 3G network, CDMA2000 3G, WCDMA 3G (need 3G network environment support).

5. Bluetooth Function, support Bluetooth 2.0 module

6. Configure camera (1.3 million pixels) and built-in sound chip, built-in microphone, support intelligent gravity sensor

7. Interface configuration 2×USB2.0, 3.5mm earphone interface, 1×mini HDMI interface, power interface, memory card interface, SIM card expansion slot, docking, safety lock

8. Built-in lithium battery, stand-by time can reach six hours or so, and the specific time depending on the use of the environment.

Dimension: 246×190×15.3mm

Weight: 998g

Casing material: composite material

Casing color: Black

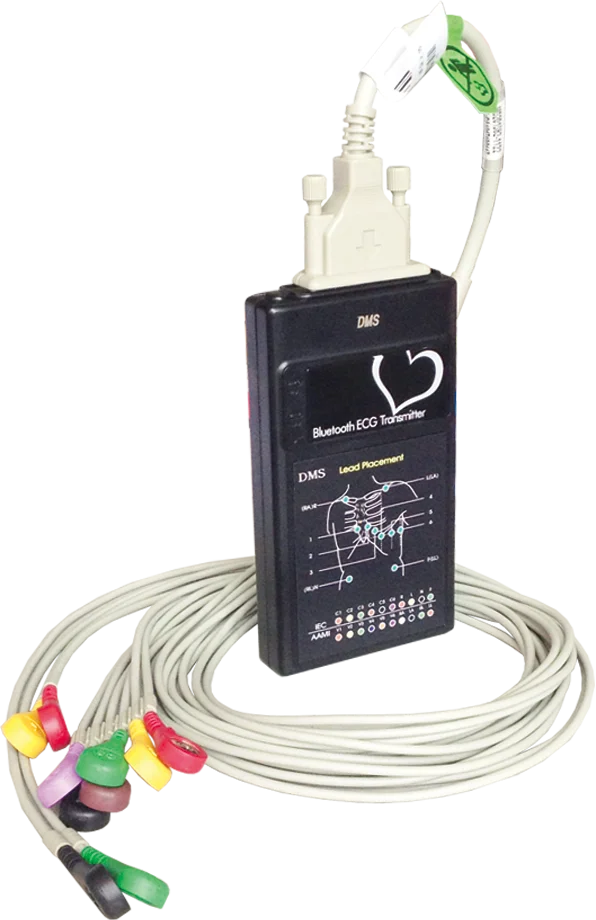

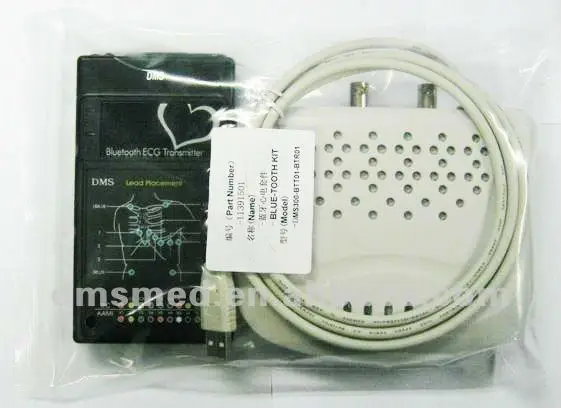

Bluetooth Transmitter (M) Specification:

Name:             Bluetooth Transmitter

Model:             DMS 300-BTT01

Dimension:         13.5×7.5×2.4cm

Weight:            110g

Power:             4 AA batteries

Sampling Rate:      ≥512 Hz

Sampling Accuracy:  12 bits

Channel:           12 channel (10 lead)

Security classification: internal power equipment, control fibrillation CF type.

Software (Core Competence)

1. 1. Software functions: 12 Lead Resting ECG, Vector ECG, Frequency ECG (FCG)
2. 2. Use most advanced ECG analysis method, can result 12 channel automatic analysis conclusion and ECG arrhythmia classification automatically.
3. 3. High Sample rate: 4096 Hz, and can print high resolution electrocardiogram.
4. 4. Improved database management system, doctors can do search, sort, edit, mark and delete patients data.
5. 5. Unique Baseline Straightening function during the whole period ensure the ECG wave smooth and Smooth no interference
6. 6. Automatically generate reports, and provide print preview.
7. 7. E-mail , PDF, ASCII, HL7, Dicom, GDT Interfaces
8. 8. Windows 2000, Windows 7, XP, Vista Compatible, and Mini Laptops running under windows environment…
