KA(R) slurry pumps are horizontal and cantilevered centrifugal pumps.They are suitable for transporting highly abrasive high density slurry or lower density high head slurry.Type KA pump is suitable for conveying high abrasive,high density or low density,high head slurry,while type KAR pump is for small size (d50≤0.2mm) particles or high density slurry,and sometimes corrosive slurry.
Direction for use
Chemical process
Heavy minerals
Paper and pulp
Mill discharge
Sugar beet
Slag granulation
Bottom boiler and fly ash
Cyclone feed
Power plants
Other industries
Operating limits:
Size range(discharge):25mm to 450 mm
Capacity:3.6-6480m3/h
Heads(TDH):4-69m
Max allowable particle size:depend on pump model
Type notation:
200KA(R)-ST
200;Diameter of outlet
KA:Heavy duty slurry pump with rubber liner
KAR:Heavy duty slurry pump with rubber liner
ST:Form of frame

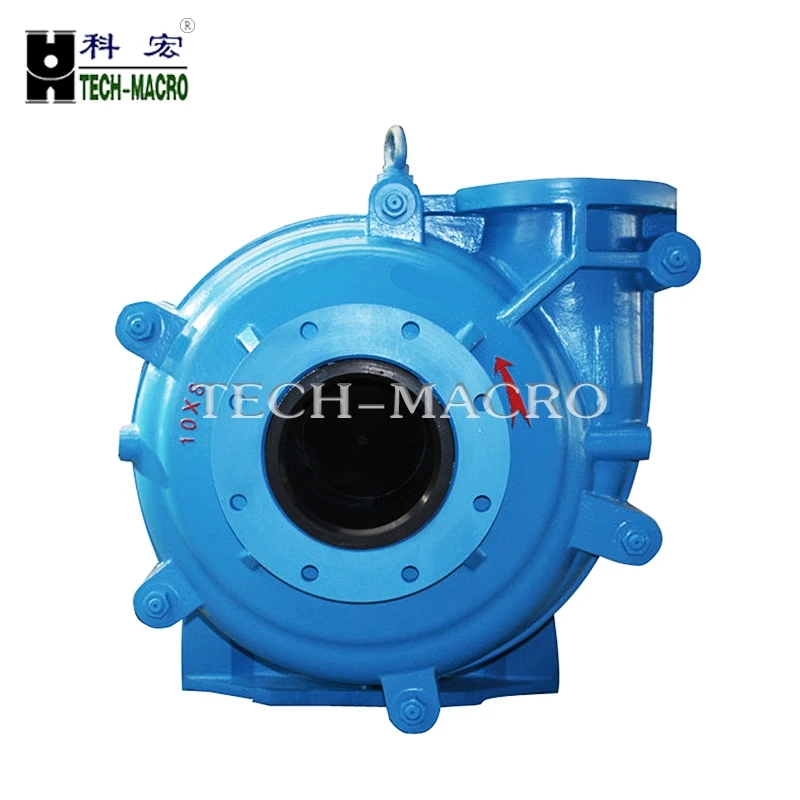

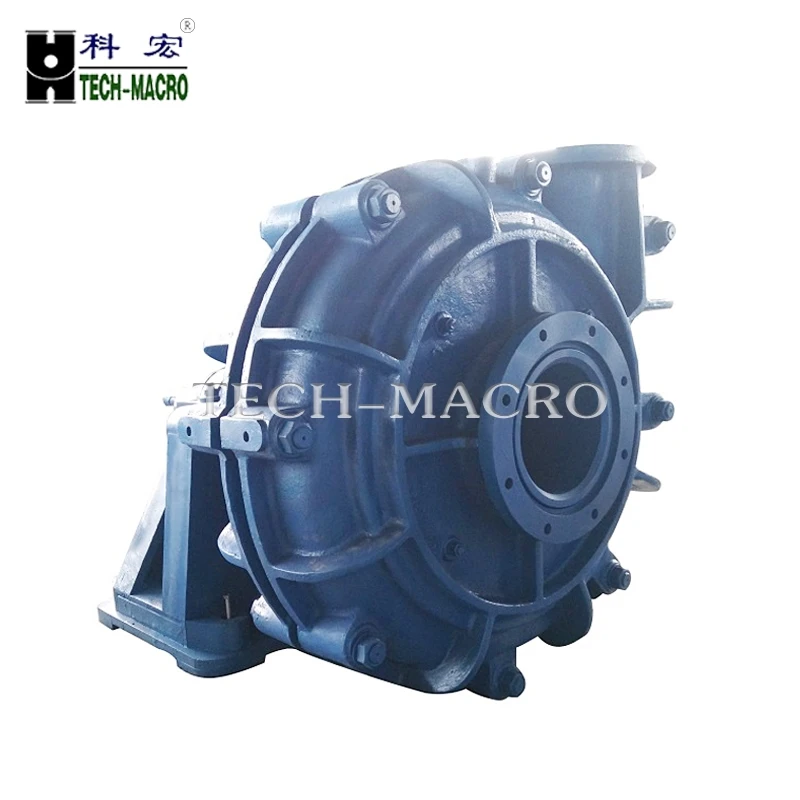

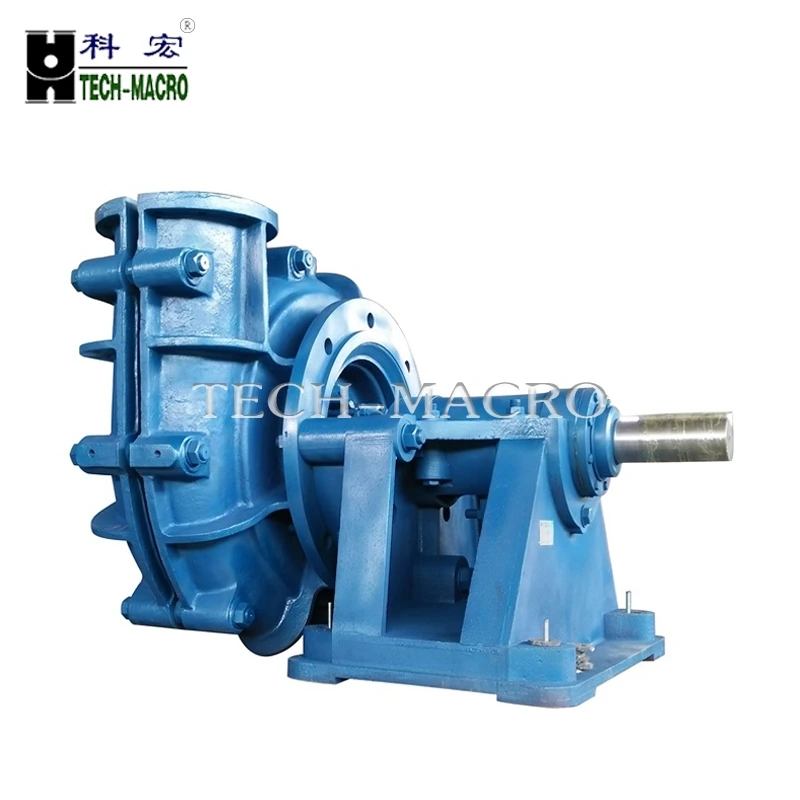

Detailed Images
Replaceable wear-resistant metal liners,impellers&volute liners are made of wear-resistant metal or rubber.
Bearing assembly uses cylindrical structure,adjusting the space between impeller&front liner easily,being removed completely when being repaired.Grease lubrication.
The impeller can be 2-6 blades ones,making the pump more effective.And the pump can achieve in excess of 87% in the best efficiency area.
Shaft seal could use the packing seal,expeller seal and mechanical seal.One pump also can be use packing seal with expeller seal together.
The discharge outlet can be positioned at intervals of 45 degrees by request and oriented to any 8 positions to suit installations and applications.
This pump can be installed in multistage series to meet the delivery for long distance.

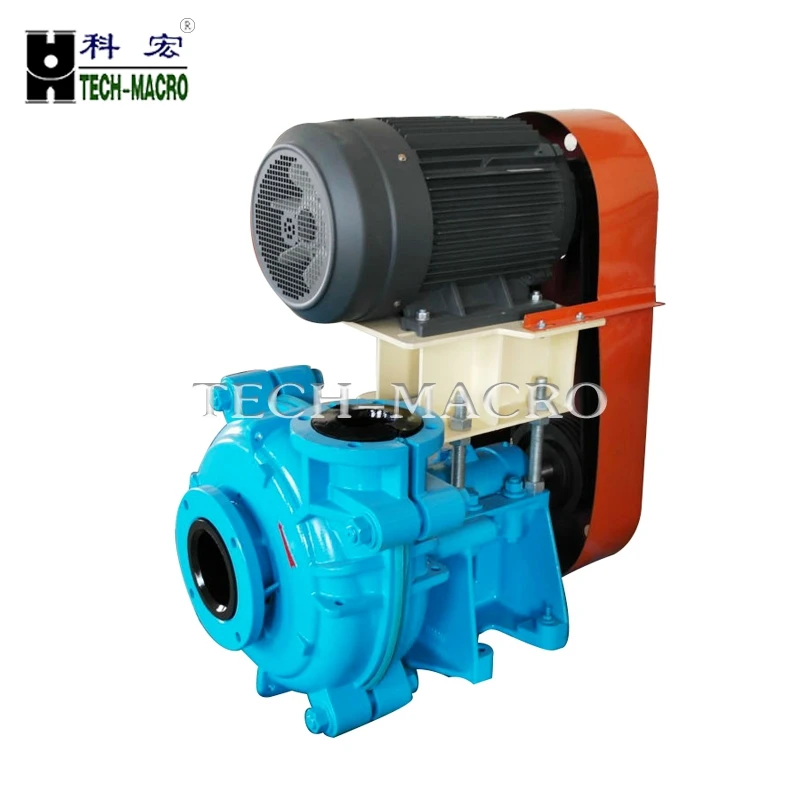

Drive types:direct coupling drive(DC),V belt drive (CR,CV,ZV,CL),etc.
