24x24 inch Industry air hepa filter
- Category: >>>
- Supplier: Dongguan Senbao Purifying Equipment Co. Ltd.
Share on (60432174180):
Product Overview
Description

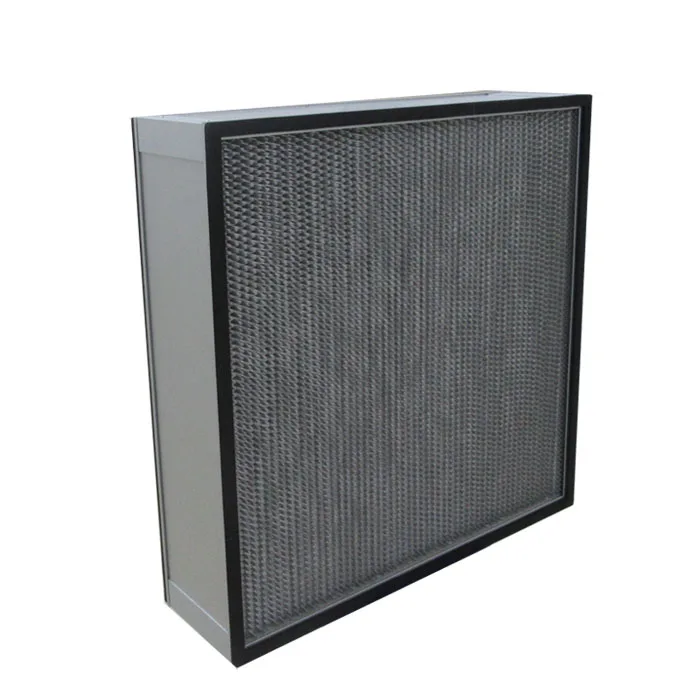

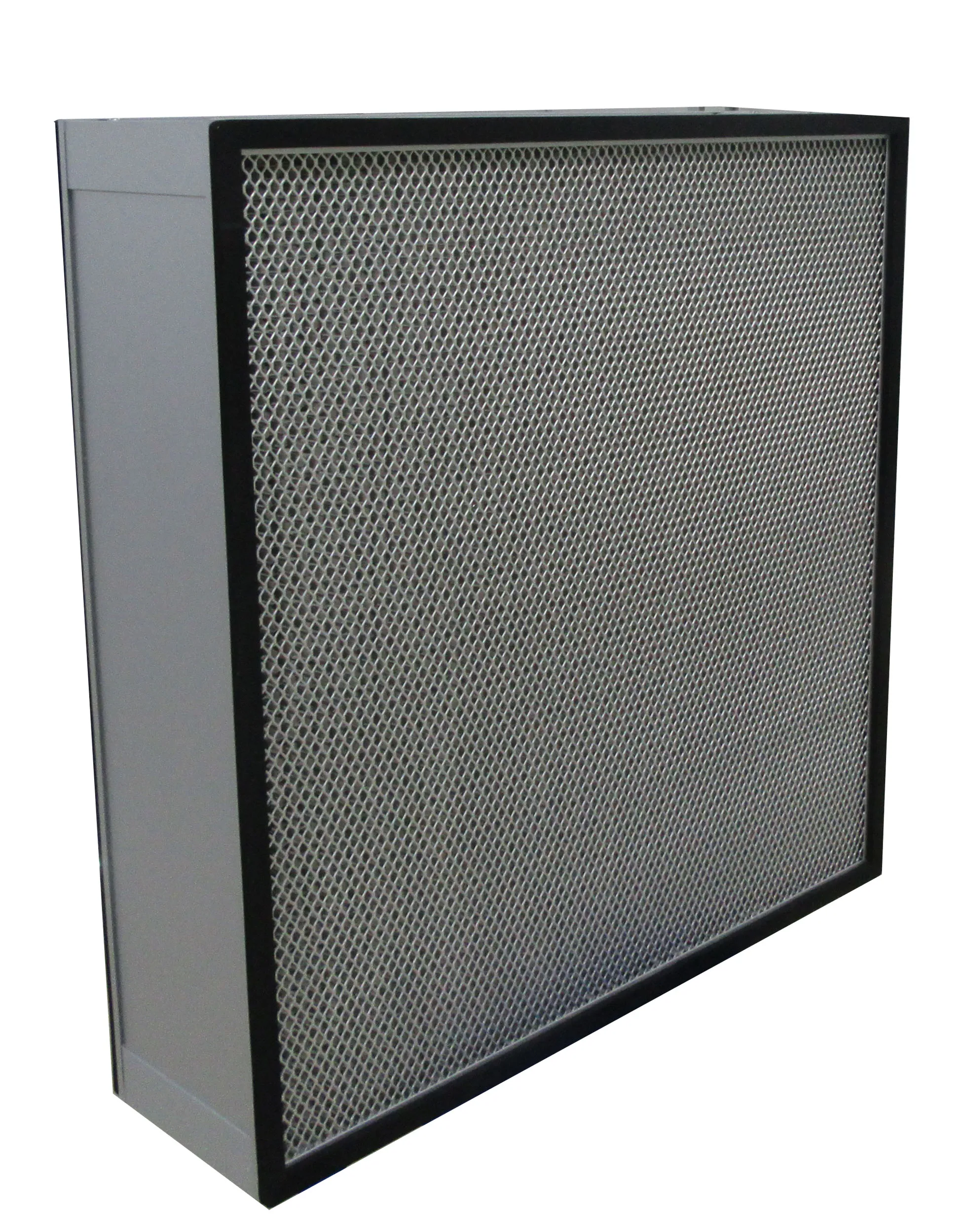

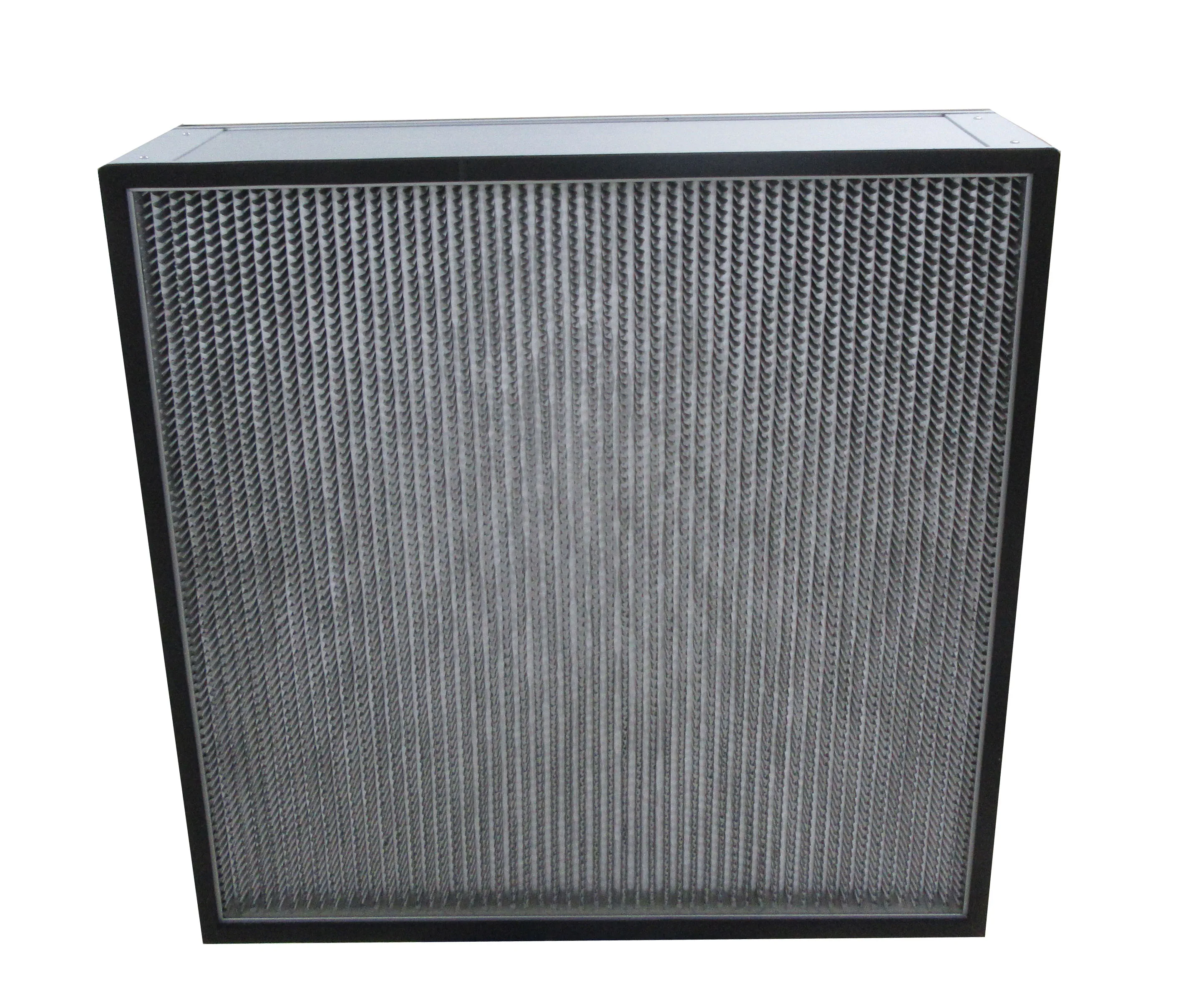

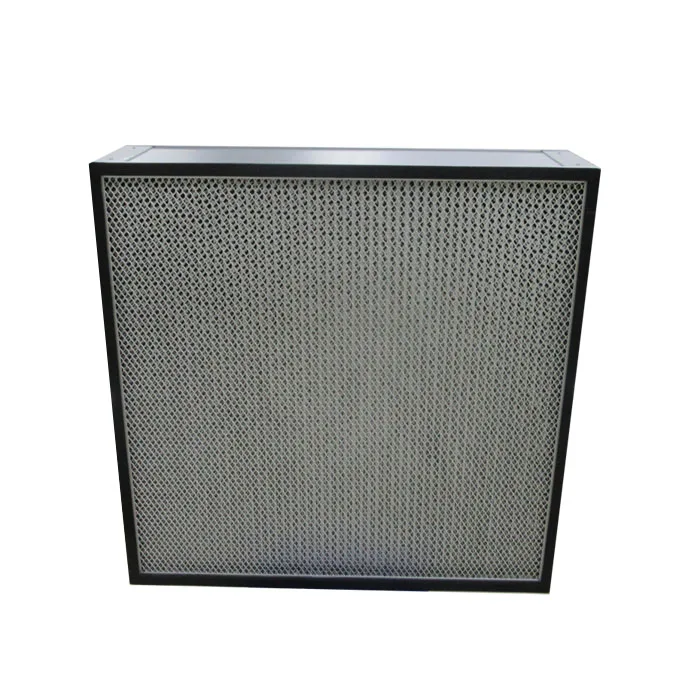

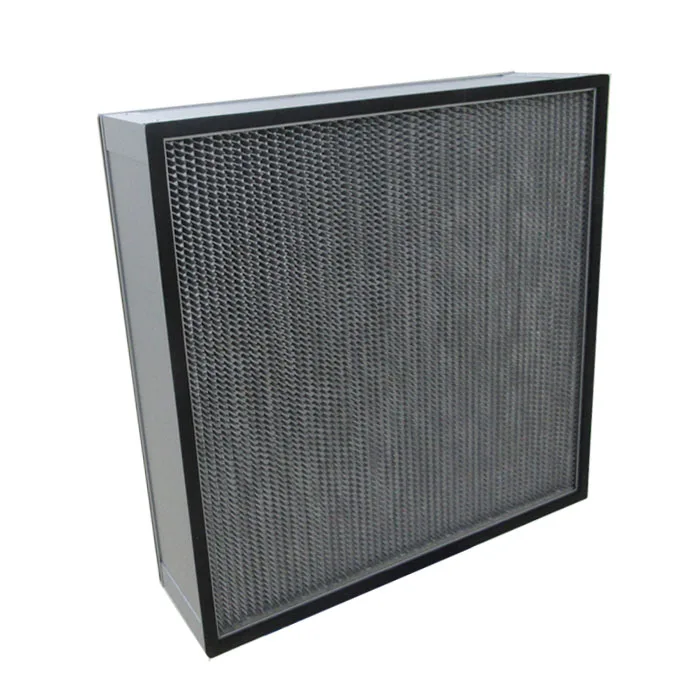

24x24 inch Industry air hepa filter
Product Description
High Efficiency Particulate Air (HEPA) filters are the most efficient air filters commercially available. They have broad application in cleanrooms and other areas requiring the very highest levels of contamination control.
Material and performance
External frame | Aluminum ,wood
|
Filter medium | Fiberglass |
Partition | aliuminum foil / paper |
Sealant | Polyurethane adhesive |
Max.temperature | 85°C |
Max. humidity | 80%RH |
Specification and technical parameters
Model NO. | Size L*W*H (mm) | Rated air flow (m³/h) | Initial resistance (pa) | Efficiency 0.3μm(flame method) |
| GA-02 | 320*320*220 | 400 | ≤220 | 99.99% |
| GA-02 | 484*484*220 | 1000 | ||
| GA-02 | 610*610*150 | 1000 | ||
| GA-02 | 630*630*220 | 1500 | ||
| GA-02 | 915*610*150 | 1500 | ||
| GA-02 | 595*595*290 | 2000 | ||
| GA-02 | 1220*610*150 | 2000 | ||
| GA-02 | 1260*630*220 | 3000 | ||
| GA-02 | 945*630*220 | 2200 | ||
special size can be according to customer special requirement | ||||
Performance & Applications
Industry air hepa filter is available in a variety of efficiencies including 99.97%, 99.99% and 99.999% on 0.3 micrometer particles and also is available with laser scanned factory certification.
Energy Saving Design
The pleat openings and exits of the Senbao filter deliver low entrance and exit losses. This combined with less restriction from separator material and better media utilization delivers a low pressure drop. The high capacity (HCX) model utilizes tapered separators which allow a doubling of airflow with only a 40% increase in resistance. The lower operating resistance reduces operating costs and saves energy.
