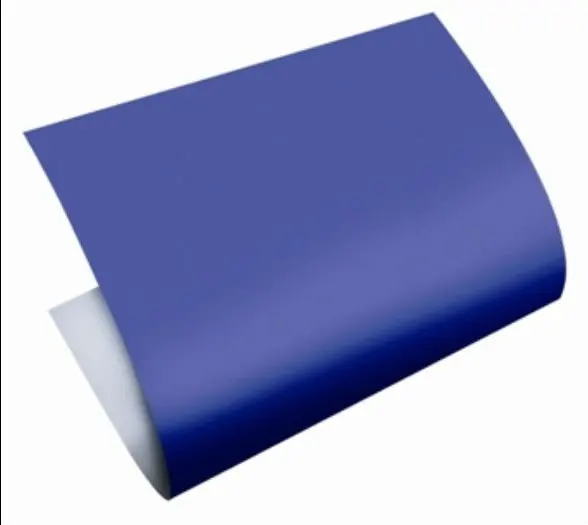

UV ink ctp thermal plate for newspaper printing and commercial printing

                  Huaguang TP-U Technical Specifications

Plate Type

Positive working, double-coating, specially for UV Ink

Application

Medium for sheetfed, web offset press

Aluminum

Electrochemically grained and anodized aluminum substrate

Gauge

0.15/0.20/0.25/0.30/0.40 mm

Maximum short grain width

1320 mm

Spectral sensitivity

800 - 850nm

Platesetter compatibility

All the main brands in market

Laser energy required

110 mj/cm2 - 130 mj/cm2

(varies based on platesetter manufacturer and developing condition)

Resolution

1% to 99% @ 200 lpi. Dependent upon capability of imaging device.

FM capability

20 micron stochastic.

Developer

HUAGUANG TPD, Kodak Goldstar Premium,

IMAF Therm 830/ One Plus etc

Processing

23°C/30 seconds

Run length

50,000 impressions for UV-Ink unbaked, over 300,000 impressions for normal Ink unbaked.

Actual run length may wary according to press/paper/ink conditions

Safelight

Daylight handling

Shelf life

12 months, under recommended storage conditions

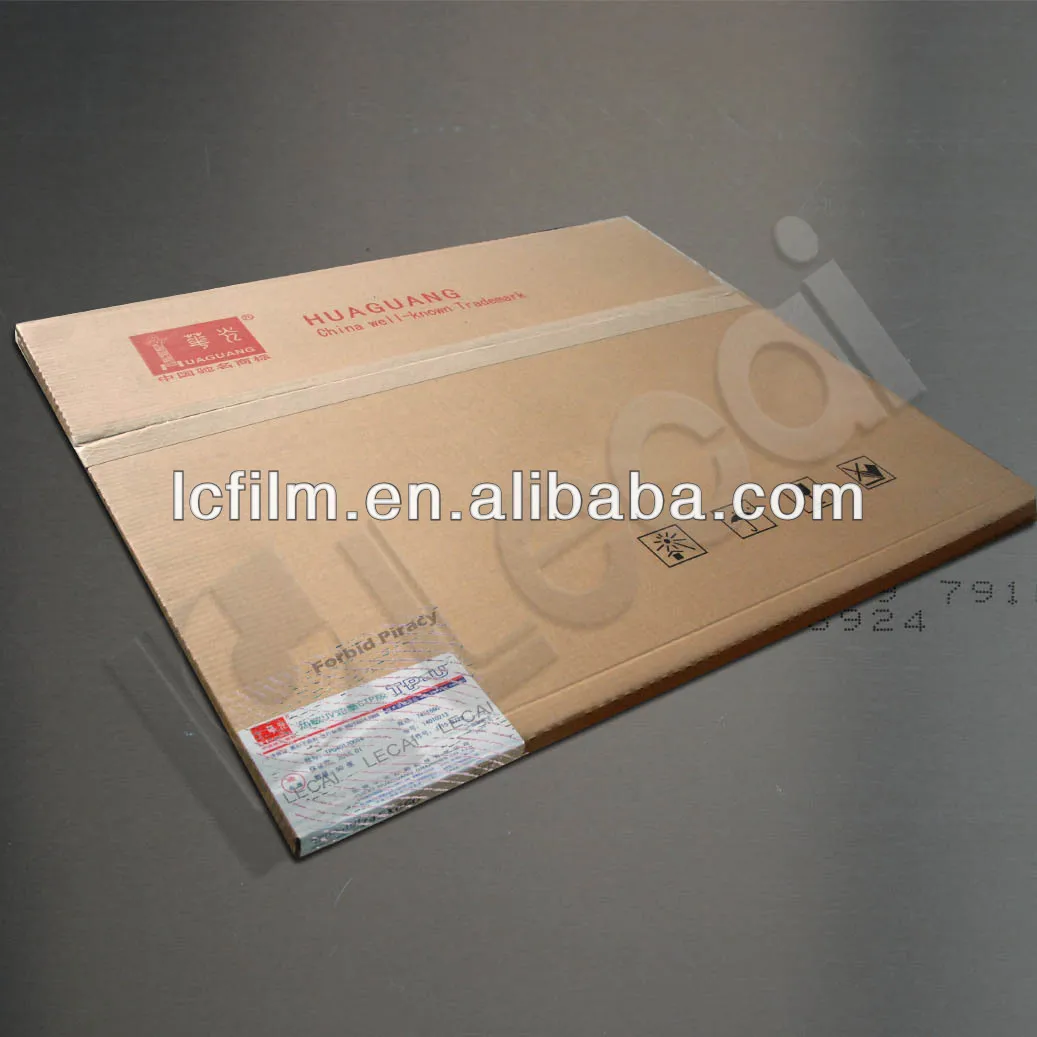

Transport and storage

Store plates flat in their packaging,

away from excessive cold, heat or high humidity,

Recommended condition is:

Temperature 10-26°C & RH between 40 -70%.
