9.9hp electric outboard motor remote control long shaft
- Category: >>>
- Supplier: Suzhou Parsun Power Machine Co. Ltd.
Share on (60432505902):
Product Overview
Description
9.9HP ELECTRIC OUTBOARD MOTOR remote control long shaft
4-stroke outboards
Product Description
With the development of the new technology and increasingly stringent environmental requirements, in order to satisfy clients more, PARSUN Power Machine Co., Ltd develop the /5/7/9.9 horsepower electric outboard. It has applied US high-tech patents, designed to be clean and quiet for environmentally sensitive waters.
Compared with traditional gasoline outboard engine, it provides plenty of power for trolling and propulsion. And It has the conventional outboards construction and design, which provides trust-worthy reliability. If needed, two electric outboard motors can be used in parallel.
Following are more features:
1. No emission of pollution at all, meet the environmental requirements of low-carbon; smooth running and low noise.
2. More reliability and longer life because of water-cooled electrical motor and controller; Centralized control and easy operation.
3. With multiple protections, such as over-speed protection, overload protection, temperature protection, over-voltage and over-current protection. Equipped with emergency stop switch, the outboards can be stopped in emergency.
4. Users can choose to configure liquid crystal display which can show fault code, power consumption, rotation rate, corotation or reversal, voltage, current, etc. Users can choose to configure hydraulic tilt device as well.
And that is not all, the main controller of /5/7/9.9HP electric outboard motors are made in U.K.. We can provide the remote control system, which is very suitable for sightseeing boats.

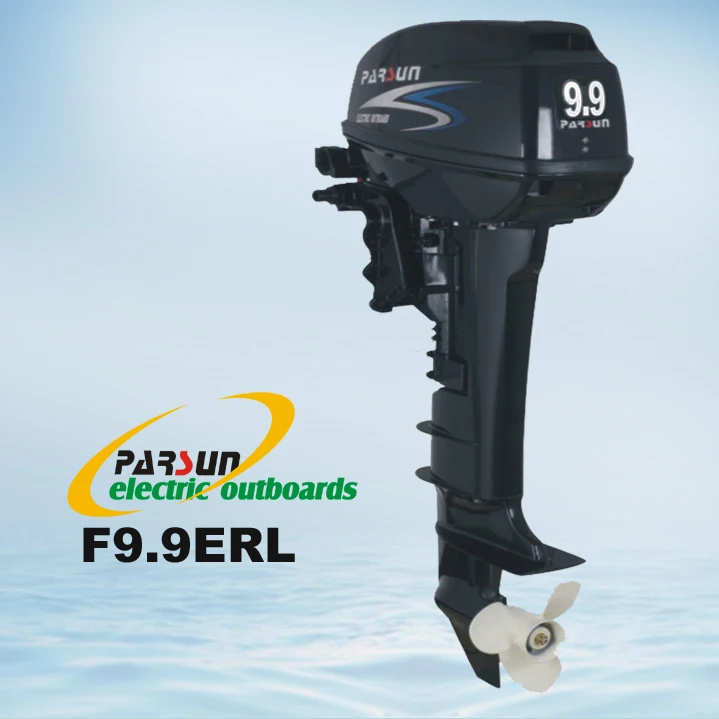

F9.9ERL Electric outboard motors specification | ||
Item | Unit | F9.9ERL |
Overall length | mm(in.) | 488(19.2) |
Overall width | mm(in.) | 281(11.1) |
Overall height | mm(in.) | 1039(40.9) |
Transom height | mm(in.) | 508(20.0) |
Weight | kg | 42 |
Full throttle operating range | r/min | 4200 |
Maximum output | kW(HP)@r/min | 7.3(9.9) |
Engine type | Electric Motors | |
Rated Voltage | V | 48 |
Number of Stator | 1 | |
Maximum Current | A | <180 |
Control system | Remote Control | |
Motor Effciency | % | >80 |
Gear positions | Forward-Neutral-Reverse | |
Gear ratio | 2.08(27/13) | |
Trim and tilt system | Manual tilt | |
Gear oil capacity | cm3 | 250 |
Propeller options* | in | 3-91/4"×8" or 3-9 1/4"×10"or3-9 1/4"×11" |
PARSUN ADVANTAGE
Certifications
Company Information
Parsun Power Machine ( Suzhou ) Co., Ltd was founded in 2001 and our technology core team, led by our Chief Engineer, have experience of outboards since 1968 and cooperated with OMC (the original manufacturer of Johnson and Evinrude outboard engines, merged by BRP ) to develop critical components for high-power outboard engines in last 90s.
Our US high-tech partner Elco Motor Yachts, LLC from New York and Japanese senior engineers not only offer technology or patent for our products, parts and accessories, but also outsource critical parts & materials from US, Japan, Germany, UK globally to meet up the highest US stan-dards and quality level.
With such professional background, Parsun, ranking the 2nd next to Mercury in the last five years in a row, has achieved 3 quarters of export from China as per customs statistics except Mercury ( Suzhou ) plant.
Meanwhile Parsun has become the official supplier of outboards for World Expo Shanghai 2010.
As a US brand, Parsun outboards have been entering into most countries in the world successfully including NGO and army.
