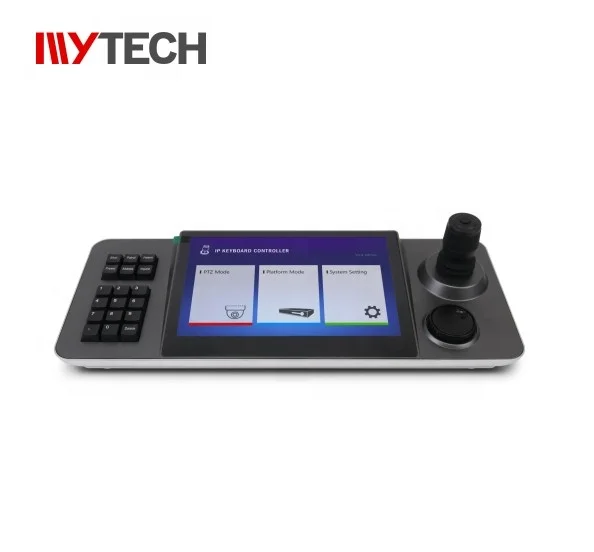

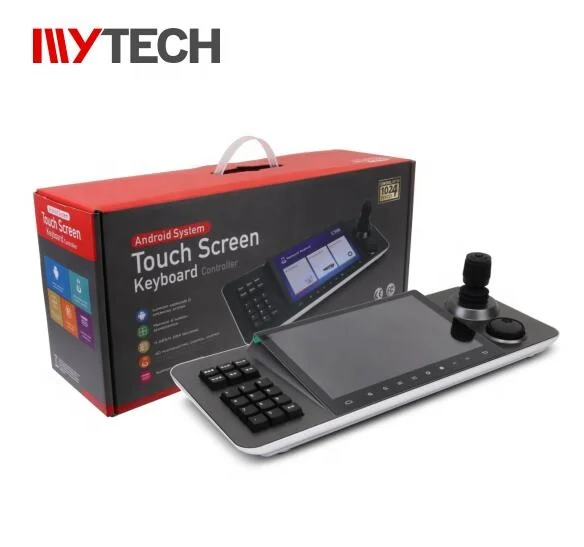

MYtech Android touch ip camera cctv ptz controller YCV 41BP(T) with decoding function
- Category: CCTV Accessories >>>
- Supplier: Shenzhen Mingyang Ages Electronics Co. Ltd.
Share on (60432554831):
Product Overview
Description
Product Description
YCV-41BP features&function:
1. 10.1 inch capacitive touch screen
2. Support Android 6.0 operating system
3. Support H.265 / H.264 / decoding, maximum 4 screen segmentation

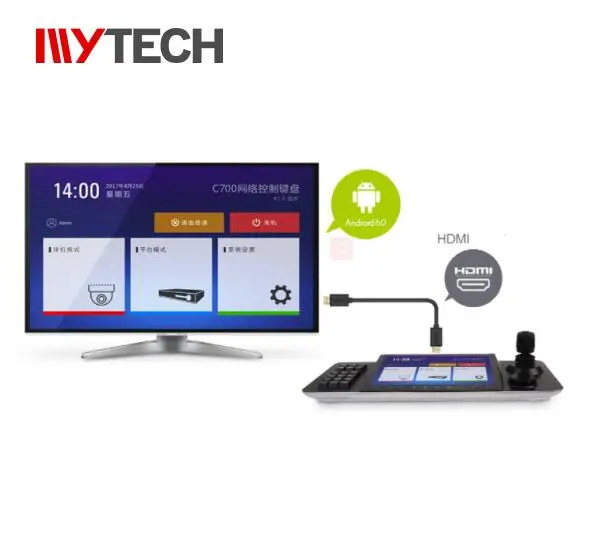

4. Support viewing images on the touch screen or putting images on the display via HDMI
5. Support the network access to the full range of our PTZ Camera
6. Support PTZ control, preset,Patrol and track set and call
7. Support ONVIF protocol
8. Support up to 1024 devices to add
9. Support U disk upgrade, external mouse
2. Support Android 6.0 operating system
3. Support H.265 / H.264 / decoding, maximum 4 screen segmentation
4. Support viewing images on the touch screen or putting images on the display via HDMI
5. Support the network access to the full range of our PTZ Camera
6. Support PTZ control, preset,Patrol and track set and call
7. Support ONVIF protocol
8. Support up to 1024 devices to add
9. Support U disk upgrade, external mouse
Product details
YCV-41BP the security video decoding control keyboard can be used in various important conference venues, such as government and telecommunications departments, public security, procuratorates, courts, banks, securities, insurance, education, taxation, etc.,to control cameras in a simple and fast manner.
Product Paramenters
product parameters | ||
Model Number | YCV-41BP | |
Operating system | Android 6.0 | |
screen size | IPS 10.1 inch Screen，Resolution 1280*800 Capacitive touch screen | |
Display | Support HDMI 4K@30fps | |
Decoding capability | 1.Support h264/h265 2.Max Support h264 1x1080p@60fps 3.Max Support h264 4x720p@30fps 4.Max Support h265 1x4k@30fps | |
Protocol | Support Onvif2.4 ,Support OEM | |
Function | 1.Supports up to 1024 devices to add 2.Support PTZ Control 3.Support Preset 4.Support Patrol 5.Support Pattern | |
System settings | 1.Support language settings 2.Support password modification 3.Support U disk upgrade | |
Power | Standard 5.5/2.1 Power interface， DC 12V2A±10% | |

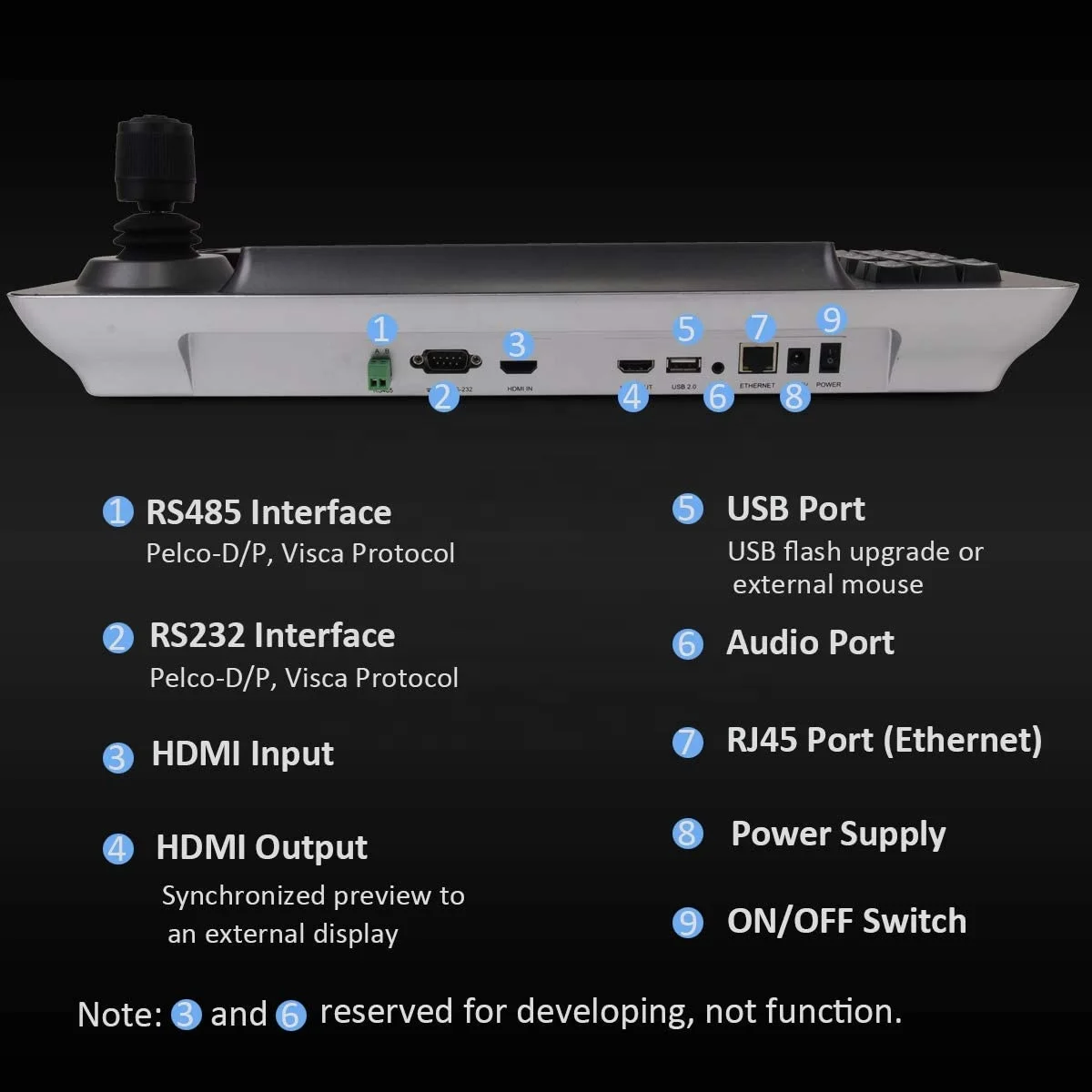

Interfaces | > One RJ45 (Network) > One Phoenix Port（RS485） > One RS232 > One HDMI Output,Version 1.4 > One USB2.0 > A standard 3.5MM headphone jack | |
Operation interface | Support 4D Joystick,Support button | |
Power consumption | ＜15W： | |
Standby current | ＜100mA | |
Mean time between failures | ＞30000 | |
storage condition | ||
Working humidity | 10%-90%RH() | |
Working temperature | -10°C-40°C | |
Storage temperature | -40°C-60°C | |
Packing & Delivery
Standard Export Carton
1 unit per carton
Carton Box Inner Size: 480mmX220mmX180mm
1 unit per carton
Carton Box Inner Size: 480mmX220mmX180mm
delivery method
diversified shipping method like by express like DHL and Fedex, by Air, by sea
hot products
Company Profile

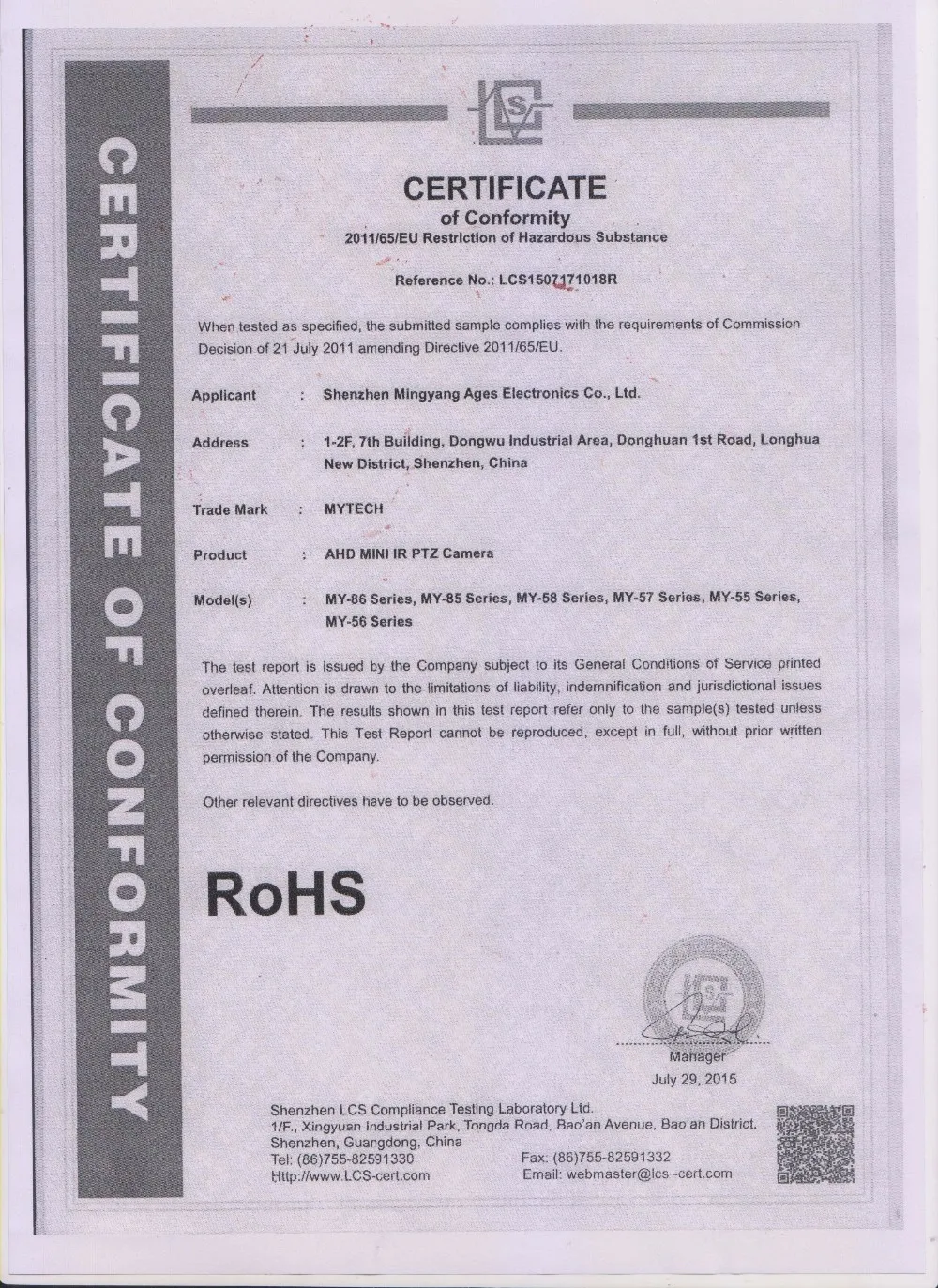

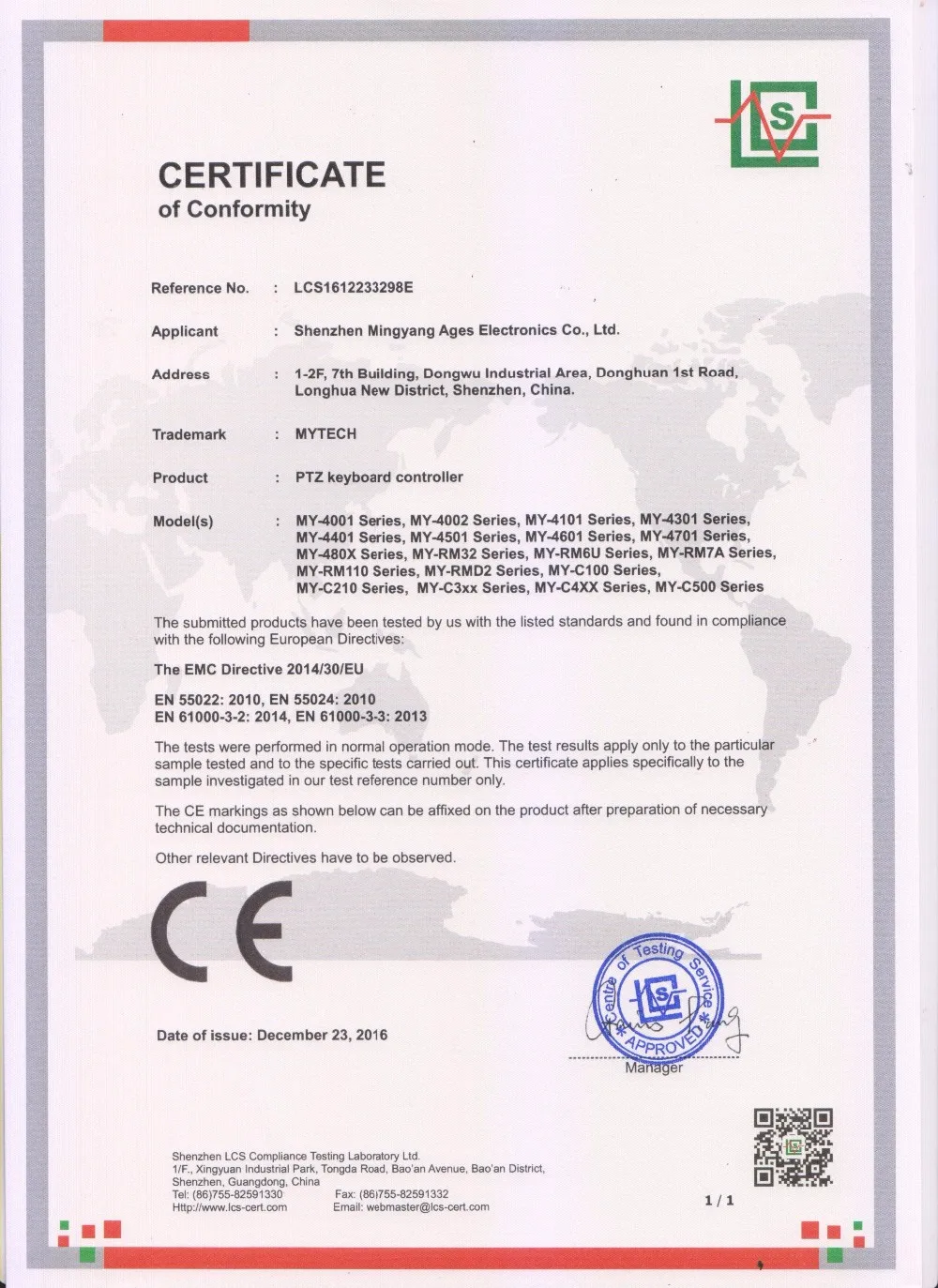

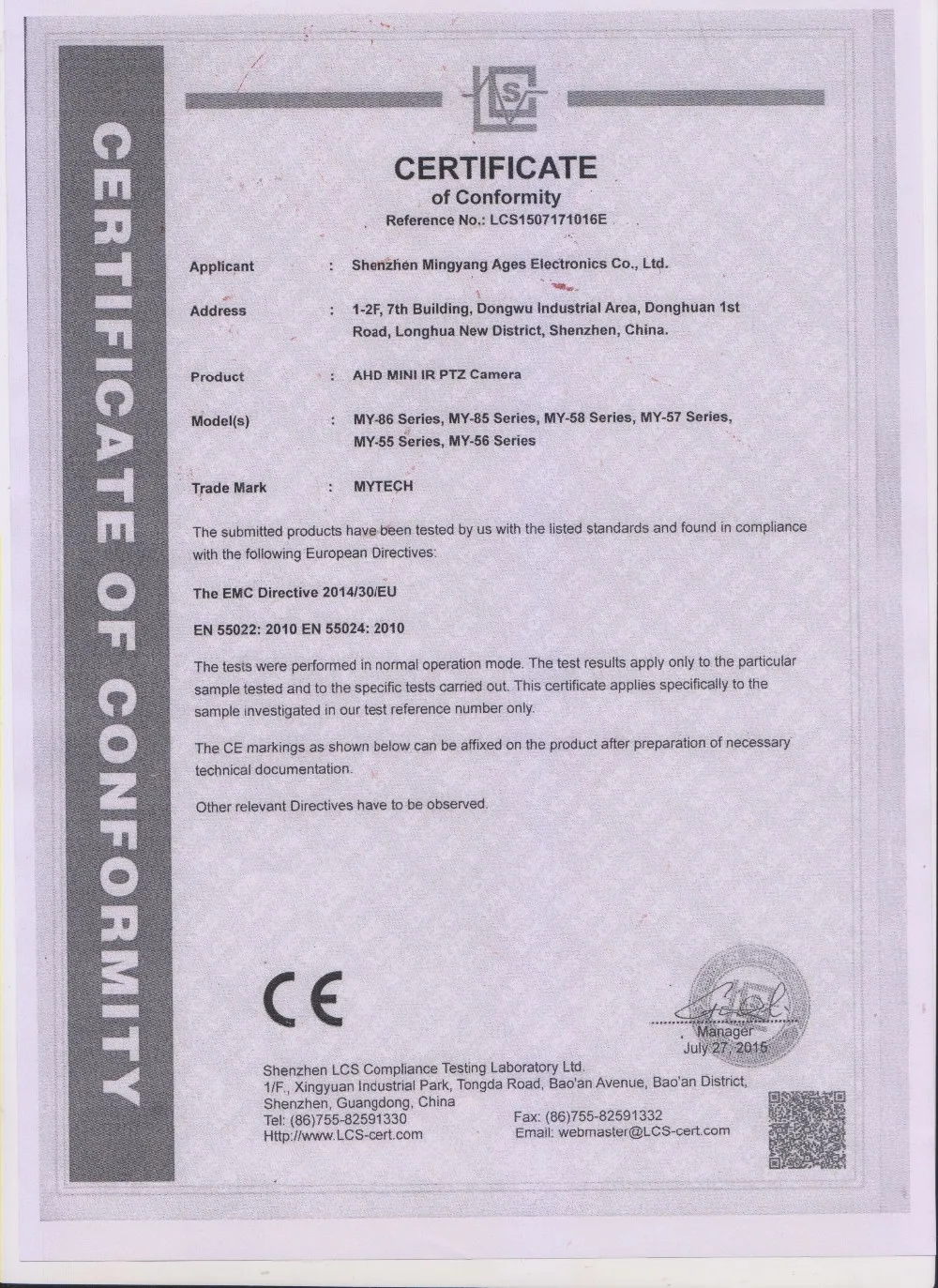

Certifications
