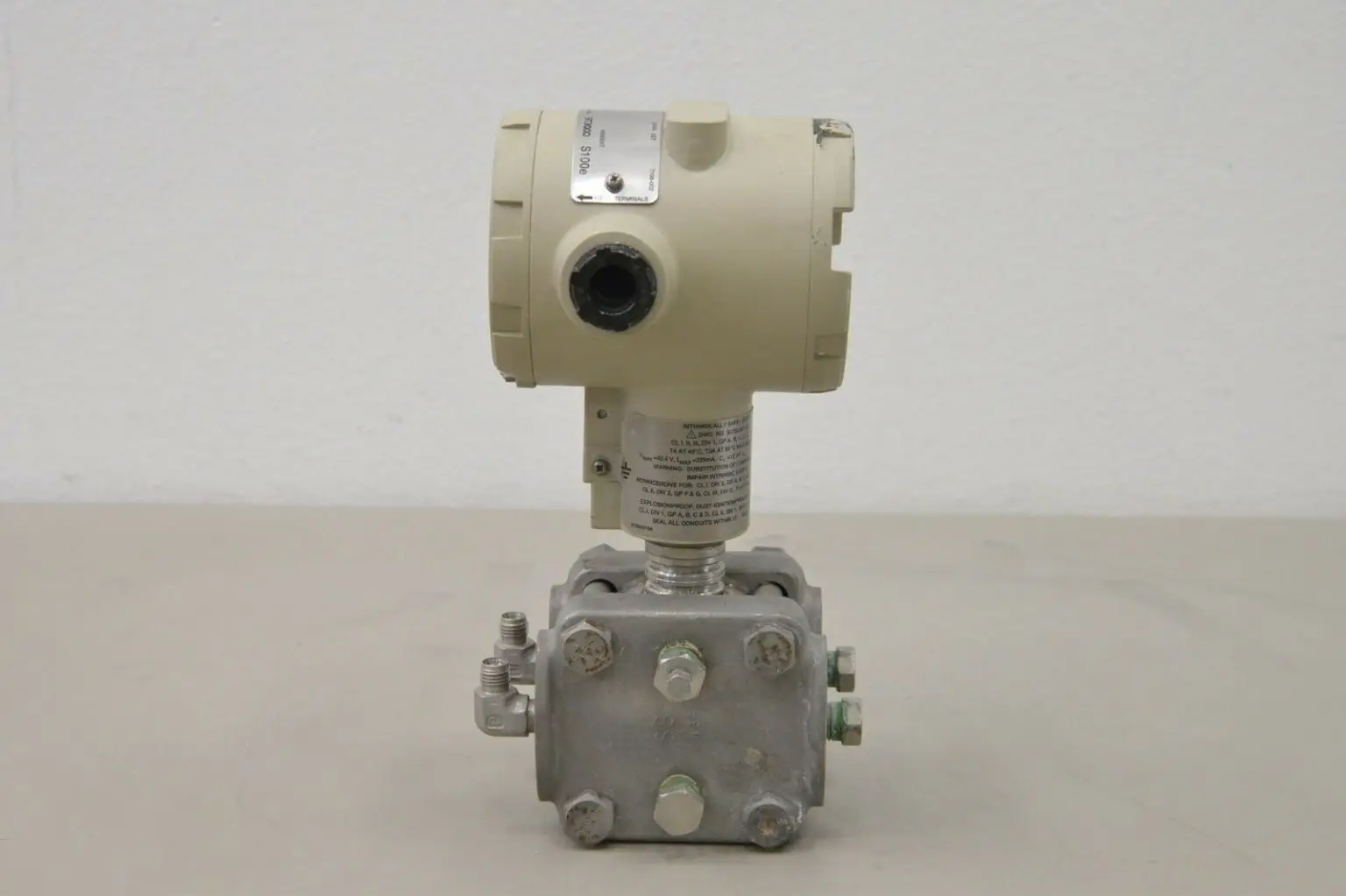

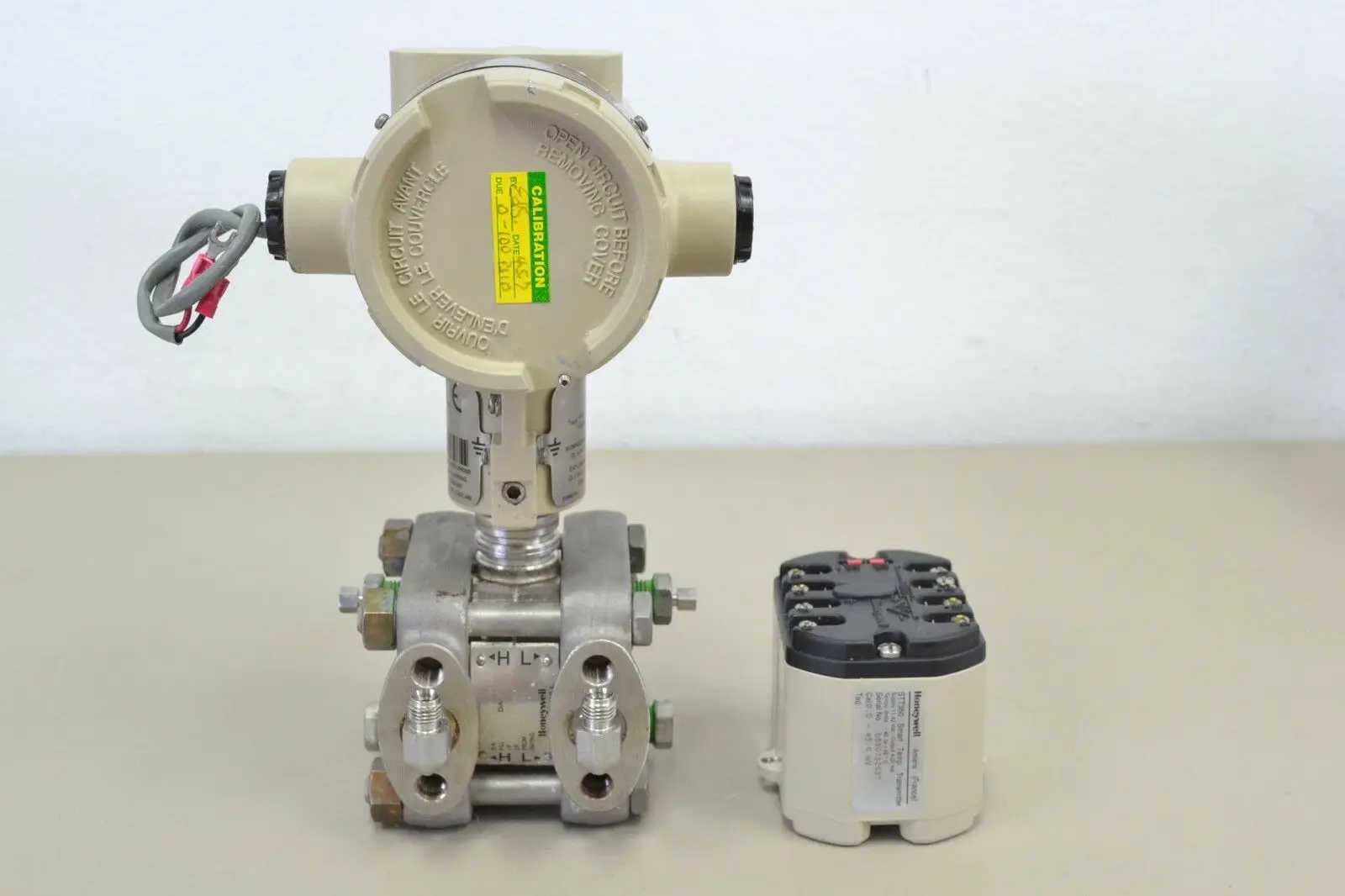

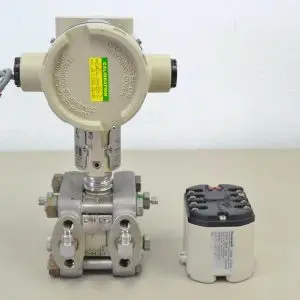

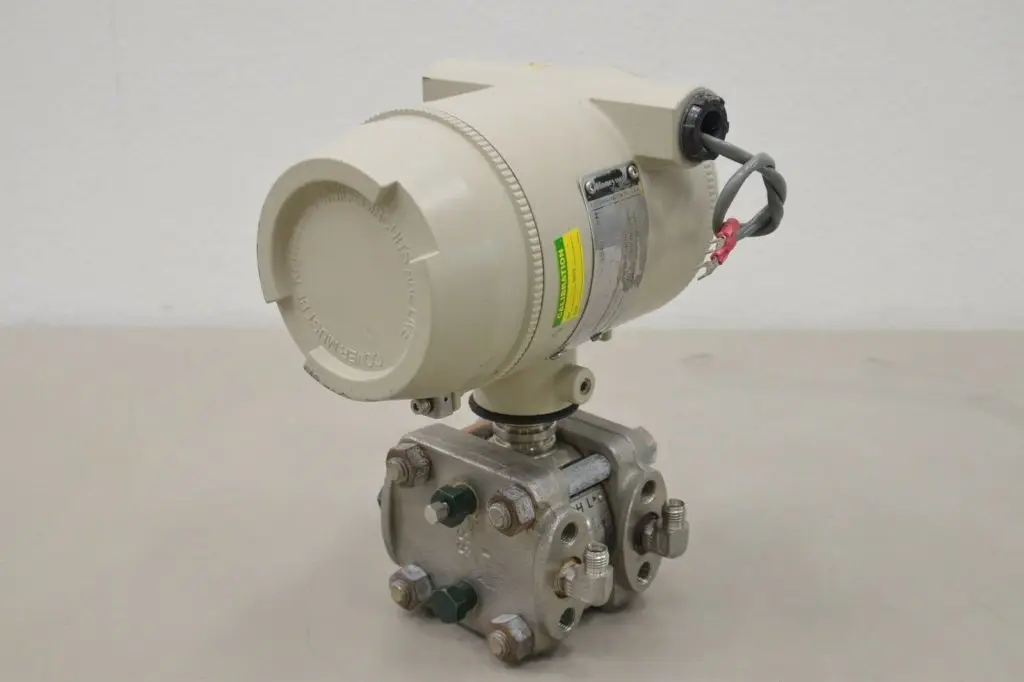

Передатчик дифференциального давления Honeywell STD130
- Category: >>>
- Supplier: Wenzhou Conch Electric Co. Ltd.
Share on (60432644225):
Product Overview
Description
Note
1, We supply Original Pressure Transmitter with very competitive price .
2, We well know the pressure transmitter is used for the very dangerous area, for the first coorperation , sample for testing is welcomed .
3, we have reliable forwarder who can deliver your goods safely and promise you low freight cost
4, We will help you to avoid expensive tax.
5, Should you have any questions, please feel free to ask us any time !
Product Description
Introduction
In 1983, Honeywell introduced the first Smart Pressure Transmitter- the ST 3000®. In 1989, Honeywell launched the first all digital, bi-directional protocol for smart field devices. Today, its ST 3000 Series 100 Differential Pressure Transmitters continue to bring proven “smart” technology to a wide spectrum of pressure measurement applications, from furnace combustion airflow rate to hydrostatic tank gauging. The ST 3000 Series 100 (S100) Differential Pressure Transmitter can be used with any primary flow element to provide proven, repeatable flow measurement.
Models | ||
STD110 STD120 | 0 to 10 inH2O 0 to 400 inH2O | 0 to 25 mbar 0 to 1,000 mbar |
| STD125 | 0 to 600 inH2O | 0 to 1,500 mbar |
STD130 STD170 | 0 to 100 psi 0 to 3,000 psi |
0 to 7 bar 0 to 250 bar
|
All ST 3000 transmitters can be ordered to provide one of
the following output communication options
| Communications options |
4-20 mA Honeywell Digitally Enhanced (DE) |
HART® (versions 5.x or 6.x) |
FOUNDATION™ Fieldbus
|
When digitally integrated with Honeywell’s Experion® Process Knowledge System or other TDC/TPS systems,ST 3000 instruments provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies as well as providing advantages from the many other on-board advanced diagnostic features. Honeywell’s high-performance ST 3000 S100
transmitters lead the industry in:
• Accuracy
• Stability
• Reliability
• Rangeability
• Warranty
| ST 3000 Lifetime™ Transmitter Benefits |
Total Accuracy = ±0.0375% |
Rangeability = 400 to 1 |
Lifetime Warranty = 15 years |
The devices provide comprehensive self-diagnostics to help users maintain high uptime, meet regulatory requirements,and attain high quality standards. S100 transmitters are ideal for critical applications, such as custody transfer of natural gas and energy and material balances, where accuracy and stability are important.
| Features |
| Choice of linear or square root output conformity is a simple configuration selection |
| Direct digital integration with Experion PKS and other control systems provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies. |
| Unique piezoresistive sensor automatically compensates input for real-world temperature and static pressure variations |
| Added “smart” features include configuring lower and upper range values, simulating accurate analog output, and selecting preprogrammed engineering units for display |
| Smart transmitter capabilities with local or remote interfacing means significant manpower efficiency improvements in commissioning, start-up, and ongoing maintenance functions. |
| ST 3000 transmitters feature full Dual-Seal certification based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.01 requirements without the use of additional seal protection elements. |
| ST 3000 transmitters are available fully compliant to SIL 2/3 requirements as a standard option. |
Company Information
CONCH---Create world brand in China Explosion-proof industry.
Conch Explosion-proof Electric was founded in 1998 and in China Explosion-proof Electric Appliance Production Base ---Central Industrial Park, Yueqing. It is specialized in producing explosion proof products and elements of 180-odd series and more than 2,000 specifications such as mining explosion products, factory explosion products and marine explosion-proof products, now, the company has become the strongest explosion proof enterprise on specially and supplementary property in China.
Conch has owned 3 professional branch companies, 8 holding enterprise, more than 300 professional cooperating manufacturers, it sales network integrating sales and service covers the whole country. Besides it has established many sales general agencies abroad. Because of excellent performance, the products are widely used for following fields: aviation, military project, mine, wine making, textile, food, medicine and so on. They are not only sold well in domestic market, but also in Vietnam, Korea, Mongolia, Pakistan, Central Asia, Middle East and so on.
Packaging & Shipping
Ship worldwide by sea, air, DHL, UPS,TNT, FEDEX and so on.
We often ship item in 5 business days.
