hvac system ceiling grille aluminum square false ceiling in 4 way air diffuser

Share on (60432807054):


Price:$4.75 - $5.94

Quantity:


Product Overview

Description

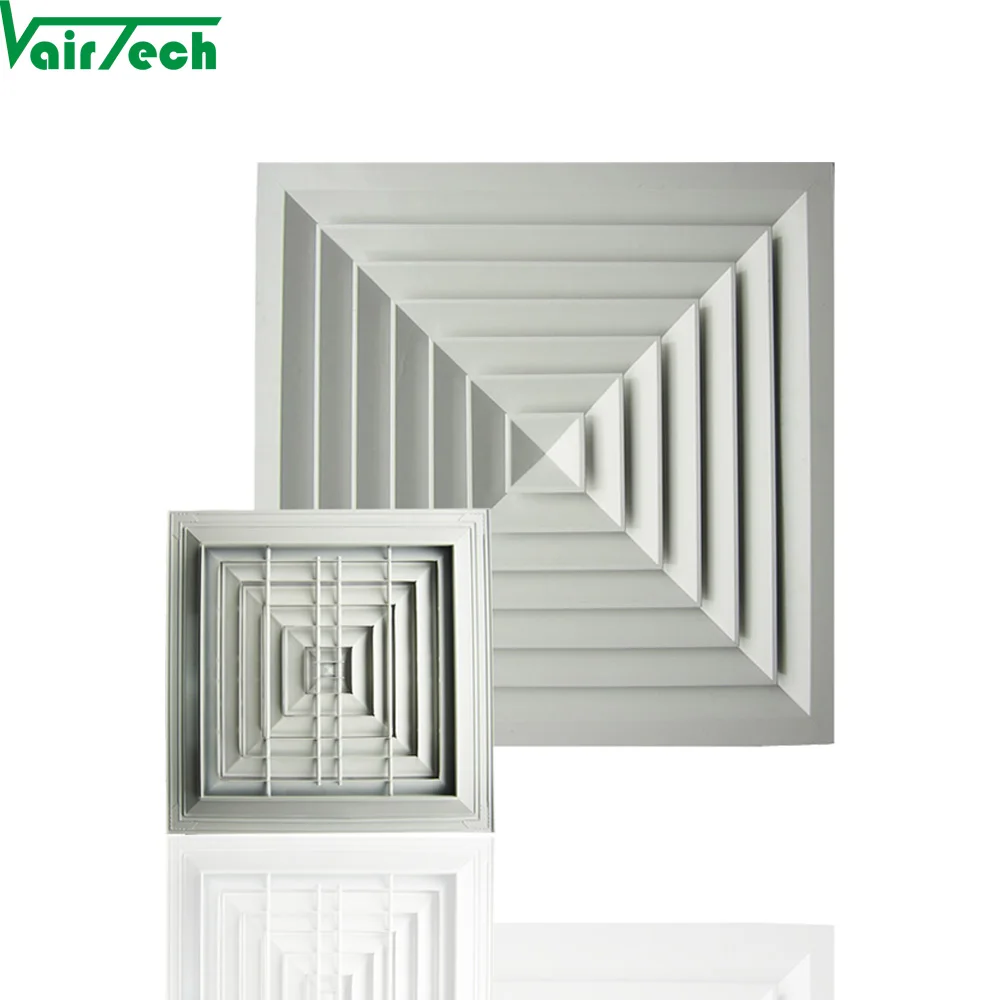

hvac system ceiling grille aluminum square false ceiling in 4 way air diffuser



Product Description

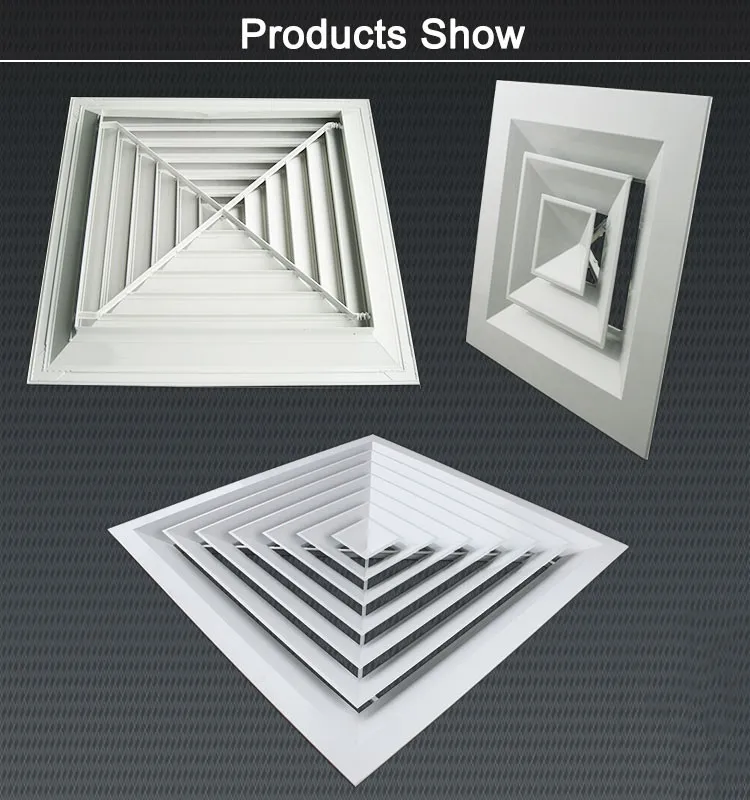

SD-air-diffuserSD-air-diffuser-products-show


Vairtech air diffuser is a device that is designed to provide uniform air flow throughout a room. It works to increase the efficiency of air conditioning units by dividing and distributing cooled air. When an even airflow is maintained, drafts and hotspots in a room are eliminated, providing greater comfort to occupants, while increasing energy efficiency.





Construction:



  • Frame: High quality extruded aluminum alloy(A6063) profile with 27.5mm flange width

  • Core: High quality extruded aluminum alloy(A6063) profile in 38.4 degree





Description:

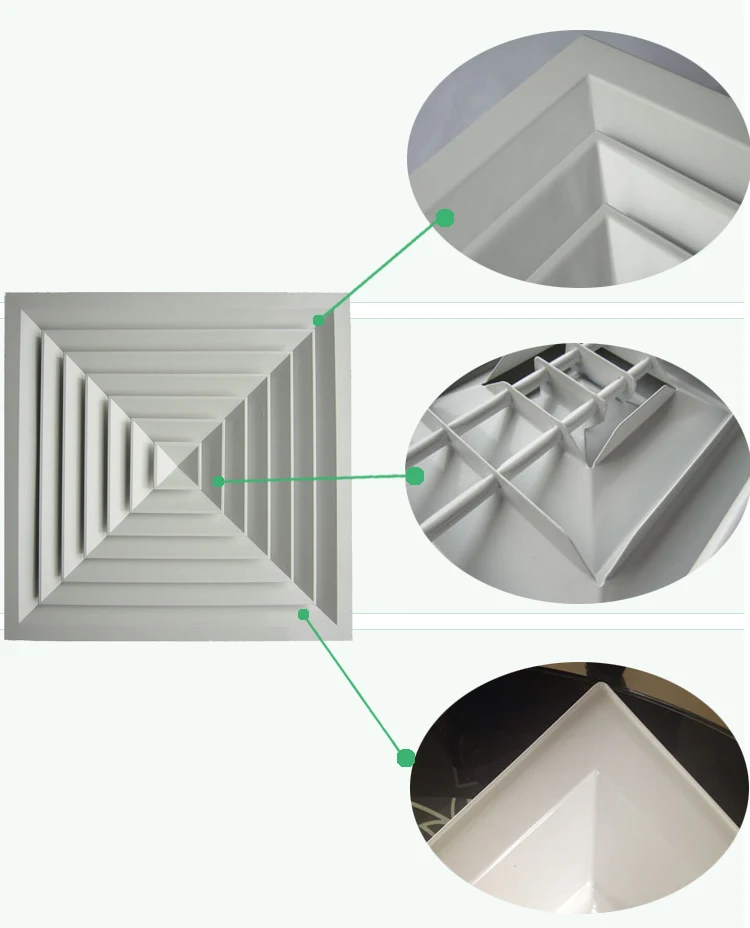

  • The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.

  • Louvered type core is fixed to the frame with aluminum pins loaded with steel springs. Core can be easily removable and interchangeable to allow for maximum flexibility in the installation, maintenance and damper adjustment.





Surface Finish:



  • Powder coated color finish as per RAL color


          standard color: RAL9016, 9010



  • Natural anodized aluminum finish





Size:

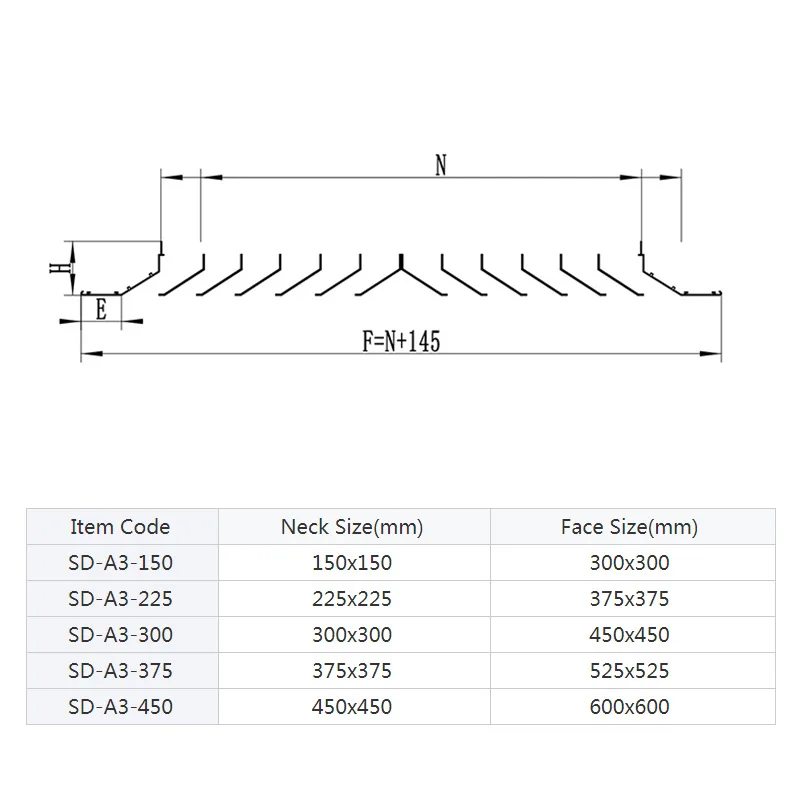

SD-A3-drawing



  • Any size is available



  • Overall face size = Neck size +145m



  • Standard size




































Item Code



Neck Size(mm)



Face Size(mm)



SD-A3-150



150x150



295x295



SD-A3-225



225x225



370x370



SD-A3-300



300x300



445x445



SD-A3-375



375x375



520x520



SD-A3-450



450x450



595x595





  Accessary:


SD-A air diffuser accessories











Application

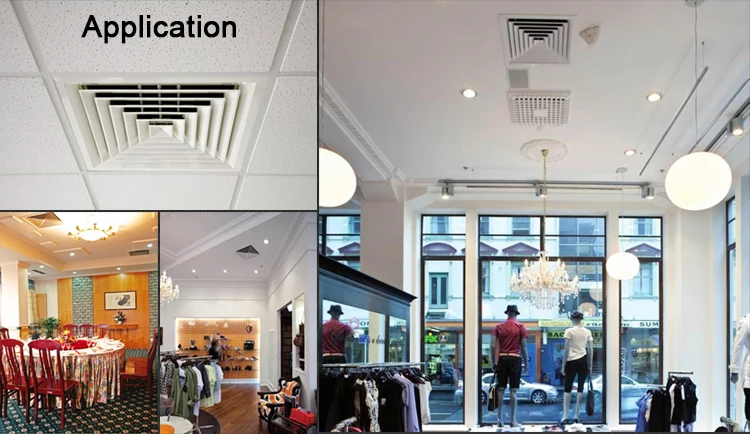

 SD-A air diffuser application








Technical data


 SD-air-diffuser-technical-data











related diffuser







Packaging & Shipping


 packing

















Company Information


Foshan Vairtech Ventilation Co., Ltd is a professional manufacturer for supplying full range of ventilation products with about 15 years' experience, which is located in the Aluminum Hometown of China - Foshan City. We enjoy transportation & raw material convenience.





"Customer first, quality first" ---We are sincerely welcome you to contact us for business.


2 Machines and aluminum profiles








FAQ


Q: Where to load the goods?
A: Foshan City, China.





Q: Can I ask for a slight change in the design of the product according to our project?
A: Yes, we can do that, our factory production is very flexible.





Q: Can you print words on products as per client's requirement?
A: Yes, make label according to your exact requirement.
