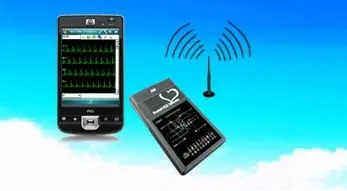

WiFi Transmitter is a small lightweight unit that uses standard re-chargeable AA batteries.
Change batteries once each 24-hours.
Commercial AP (Access Points) simply plug into the standard wall power to give virtuallynlimited transmission range.

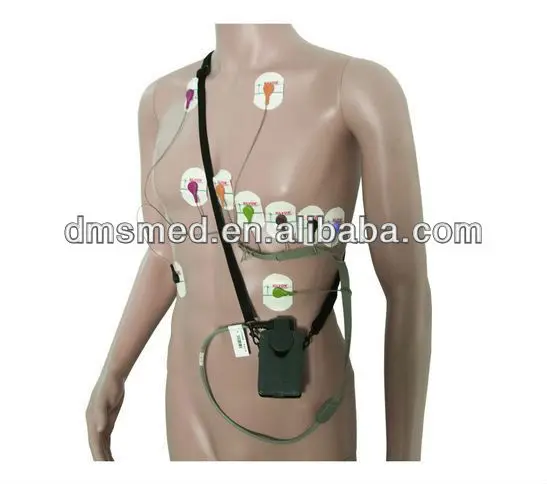

Patient uses 3 or 4 electrodes for a 3-Lead ECG.

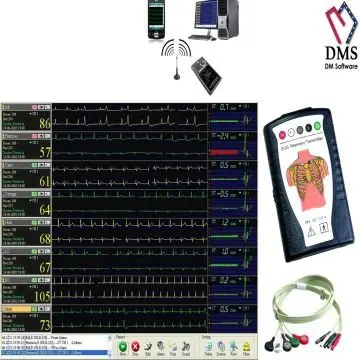

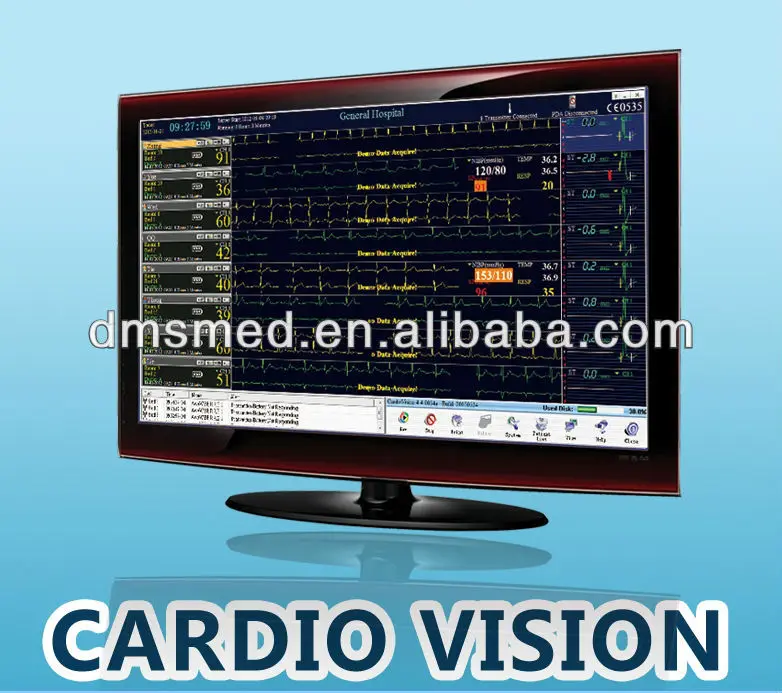

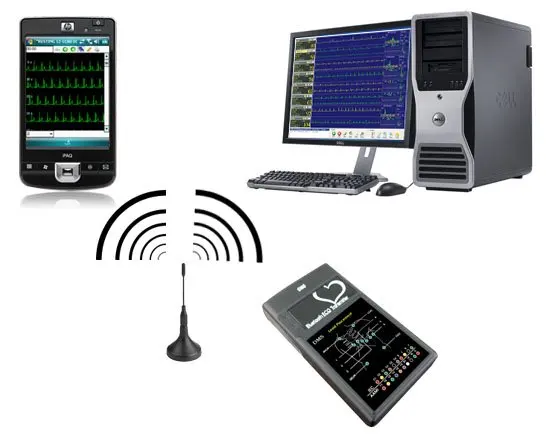

PC Central Monitor receives the WiFi transmissions from each patient, and the system
simultaneously performs real-time ECG with analysis far exceeding current patient monitoring ECG systems.
Holter analysis is performed at the end of each minute.

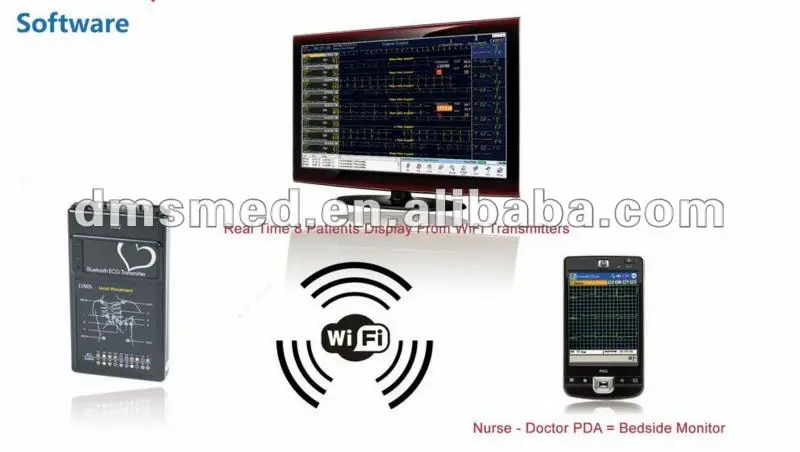

All Alarms are auto transmitted to the nurse’s or doctor’s PDA to immediately see ECG Alarms when away from PC Central Station. PDA also acts as a bedside monitor for each of the 8-patients.
A remote cardiologist can immediately access the real-time or Holter ECG from his/her office or home. The comprehensive Holter displays will provide the doctor with more meaningful ECG data than ever made available by any other ECG monitoring systems.
WIFI Recorder Specification:(Model: DMS300-2W)
1.1 Intended Use The DMS 300-2W Holter Recorder is intended for use under the direct supervision of a licensed health care practitioner. The DMS 300-2W Holter Recorder and system can complete functions of telemetry transmission, telemetry receive, real time sampling,display, edit, analyze and print of ECG signal. The system is mainly applied in medical units for the diagnosis for heart diseases.The device is to be used on a adult populations, typically symptomatic.
1.2 Functions and Features Description 1.2.1 Features Unique simultaneous sampling and analysis for double channel ECG signal Arrhythmia of double channels, increase the identified accuracy 24 hours double channels’ heart rate analyse system with spectral domain and time domain Detailed and accurate ST-T, QT analysis, golden parameter for diagnose ischemia Advanced data review system enables the review time can be completed in 1 minute through high speed internet. Accurately measure QT dispersion, a useful tool of non-invasive detecting cardiac muscle repolarization Fully support print preview function Advanced report save function enable more times’ expanding storage volume. Real time monitoring of double channel ECG signal for 8 patients. Support alarms of heart rate, ST, VE, SVE, pause
Dimensions: 88mm×55mm×21mm;
Weight: ≤ 100 grams
SOFTWARE
Software for free
DMS took part in world-renowned exhibitions each year, such as hold in Italy, Germany, Dubai, Hong Kong etc…
Company History
1975 Founded in California USA 1982 Invented the first computerized Holter System 1990 Entered China market 2009 Took over Beijing Meigaoyi Co., Ltd. The world famous ECG product manufacturer The biggest supplier of American ECG Service Center FDA & CE, ISO13485 certified
Certifications
The world famous ECG product manufacturer
The biggest supplier of American ECG Service Center
FDA &CE certified
ISO13485 certified
Contact Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: We accept T/T, Western Union, PayPal, Money Gram and so on.
