wooden concrete column formwork replace costly steel column formwork, save 50% cost
- Category: >>>
- Supplier: Shandong Fangyuan Building Materials Co. Ltd.
Share on (60432848089):
Product Overview
Description
column formwork
Specification
Panel | Coating inside | Glossy PP plastic |
Coating outside | Red phenolic film | |
Edges | Sealed by PP plastic | |
Core | Poplar plywood with 15mm thickness, A grade | |
Glue | Euro standard WBP, 50h water boiling | |
Hot press | Two times | |
Sanding | Two sides | |
Beam | Size | 40x50mm |
Structure | LVL wood | |
Surface | Waterproof painting in yellow color | |
Accessory | Style | Adjustable |
Surface | Galvanized | |
Steel no. | 8.0#, 10.0# Q345B steel |
Standard size
| Size of columns | Interval of column clamps |
| 300x300mm | 500mm |
| 400x400mm | 500mm |
| 500x500mm | 500mm |
| 550x550mm | 450mm |
| 600x600mm | 450mm |
| 700x700mm | 450mm |
| 800x800mm | 400mm |
| 900x900mm | 400mm |
the size is customized according to your requirements, too.
| |
Product show

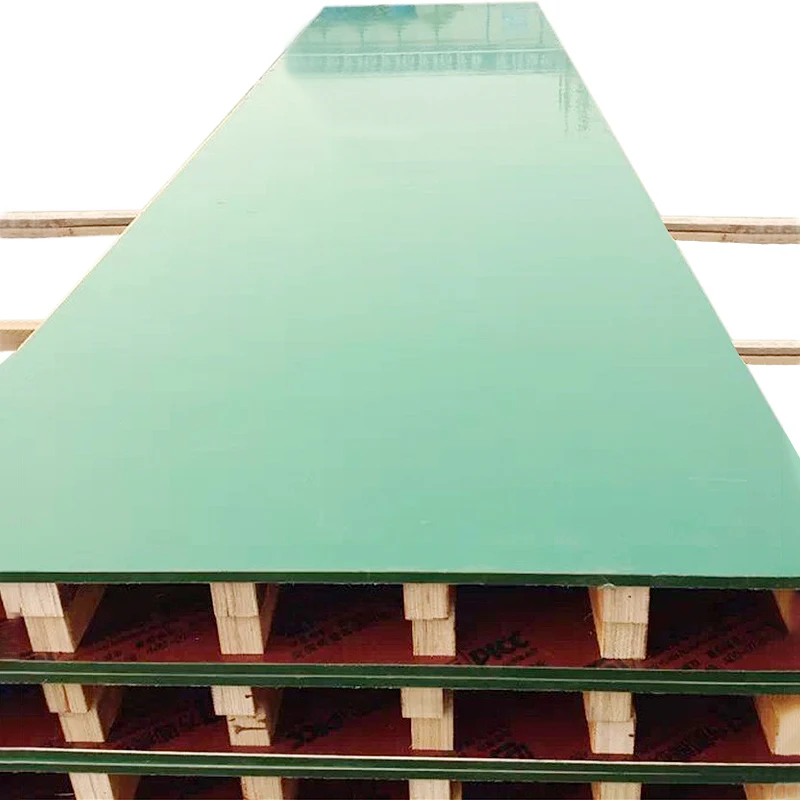

1. PP plastic coating inside
It's better strength and resistance to abrasion, water, heat, and chemical than phenolic film.
Besides, it's quick dismantling without release agent and supply a nice concrete finish like mirror.

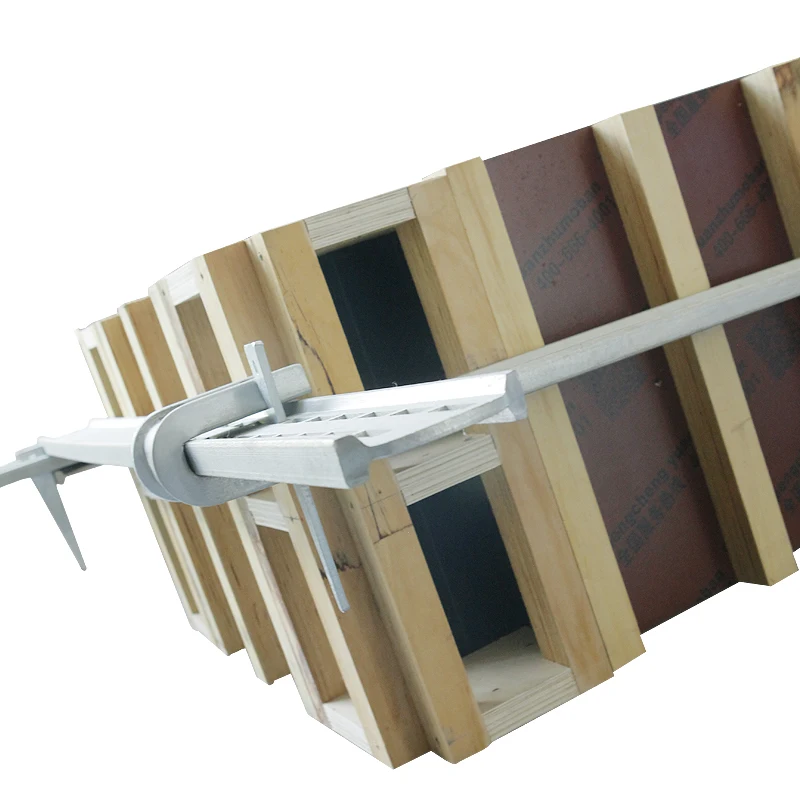

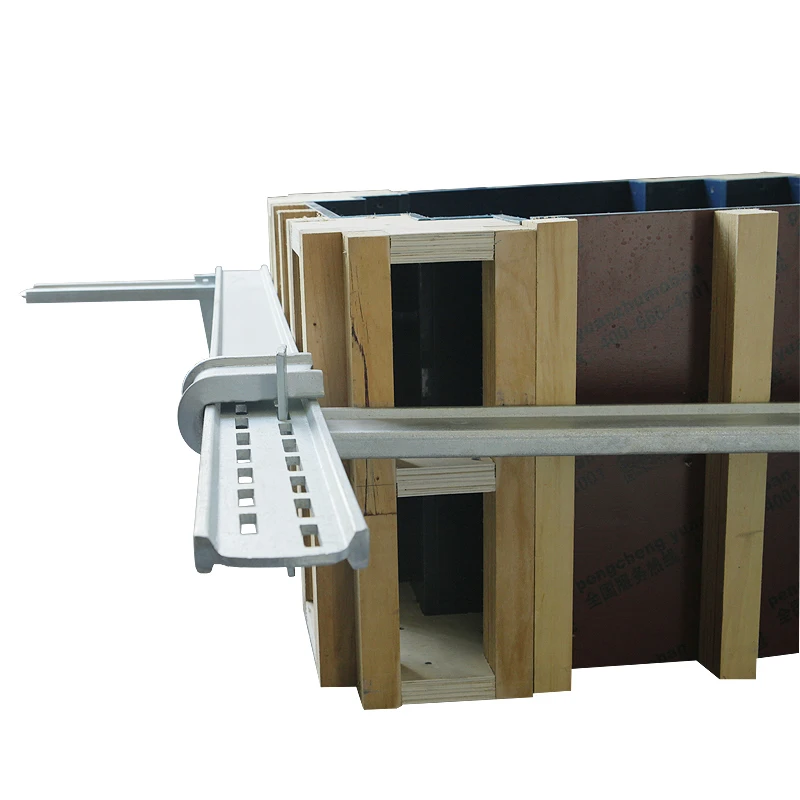

2. high quality phenolic film with logo and LVL beam with waterproof painting outside

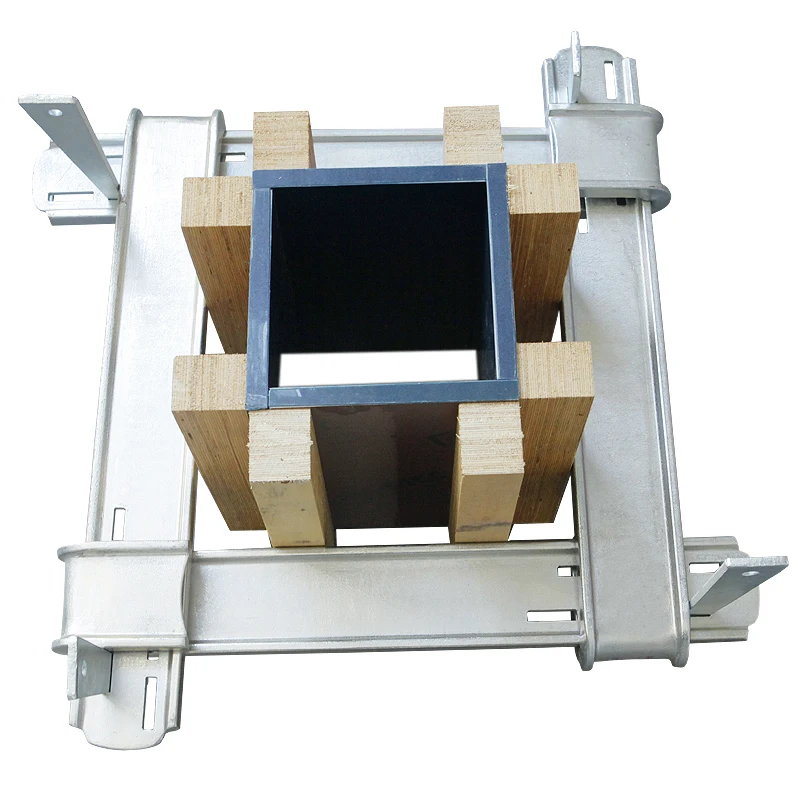

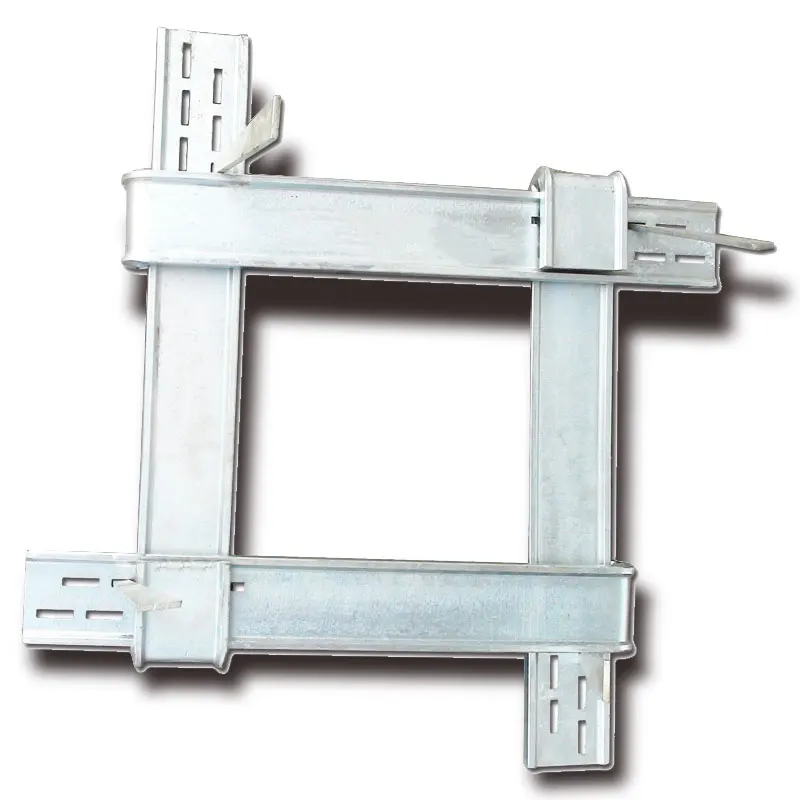

3. galvanized adjustable clamp ( it's optioned or sold it separately)
It's made of Q345B steel with high strength and adjustable according to panel size.
4. seamless joining at edges
Application on site
From feedback on site, the size is accurate, fast installation by hands, quick dismantling without any concrete release agent, and nice concrete finish without rework. Besides, it's reused 30 times at least.
Packaging & Shipping
Packing details
pallet packing or based on your requirements
Shipping
1. free samples are sent out by international express, such as DHL, TNT, EMS...
2. Qingdao port is our loading port. We transport the container goods by sea
FAQ
1. Are you a manufacturer or trader ?
Square Circle Formwork is a manufacturer specializing in production and direct-sales of PP plastic plywood, column formwork, circular column formwork, special formwork, and related accessories.
2. Why do you use the PP plastic as coating ? Is it friendly for environment ?
Polypropylene (PP) is a polymer plastic that is a member of the ‘polyolefin’ (polymers produced from alkenes) family. It is a highly versatile material that has many beneficial physical properties, and most importantly it is also recyclable.
PP is tough and yet flexible and classed as semi-rigid. It is extremely resistant to heat, chemicals and fatigue.The PIC was introduced by the Society of the Plastics Industry, Inc., to provide a uniform system for the identification of various polymer types and to help recycling companies separate various plastics for reprocessing.
Company Information

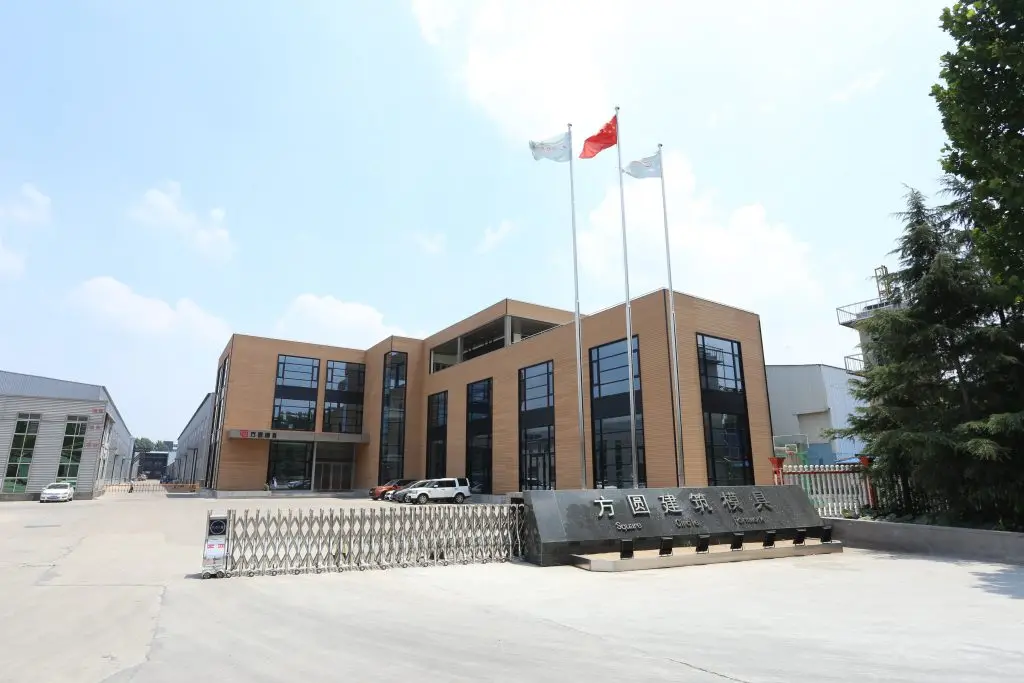

Square Circle Formwork is a brand made by Shandong Fangyuan Building Materials Co.,Ltd, subsidiary to Pengcheng Group, which located in Linyi City, Shandong Province, the north of China.
We specialize in developing and manufacturing innovative products for concrete forming, such as PP plastic plywood, circular column formwork, column formwork, special formwork, and related accessories.
ISO9001 certification, machines from Germany, strict raw materials sourcing, experienced
management team, skilled workers, ensure the high quality of finished products.
Production line | 4 lines |
Production capacity | 50,000 square meters per month |
Welcome to visit our factory and negotiate the business !
Related products

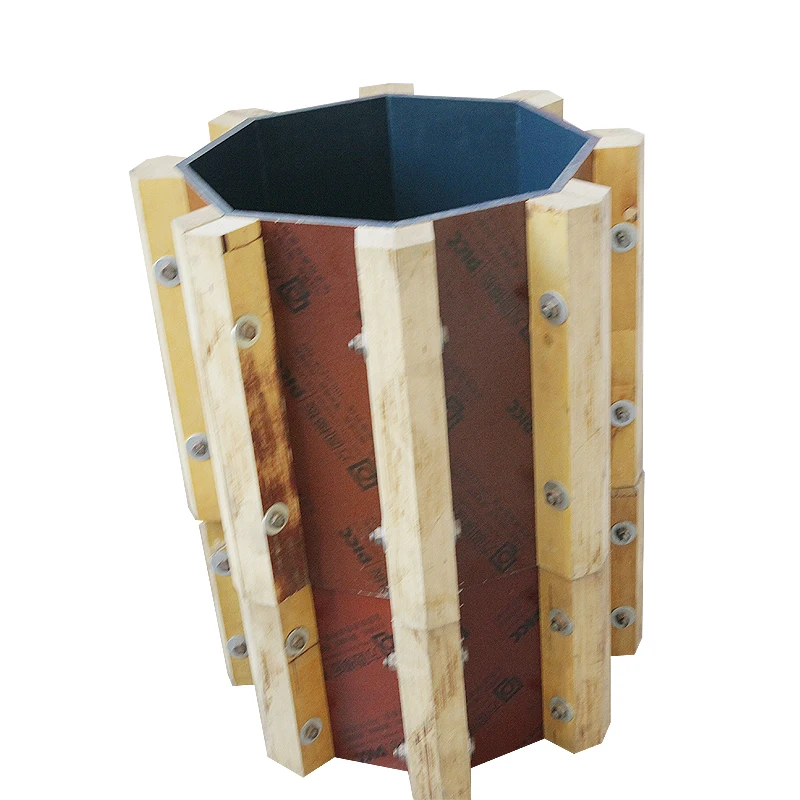

PP Plastic Plywood Adjustable Clamp Circular Column Formwork
