laboratory mini plastic extruder for color master batch

Product Overview

Description

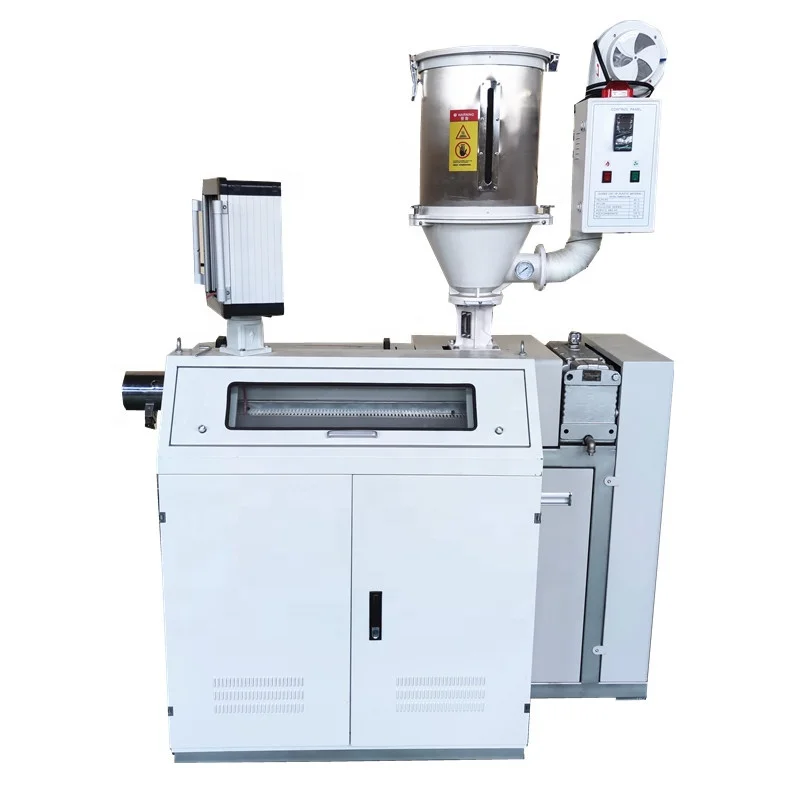

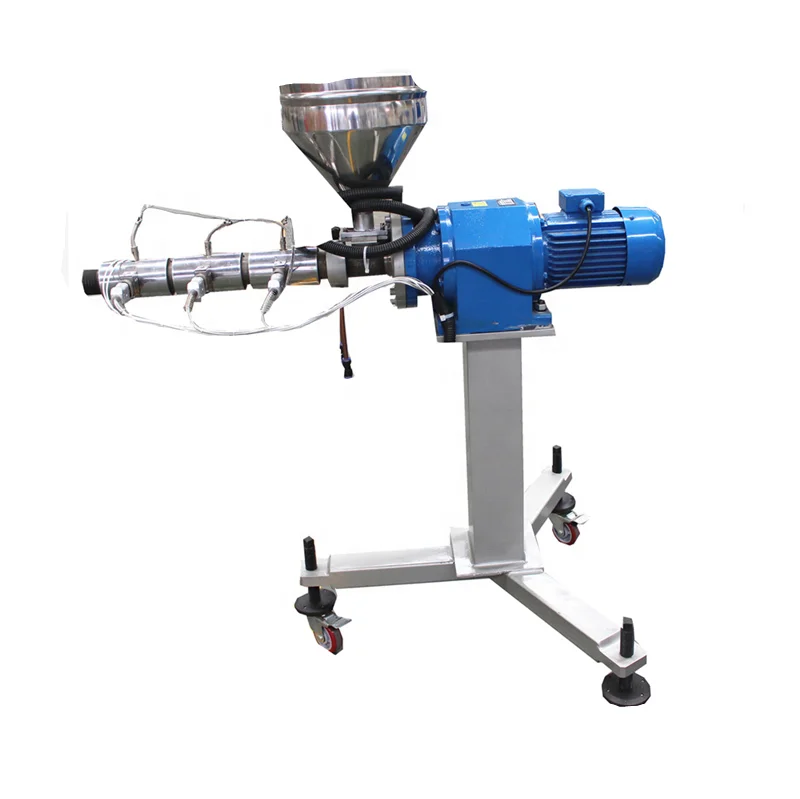

laboratory mini plastic extruder for color master batch



 plastic extruder for co-extrusion always be used for test or lab research with small capacity and low energy consumption.

This  plastic extruder for co-extrusion can be used to plastic modification test, pipe extrusion test, filament extrusion text and granulation test with different moulds. It is an essential equipment of the chemical enterprise, scientific research institution, college and university lab.

This lab small extrusion machine can process all kinds of plastic materials such as soft/hard propene Polymer (PP) and polystyrene(PE) coordinated with the appropriate auxiliary machine.

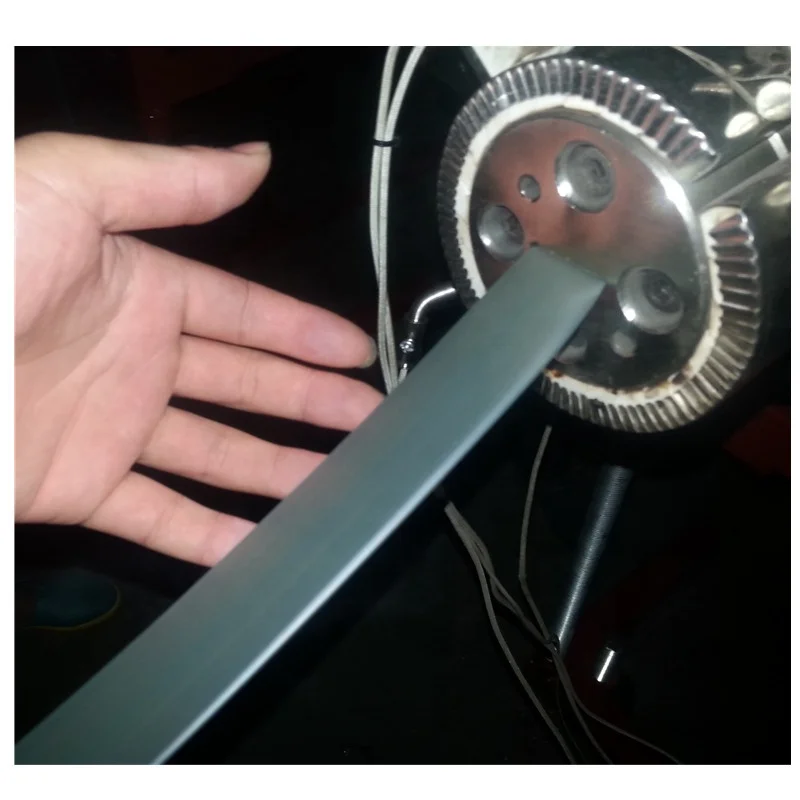

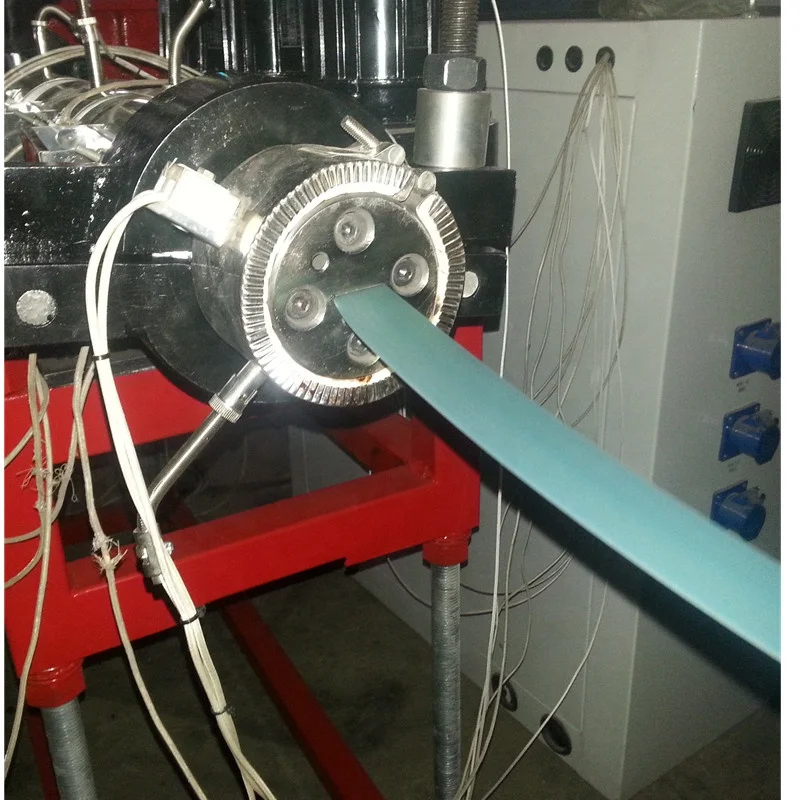

At the same time, this lab small extrusion machine is used for PP, HDPE, PE pipes co-extruding, it can be used for the color line, outside face of the pipes.


Features

1. For pipe accessary machine
This machine can be used as striping machine which is a auxiliary in pipe production line.

2. For lab or text
With small capability and low energy consumption, this mini extruder is widely used in lab experiment and text.

3. For individual workshops
Many individuals want to set up a workshop to make pastic-related products, but you do not want to put much budget, so you can choose this machine.


About Our Company


1. Our factory is located in Jiangsu Zhangjiagang, near to Shanghai. The traffic is convenient, it can save your transporation time, shorten your waiting time.

2. We are specialized in lab extrusion machine, and we have been in this area for many years so we have a rich experince, we can solve most trouble other factory can not.

3. With wide experience, we can design machine for you. As the specialized production, we have the stable partner. We can guarantee the quality of products, and the short production cycle, at the same time, we can give you a favorable price.

4. To expend foreign market and seeking for long term cooperation, a best price is waiting for you.



 Machine technology parameters:



Model No.                                    SJ25
Screw Diameter	25 mm
Ratio of L/D	25:1
Screw Material	38CrMoAlA
Hardness of Screw	HV900-1000
Depth of Nitrogen Treatment	0.4-0.7 mm
Screw Straightness	<0.015 mm
Main Motor Power	2.2KW
Heating Method	Casting Aluminum Heater
Heating Zones	3 Periods(Screw Barrel 2periods,Head Piece 1 Periods)
Heating Power:	1.5KW*3=4.5KW
Cooling Method:	Forced Air Cooling
Fan Motor Power	60W*2=0.12KW
Screw Maximum Rotating Speed	40 rpm
Maximum Capacity	1-3Kg/h
2,Main Parts:
Name:	Manufacturer:
Main Motor	AC Motor
Screw and Barrel	Jinjiu Screw
Electrical System	Siemens Contactor OMRON Temperature Control Meter
Converter	Teco Frequency Converter
