Price:$185.00 - $195.00

Quantity:


Product Overview

Description


Product Description


40G series are mainly used for the family heating, while RL series are suitable for industrial use, such as low temperature and medium temperature hot boiler, hot wind or steam boiler, oil guiding heating boiler, etc.

\t
Power table
\t
Series
\t
Model
\t
Heating value(KW)
\t
Control Means
\t
Max. viscosity of the oil
\t
Power source
\t
Power
（W）
\t
Min
\t
Max
\t
EDLBUN 40
\t
G20
\t
95
\t
240
\t
On/Off control
\t
1.5
\t
1ph*220v*50hz
\t
330
\t
TECHNICAL DATA
\t
Thermal power-output
\t
95-213kw   -   8-18 kg/h
\t
Fuel
\t
Light oil , ciscosity  4-6 mm2/s at 20c
\t
Electrical supply
\t
Single phase,    230V+- 10% ~ 50Hz
\t
Motor
\t
Run current   1.4A - 2750 rpm - 288 rad/s
\t
Capacitor
\t
5 uf
\t
Ignition transformer
\t
Secondary  8 kv - 16mA
\t
Pump
\t
Pressure 7-15 bar
\t
Absorbed electrical power
\t
0.320kw

*Buner with CE marking in conformity with EEC Directicves :EMc 89/336/EEC - 2004/108/EC,Low Voltage 73/23/EEC - 2006/95/EC,Machines 98/37/EEc and Efficience 92/42EEC

*The burner meets protection level of IP 40, EN 60529


Parameters

1. Thermal output: 95-213KW
2. Electrical supply: Single phase, 230V/50Hz
3. Motor: 230V/1.4A
4. Ignition transformer: secondary 8KV/16mA
5. Absorbed electrical power: 0.32KW

Main features

1,Easy operation;
2,Convenient assembly for all parts;
3,Efficient maintenance, cleaning and inspection;
4,Critical spare parts adopt renowned brand;

To suit the required appliance output,fit the nozzle then adjust the pump pressure,the setting of the combustion head and the air damper opening in accordance with the following schedule.

\t
Nozzle
\t
pump pressure
\t
burner output
\t
comb.head adjustment
\t
air.damper adjustment
\t
GPH
\t
ANGLE
\t
bar
\t
kg/h+-4%
\t
set - point
\t
set - point
\t
2.00
\t
60°
\t
12
\t
8.0
\t
1
\t
3
\t
2.25
\t
60°
\t
12
\t
9.0
\t
1.5
\t
3.2
\t
2.50
\t
60°
\t
12
\t
10.0
\t
2
\t
3.5
\t
3.00
\t
60°
\t
12
\t
12.0
\t
2.5
\t
4.3
\t
3.50
\t
60°
\t
12
\t
14.0
\t
3.5
\t
5.5
\t
4.00
\t
60°/45°
\t
12
\t
16.0
\t
5
\t
6.5
\t
4.50
\t
60°/45°
\t
12
\t
18.0
\t
6
\t
7
Performance

1 Unibody design with aluminum shell

2 Sliding flange can locate the nozzle according the status in boiler furnace

3 Superior design of the nozzle make sure the best consumption when the burner working

4 Electrical devices to control the procedure and the safe protection

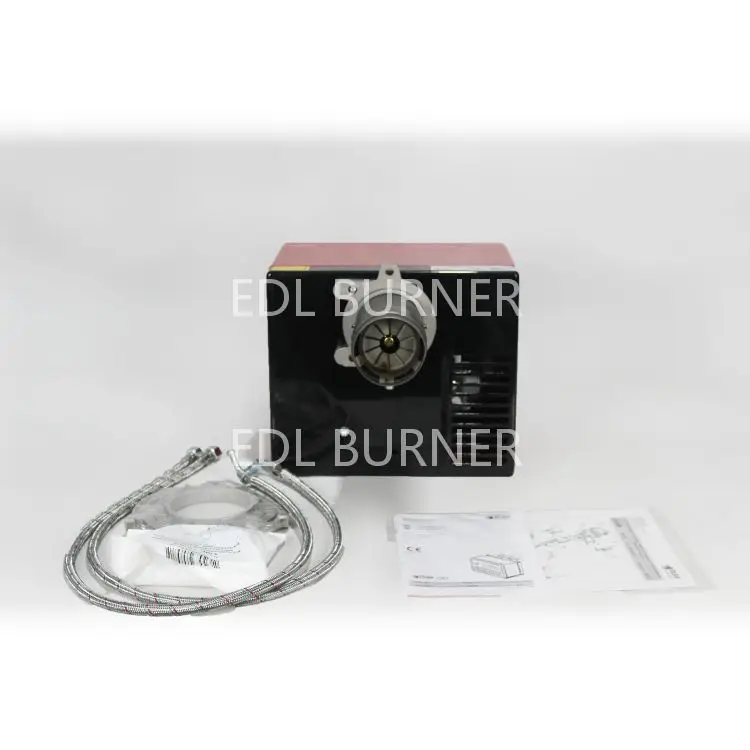

5 Delivering in assemble, out of the box






Working time


APPLICATION


Fuel



40G and RL oil burners are driven by light oil and mixed fuel of biology diesel below 5% and light oil.

Certification
Packing & Delivery
\t
Packaging
\t
Size
\t
49*39.5*38.5
\t
Weight
\t
16.4kgs
\t



Packaging Details
\t
The compact size and light-weighted is very easy for the installation and adjustment, and long distance Express shipment.
Board case or wooden case package, around 16.4kgs per case, easy for DHL express shipment or LCL sea shipment


Delivery time and Payment term:
For sample orders, 7 days after receiving payment; for bulk order larger than 10 pieces, 7-15days after receiving initial payment, based on different item size.
Western Union payment or T/T in advance for sample orders;
For bulk orders, 30% T/T down to start production, while 70% balance before shipment.
