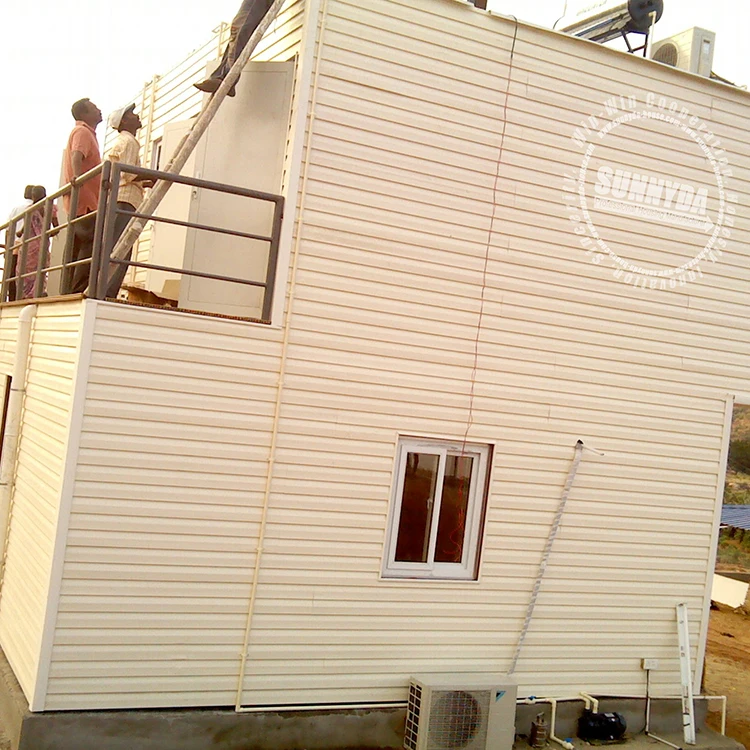

Dubai contained container house galvanized steel frame prefab houses

Dubai contained container house galvanized steel frame prefab houses

House load:
*Bearing max. load capacity 2.0 kN/m² (200 kg/m²)
*Wind load:25 m/s (90 km/h)
*Compression capability loading—150kg/m3
*Steel frame:Maximum temperature of structure 500°C

Dimensions:
*External Size(mm): 6055(L)×2435(W)×2800(H)
*Internal Size(mm): 5790(L)×2225(W)×252(H)
*External Size(Ftin):20'(L)×8'(W)×9' 2"(H)
*Internal Size(Ftin): 19' 3"(L)×7' 4"(W)×8' 3"(H)

Floor:
*Made from cold rolled Q235B, 4mm thick profiled steel with 4 ISO dimensioned corner casts
*Insulation:50mm rock wool (60kg/m3)
*Subfloor:0.4mm thick galvanised steel sheet
*18mm MGO borad,waterproof, fireproof (Option Plywood and Fiber cement floor)
*2.0mm vinyl flooring

Roof:
*Made from cold rolled Q235B, 3mm thick profiled steel with 4 ISO dimensioned corner casts
*Insulation:50mm rock wool (60kg/m3)
*Ceiling: 50mm Eps sandwich panel, both size 0.4mm PPGI steel sheet.(Option rockwool and PU)
*Roof Covering: 0.5mm thick PPGI steel sheet
*Corner posts: 3mm cold rolled Q235B profiles

Wall panels:
*Width:1150mm
*Insulation:59mm high density (14kg/m3) EPS,(Option rockwool and PU)
*Both side cladding:0.426mm PPGI steel sheet, RAL9002

Windows:
*Sliding aluminium profiled windows with dimension 800×1100mm
*4mm double glazed panes with 16mm vacum void
*Removable Aluminium mosquito screen

Exterior Doors:
*Steel door with dimension 900×2100mm
*Insulation:40mm mineral wool

Painting:
*Steel Frame: 40μm exoxy zinc primer, 50μm chlorinated rubber topcoat

Electricity:
*Light, Switch,Socket,distribution box and breaker,
*Different electrical standards to match with most countries in the world; such as CE, UL, CSA, AS

Prefabricated House

Metal building construction projects industrial shed designs prefabricated light steel structure

Material:

Grade Q235, equivalent to ASTM A36.

Grade Q345, equivalent to ASTM A572.

Section:

Any product shape according to customer's requirements

Certification:

ISO quality system, Chinese GB50221-2001

Sand Blast:

Sweden SA 2.5 Sand blasting

Welding Technology:

Single level butt welding, fillet welding by electric arc welding,

and Gas shielded welding.

Surface treatment:

Hot dip galvanized, Epoxy zinc rich primer

Standard: ISO1461(1999),JIS H 8641-1999,ASTM A 123/A 123M-02

Welding Testing

Ultrasonic Testing, X-ray Testing

Manufacturing Technology

Drilling, Cutting, Assembling, Welding, Rectification, Testing etc

Main Components

Base: Cement and steel foundation bolts

Main frame: H beam

Purlin: C or z purlin: Size from C120~C320, Z100~Z20

Bracing: X-type or other type bracing made from angle, round pipe, etc

Bolt: Plain bolt and High-strength bolt

Roof &wall: Sandwich panel or color plate

Door: Sliding or rolling door

Window: Aluminum alloy window

Sheet: 0.5mm or 0.6mm galvanized sheet

Accessories: Semi-transparent skylight belts,Ventilators, down pipe, Galvanized gutter, etc

The reason for choose each metal

Ø Workshop pre-install.

Ø Professional on-site guidance

Ø Ensure the product quality.

Ø Timely service and progress

Ø Production according welding rules a = 0.7 x thickness of web

Ø Continuous welding on both sides of each pieces

Ø Mark every beam on the bottom plate for being saw after being galvanized

Ø Send pictures to the buyer by mail during products being processed

Ø We have 17 years experience of designing and producing steel structure building

Ø Locating in the Shanghai, only need 1 hour by car, the land transport cost cheaper

Ø Our engineers with 20 years steel structure design experience and advanced design software

    and strict design design attitude

Product features:

if you like our products and get more detail,please send message to us by the following way↓
