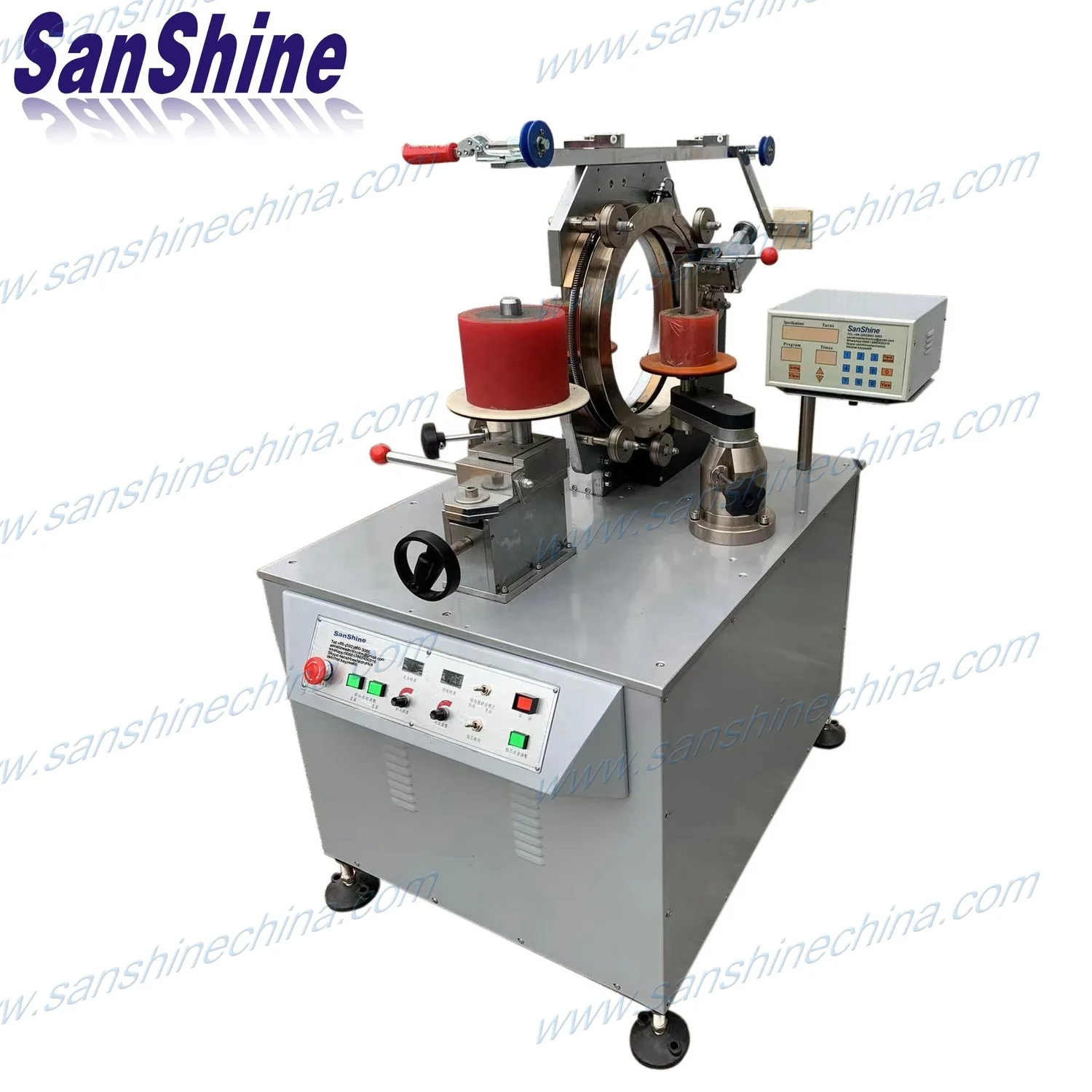

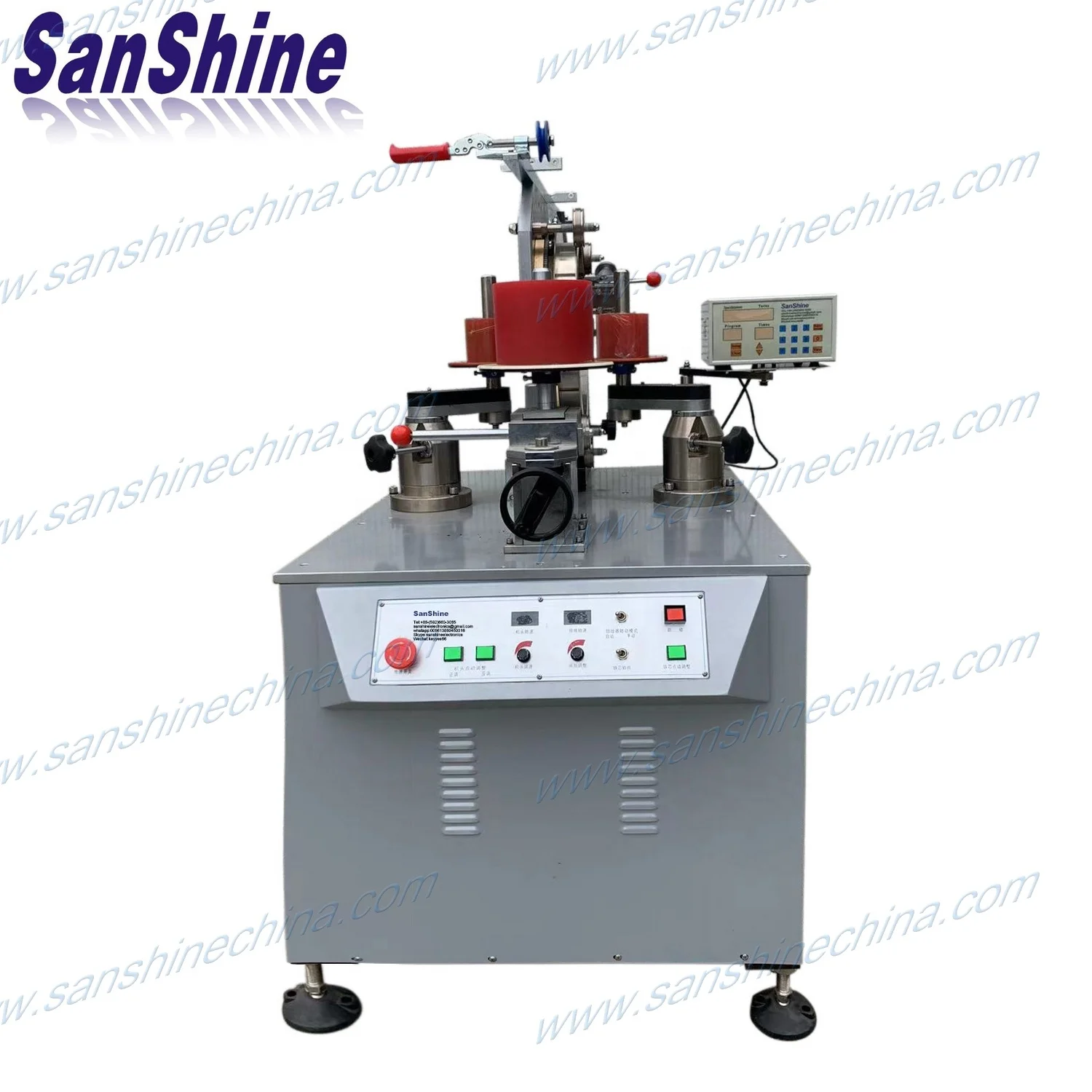

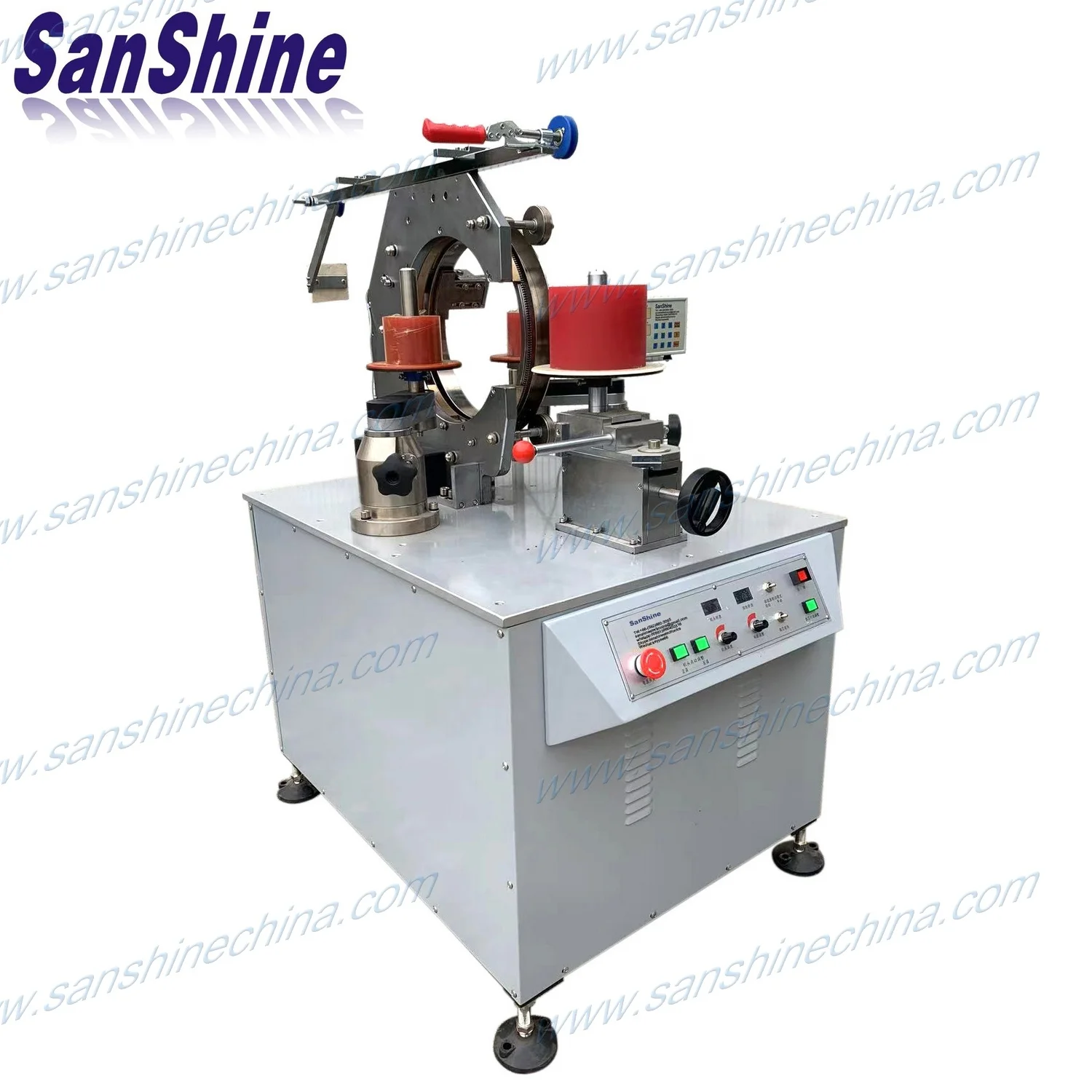

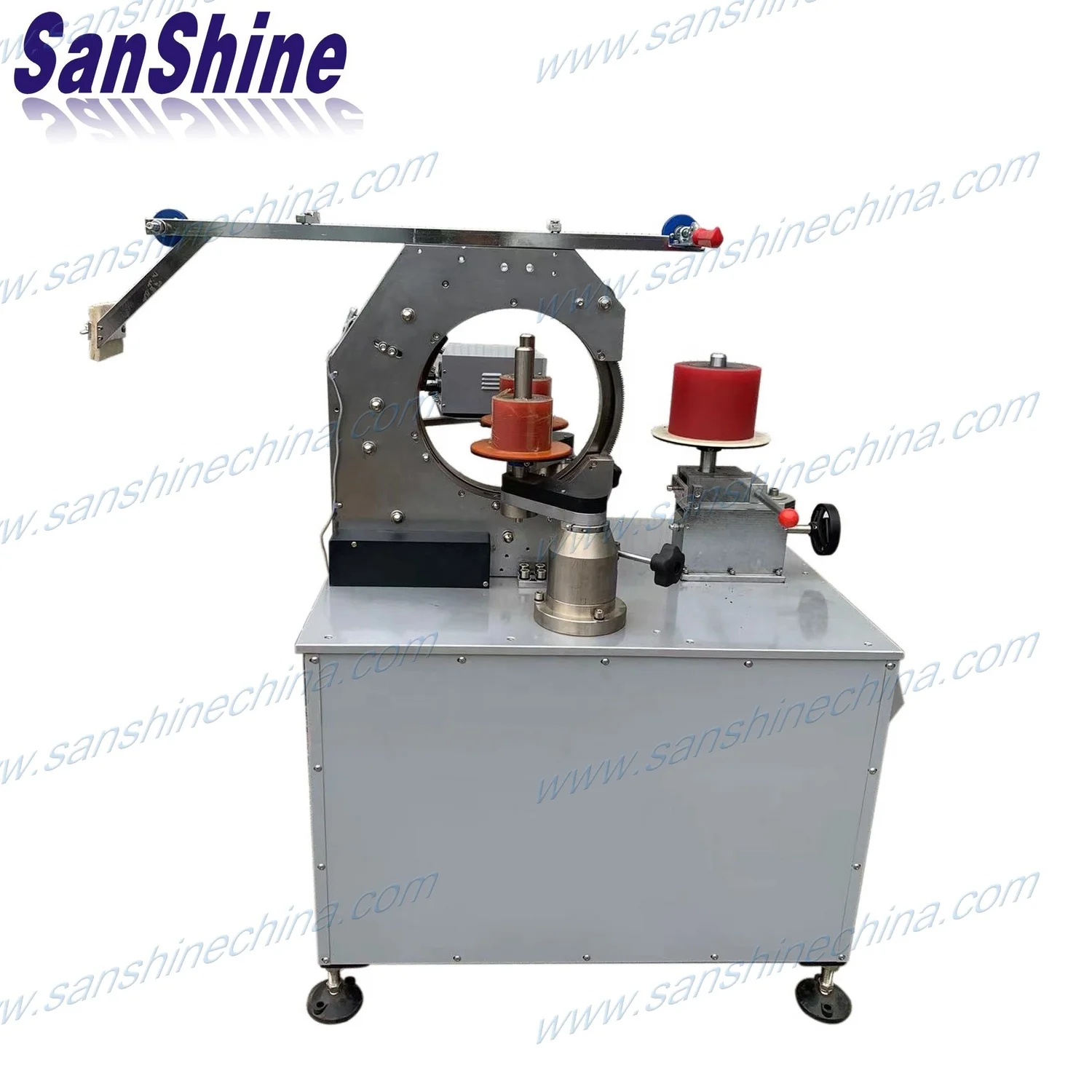

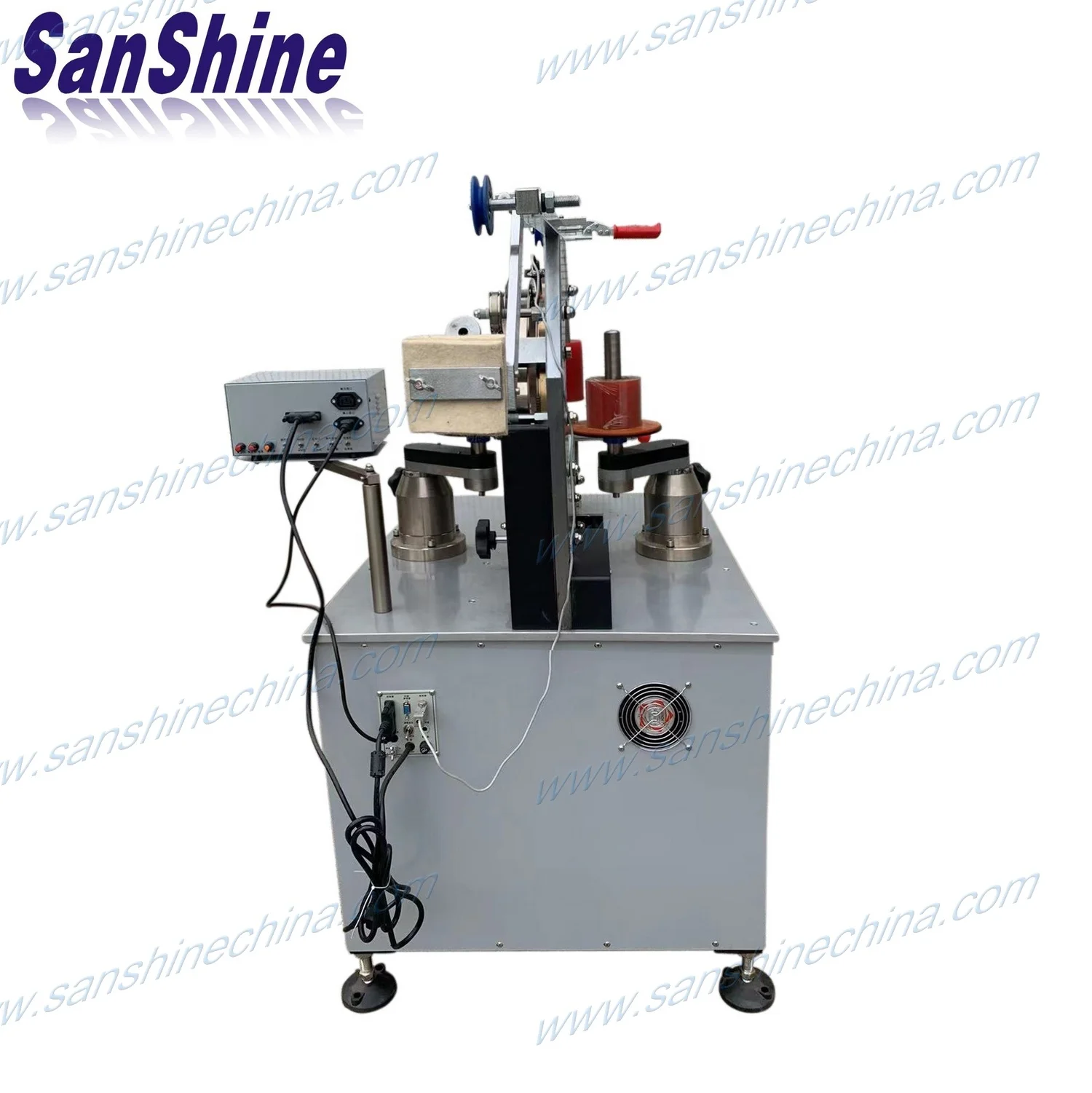

Description of SS1001 Extra big toroidal power transformer winding machine :
SS1001 Extra big toroidal power transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-winding machine. it is used for winding big toroidal inductor with thick wire, toroidal
transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid choke coil,
power inductors, power magnetics, UPS inductor with thick wire, converter inductors with thick wire, heavy toroidal core with heavy wire coils, extra high voltage toroidal transformer, etc.
Features of SS1001 Extra big toroidal power transformer winding machine :
1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size
shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. SS1001 gear type Digital Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.
Specification of SS1001 Extra big toroidal power transformer winding machine :
SS1001 Extra big toroidal power transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-winding machine. it is used for winding big toroidal inductor with thick wire, toroidal
transformer with thick wire, toroidal current transformer with thick wire, toroidal coil with thick wire , toroid choke coil,
power inductors, power magnetics, UPS inductor with thick wire, converter inductors with thick wire, heavy toroidal core with heavy wire coils, extra high voltage toroidal transformer, etc.
Features of SS1001 Extra big toroidal power transformer winding machine :
1. Collocate the gear type winding head to wind very heavy wire, and interchangeable roller table with different size
shuttle(magazine) for different dimensions coils and different wires, so that to reduce the cost.
2. Hi-tech shuttle for highest efficiency.
3. Separate speed controls for loading and winding.
4. Accurately count length of loading by limited-switch.
5. Accurately count turns of winding by photo-electricity sensor.
6. Programmable winding direction, winding returns range (Turns or Angle) and segment winding angle.
7. Accurately wire spacing by programmable controller.
8. Memory capacity accommodates 29 sets programes with off-power memory retention. SS1001 gear type Digital Toroid Winding Machines adopt precision digital toroid controller, it's an accurately and reliability digital toroid-winding machine.
Specification of SS1001 Extra big toroidal power transformer winding machine :
Wire diameter | 1.2-4.5mm | Max. winding speed | 100 RPM |
Max. final coil O. D. | Φ 250-800mm | Wire spacing | stepping motor |
Min. final coilI.D. | Φ80mm | Supply voltage | AC220V,50/60Hz single phase |
Max. final coil height | 250mm | Mechanical dimensions | 1000×900×1500 mm |
Controller storage capacity programs | 29(sets) | Weight | 330Kg |
