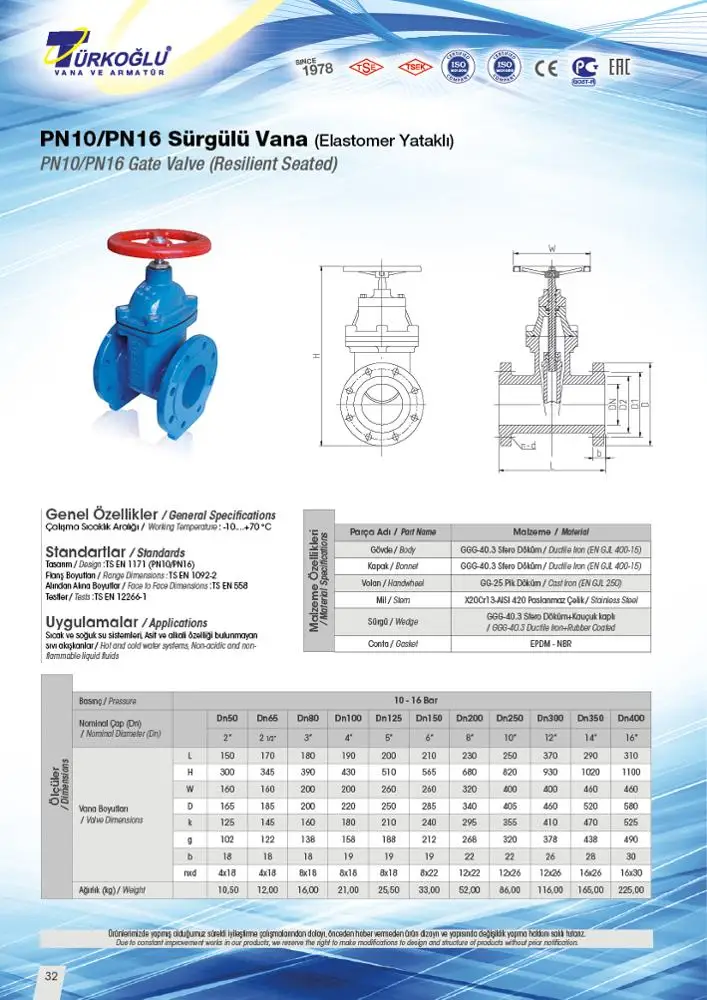

DN50 Gate Valve (Resilient Seated)

Product Overview

Description

PN10/PN16 GATE VALVE / ELASTOMER SEATED
Body- Cover	GGG-40.3 Ductile Iron (EN GJS 400-15)
Disc	Ductile Iron + Rubber Coated
Handwheel	GG-25 Cast Iron   (EN GJL 250)
Gasket	EPDM / NBR
Connection	Flanged
Max. Working Temp.	70 ºC
Max. Working Pressure	10-16 Bar
Applications Area	Hot and Cold Water Systems
	Non-acidic and non-flammable liquid fluids



Code	Size
1711	DN50
1712	DN65
1713	DN80
1714	DN100
1715	DN125
1716	DN150
1717	DN200
1718	DN250
1719	DN300
1720	DN350
1750	DN400
