Мощный профессиональный громкоговоритель с низким уровнем громкости, устройство для обмотки звуковой катушки
- Category: Transformer Making Equipment >>>
- Supplier: Sanshine (Xiamen) Industrial And Trading Co. Ltd.
Share on (60433285962):
Product Overview
Description
Product Description

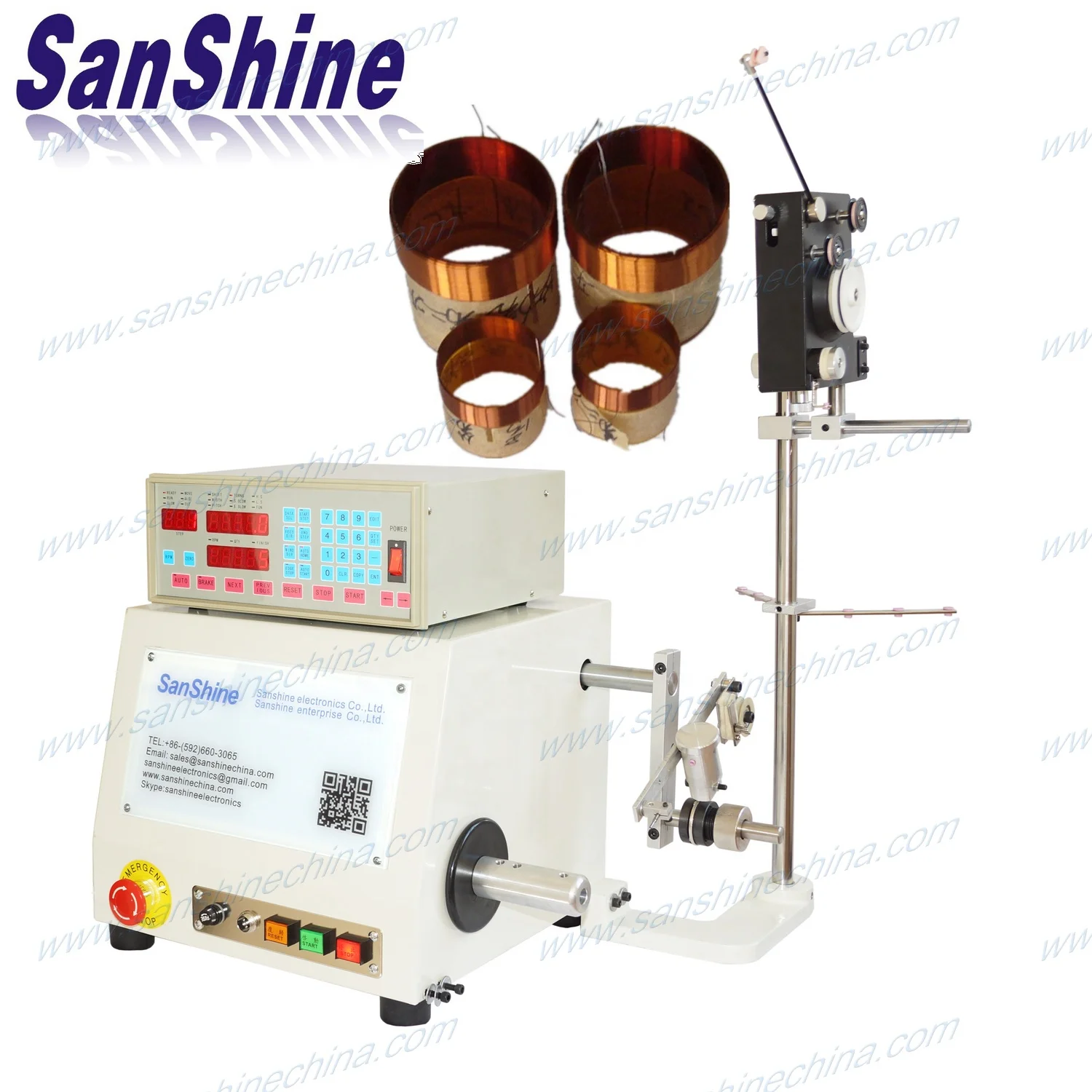

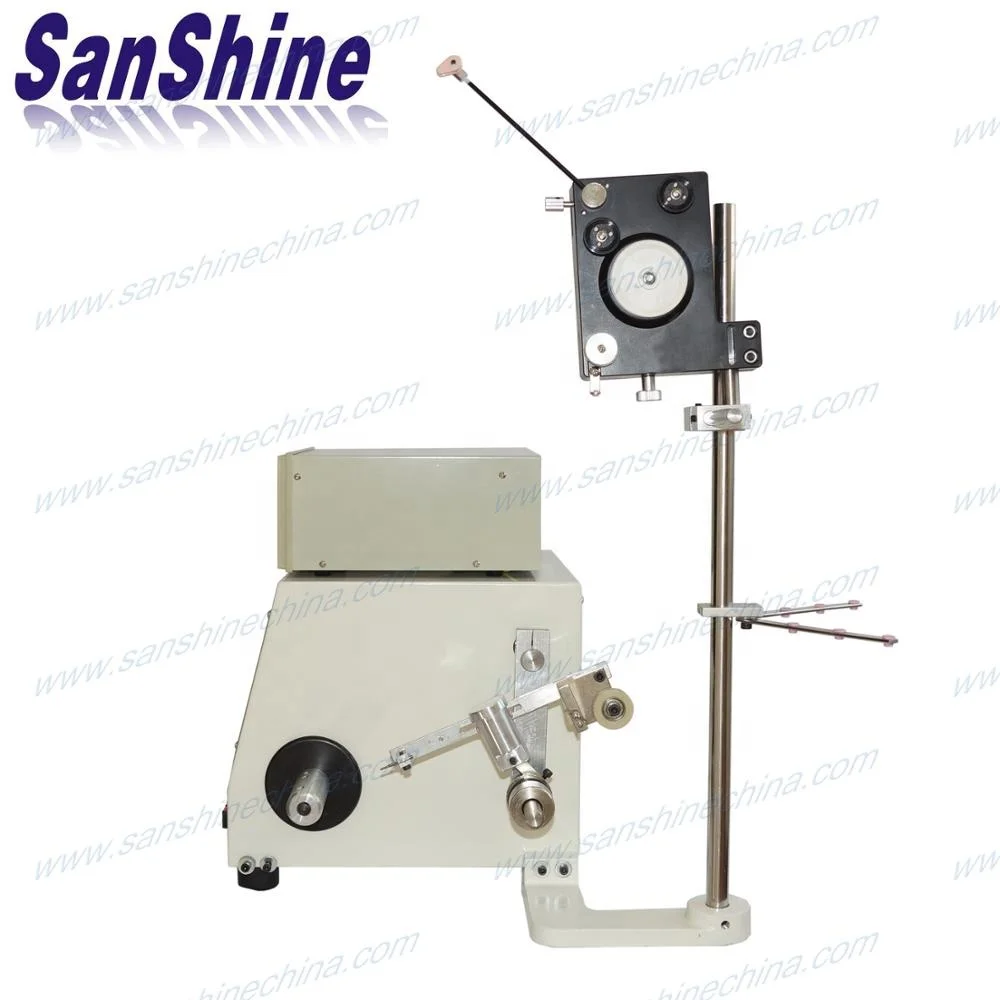

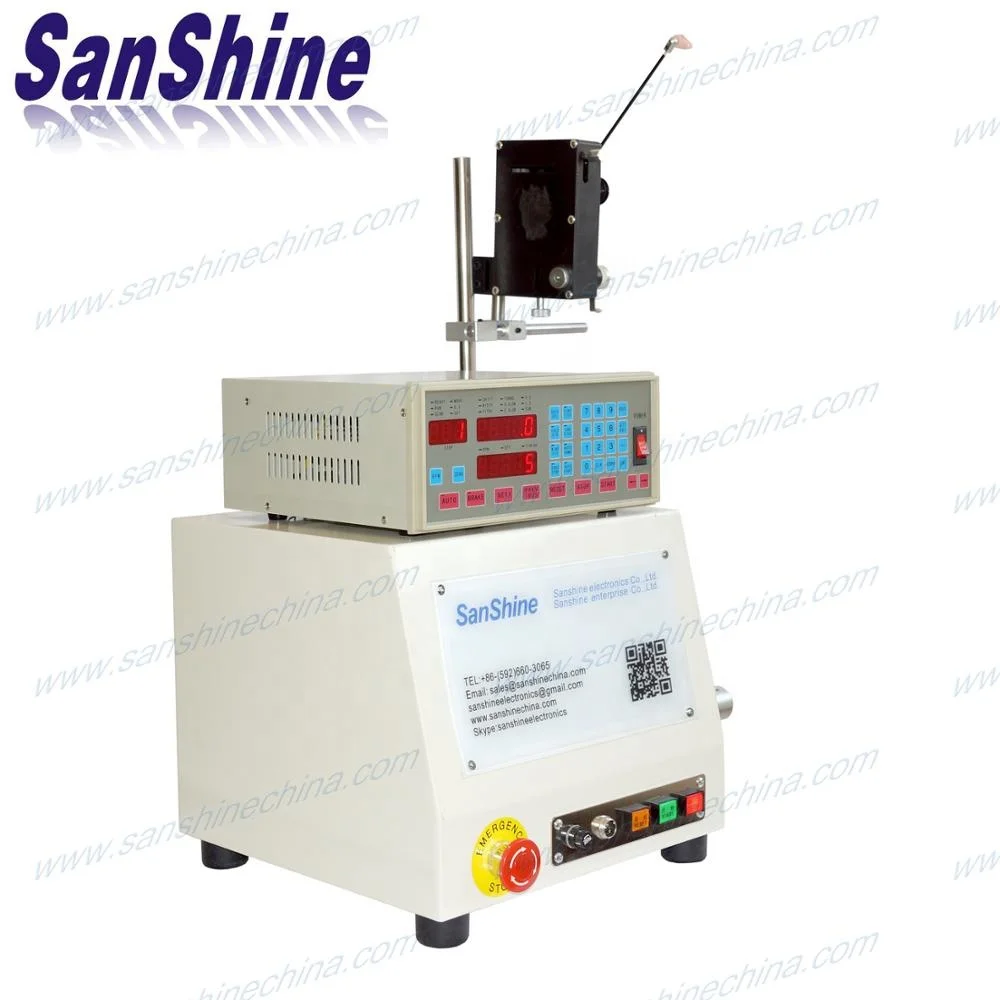

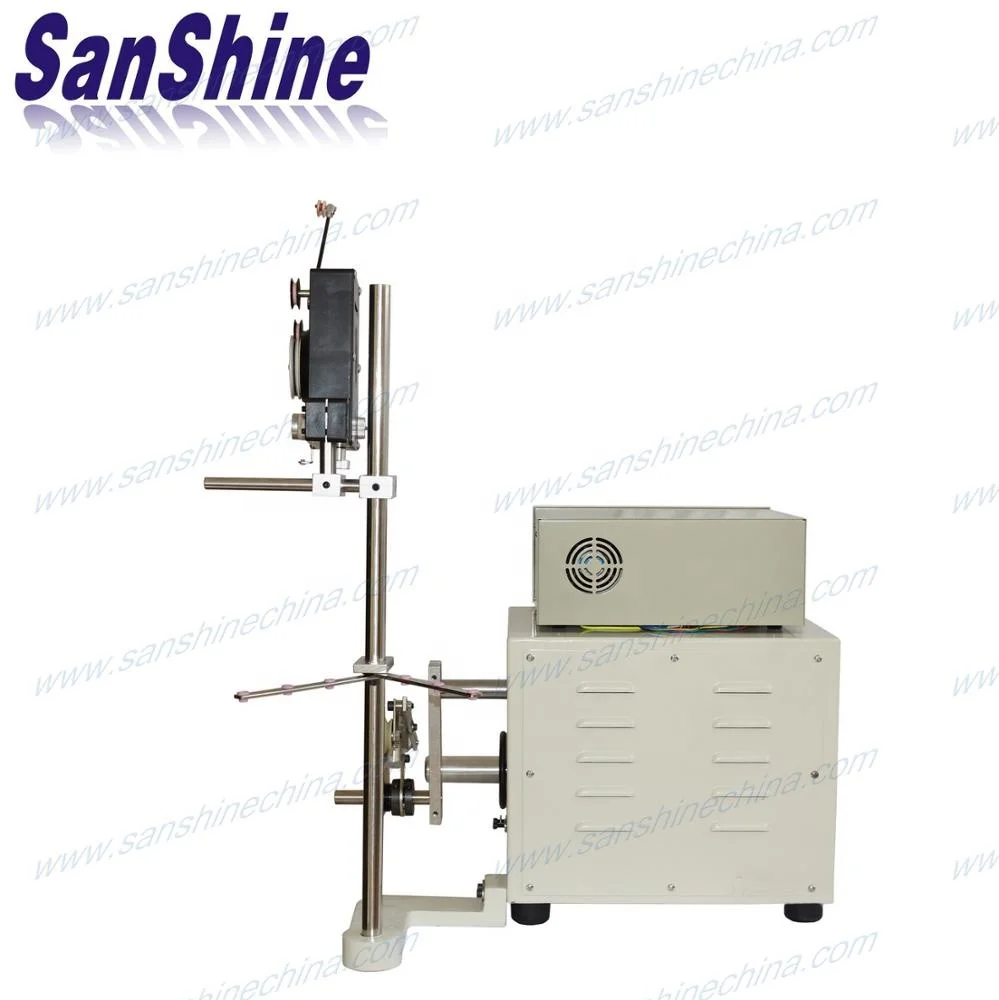

Description of SS600V loudspeaker voice coil winding machine :
SS600V loudspeaker voice coil winding machine is digital programmable coil winding machine, there are insulation tape device (optional)and margin tape device(optional), winding tensioner(optional),alcohol bath, wire spreading head, wire guide shelf with the machine. It's the best choice for winding big speaker voice coil.
Features of SS600V loudspeaker voice coil winding machine :
1. Alcohol bath wire spreading head for the alcohol self-bonding copper wires.
2. Step motor driven by constant-current power supply, high spreading speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while
setting.
4. Wire passing through ceramic rollers prevent enamel from high temperature.
5. Foot-switch connection for better efficiency.
6. Winding parameters and options can be set independently for each step.
7. Memory capacity accommodates 999 steps of parameters with Off-power memory retention.
Specification of SS600V loudspeaker voice coil winding machine :
SS600V loudspeaker voice coil winding machine is digital programmable coil winding machine, there are insulation tape device (optional)and margin tape device(optional), winding tensioner(optional),alcohol bath, wire spreading head, wire guide shelf with the machine. It's the best choice for winding big speaker voice coil.
Features of SS600V loudspeaker voice coil winding machine :
1. Alcohol bath wire spreading head for the alcohol self-bonding copper wires.
2. Step motor driven by constant-current power supply, high spreading speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display will show the position of spreading head while
setting.
4. Wire passing through ceramic rollers prevent enamel from high temperature.
5. Foot-switch connection for better efficiency.
6. Winding parameters and options can be set independently for each step.
7. Memory capacity accommodates 999 steps of parameters with Off-power memory retention.
Specification of SS600V loudspeaker voice coil winding machine :
Model | SS600V |
Spindles | 1 |
Wire size | 0.08~ 1.0mm |
Spread pitch | 0~ 9.999mm |
Spread width | 100mm (Max. ) |
Coil diameter | 110mm (Max. ) |
Main motor | Brushless Motor |
Spread motor | 2-Phase Stepper Motor |
MAX. speed | 6000rpm |
Memory | 999 Steps |
Power source | AC220V/110V ±10%, 50/60 Hz |
Dimension(CM) | 76x68x72 |
Net weight(KG) | 37 |
