withstanding voltage tester RK2672AM 0 5KV AC/DC Withstand voltage tester

Product Overview

Description

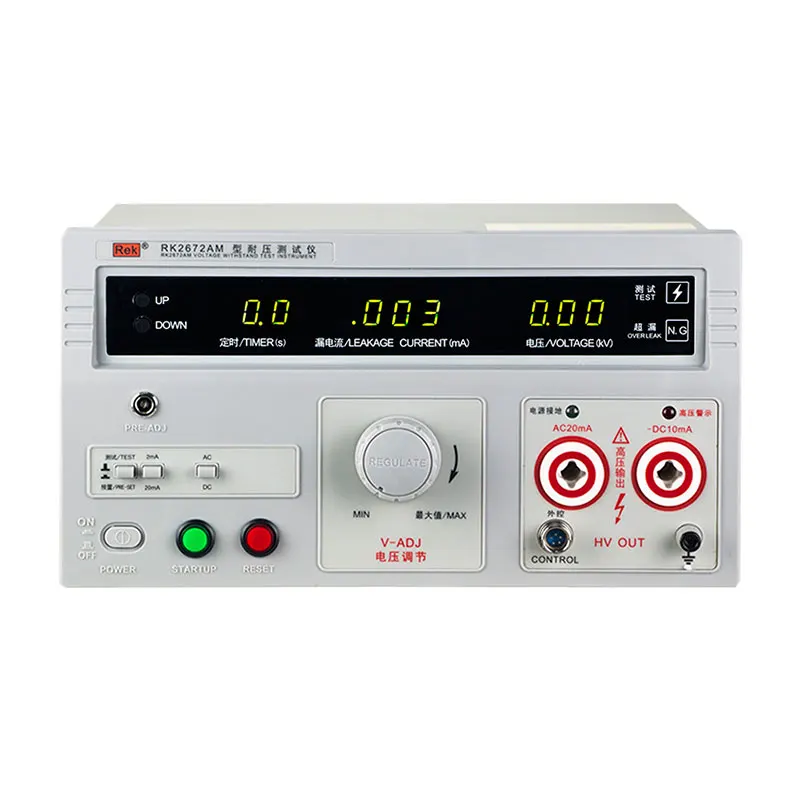

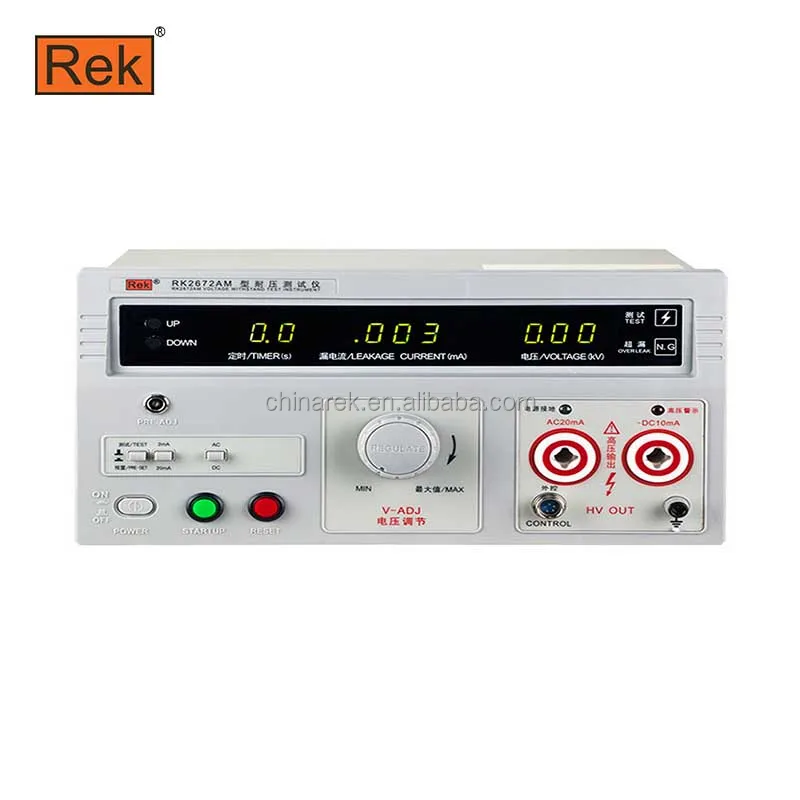

Withstanding voltage tester RK2672AM 0-5KV AC/DC Withstand voltage tester



This high voltage test (also called dielectric strength test, hipot test, hi-pot test, breakdown test or flash test) is made to stress the device under test to an AC or DC high voltage and check that there is no breakdown nor perforation happening. A hipot tester also checks that insulation distances and distances in the air are respected.It can be widely used for voltage withstand test in electrician’s assistant instrument,rubber-wooden facility,voltage convertor,wires,power meter,motor,power supply plug,cables and all kinds of electronic and electric products. As the launch of the national security standard, Voltage withstand instrument has become one of necessary withstand test instruments to the radio and electronic products manufacturer.





RK2672AM   AC/DC  0-5KV    AC 20mA  DC 10mA

RK2672BM   AC     0-5KV    AC 100mA

RK2672CM   AC/DC     0-5KV    AC 100mA  DC 20mA

RK2672DM   AC/DC     0-5KV    AC 200mA  DC 20mA

RK2672  series

Model	RK2672AM	RK2672BM	RK2672CM		RK2672DM
Output Voltage Range	0~5kv(AC/DC)	0~5kv(AC)	0~5kv(AC/DC)		0~5kv(AC/DC)
Voltage Resolution	10V	10V	10V		10V
Voltage Accuracy	±5%	±5%	±5%		±5%
Leakage current (AC)	0-2/20mA	0-2/100mA	0-2/20/100mA		0-2/20/200mA
Leakage current (DC)	0-2/10mA		0-2/20mA		0-2/20mA
Current Resolution	0-2mA:1μA	0~2mA:1μA			0~2mA:1μA
	2-20mA:10μA	2~20mA:10μA			2~20mA:10μA
		20~100mA:100μA			20~200mA:100μA
Current Accuracy	±5%
Measurement Time Setting	0s-99s,Continuously setting and manual
Maximum output power	100VA	500VA	500VA	1000VA
Capacitor of Transformer	100VA	500VA	500VA	1000VA
Display Form	LED Digital display
Power Requirements	220V±10%,50Hz±5%
Operation Environment	0℃~40℃,≤85%RH
