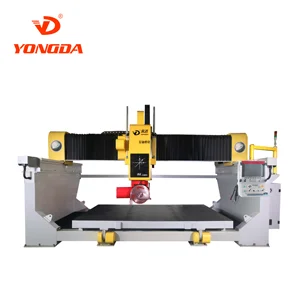

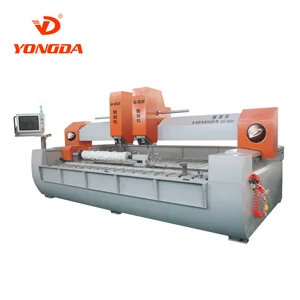

YD3020B Yongda 5 Axis Bridge Cutting Machine marble granite bridge saw cnc 3D stone bridge saw engraving machine for sale

CNC()



YONGDA YD4020 3 AXIS CNC Center stone machining center specially designed for sanitary countertop CNC control system full-option

YH-1200 6+6

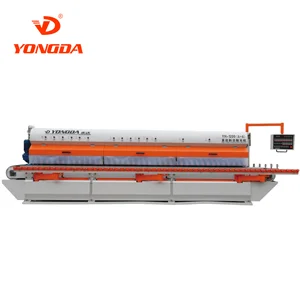

YONGDA YH-1200( 6+6)new stone square edge and bevel edge Polishing Machine automatic chamfering machine bevel edge grinding



Product Description



 PRODUCT SPECIFICATIONS

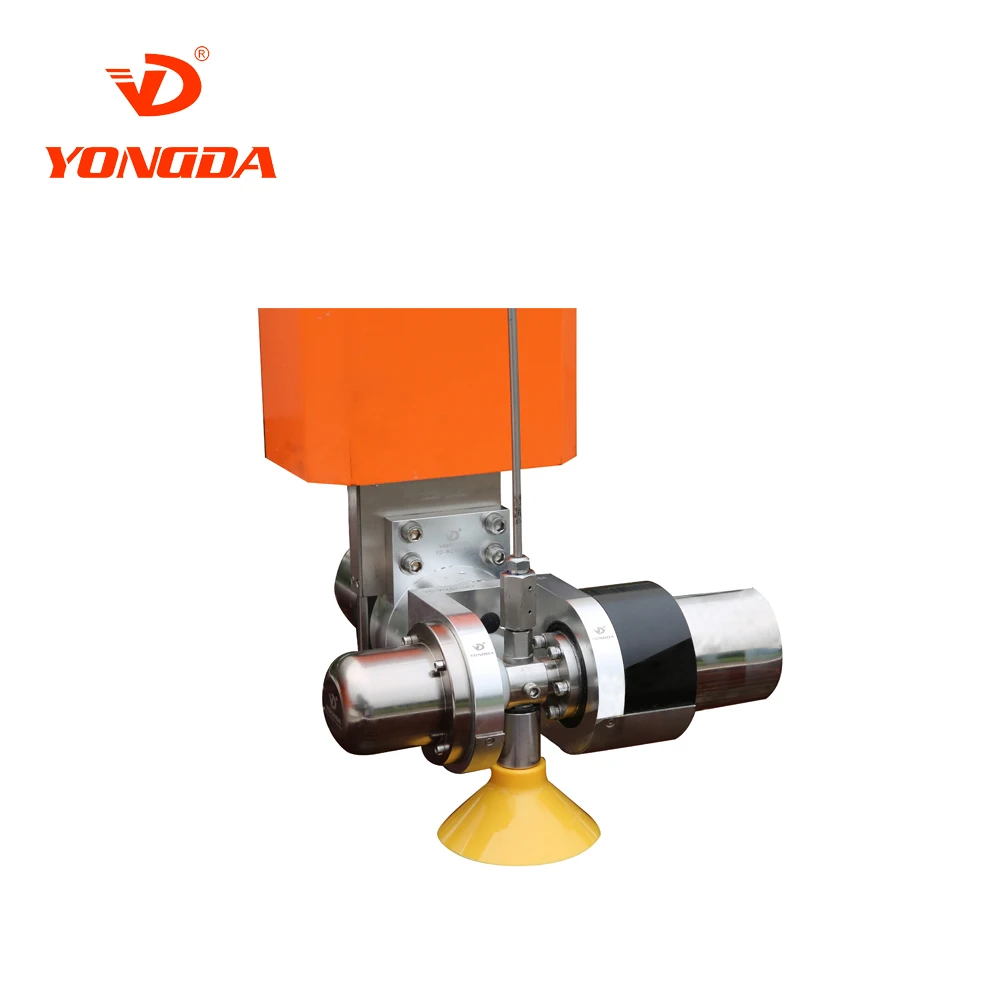

YONGDA AB 5 AXIS water jet has a high cost performance in the North American market, the first generation of three-dimensional AB 5 AXIS water jet which was launched in year 2013, solve the headache of half bottom cutting surface bumpy which affects the pattern quality. It realizes arc plate cutting, cylinder cutting... make impossible possible. AB 5 AXIS cutting head can make arbitral curve cutting from 0° to 10°, curve changing is controlled by computer which make it more stable.

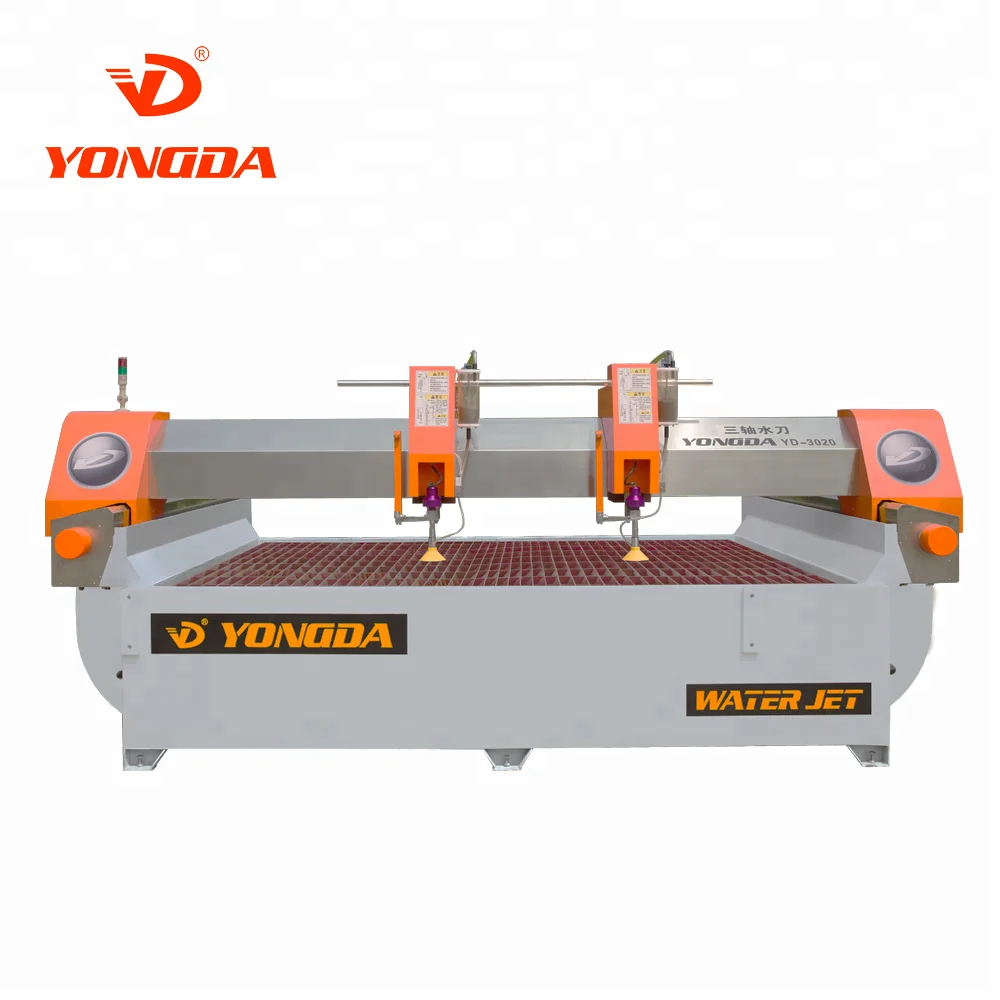

ModelYD-1212YD-2015YD-2515YD-3015YD-3020YD-4020
StructureFlying-armFlying-armFlying-armFlying-armBridgeBridge
Cutting table size1300×1300mm2100×1600mm2600×1600mm3100×1600mm3100×2100mm4100×2100mm
StrokeX-axis1200mm2000mm2500mm3000mm3000mm4000mm
Y-axis1200mm1500mm1500mm1500mm2000mm2000mm
Z-axis100mm
A-axis±20°
C-axis±20°

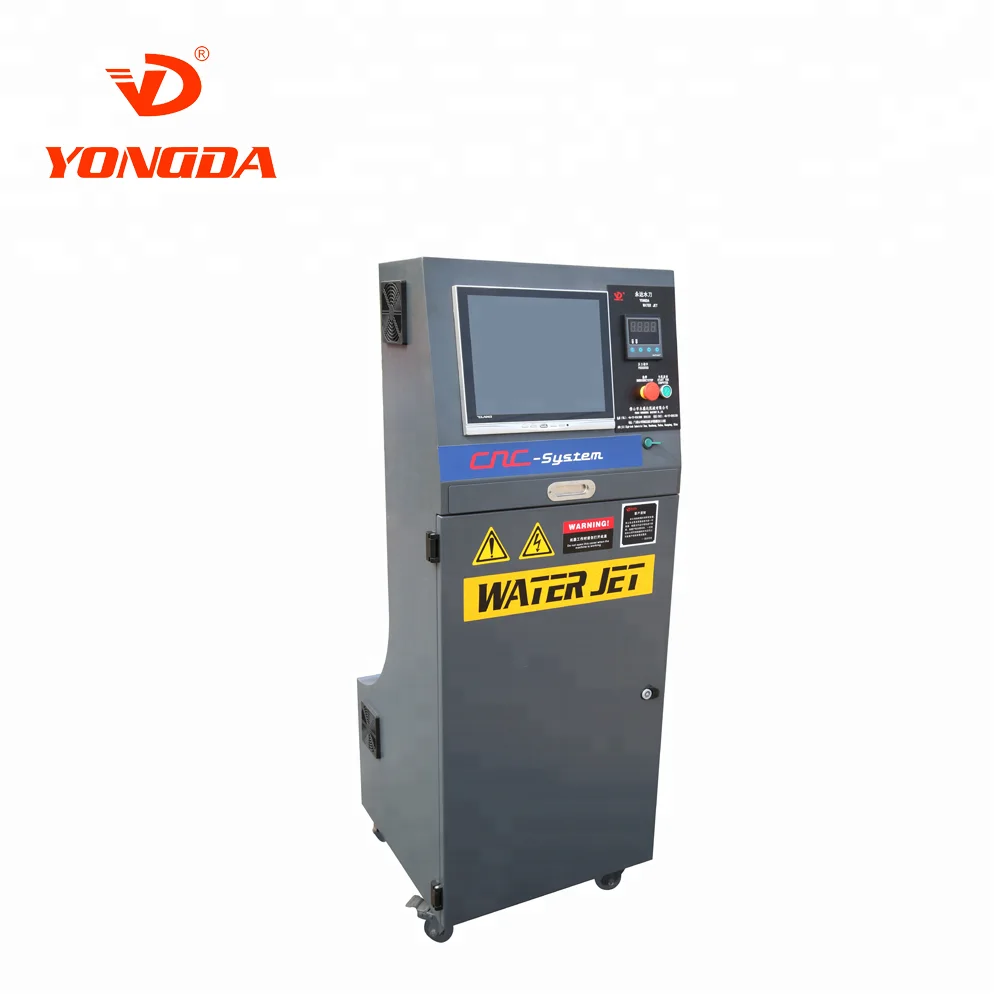

CNC controllerAC servo system
AccuracyCutting±0.1mm
Repeatability±0.05mm
Traverse speed6000/15000mm/min
Power supply220V/380V/415VAC--50/60HZ

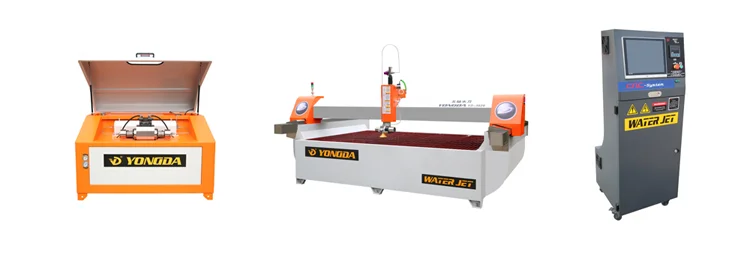

ab750



 PRODUCT ADVANTAGES

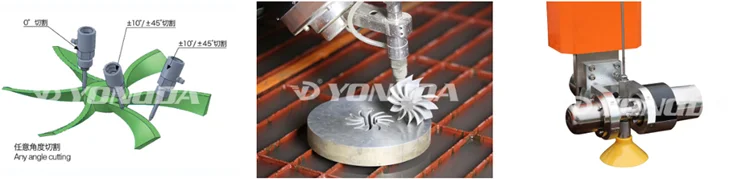

yb
3D cuttingArbitrary curve and arbitrary angle5 axis linkage

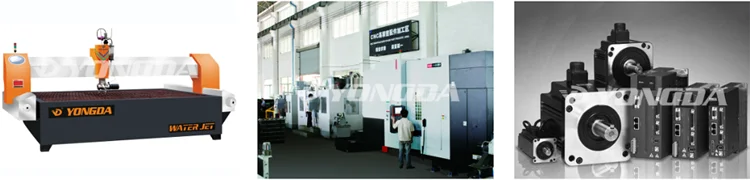

yb3
Long life and low maintenanceHigh-precision machining center processingServo drive, higher control accuracy

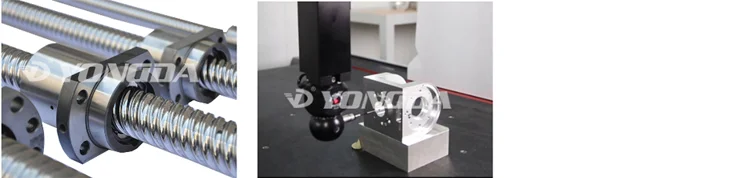

yb2

Apply unique oil immersion

lubrication

All accessories go through the

three-dimensional testing center

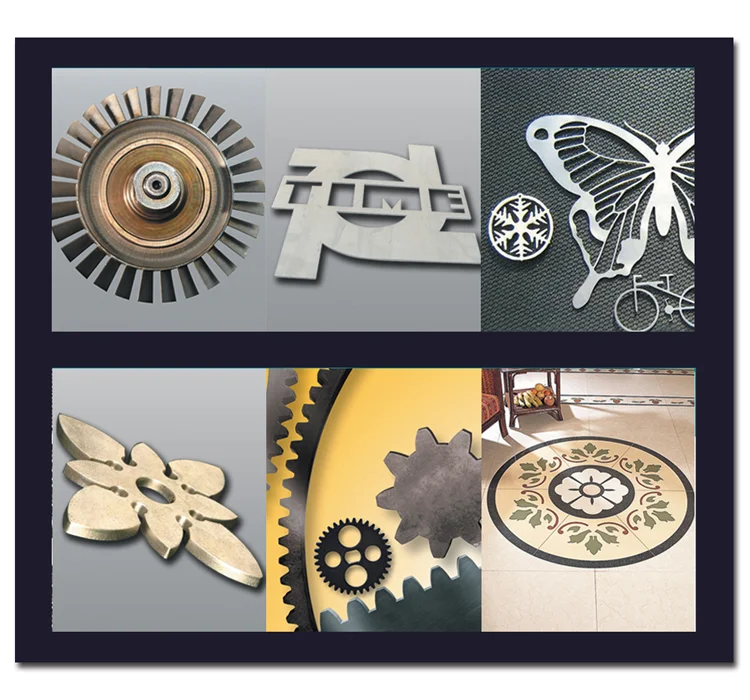

 CUTTING EFFECT
ff 750
