TTMC Universal Milling Machine LM-1450B
Heavy duty universal mill Combining and extra large working area and large travels to suit, we are confident this will cover your milling applications.
Table size, 1630x360 mm, X/Y/Z travel: 1200/300/390 mm
FEATURES AT A GLANCE
Large 1630x360mm slotted worktable
ISO50 universal head swivel 360°
Horizontal milling ISO50 Spindle
Table travel 1200/300/390mm
Rigid, torsion-proof construction, dovetail guide X-Axis & wide square guides Y & Z-Axis
Table rotate ±45°
Oil lubrication pump and reservoir
Standard LED working light & Cooling system

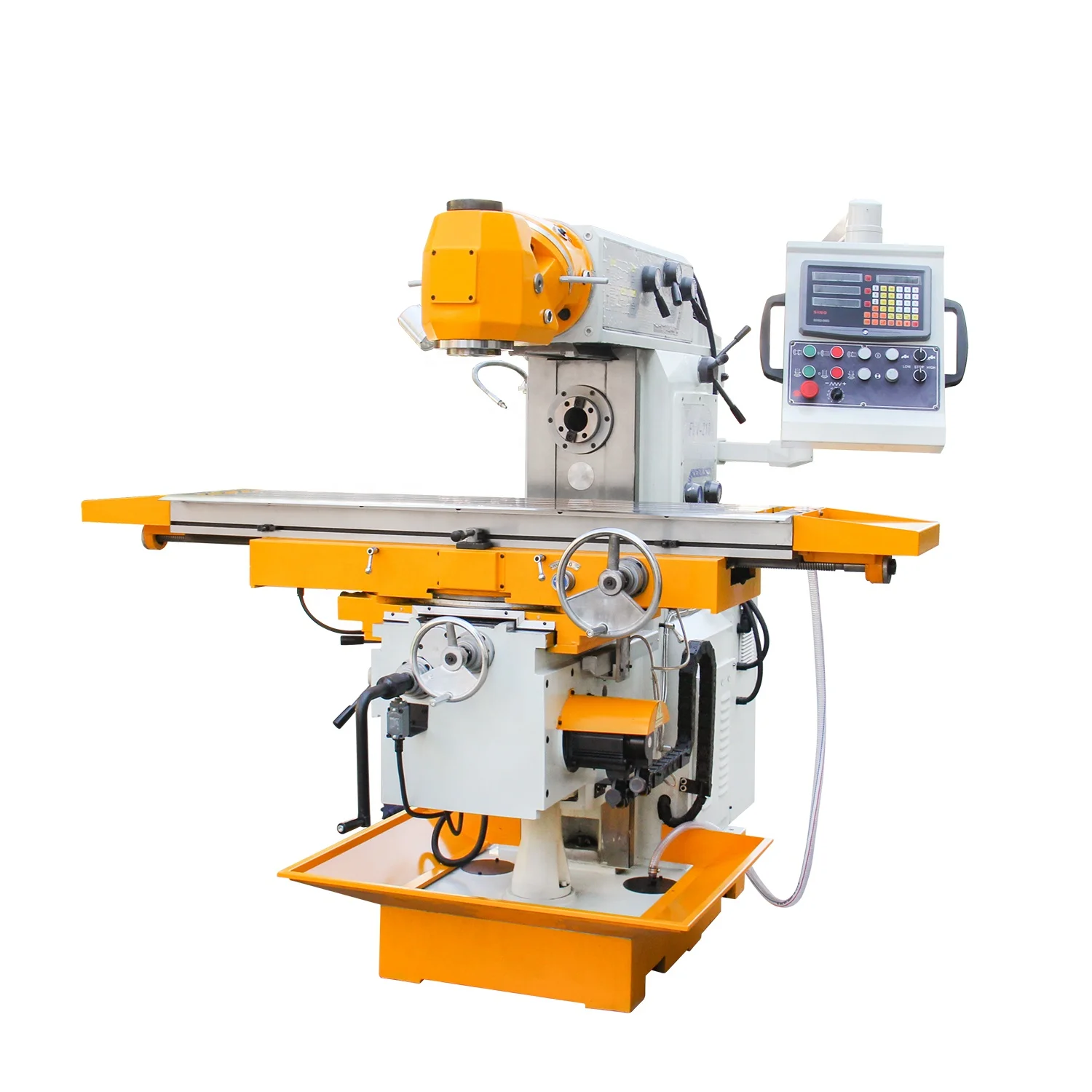

Note: Left picture with optaion DRO at Extra cost.

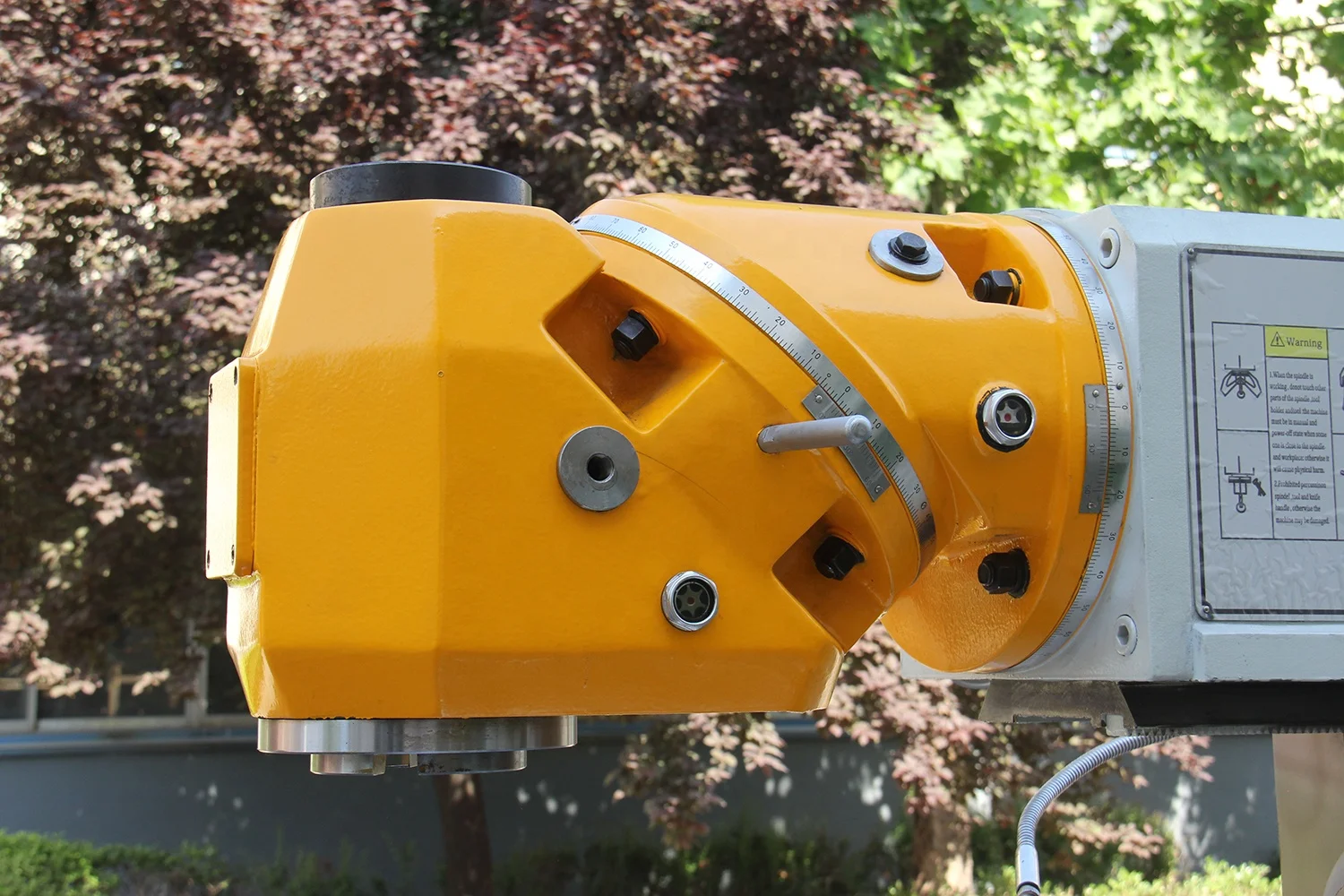

Universal Milling Head

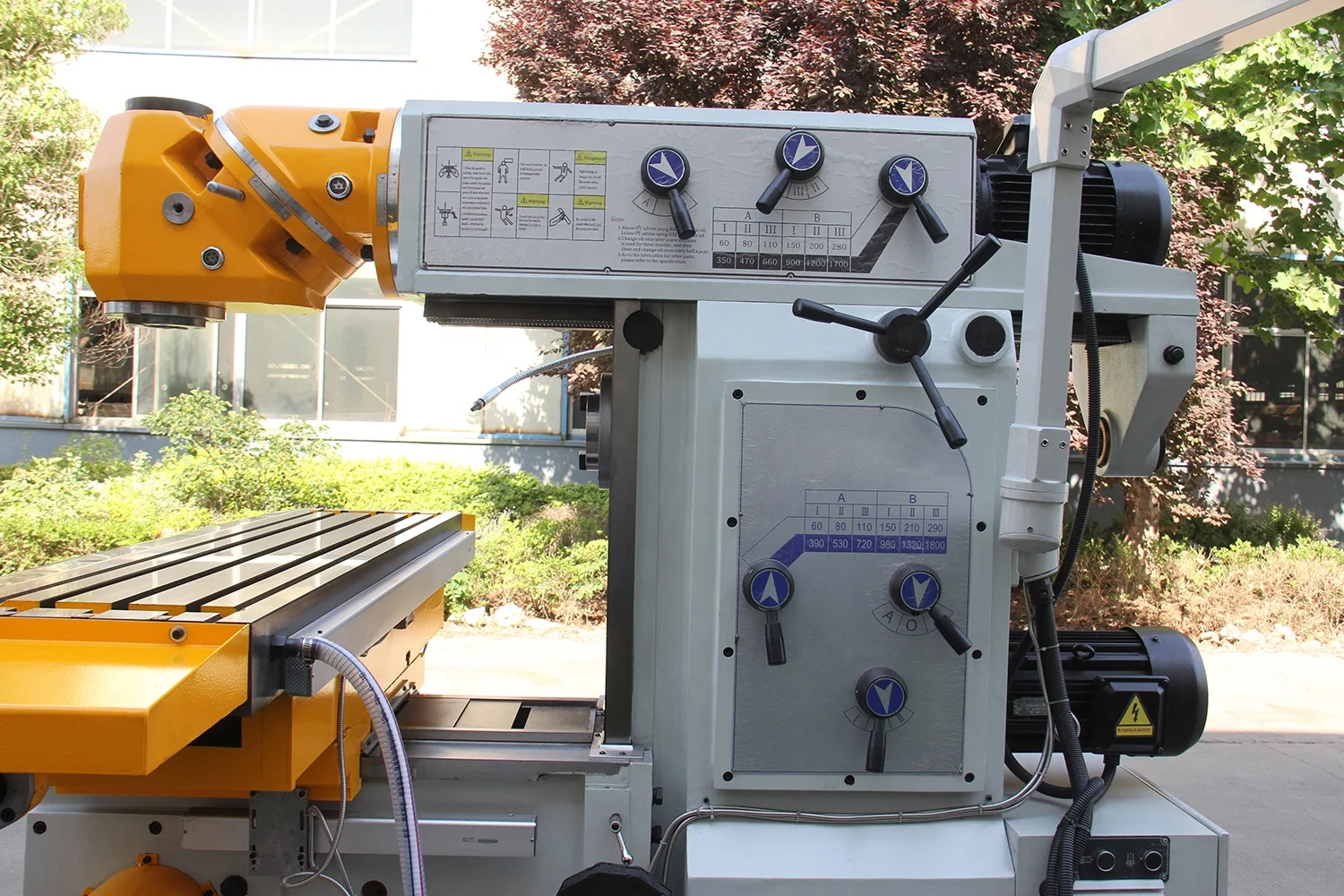

Different milling speed

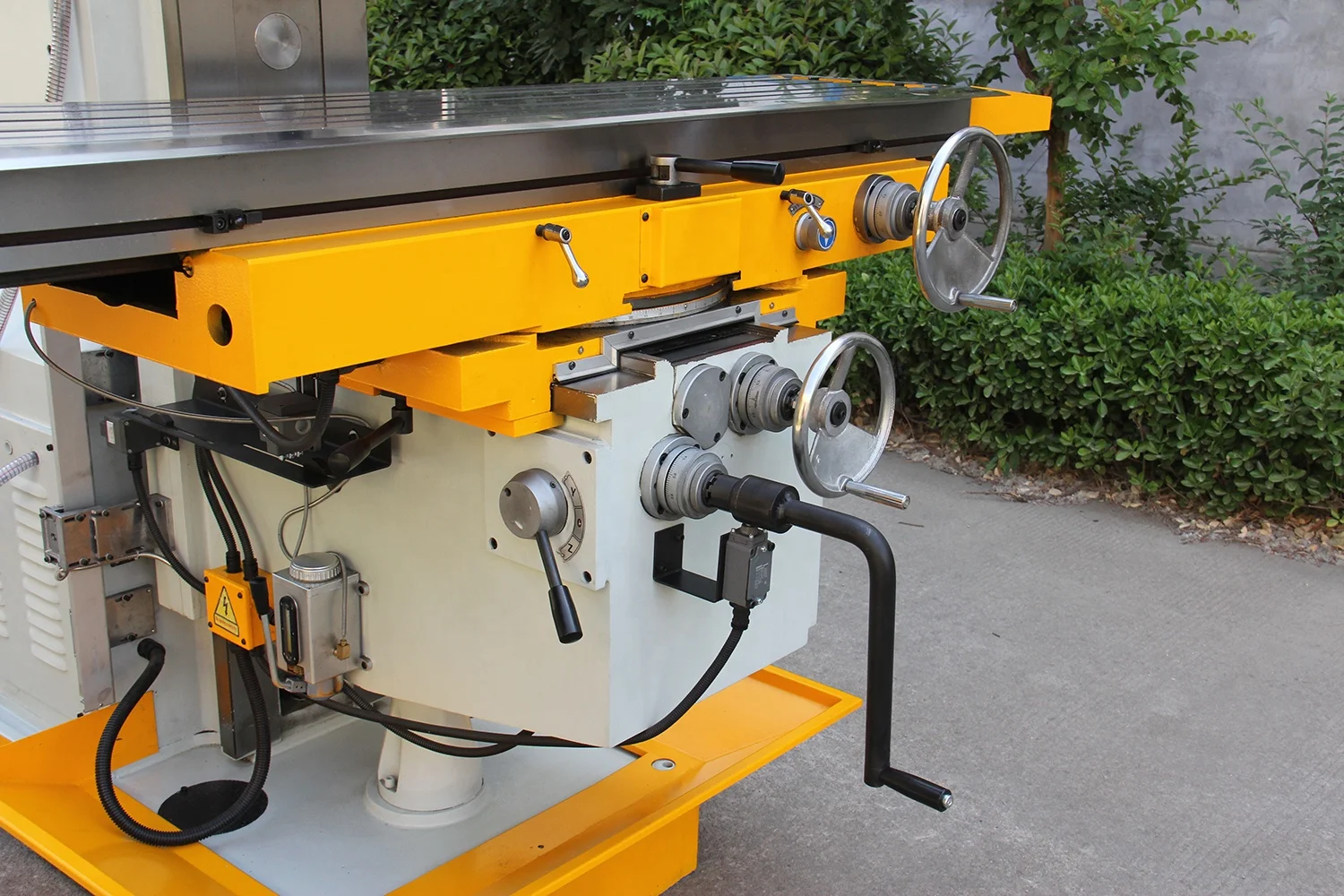

Rotary table
PRODUCT SPECIFICATIONS
Item NO. | 383011 | 383012 |
Model | LM-1450A | LM-1450B |
Spindle taper (V) | ISO50 | ISO50 |
Spindle taper (H) | ISO50 | ISO50 |
Spindle speed (V) | 60-1700 rpm, 12 steps | 60-1700 rpm, 12 steps |
Spindle speed (H) | 60-1800 rpm, 12 steps | 60-1800 rpm, 12 steps |
Distance from spindle to table | 150-550 mm | 150-500 mm |
Swivel angle milling head | 360° | 360° |
Table size | 1630x360 mm | 360° |
Table travel | 1000x320x405 mm | 1200x300x390 mm |
T-stot | 3/18/80 mm | 3/18/80 mm |
Tabel rotary | ±45° | ±45° |
Motor power | 4.0 kW (V), 4.0kW (H) | 4.0 kW (V), 5.0 kW (H) |
Packing size | 200x210x225 cm | 210x210x225 cm |
N.W./G.W. | 2650/2850 kg | 2650/2850 kg |
