High Efficiency Tilt type 45 Degree Assembling machine

Product Overview

Description

CNC HF frame assembling machine

High frequency frame assembly machine

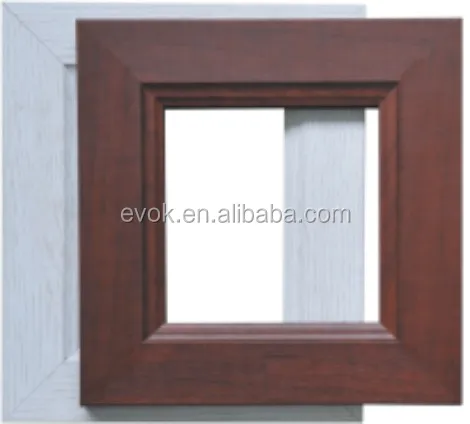

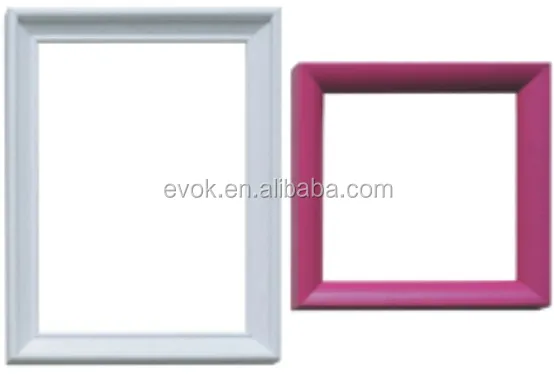

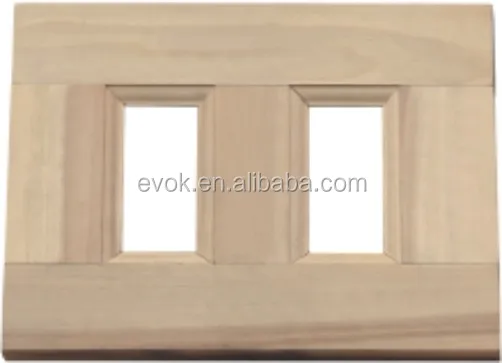

Function: Used for assemble cabinet doors, drawer,picture frame,mirror frame,closet frame,furniture frame with or without tenon.

High speed:Glue is solidified by heating in 2-20seconds,which can operate flow work.

Labor saving:Greatly reduces the manual time,saving the labor

High quality:Noneed to use staple gun and improved subsequent pocedures,the glue can fast cure under pressure sate,high gluing strength.

High precision:Adopt the ball screw and presicion linear guide,and stepper motor controls accuracy,diadonal tolerance of frame≤0.5mm

Low cost:One frame pnly costs about 0.003-0.04kw.h

Convenient: Adopt humanized touch-screen, PLC control, complete parameter.The pressure, power, heating time ,cooling time can be adjusted.

Model	TC-868-13508850	TC-868-1500*1000	TC-868-2200*850	TC-868-3200*850
Max.working size	1350*850	1500*1000	2200*850	3200*850
Presurzing mode	Servo precision screw	Servo precision screw	Servo precision screw	Servo precision screw
Overall dimension	2150*1330mm	2200*1500mm	2650*1330mm	4050*1330mm
Weight	900kg	1000kg	1600kg	1700kg
