type A type B black paint buoy shackle

Product Overview

Description

black paint buoy shackle type A, type B,

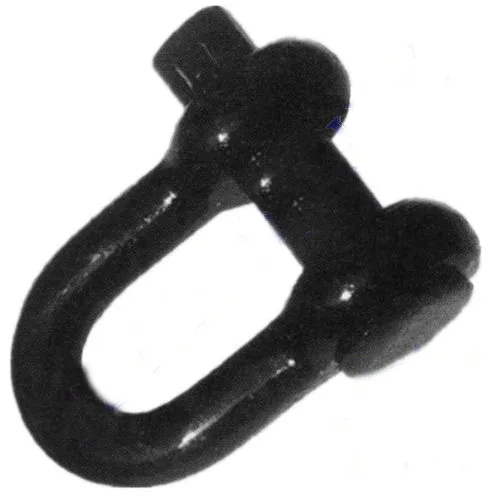

KS shackle,Anchor shackle ,

JS joining shackle

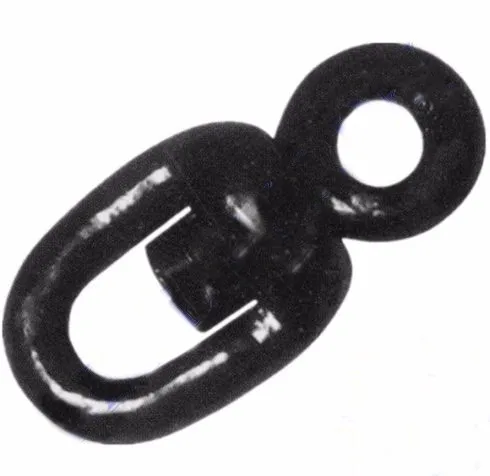

Swivel shackle Level: U2, U3, R3, R3S, R4, R4S, R5

Surface treatment: primary colors, black

Certificate: factory certificate, CCS, ABS, BV, NK, KR, GL, DNV, LR, RINA

Material: Anchor Chain Steel (CM370, CM490, CM690)

Process: Die Forging Forging Casting

Surface treatment: primary color, blackening, black paint, galvanized, hot-dip galvanized, etc.

Specification: 11mm-162mm

Grade: U2, U3 Origin: Qingdao, China

Packaging: carton, woven bag, iron tray, etc.

Delivery date: 5 ~ 45 days

Scope of use: To prevent excessive twisting of the anchor chain,

it is a rotatable part attached to the anchor end link.

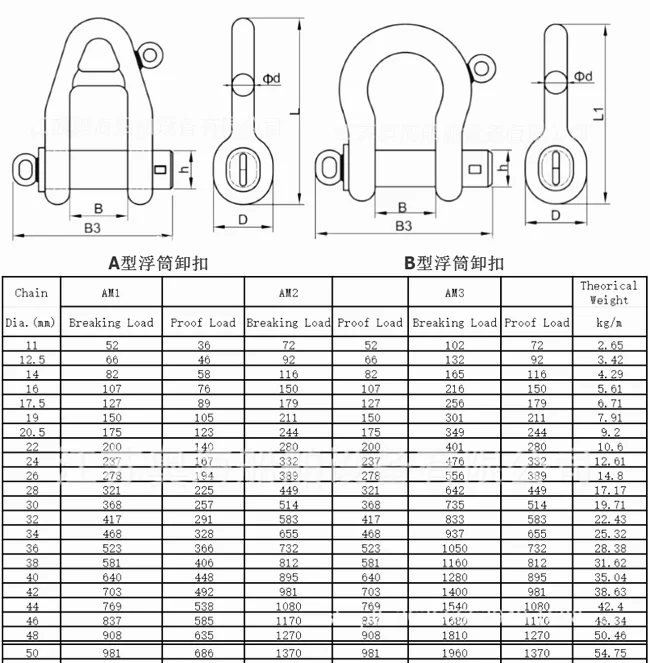

type B  suit to anchor chain dia34mm drawing

type B suit to anchor chain dia 48mm drawing

type B  suit to anchor chain dia 70mm drawing
