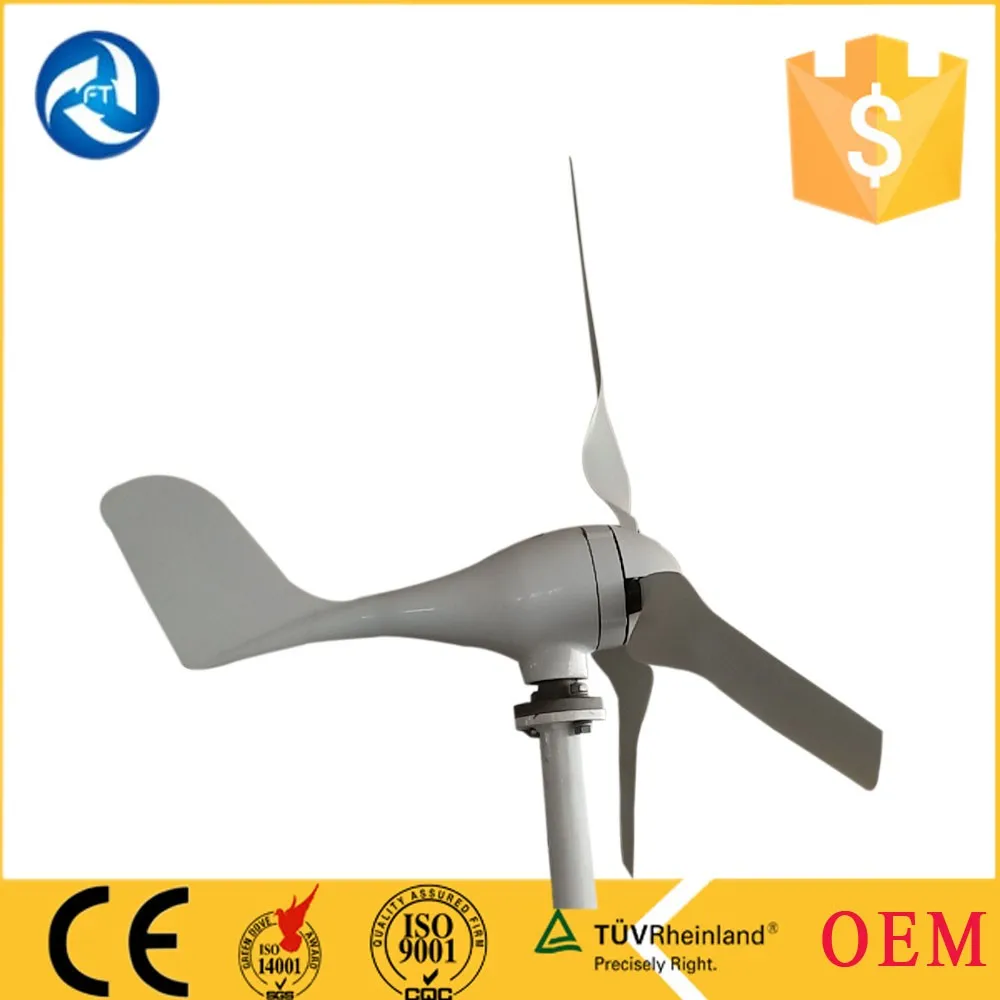

Mini wind power generator 300watt for streetlights

Product Overview

Description

Mini wind power generator 300watt for streetlights

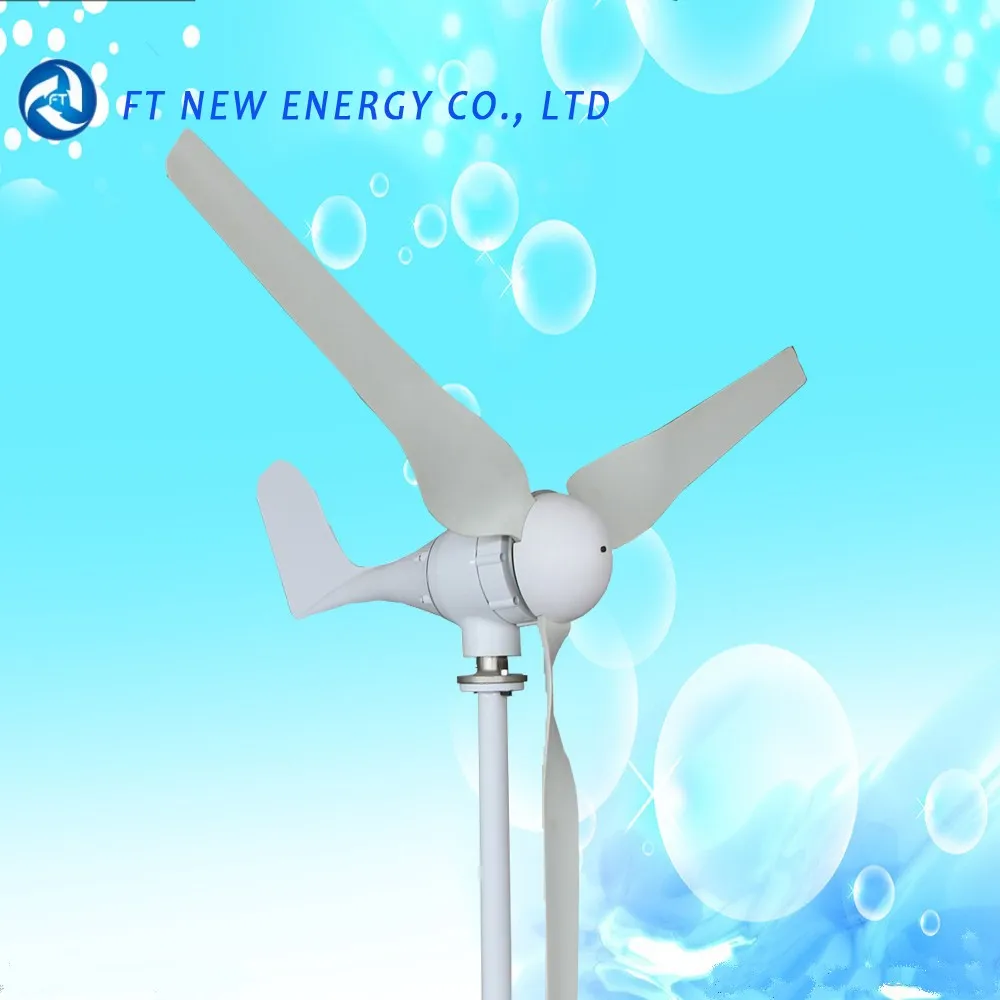

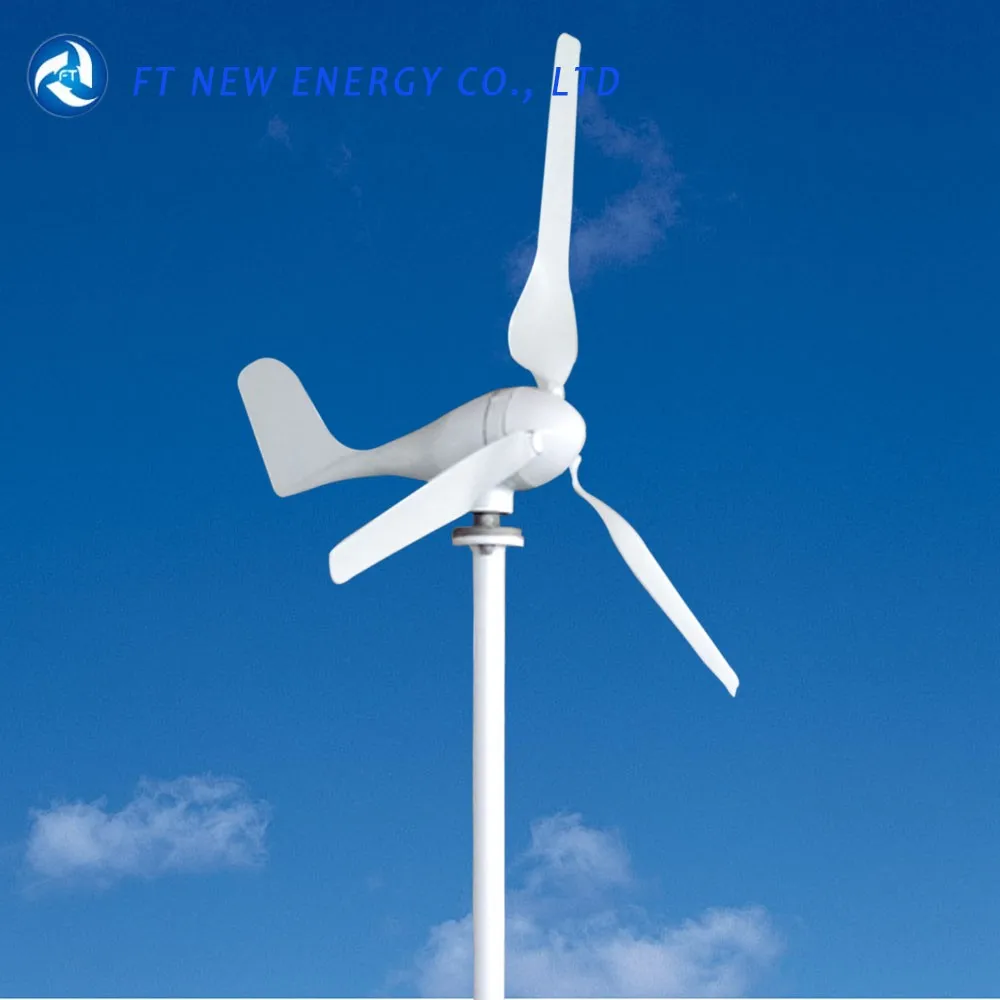

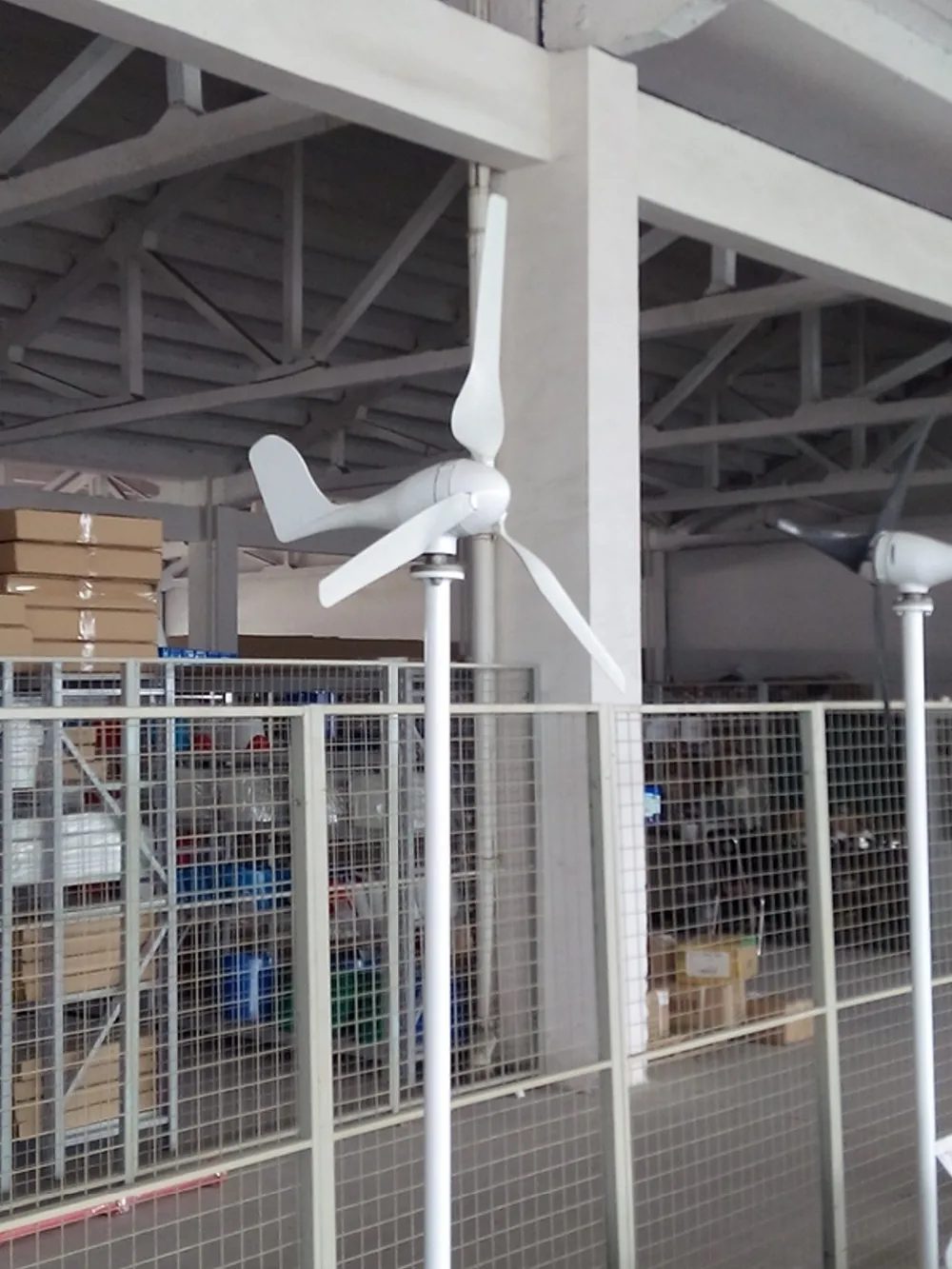

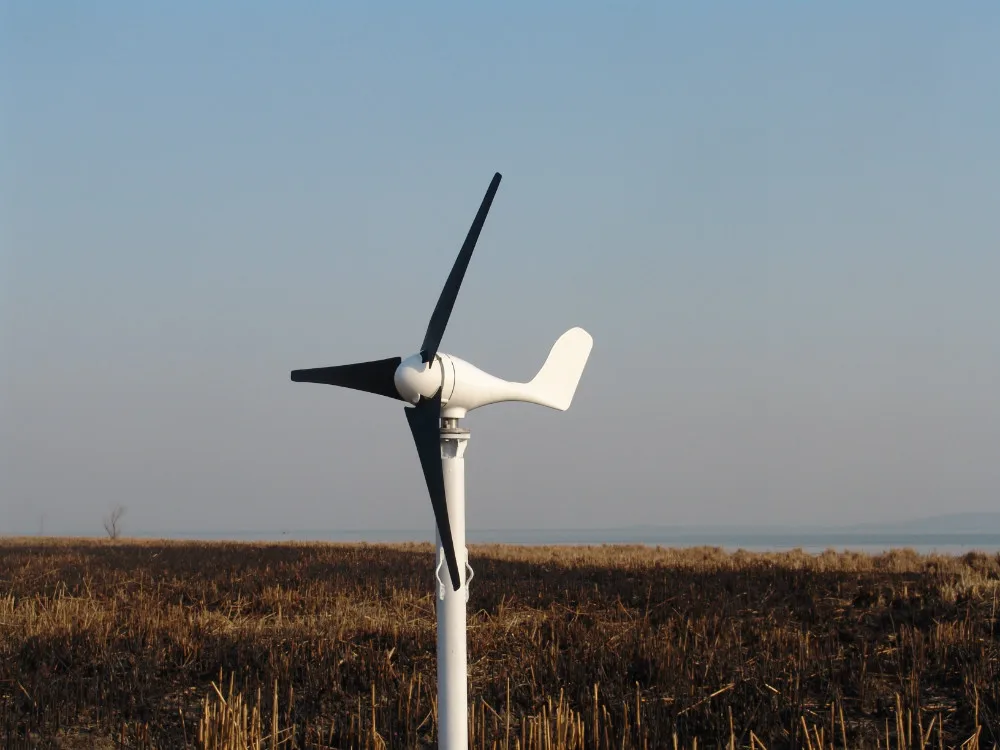

Real picture

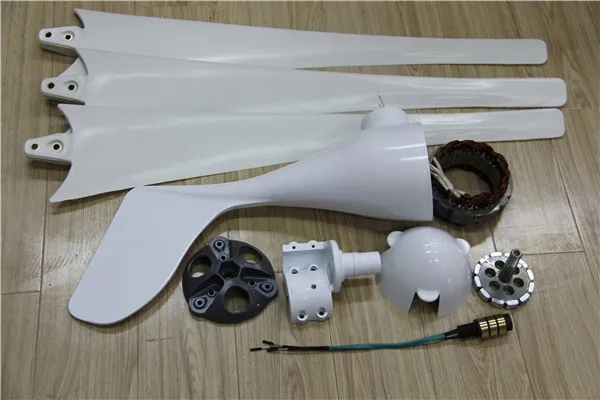

Detail components





Data



Model	FT-300S
Rated power	300W
Maximum power	380W
Rated voltage	12/24V
Start-up wind speed	2.0m/s
Rated wind speed	11.5m/s
Survival wind speed	65m/s
Top net weight	9.0kg
Wheel diameter	1.35m
Number of blades	3/5
Blades material	Nylon fiber
Generator type	Three phase permanent magnet AC synchronous generator
Magnet material	NdFeB
Generator case	Casting aluminum alloy
Control system	Electromagnet/wind wheel yaw
Speed regulation	Automatically adjust windward direction
Working temperature	-40°C  -  80°C
Design life	20 y
Certificates	CE, ISO14001,ISO 9001, TUV





Features



1.Low start up speed, high wind energy utilization.

2.Easy installation, tube or flange connection optional.

3.Blades using new art of precision injection molding , matched with optimized

aerodynamic shape and structure,which enhance the wind energy utilization and

annual output.

4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger

wind and run more safely.

5.Patented permanent magnet ac generator with special stator,effectively reduce torque,

well match the wind wheel and generator, and ensure the performance of whole system.

6.Controller, inverter can be matched according to customers’ specific needs.

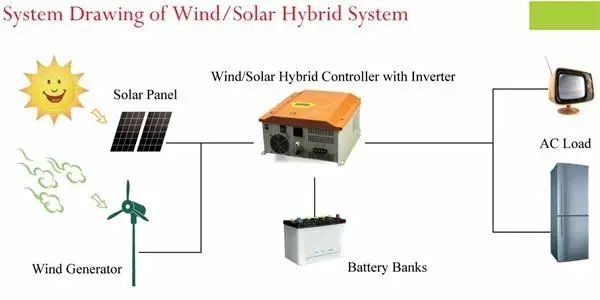

Wind power generator 300watt system connection diagram

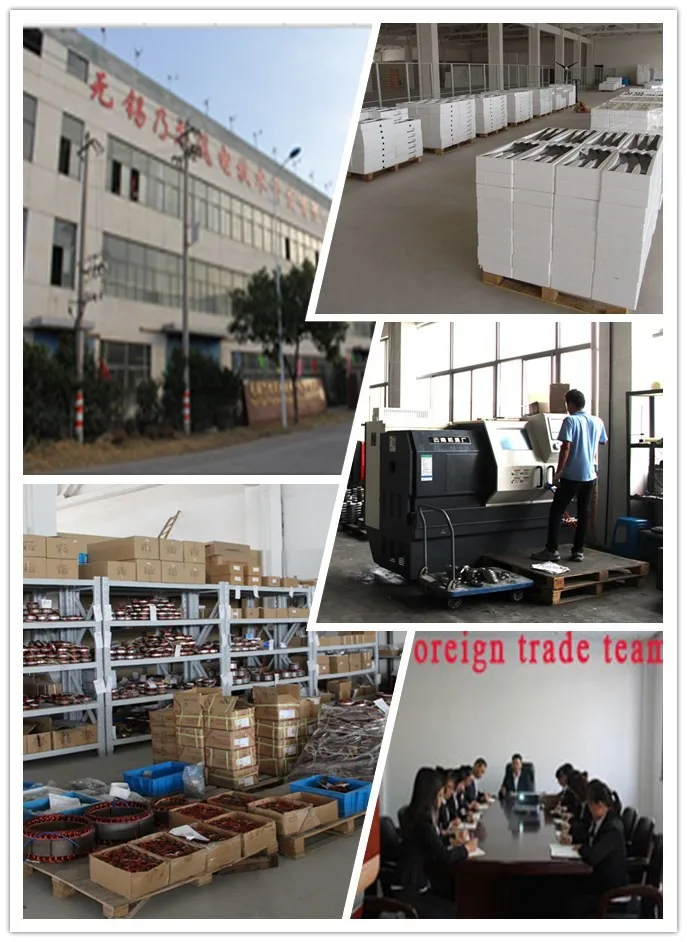

We are producer of wind power generator.

Our products cover wind power generator 100w-100kw,

vertical wind power generator 100w-20kw.





Certificates





 FAQ

Some questions you may have for Horizontal axis wind generator 300w for Marine use :



1. Q: Are you producer?Where is your factory?
A: We are professional wind turbine generator producer that in Wuxi city, Jiangsu Province,
about one hour drive from Shanghai.
2. Q: Is installation easy?
A: Yeah, it's very easy, every customer can do it by themselves. We supply you all the
components and the installation manual.
3. Q: Is our wind enough for a wind generator?
A: Our wind generator can start running at low wind speed, 3m/s. So if your average
annual wind speed is more than 5m/s, you can use it.
4. Q: Which model should I choose?
A: If you are not sure to choose the model, please contact our sales with the
following points:
1. What appliance do you want to run by the system? How many watts are they? How long
do they work?
2. Your annual wind speed.
3. What kind of system do you want? On-grid or off grid?
5. Q: Can I only buy parts of the wind generator system?
A: Yes.
