100 tons Honggang four column hydraulic automatic PET packaging tray cutting press machine

Product Overview

Description

HG-B100T automatic flocking inner tray cutting press machine



About Us - Video



HG-B100T automatic illumination blister package cutting press machine



 1. Application:



special for plastic blister packaging and PS foam products such as disposable food container,cup cover,fresh/sea food tray,fruit box,etc.

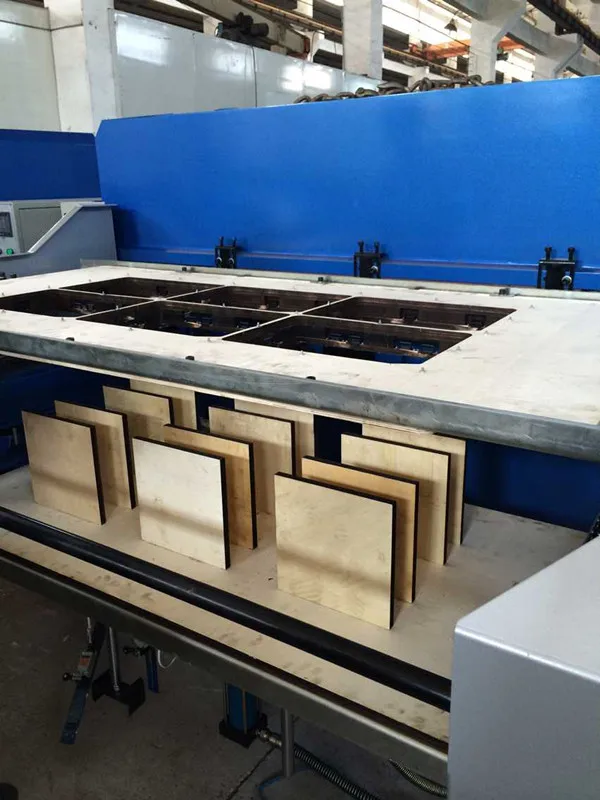

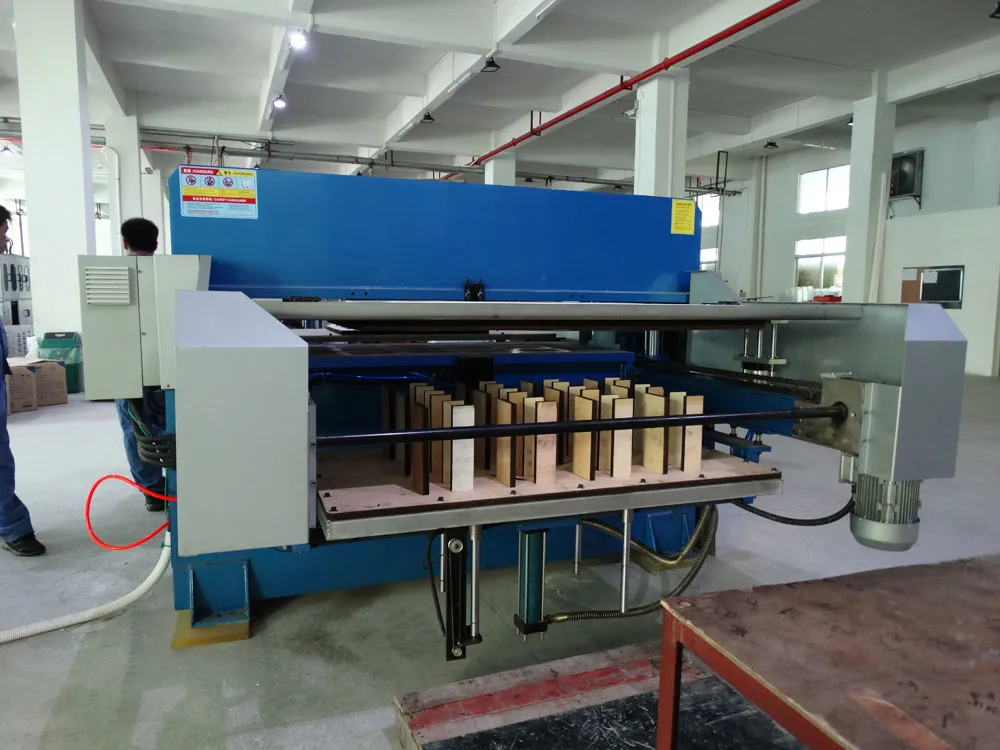

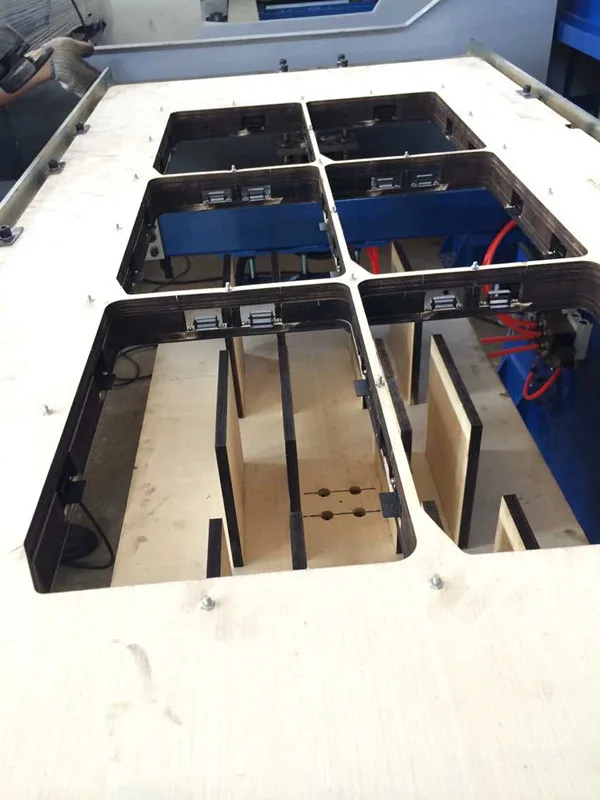

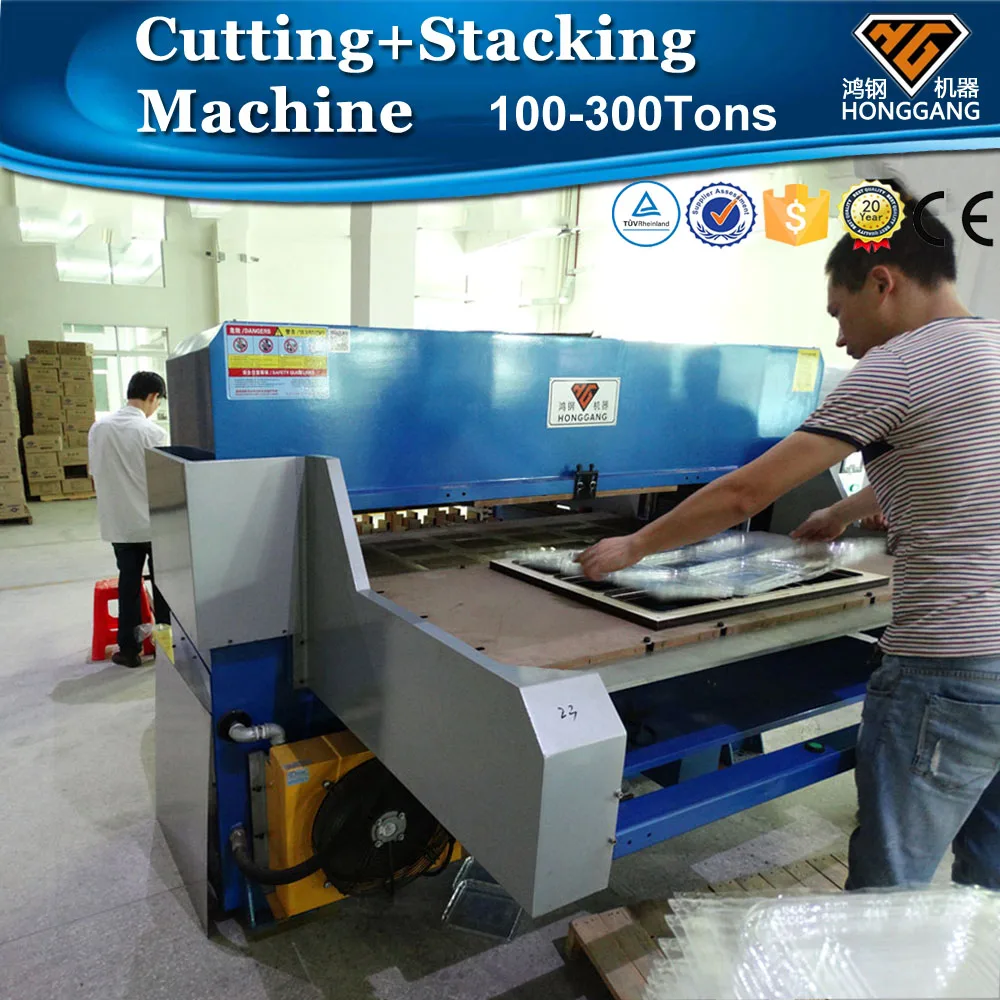

Product picture:







2. Features:

1.Controlled by PLC(Programmable Logic Controller), with touching screen, to set and micro-adjust working pressure, cutting depth, feeding speed easier, faster and more precise.

2.Double automatic working tables, increases the output twice or triple.

3.Auto-balance structure of double-cylinder, four-column and self-balance connecting rod, makes sure equal pressure in any working area.

4.Powered by hydraulic system, slow down when the cutting die touches material, to confirm the precision between upper and bottom for thick materials.

5.Central automatic lubrication system, increases machine durability, prolong the working time.

3. Technical Parameters:p

Model. No	HG-B60T	HG-B80T	HG-B100T	HG-B150T	HG-B200T
Cutting force	60tons	80tons	100tons	150tons	200tons
Dimension (L*W*H)	3000*2300*1570 mm	3000*2300*1570 mm	3000*2300*1570 mm	3000*2300*1570 mm	3000*2300*1570 mm
Stroke	50-240mm	50-240mm	50-240mm	50-240mm	50-240mm
Area of Work Table	810*1400mm	810*1400mm	810*1400mm	810*1400mm	810*1400mm
Main Motor Power	5.5KW	7.5KW	7.5KW	11KW	11.5KW
Net Weight	4500KG	5000KG	5500KG	7000KG	7500KG

4. Other style machine:

1.Auto continuously feeding hydraulic cutting machine with mechanical arm



2.Auto double-side hydraulic cutting machine with mechanical arm





3.Auto multi-layer continuously feeding hydraulic cutting machine



4.Vertical double-side automatic hydraulic cutting machine

5. How to contact us:





If you are not sure if your material can be cut by this  plastic packaging cutting machine,we want to know the product information:



Material:
Max. material width:
Max. material thickness:
Max.cutting length:



Send your Inquiry Details in the Below, Click "Send" !

we will reply within 24h!
