TTMC Vertical Drilling Milling Machine
Two Types of vertical drilling machine
ZX5325C, Gear Head, 3 Phase motor
ZX5325, Belt drive head, single phase
FEATURES AT A GLANCE
Swivel table with guide scale
Tilt milling head, ±45°, left and right
Optional spindle taper, MT4, ISO30, ISO40, R8
Fine grounded extra-large work table,
Fine ground dovetail for table movement, travel 450x280x380mm

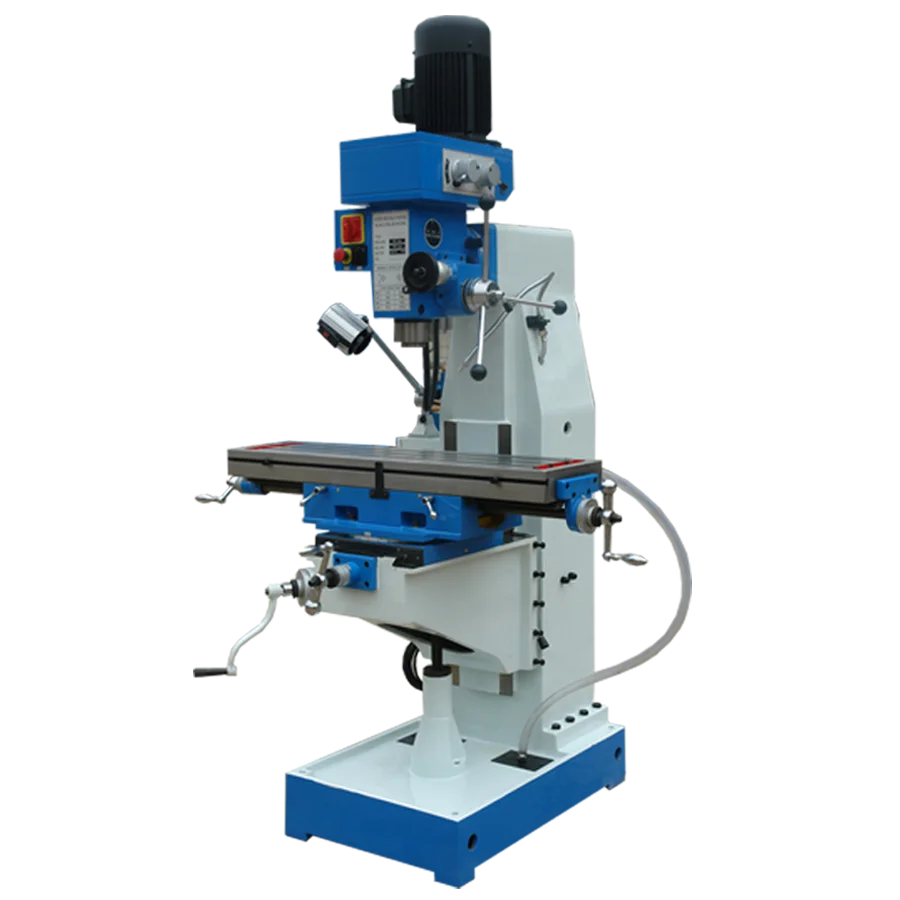

Left picture is the ZX5325C, Gear Head Milling Machine
Right picture is Belt Drive Milling Machine ZX5325
Fine ground table
Optional power feed

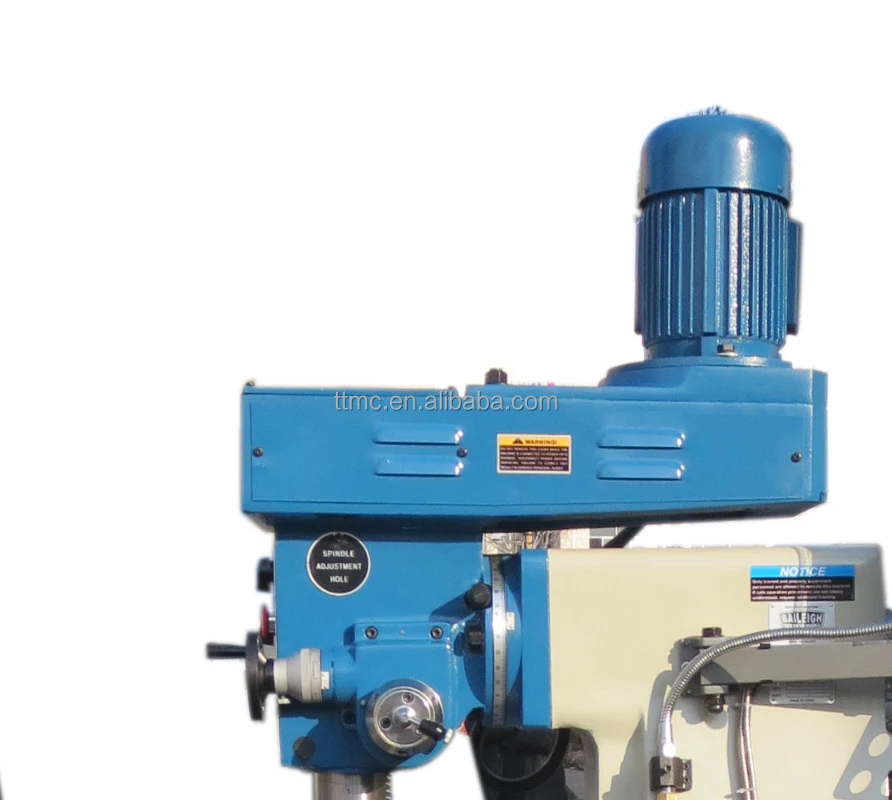

Gear Head details
PRODUCT SPECIFICATIONS
Vertical Milling Machine, ZX5325 (Belt) and ZX5325C (Gear)
Item No. | 383012 | 383013 | |
Model | ZX5325 | ZX5325C | |
Max. drilling dia. | 50 mm | 50 mm | |
Max. end milling dia. | 100 mm | 100 mm | |
Max. vertical milling dia. | 32 mm | 32 mm | |
Max. tapping dia. | M16 | M16 | |
Spindlt taper | MT4, ISO30, ISO40, R8 | ||
Spindle speed range | 270-2400 rpm | 115-1750 rpm | |
Spindle travel | 125 mm | 125 mm | |
Table size | 260x1000 mm | 260x1000 mm | |
Table travel | 450x280x380 mm | 450x280x380 mm | |
Main motor | 1.5 kW | 0.85/1.5 kW | |
Drive | Belt | Gear | |
Packing size | 114x114x210 cm | 114x114x222 cm | |
N.W./G.W. | 850/1050 kg | 870/1070 kg | |
