DFX competitive price steel structure portable aircraft hangar
- Category: >>>
- Supplier: Qingdao Director Steel Structure Co. Ltd.
Share on (60433885244):
Product Overview
Description
DFX competitive price steel structure portable aircraft hangar

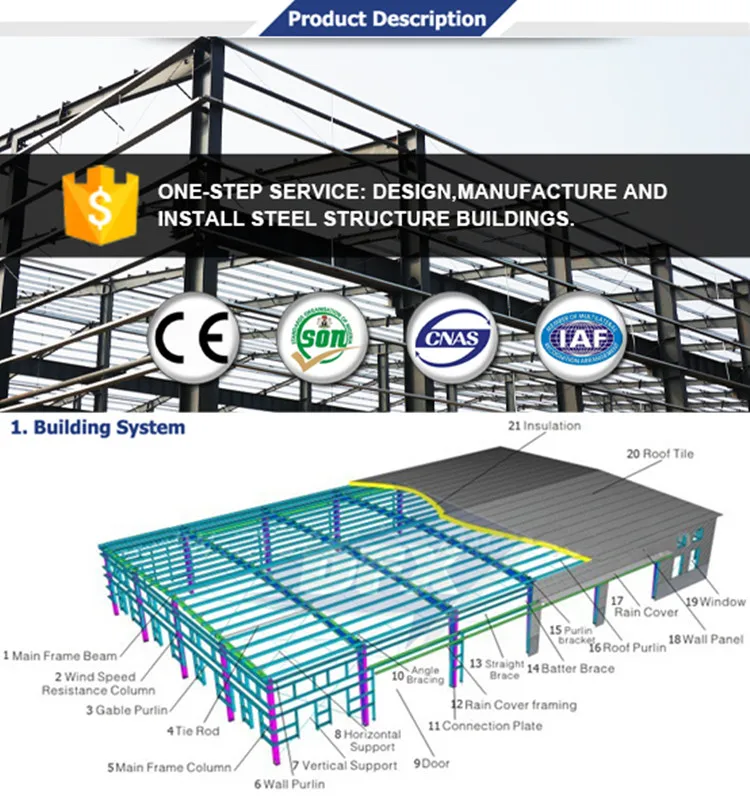

Product Description
2. Specification
Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Temperature | Suitable temperature.-50°C~+50°C | |
| Certification | CE, SGS, ISO9001:2008, ISO14001:2004 | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. | |
Characteristics
1. Wide span: single span or multiple spans, the max span is 36m without middle column
2. Low cost and maintenance: unit price range from USD25/m2 to USD50/m2 according to customers request
3. Fast construction and easy installation: time saving and labor saving
4. Long using lifespan: up to 50 years
5. Nice appearance
6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.

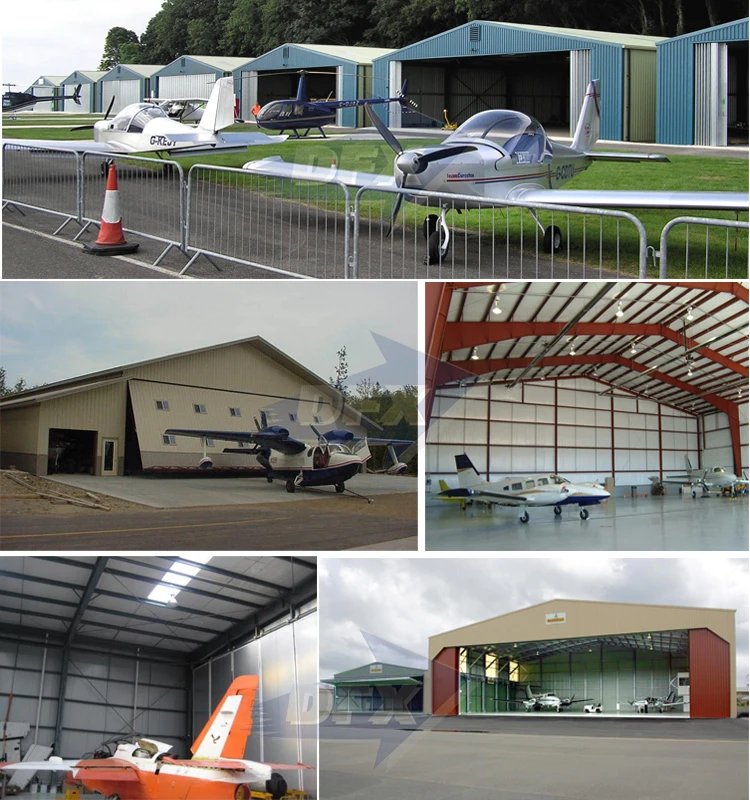

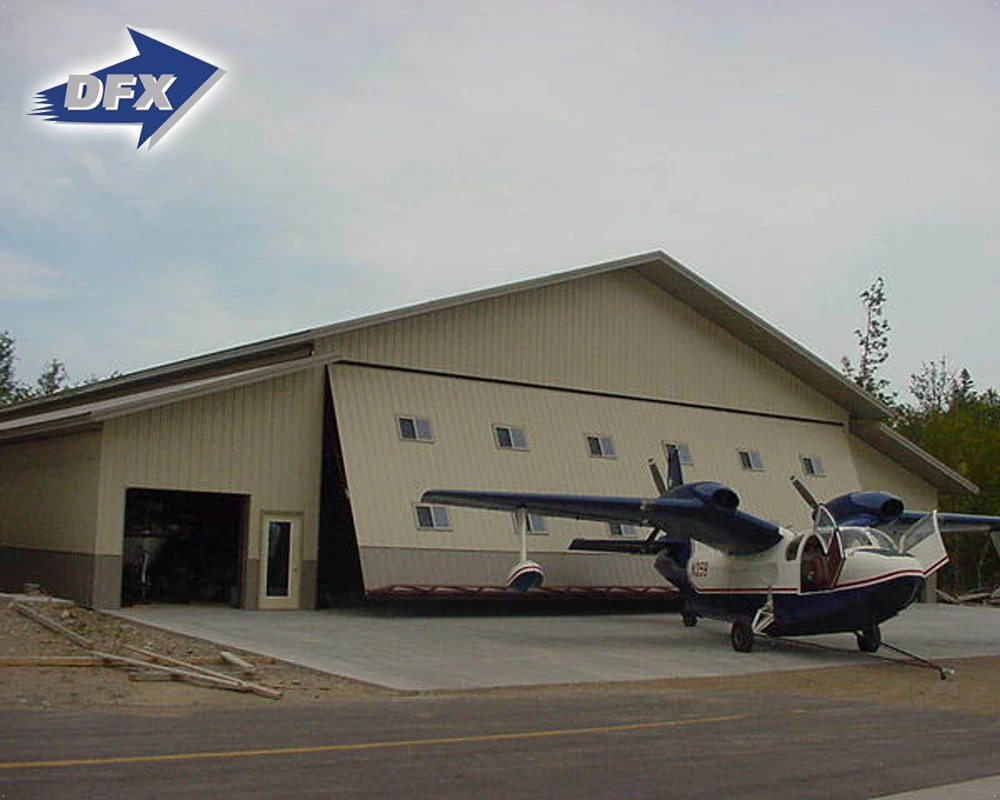

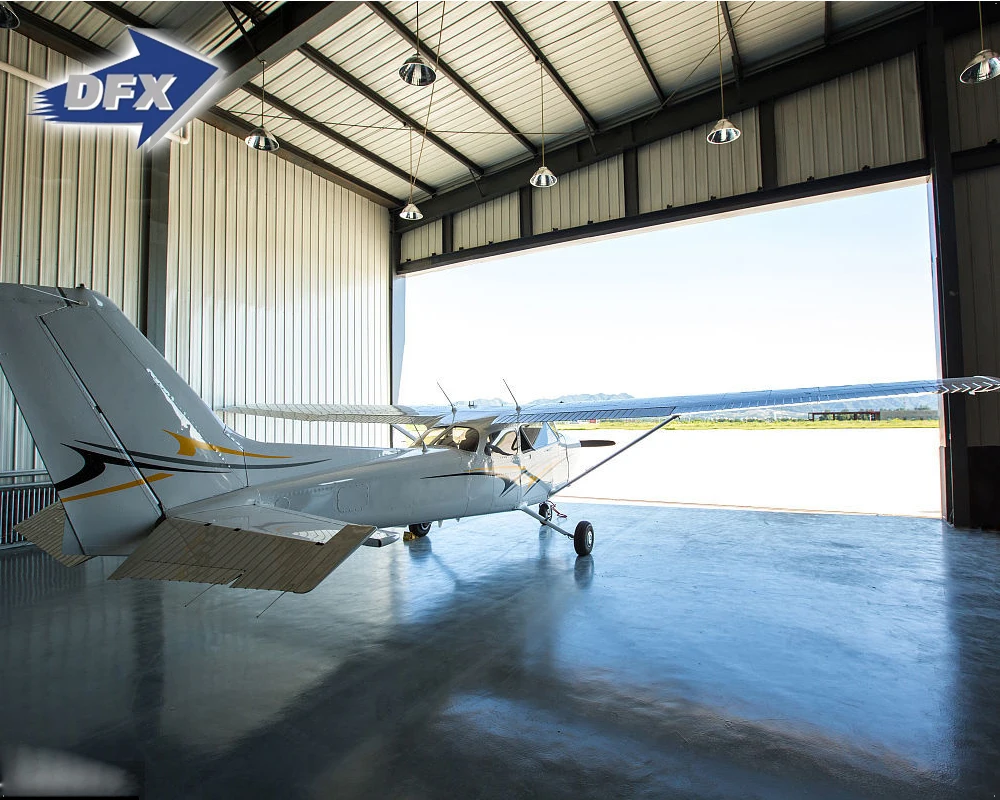

Product Show

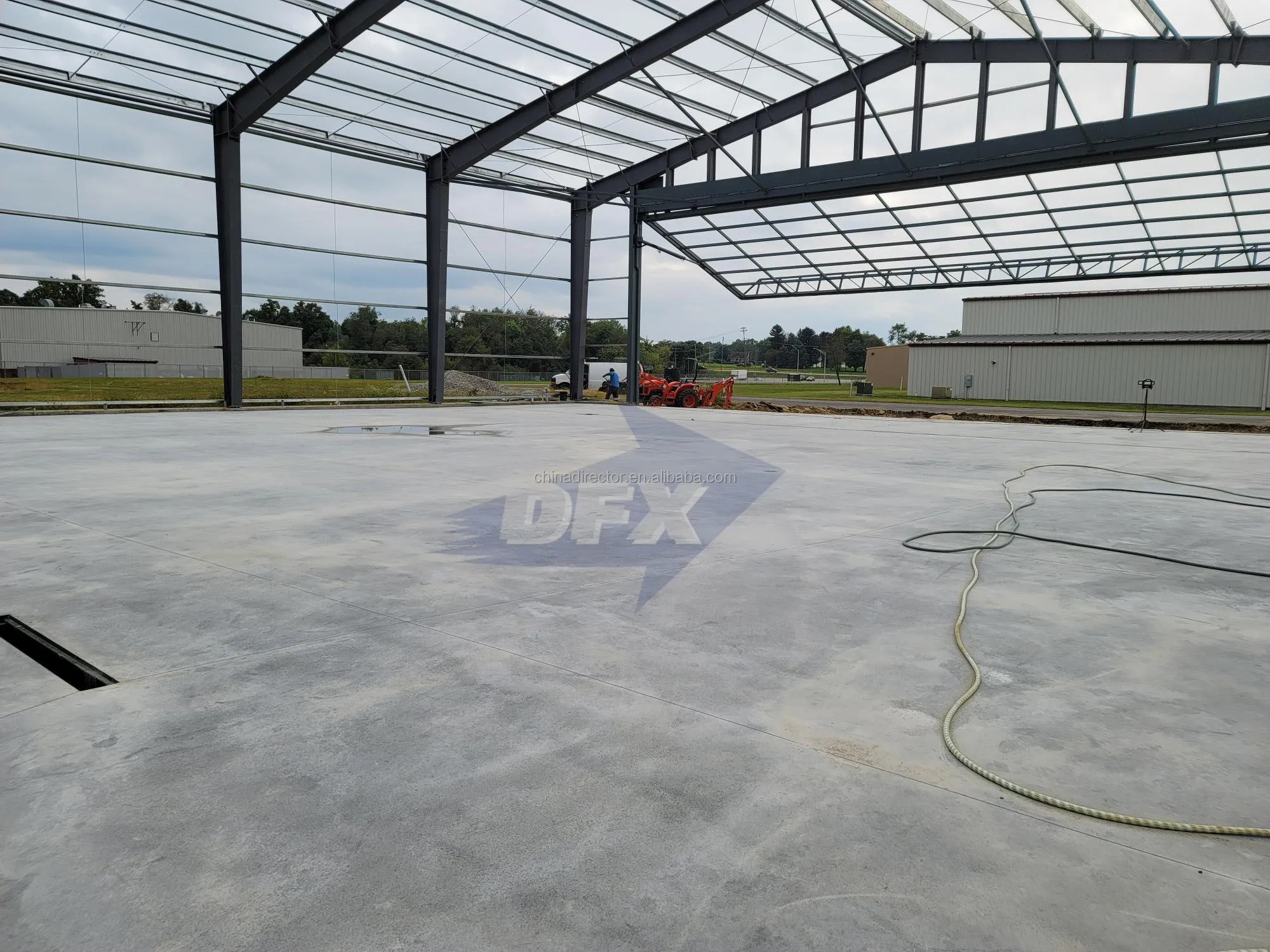

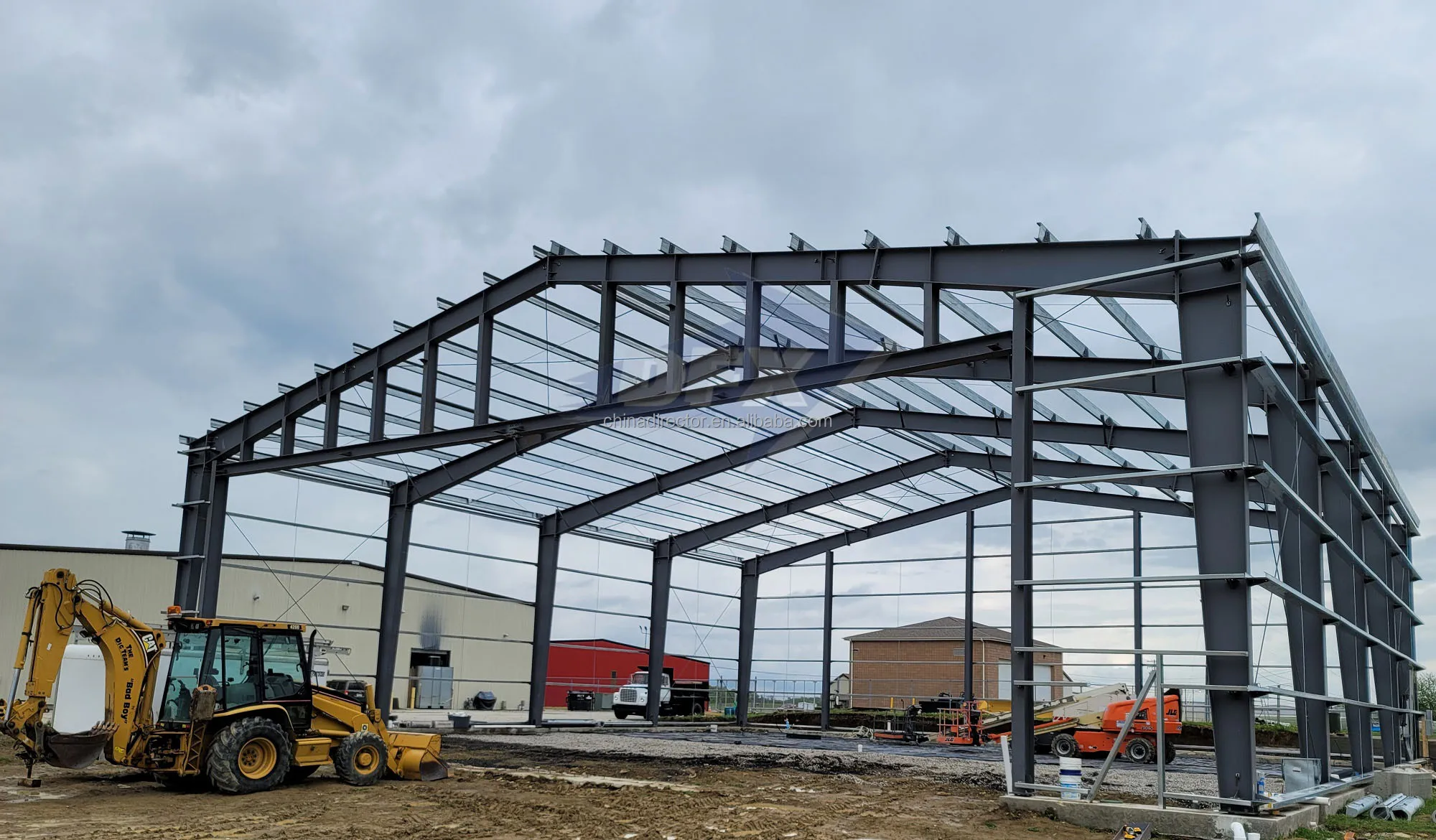

Following is a new steel hangar we did in USA, For more information, please contact me freely.
Thank you

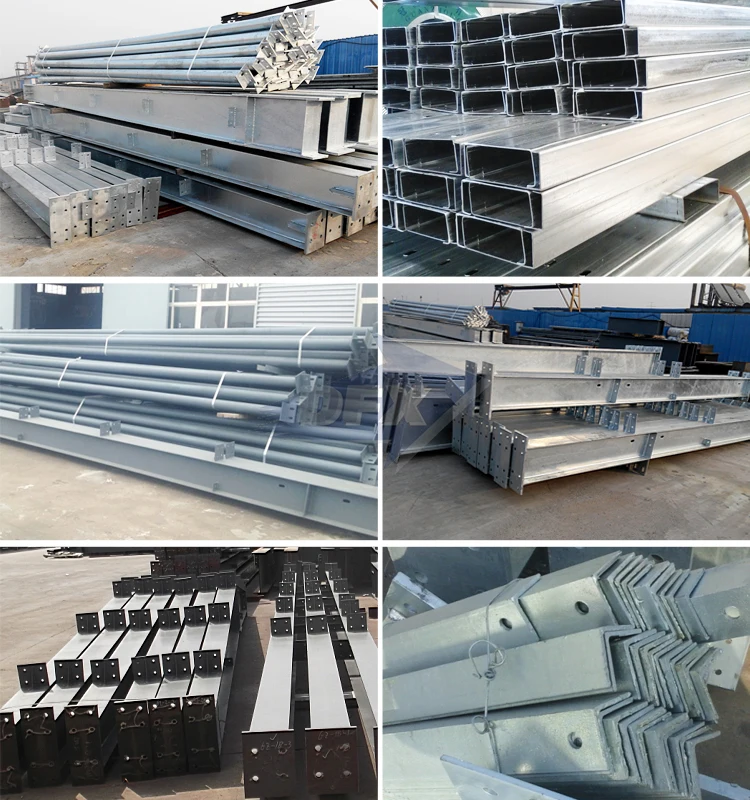

Finished Main Steel

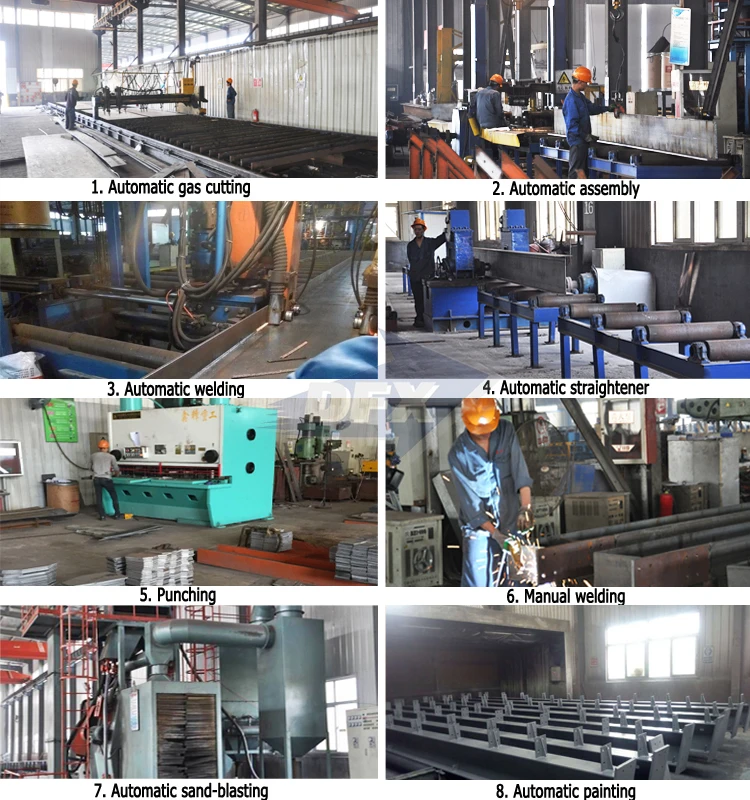

Production Flow
Company Information

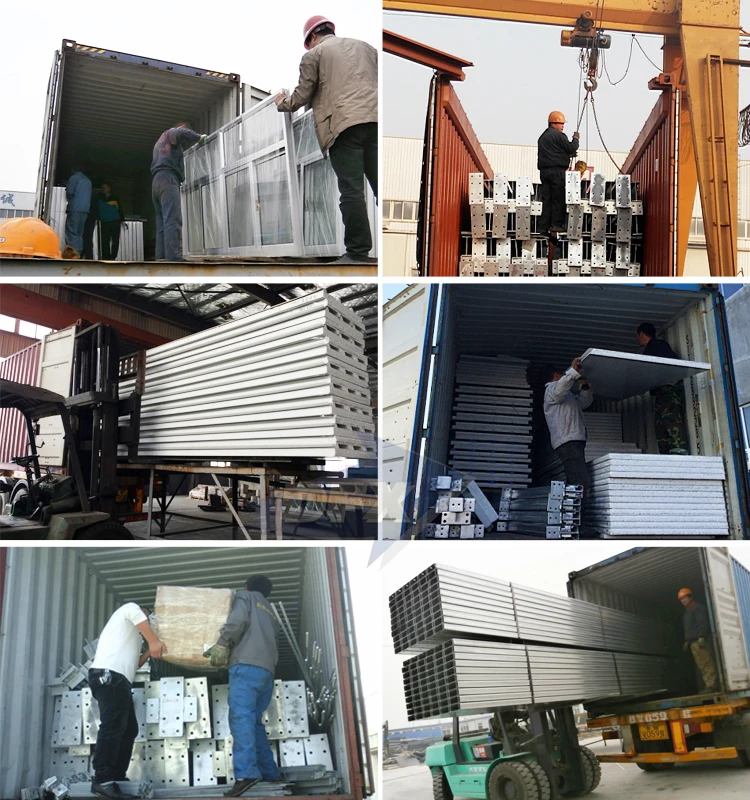

Packing and loading
main steel frame without packing load in 40'OT,roof and wall panel load in 40'HQ.
Need Quotation?
Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m
Contact Us
Please contact Us freely!
Add: Room 1102, Unit A, No.1 Building, No. 917, Tongan Road, Qingdao, China
Tel: 0086-532-66710825 Fax: 0086-532-66710826
Cell: 0086-15554202756
Web: www.bigdirector.com www.directorgroup.com.cn
Email: contact(at)bigdirector.com
Whatsapp: +86 15554202756
Skype:cherryxinkk
