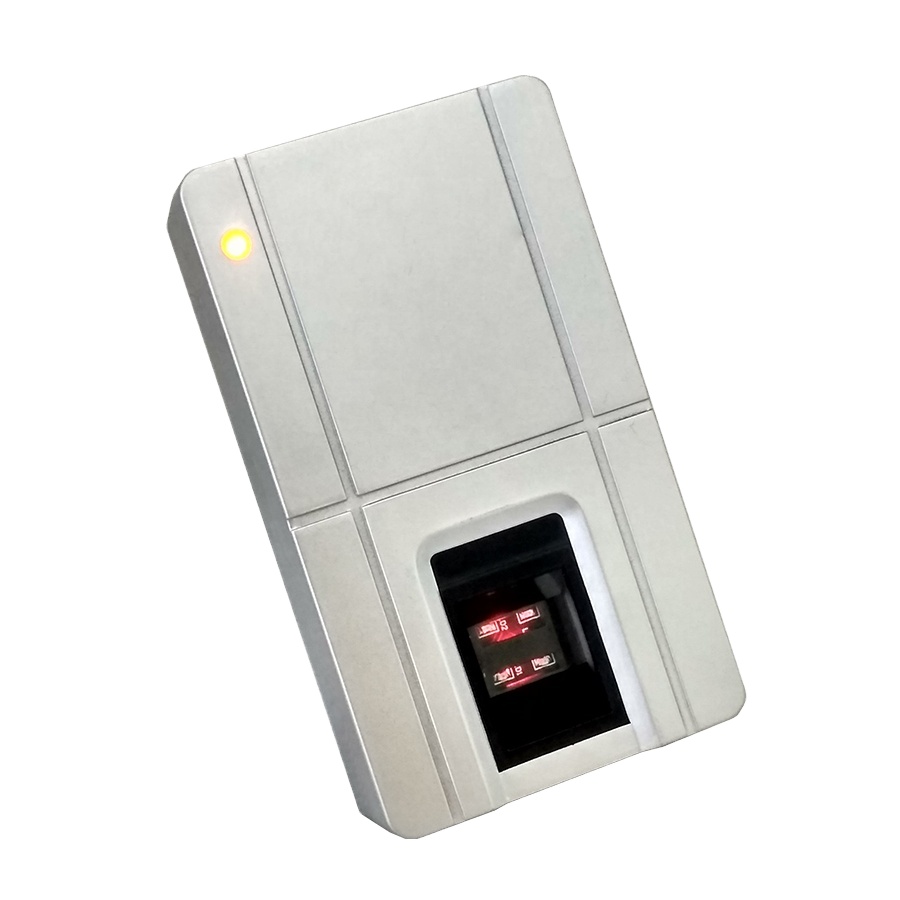

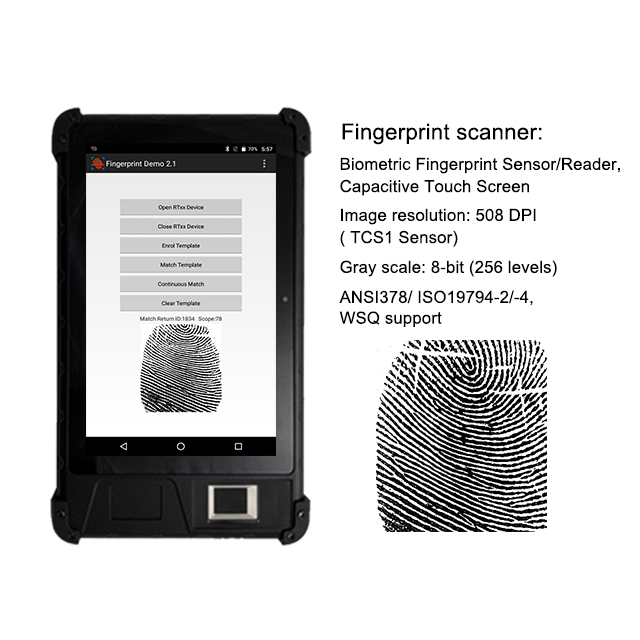

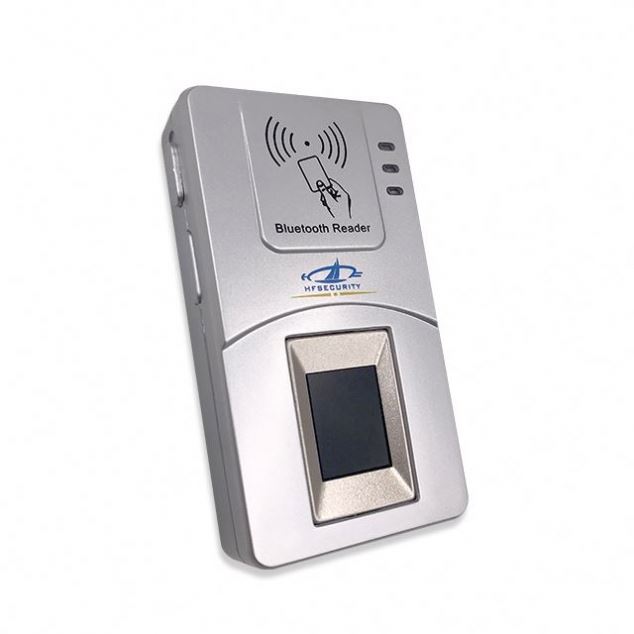

1. If you need high-end FBI STQC FAP20 USB Fingerprint Scanner for Government or Banks, please click on below image for price and datasheet details:
If you just need it for your company or other commercial application, Below model LKG-FS50 can meet your requirements

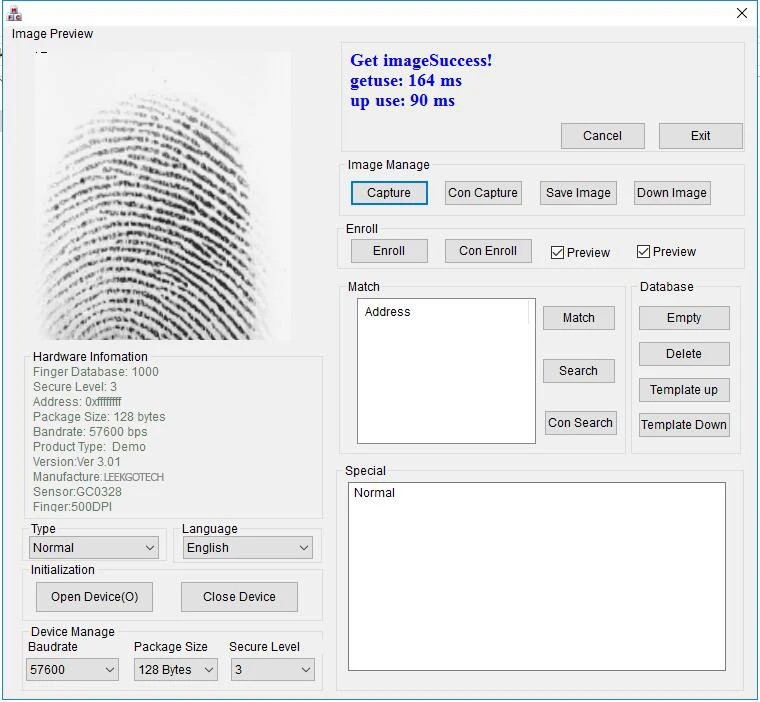

finger print reader / scanner with SDK for Windows Android Linux System Integration

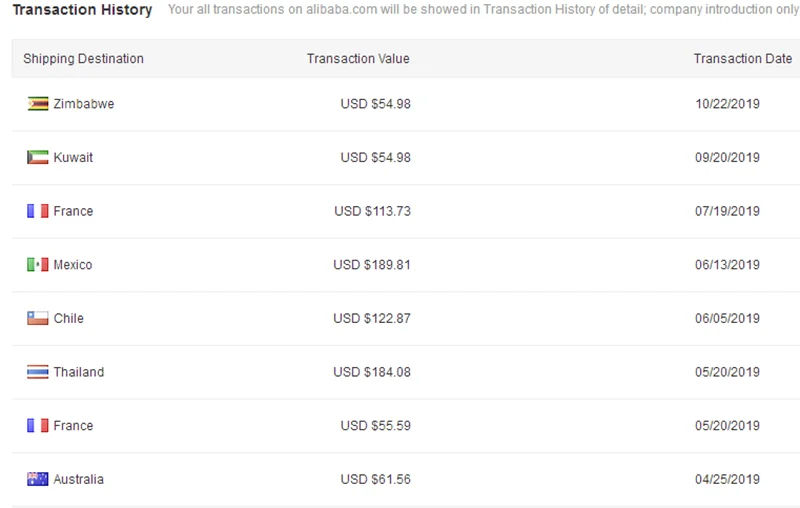

The Best Selling USB Fingerprint Scanner on Alibaba. you can compare our price and design and quality with others, you will know ours is the cost-effective as hundreds of system integrators choose it in the world. plz check their sample order in the screenshot of transaction history for your reference.
Product Description

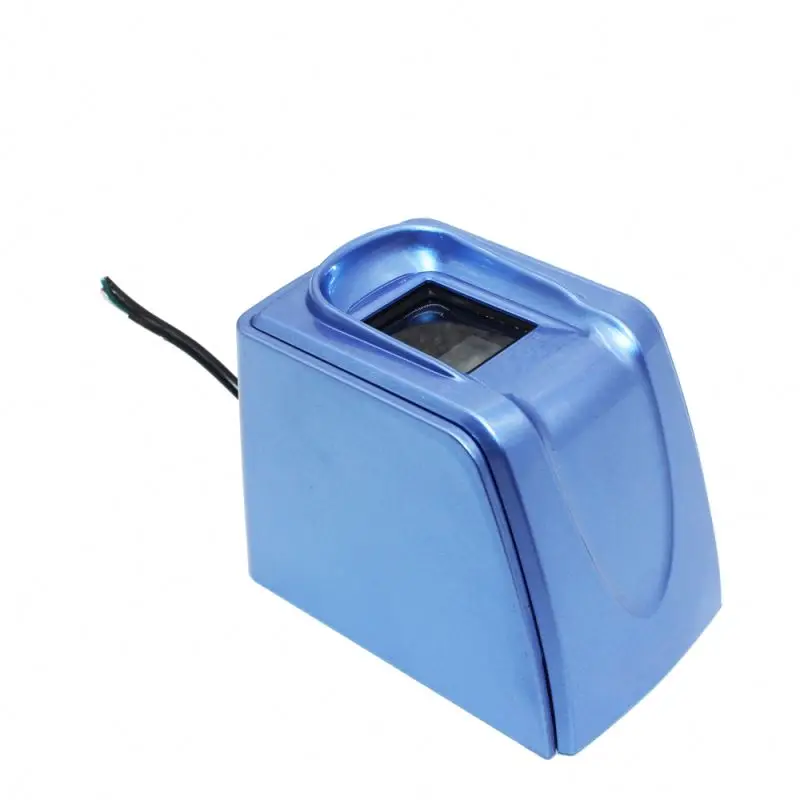

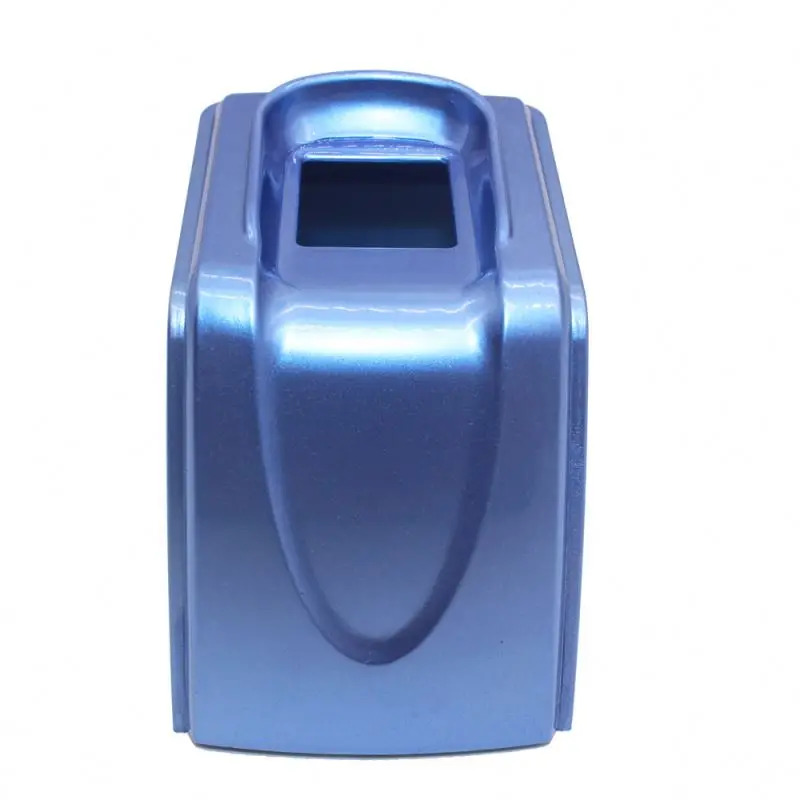

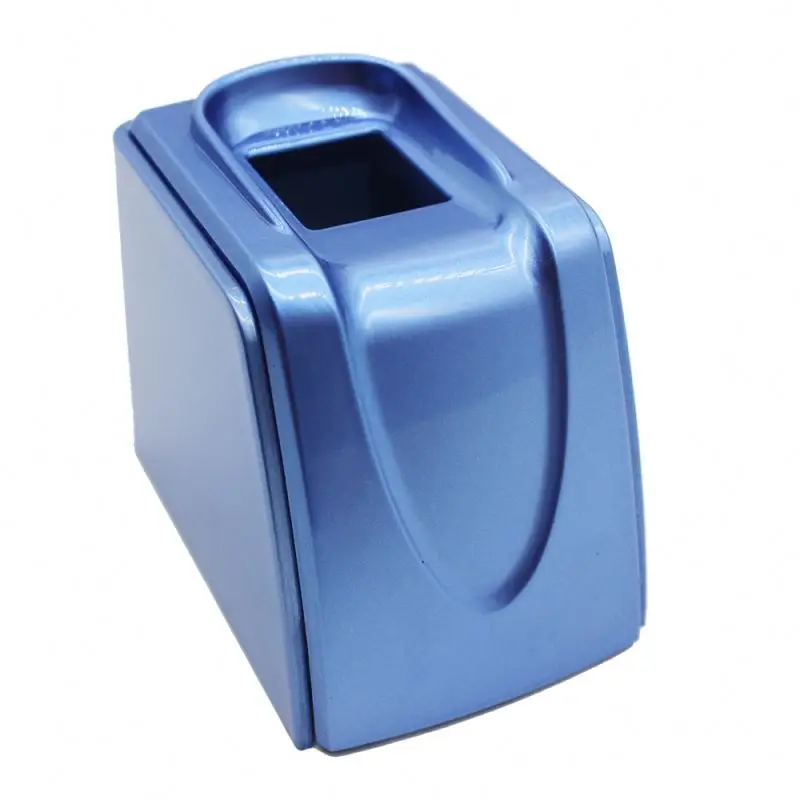

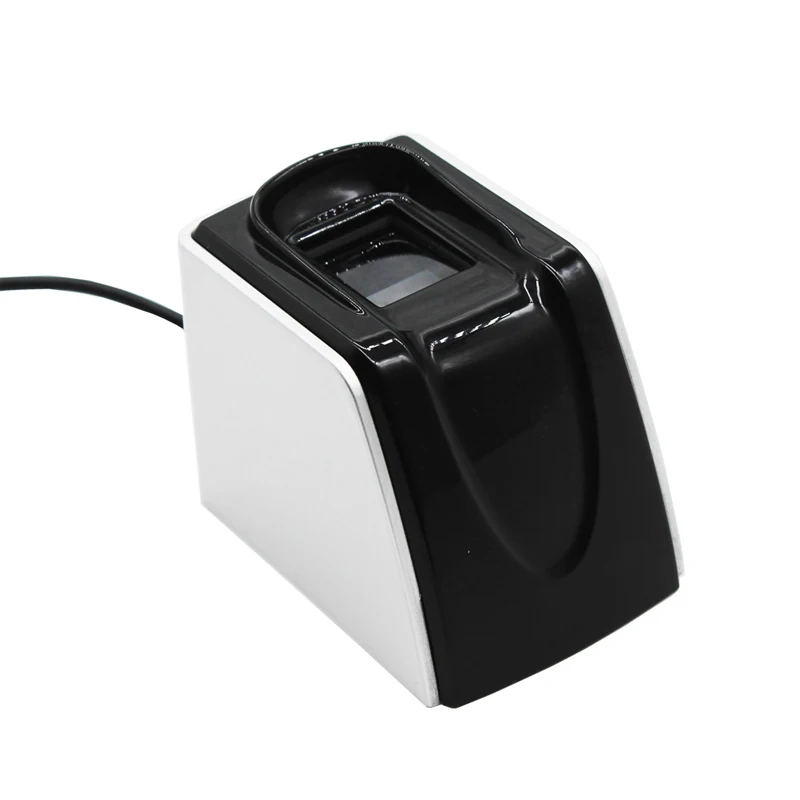

LKG-FS50 is new super reliable USB fingerprint scanner that is made by Shenzhen LEEKGO Technology Co., Ltd , the casing shape is designed with world-class indurstry-craft by international design company, it is ideal for applications deployed in limited space. it is applicable for authentication in different industries such as finance, health care, hospitality etc. Ruggedized and durable, LKG-FS50 works perfectly with its highly cost effective advantage.
Features:(finger print reader / scanner )

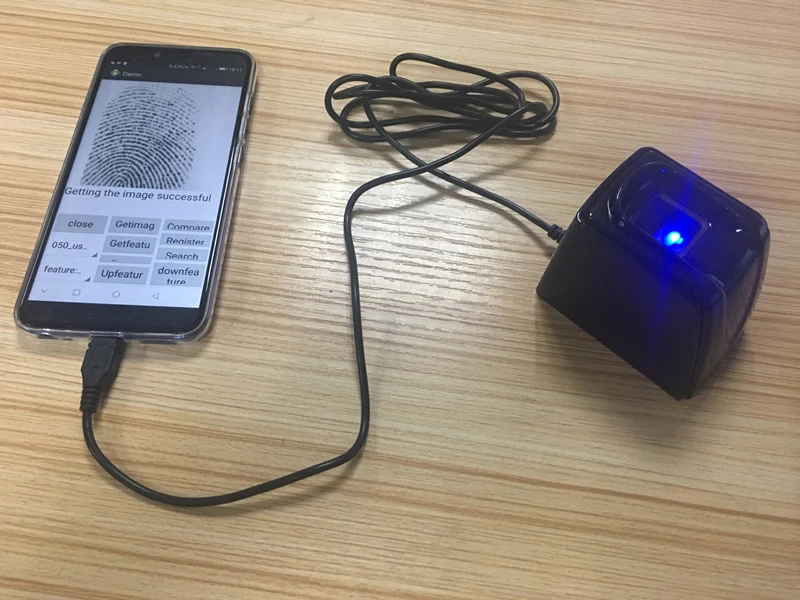

l Supported OS: Windows XP,7, 8, 10 / Android / Linux
l Comm port: USB / Micro USB / RS232 / UART/customized

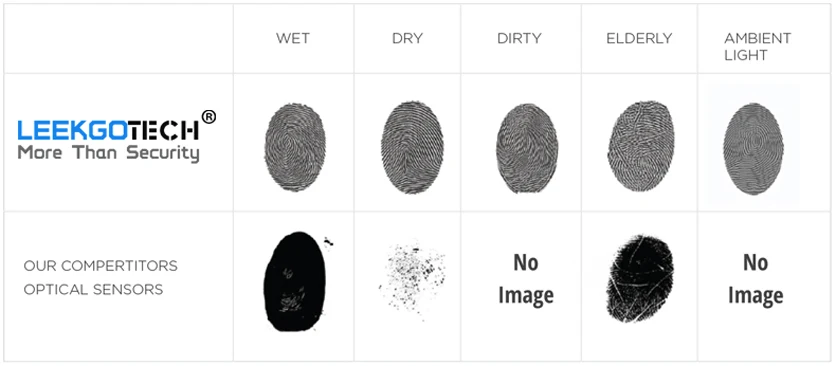

l Strong Adaption for wet / dry fingers
l Scratch-proof optical Sensor
l 360 degree auto authentication
l Independent intellectual property rights
l Self-Learning Function
l Supported International Standard(LKG-FS80):
ü ANSI_FMR (ANSI/INCITS 378 - 2004)
ü ANSI_FIR (ANSI/INCITS 381 - 2004)
ü ISO_FMR (ISO/IEC 19794 – 2 : 2005)
ü ISO_FIR (ISO/IEC 19794 – 4 : 2005)
ü WSQ(Wavelet Scalar Quantization)
ü NFIQ(NIST Fingerprint Image Quality)
Specifications:( finger print reader / scanner
Supply voltage
5V( typical value),range:4.2V-7.0V
Supply current
60mA(typical value), Peak current:80mA
Operating Temperature Range
-30°C-+70°C
Storage Temperature Range
-40°C-+80°C
Operating humidity Range
20%-90%
Storage Humidity Range
16%-95%
Casing Dimension
78*50*60mm
Acquisition window size
21*24mm(LKG-FS50) / 19*21mm(LKG-FS20) /
19*24mm(LKG-FS80)
Image size
256*288pixel / 242*266pixel / 256*360pixel
Image resolution
500DPI
Image Format
BMP, RAW(Optional),WSQ(Optional)
Template Format
ISO19794-2,ANSI,NIFQ (LKG-FS80)
Matching mode
1:1 / 1:N
Casing Color
Blue / Black / Silver / Customized
Fingerprint capacity
1000 in device, no limited for database
Security level
3 level(from low to high:1,2,3)
FAR
<0.001% (Security level is 3)
FRR
<0.005% (Security level is 3)
Verification time
<0.6second
Communication interface
UART(TTL logic level) / USB / Micro USB
Supported OS
Windows7,8,10 / Android /Linux
Special function
Self-learning function of the fingerprint

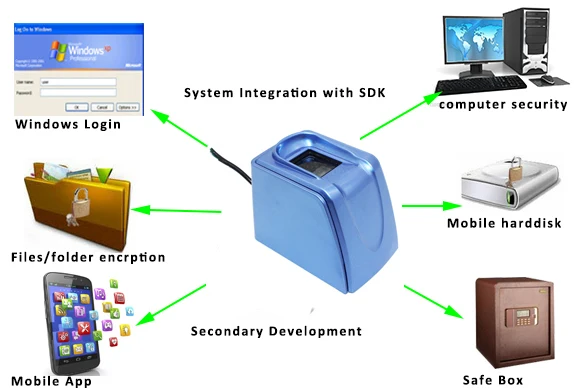

Product Application
Application:( finger print reader / scanner )
l FINANCIAL OR BANKING SYSTEM l GOVERNMENT IDENTIFICATION SYSTEM
l ATM, POS,PDA l TIME ATTENDANCE
l ACCESS CONTROL l MOBILE IDENTIFICATION
l VOTER ID VERIFICATION l CONSUMER ELECTRONICS

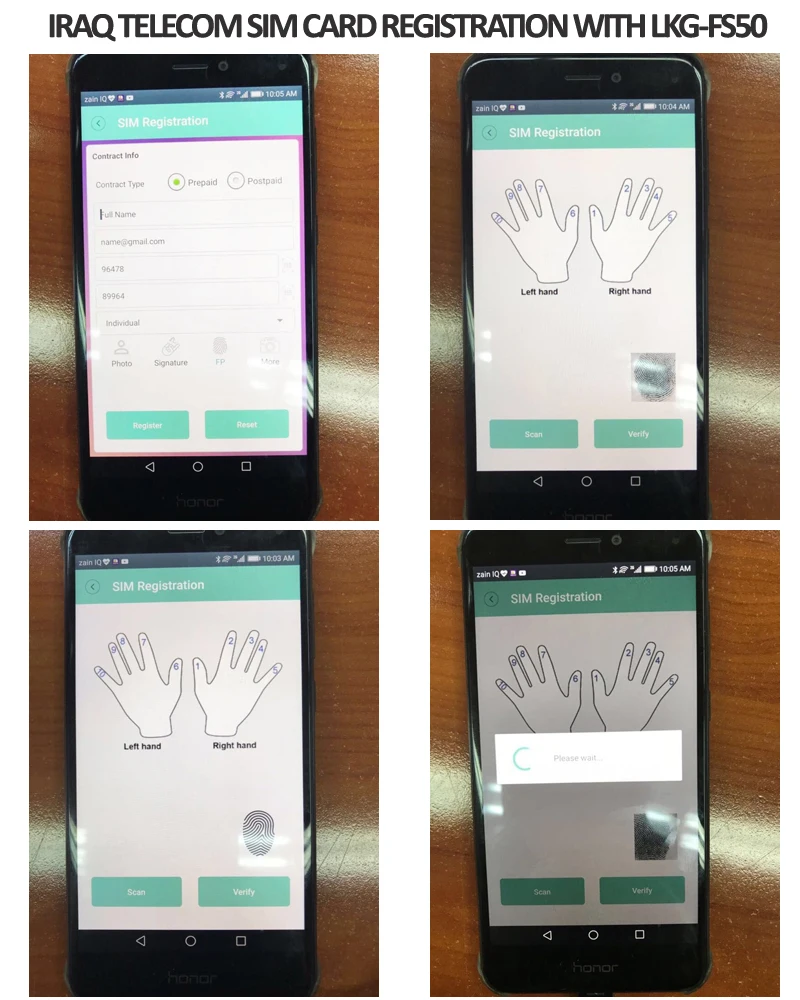

l INFORMATION SECURITY l TELCOMM SIM CARD REGISTRATION

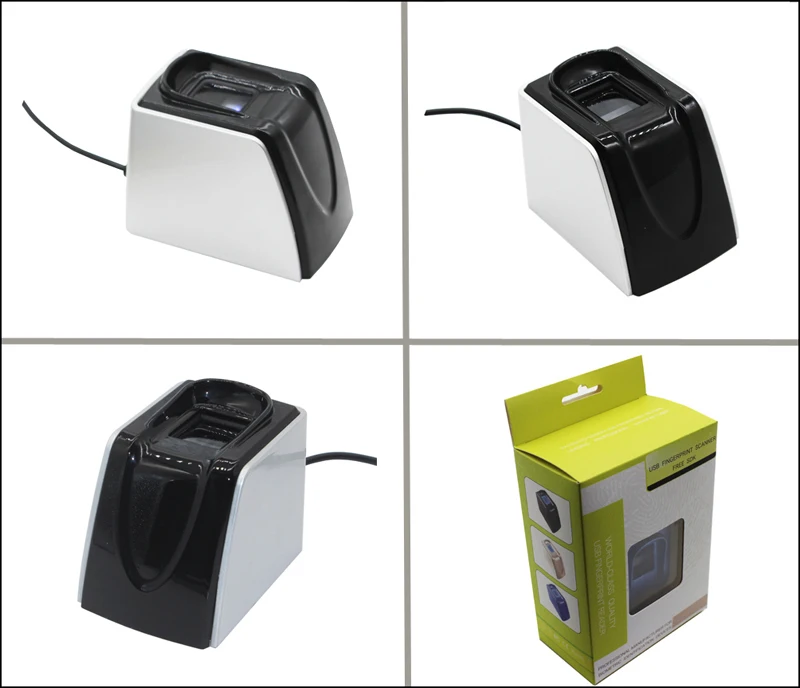

Products Show
Packaging & Shipping
OEM Service
LEEKGOTECH is professional manufacturer since 2008, most of our clients are OEM/ODM distributors in the world.
we can provide following OEM/ODM service to you.
1. Free Printing Your logo on the devices, MOQ for each model is 100pcs, if order qty is less, we also can print your logo, but need to charge extra, plz know that in advance.
2. Free Make color box with your logo, MOQ is 500pcs each model.
3. Free Customize APP or software, MOQ will be 1000pcs or more, which depends on customization complex.
4. Free Design your own exclusive case or app, MOQ will be 5000pcs or more, which depends on different market.
