24V DC to 12V DC 1.5A 3A 5A 24VDC to 12VDC Converter 24 Volt to 12 Volt Step Down Buck Voltage Regulators CCTV DVR Power Supply
- Category: Power Supplies >>>
- Supplier: Shenzhen,Fulree,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
24V DC to 12V DC 1.5A 3A 5A 24VDC to 12VDC Converter 24 Volt to 12 Volt Step Down Buck Voltage Regulators CCTV DVR Power Supply
| Product Name | 24V DC to 12V DC Converter |
| Model | F35J12V*A2L |
| Input rated voltage | DC 24V |
| Input voltage range | DC 15-35V |
| Efficiency | ≥ 90% |
| Output voltage | DC 12V (minimum pressure difference:3V) |
| Output current | 1.5A / 2A / 3A / 5A Max |
| Output rated power | 18W / 24W / 36W / 60W Max |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Working temperature | -40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
| Module Properties | non-isolated buck module(buck) |
| Rectification | synchronous rectification |
| Waterproof rating | IP68 |
| Full load temperature rise: | 50°c |
| Protection | Over-current, Over-temperature, Short-circuit protection, Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection |
| Input Reverse Polarity Protection | NONE( (Please Series diode at the input port.) |
| Net Weight | 50G |

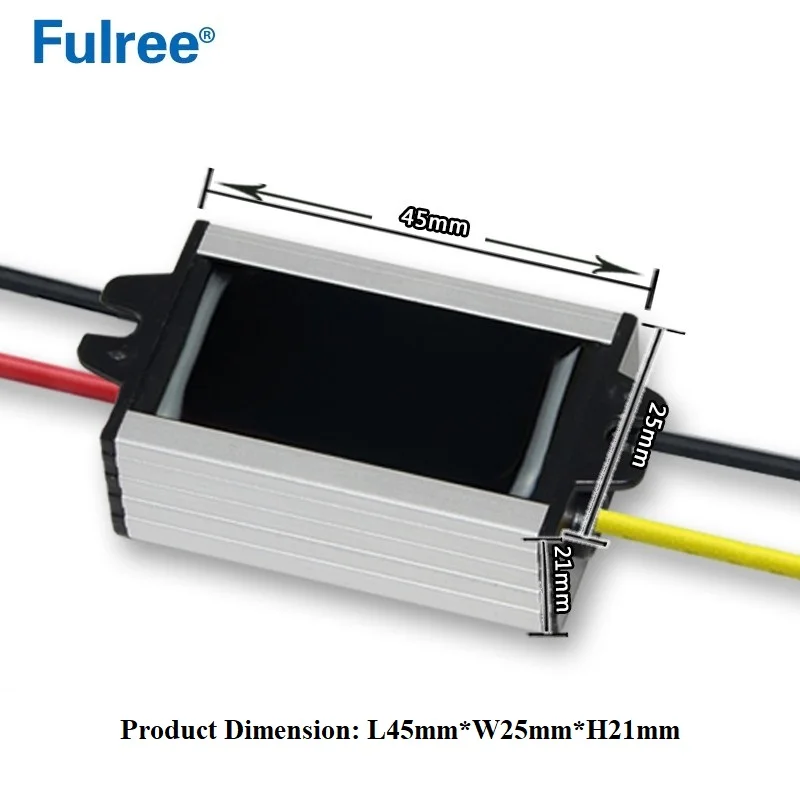

| Product size | 45*25*21mm |
Other ouput voltage available | 3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V,12V (pls contact with our sales manager if need) |
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged | |
