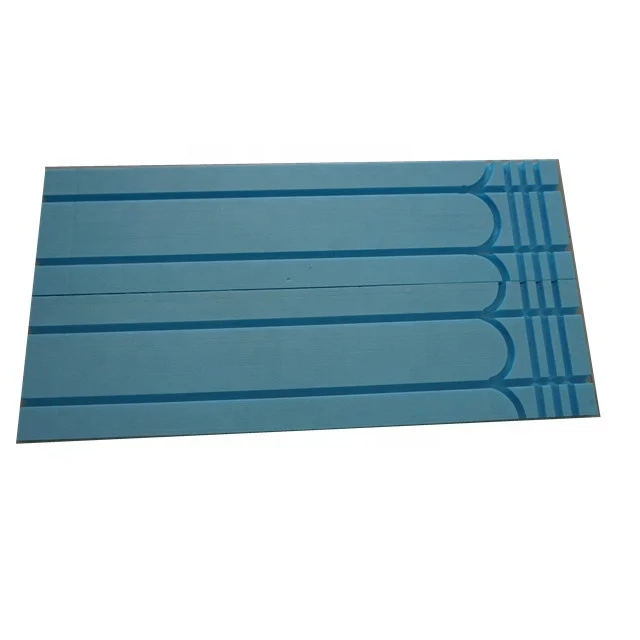

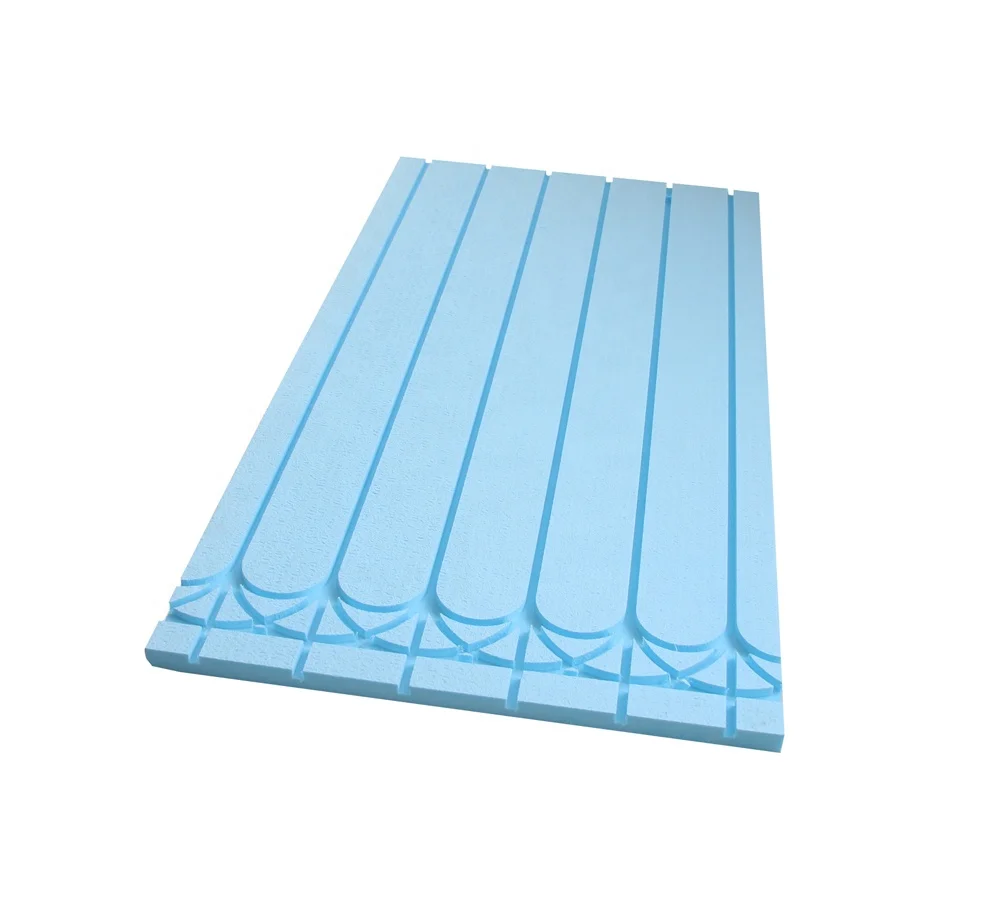

TYCO underfloor heating panel is made by grooved XPS/EPS foam board for heat insulation and covered with aluminum layer for thermal conductivity.


TYCO underfloor heating panel is

1. raw material free of CFC, HCFC, HBCD, approved by REACH and EN13164

2. high compressive strength from 100kpa~600kpa, normally 300kpa (1SQM hold 30tons weight)

3. waterproof, fireproof, soundproof

4. various insulation board thickeness and aluminum layer thickness for differnt budget

5. do small influence to room space

6. dry installation, support DIY cutting

7. quick handle, two women can finish 1000SQM room within two hours





Technical Data




Density
kg/cbm
32~35
Thermal conductivity, 90days, 10℃
w/mk
0.027~0.03
Compressive strength at 10% deflection or yields, (vertical)
kpa
≥300
Tensile strength
kpa
≥300
Water absorption
vol-%
≤1%
Capillarity
nil
nil
Coefficinet of linear thermal expansion
mm/mk
0.07
Temperature limits
℃
-50℃~+75℃


Tyco underfloor heating panel specification data




Specification

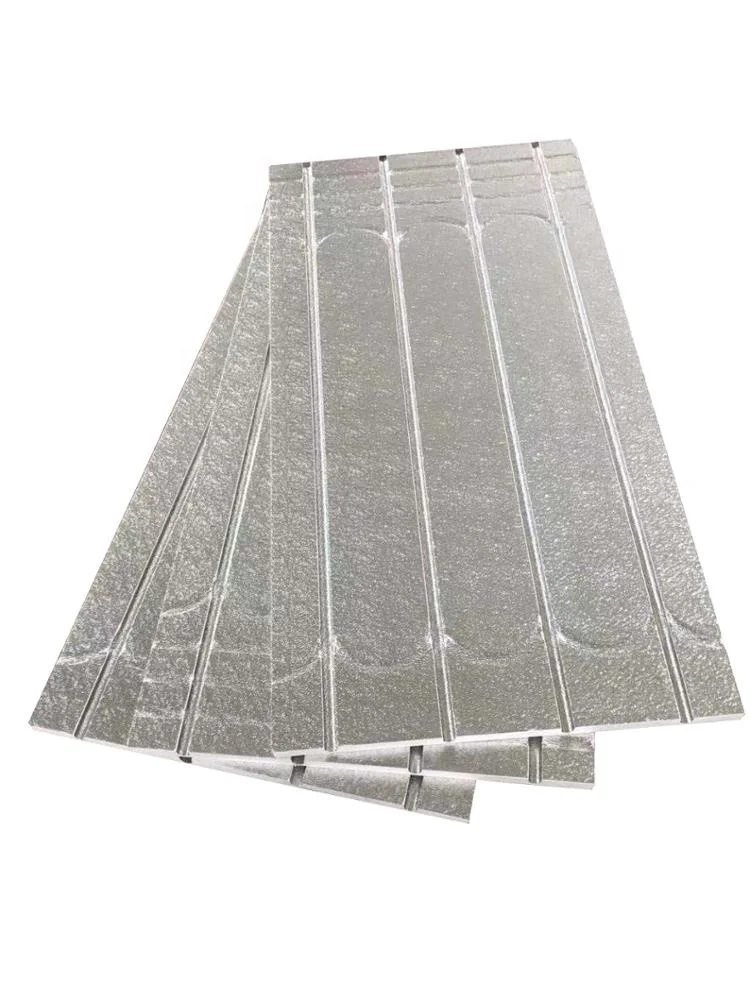

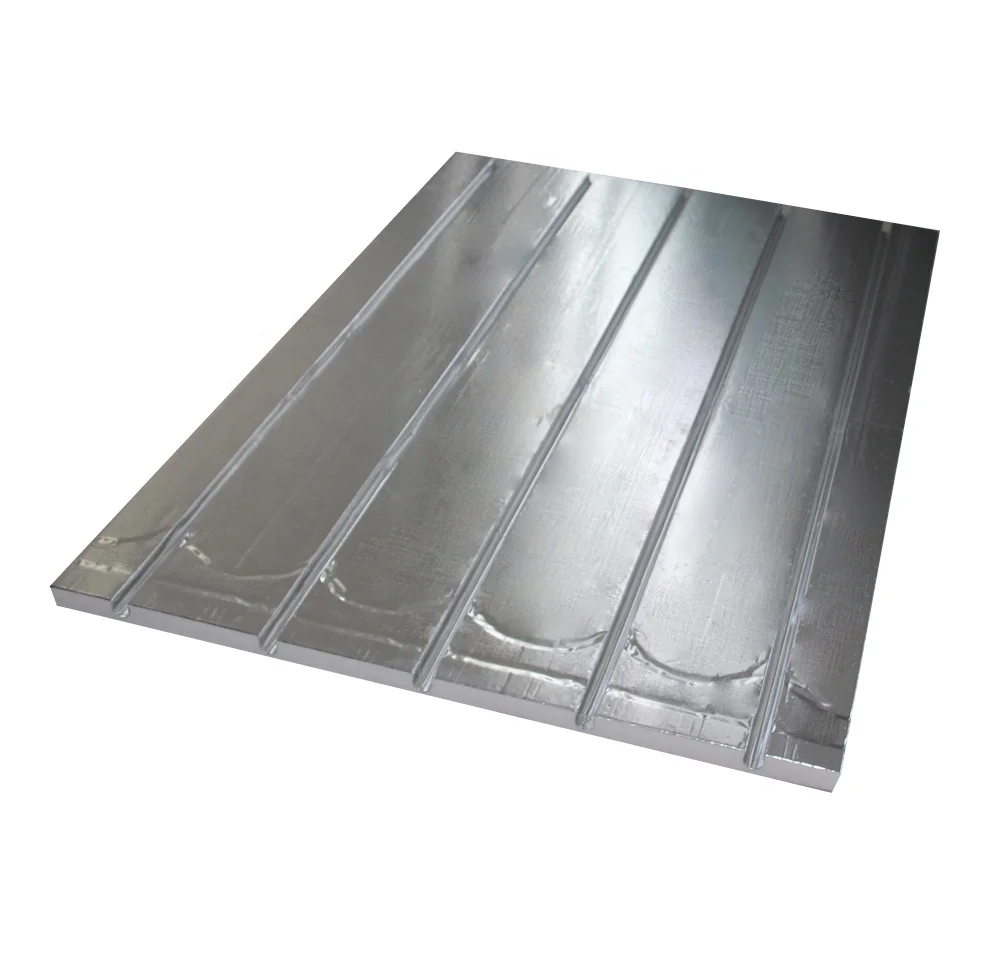

1. Grooved XPS laminated with aluminum foil-----------------it's better for tile finished floor






Item No.
Size of the Panel
Pipe OD
Chanel distance
Thickness of AL
UHP-AL25-16
1200*600*25mm
16mm
150/200mm
0.03mm
UHP-AL30-20
1200*600*30mm
20/16mm
150/200mm
0.03mm
UHP-AL25-16
1200*600*25mm
16mm
150/200mm
0.1mm
UHP-AL30-20
1200*600*30mm
20/16mm
150/200mm
0.1mm
UHP-AL25-16
1200*600*25mm
16mm
150/200mm
0.2mm
UHP-AL30-20
1200*600*30mm
20/16mm
150/200mm
0.2mm

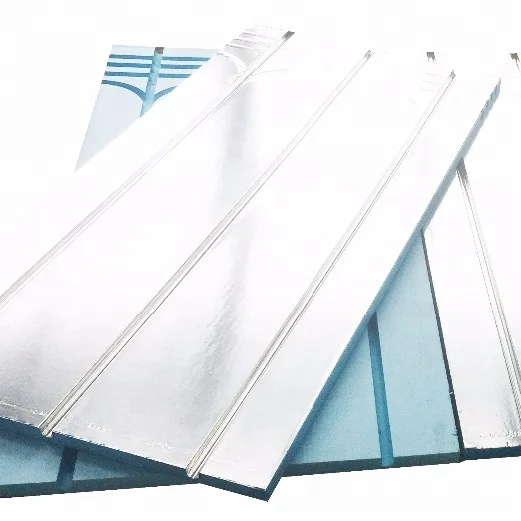

2. Grooved XPS + aluminum sheet ----------------------------it's better for wood finished floor





Item No.
Size of the panel
Pipe OD
Chanel distance
UHP25-16
1200*600*25mm
16mm
15/20cm
UHP30-20
1200*600*30mm
20mm
15/20cm
AL Sheet
1000*390*0.45mm
16/20mm
15/20cm


3. EPS400 underfloor heating panel




Item No.
Size of the Panel
Pipe OD
Chanel distance
Thickness of AL
Compressive Strength
EPS 400-2516-0.2
1200*600*20mm
16mm
150mm
0.2mm
400kpa
EPS 400-2516-0.2
1200*600*20mm
16mm
150mm
0.1mm
400kpa
EPS 400-2516-0.2
1200*600*20mm
16mm
150mm
0.2mm
300kpa
EPS 400-2516-0.2
1200*600*20mm
16mm
150mm
0.1mm
300kpa
EPS100
1200*600*25/30mm
16/20mm
150/200mm
0.03mm
100kpa


Installation Instructions


Application of XPS/EPS Insulation Foam Board with Aluminum Sheet







Packing & Delivery






underfloor heating panel normally pack by pp bag, 10pcs/bag

aluminum sheet pack by carton, 40pcs/ctn, finally with pallet



Certifications




FAQ


Q: Can do you layout design for personal house floor heating plan?
A: Layout is available, and its not free, cost depends on heating area, our advice is you calculate total heating area in square meter then notice us, we will check what quantity you need, for detailed layout plan, as long as your floor is clean and even, you can put board on floor directly, and do DIY.

Q: My floor is tile/wooden floor/carpet/concrete, what kind of board do you recommend?
A: Towards different floor and budget, we offer different heating solutions for you, welcome to send inquiry for more information.

Q: My floor heating plan is floating keels, 600mm wide board not suitable for me, can you do specific board for me?
A: Sure, OEM and ODM is supportive, we can make specific size board to fit your floor very well.

Q: How about MOQ and delivery?
A: Here is no MOQ if we have enough stock of standard board, delivery times will be 15~20days for LCL(less than full container load) orders, and 30days for FCL(full of container load) orders.

Q: Do you support to door delivery service?
A: Yes, we can handle whole delivery service to your door, and first please notice us if you have personal or company tile which can be used for customs clearance after goods arrive destination seaport.

Welcome to send us inquiry to get more help!
