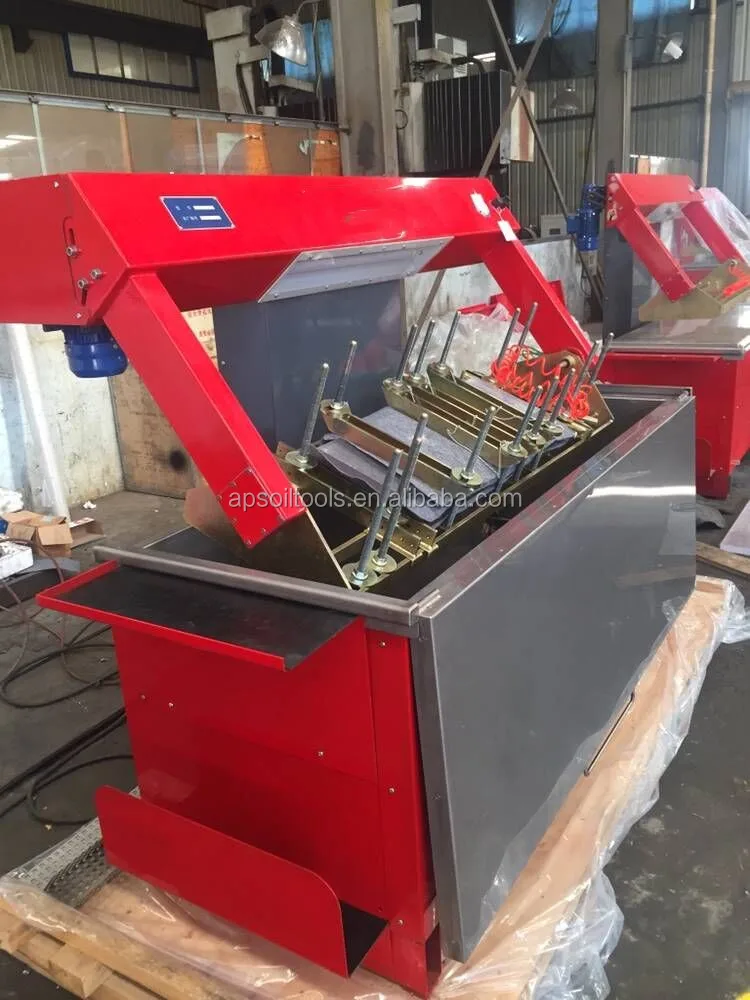

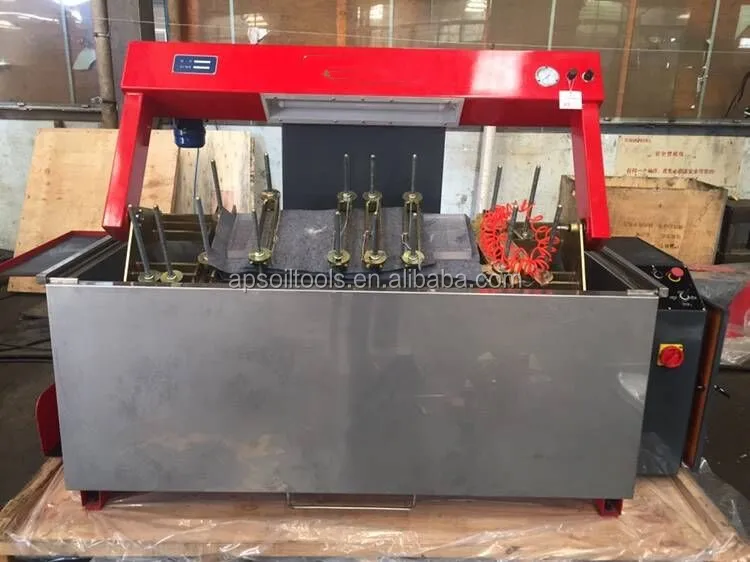

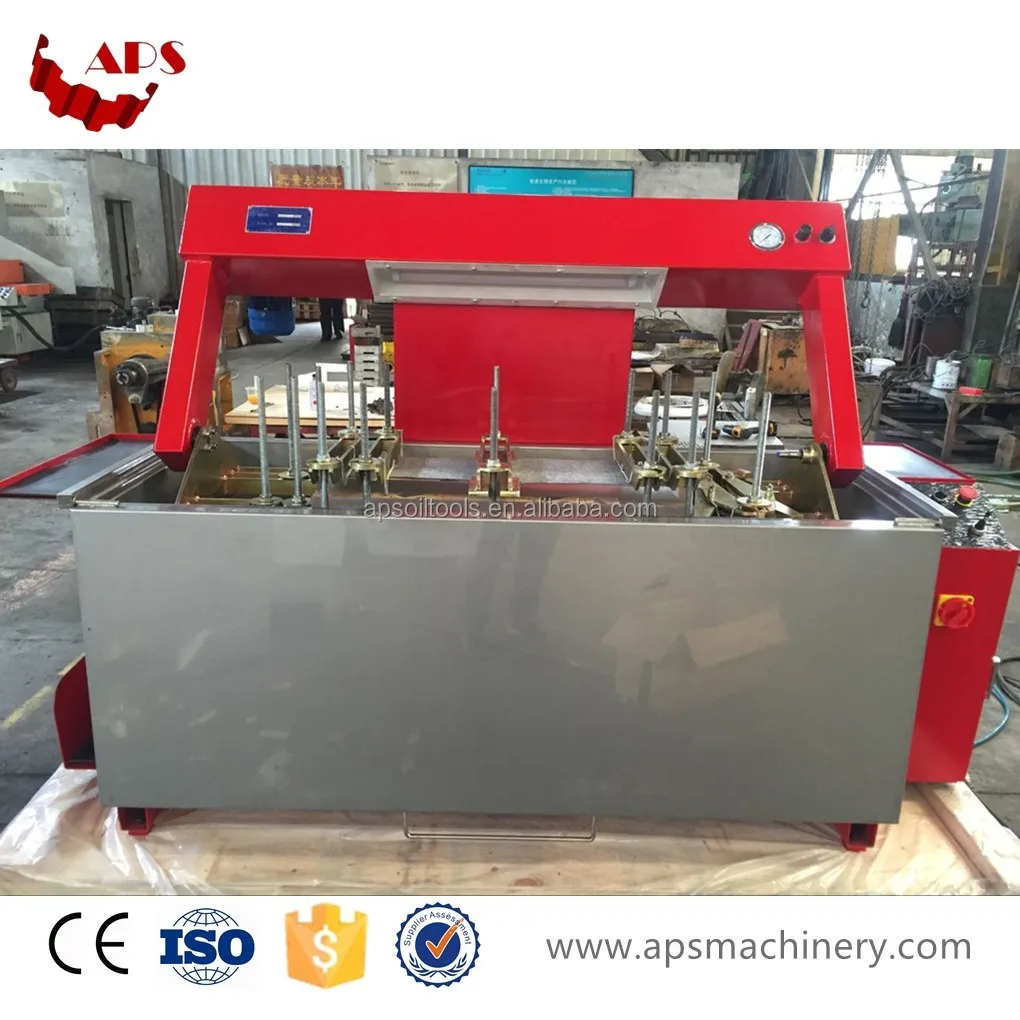

CE, Cylinder Head Pressure Tester TPT1600

Part Characteristics

Specification

Maximum length (mm/inch)

1250 mm / 49”

Maximum width (mm/inch)

400 mm / 15.74”

Maximum height (mm/inch)

300 mm / 11.81’’

Capacity of stainless steel tank

500liters / 132 USngal

Heating elements (kw)

2x4.5

Hydraulic hoist (kw)

0.37

Gear-motor (kw)

0.25

Rotational speed (tr/min)

4

Up and down travel time (mm/inch in 10sec)

600mm/23.62

Thermostat ( °C )

0-70

Power supply

400 V 3 PH + Ground (no neutral)

Net weight approx (kg/lbs)

480/1058

Length(mm/inch)

2000 mm / 78.75”

Width (mm/inch)

1050 mm / 41.34”

Height (mm/inch)

1700 mm / 67”

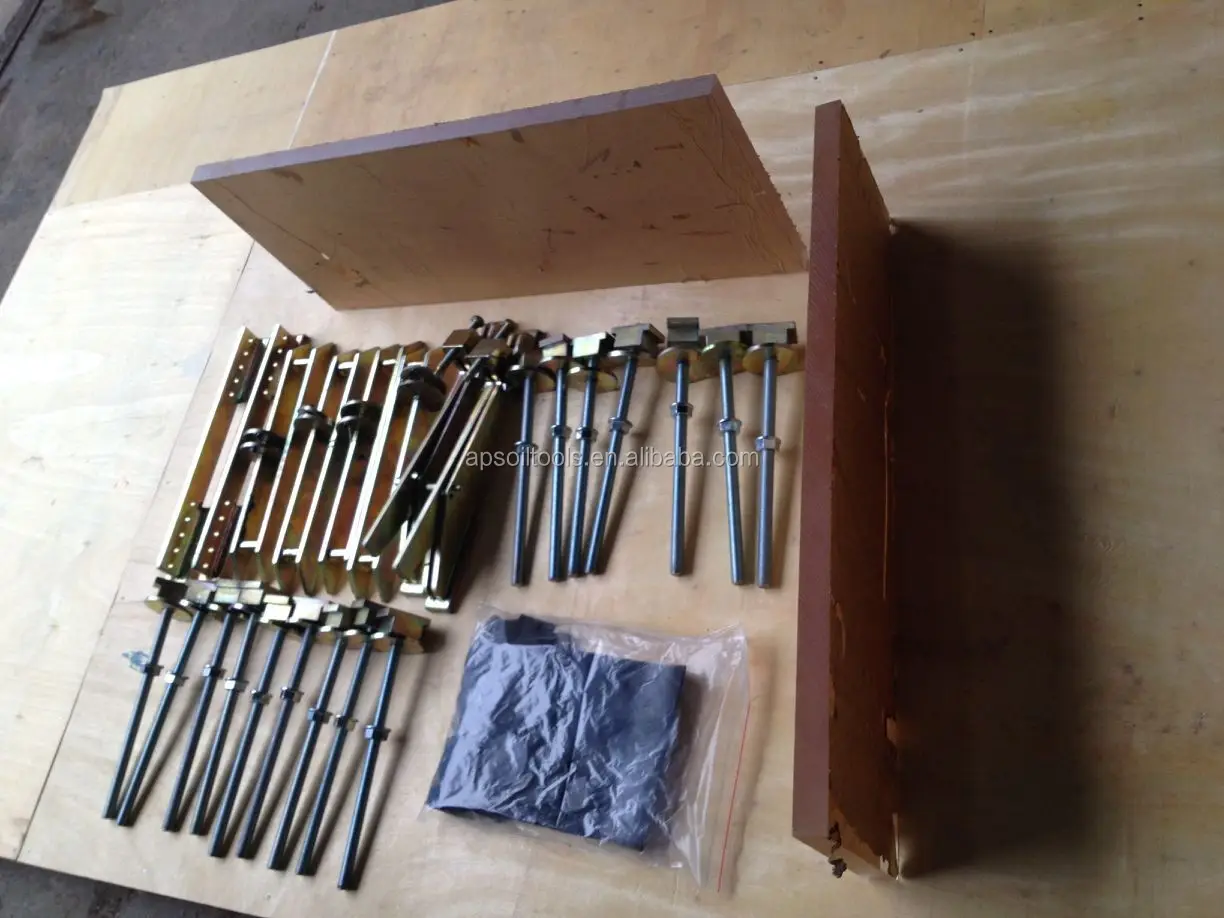

NO

Item

Unit

Qty

Remark

1

Round washer(φ60)

PC

16

2

Open Gasket(φ60)

PC

16

3

T nut(M16)

PC

16

4

Screw rod(M16)

PC

16

5

Pressing plate

PC

4

(Standard Acc’s)

6

Parallel supporting plate

PC

2

(Standard Acc’s)

7

Rubber seal ringφ30 δ=3

PC

20

8

Rubber seal ringφ40 δ=3

PC

15

9

Rubber seal ringφ60 δ=3

PC

10

10

Rubber seal ring100×50 δ=3

PC

10

11

Rubber seal ring80×40 δ=3

PC

10

12

Rubber seal ring60×30 δ=3

PC

20

13

Rubber plate 290×200 δ=3

PC

1

14

Quick-change connector(M5)

PC

3

15

Manual HD1600

block

1
