High Effciency Die Cutting Machine For Fabric Shoes Textile With Cutting Press manual Die Cutting Machine
- Category: Shoe Making Machines >>>
- Supplier: Jiangsu Yuanhua Light Equipment Co. Ltd.
Share on (60434151738):
Product Overview
Description
Products Description
Model | XCLP3-30 | XCLP3-35 | XCLP3-40 | XCLP-50 | XCLP3-60 | XCLP3-80 | XCLP3-100 | XCP3-150 | |||||||
Max Cutting Force | 30T | 35T | 40T | 50T | 60T | 80T | 100T | 150T | |||||||
Tension Distance | 50-200mm/50-245mm | ||||||||||||||
Cutting Area(mm) | 1600*550 | 1600*610 | 1600*610 | 1600*800 | 1600*900 | 1600*900 | 1600*900 | 1600*1000 | |||||||
1400*610 | 1400*900 | 1400*900 | 1400*900 | 1400*900 | 1400*1000 | ||||||||||
Motor Power(kw) | 2.2 | 2.2 | 3 | 8 | 5.5 | 7.5 | 7.5 | 11 | |||||||
Motor Supply | 3*440/415/400/380/220V, 50/60 Hz | ||||||||||||||
Machine Weight (kg) | 1700 | 1900 | 2300 | 3800 | 4800 | 6300 | 7800 | 10000 | |||||||
2000 | 3900 | 4600 | 6100 | 7600 | 9500 | ||||||||||
Details Images

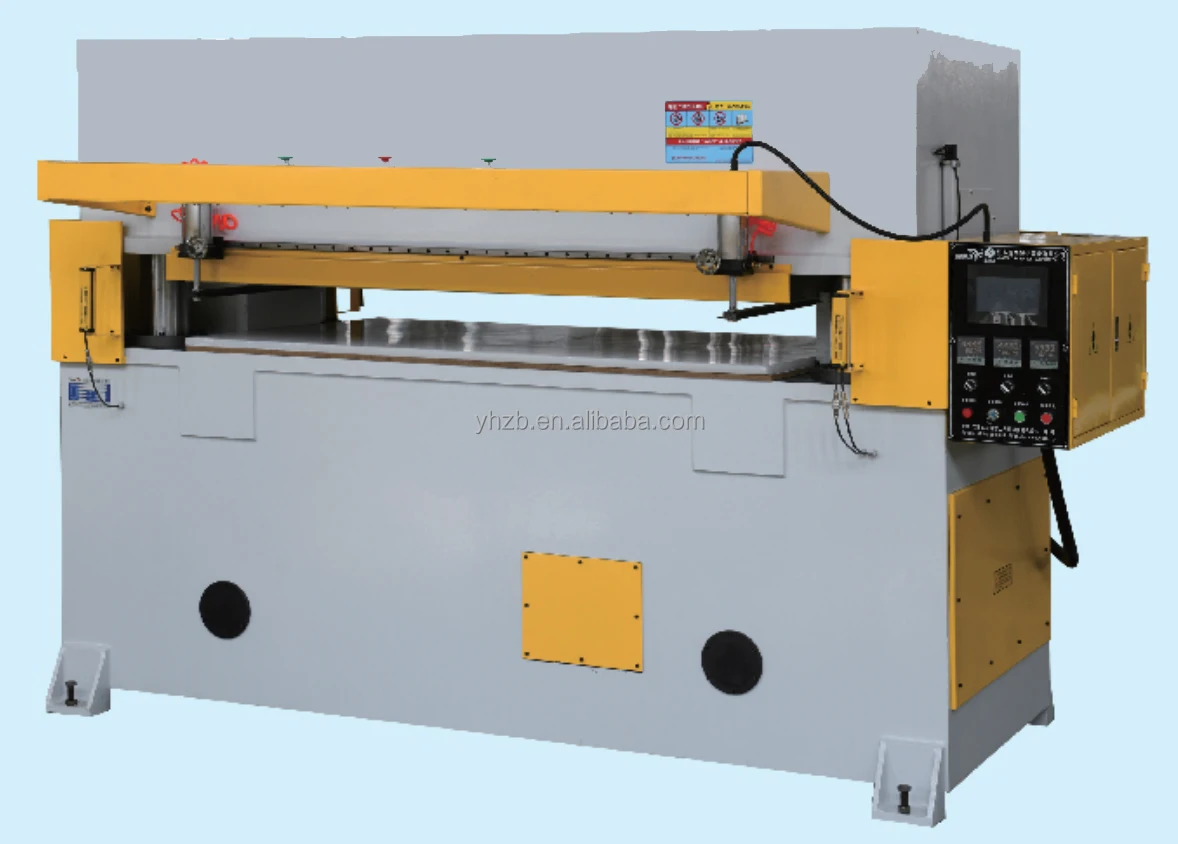

XCLP 3 Series Auto Balance Precision Four-Column Hydraulic Plane Cutting Machine
Feature：
This Machine is widely applicable for cutting of nonmetal materials in various industries by cutting die.
Adopt Double oil cylinder, precise double-crank connecting rod mechanism, which can guarantee that the cutting depth at every cutting position is same.
With Special setting mechanism, and equipped with die cutter and cutting depth seeting, the travel adjustment is simple and accurate.
The pressing board of cutting carries out slow cutting when it contacts the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials.
All sliding parts are lubricated with oils supplied by the hydraulic system guarantees machine precision and prolongs service life of machine.
Option:
One Side Feeding
Double Side Feeding
Recommend Products
Why Choose Us
Certifications
Exhibition
FAQ
Q1.How long it’s gonna take to delivery the machine?
A:The machine will be delivered in 45 days since receiving the deposit payment.
Q2.Do your products have warranty period?
A:Yes, for sure; All of our products have one year warranty period.
Q3.How can you guarantee your products?
A:Our products are verified by CE & ISO, so the machine quality can get fully guaranteed.
A:The machine will be delivered in 45 days since receiving the deposit payment.
Q2.Do your products have warranty period?
A:Yes, for sure; All of our products have one year warranty period.
Q3.How can you guarantee your products?
A:Our products are verified by CE & ISO, so the machine quality can get fully guaranteed.
Q4: Are you factory or trading company?
A: We are factory or manufacturer.
Q5: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time.You can be assured on our production completely.
Q6: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
