XQ6226A TTMC Ram Type Universal Milling Machine, ISO40 Spindle Taper, Vertical Milling Machine
- Category: >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (60434254222):
Product Overview
Description
Product Overview

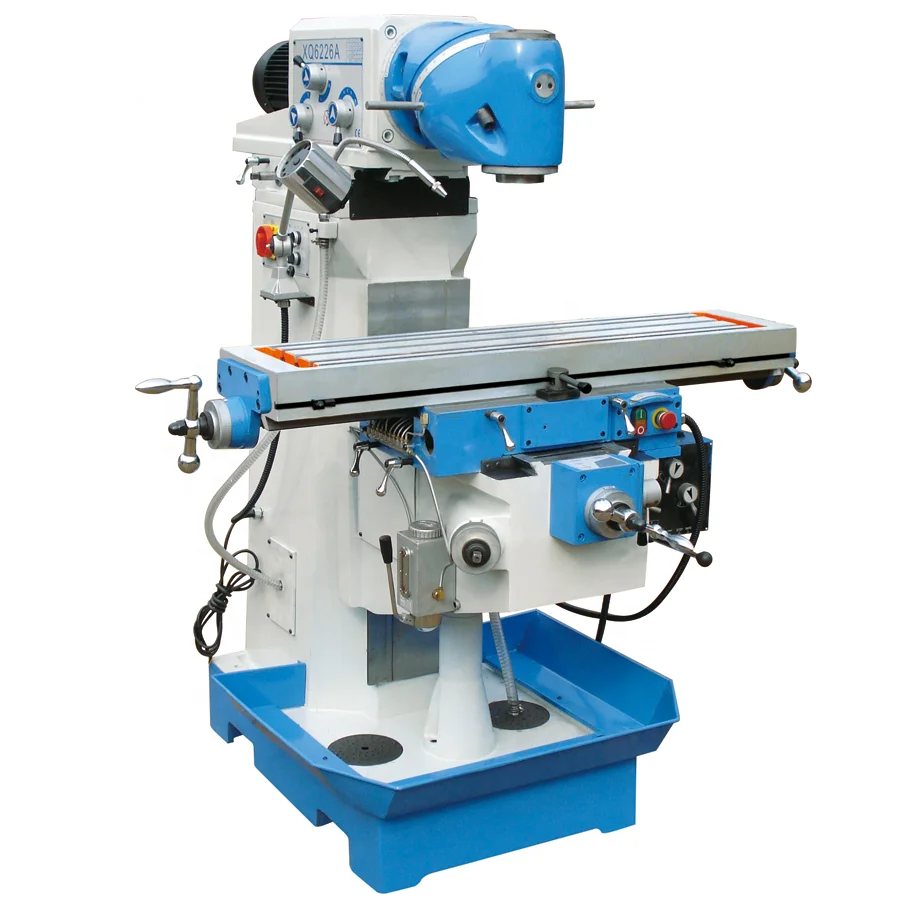

Heavy Duty Milling Machine XQ6226A
universal milling machine is suitable for execution of light and medium-heavy milling work. Thanks to her big Versatility and ease of conversion can use them in workshops for processing small and medium-sized series with success be used.
FEATURES AT A GLANCE
Swiveling control panel with ergonomically positioned switches
Heavy cast iron machine stand for vibration-free work
Dovetail guides
Standard with automatic table feed in x and y axis
Precisely surface-machined cross table with T-slots
Digital readout for x, y and z axis included
PRODUCT SPECIFICATIONS
Heavy Duty Universal Milling Machine
Item No. | 383106 |
Model | XQ6226A |
Max. end milling width | 125 mm |
Max. vertical milling dia. | 25 mm |
Spindel nose to table | 80-500 mm |
Spindle speed range | 40-1600 rpm |
Swivel angle of milling head | 360° |
Table size | 1120x260 mm |
Table travel | 600x270 mm |
Motor power | 2.2 kW |
Packing size | 145x165x210 cm |
N.W./G.W. | 1500/1700 kg |
