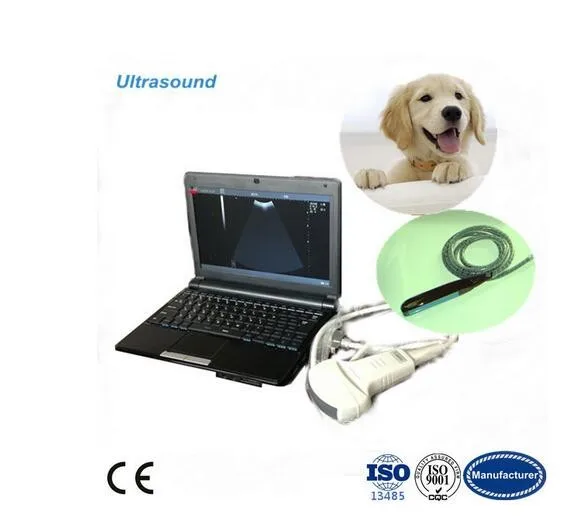

Low price Laptop Veterinary Ultrasound Scanner VET Full Digital Ultrasonic Diagnostic System

Model

KAI-A8

Name

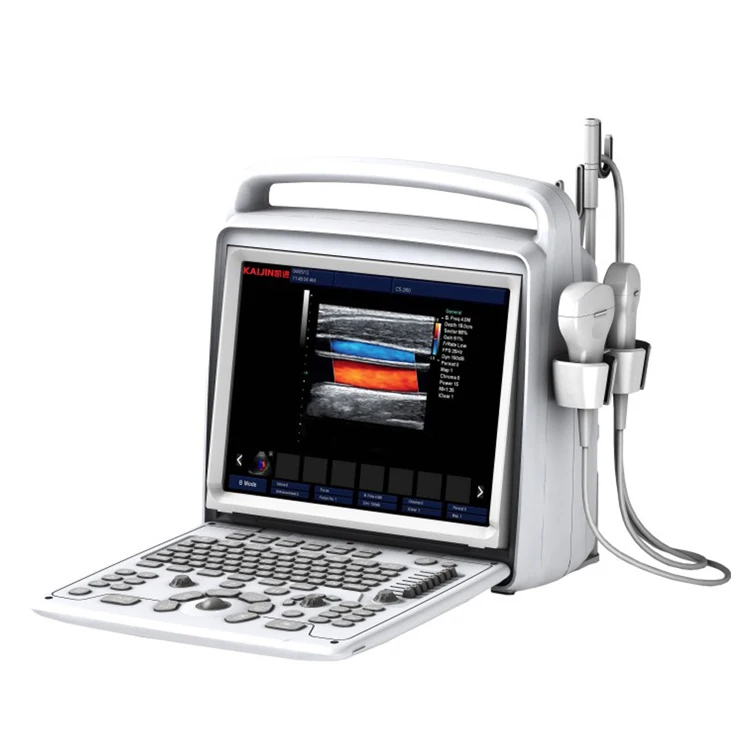

Digital color Doppler ultrasonic diagnostic apparatus KAI-A8

Standard configuration

1 *color Doppler ultrasonic diagnostic instrument host, 1* linear array probe, 1* micro-convex probe, 1 *built-in battery

Optional

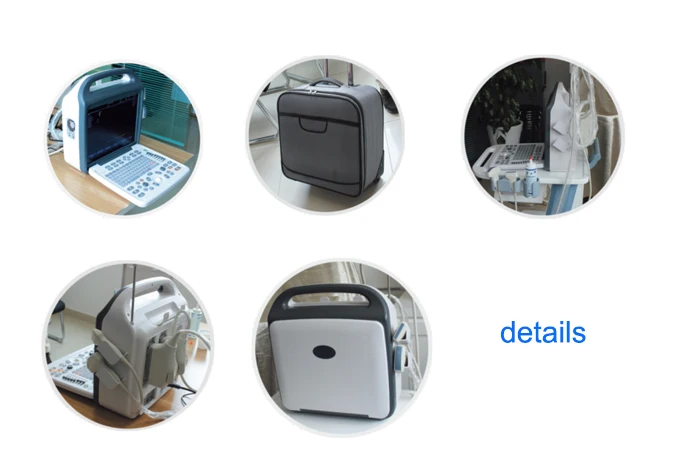

Trolley case, trolley, battery

System imaging function

1) Color Doppler blood flow imaging

2) Two-bit grayscale imaging

3) Energy Doppler imaging

4) Tissue harmonic imaging

5) With spatial compound imaging working mode

6) Independent deflection imaging technology of linear array probe

 System general functions

1) Color monitor: 15-inch high-resolution color LCD monitor

2) Probe interface: zero insertion force metal body connector, effectively activates 2 mutual common interfaces

Probe specifications

1) Variable frequency, frequency range 2.5-10.0MHz

2) Probe configuration: micro convex probe, linear array probe

3) 5 groups of each probe frequency, variable fundamental wave and harmonic frequency

4) Puncture guide: optional probe puncture guide device, puncture line, adjustable angle

The main parameters of two-dimensional grayscale imaging:

1) Imaging speed: micro-convex probe, when the maximum field of view is 19cm deep, the frame rate is 55 frames per second

2) The maximum image magnification is 5 times

3) Receiving mode: multi-beam signal parallel processing

4) Two-dimensional image gain, continuously adjustable

5) Playback replay: image playback for 256 seconds

6) TFC segment adjustment 8 segments

7) 6 kinds of pseudo-color colors

8) Sector scan angle: 4 levels adjustable
