ISD 190 boat Inmarsat Isatphone Dock work with Active Antenna

Product Overview

Description

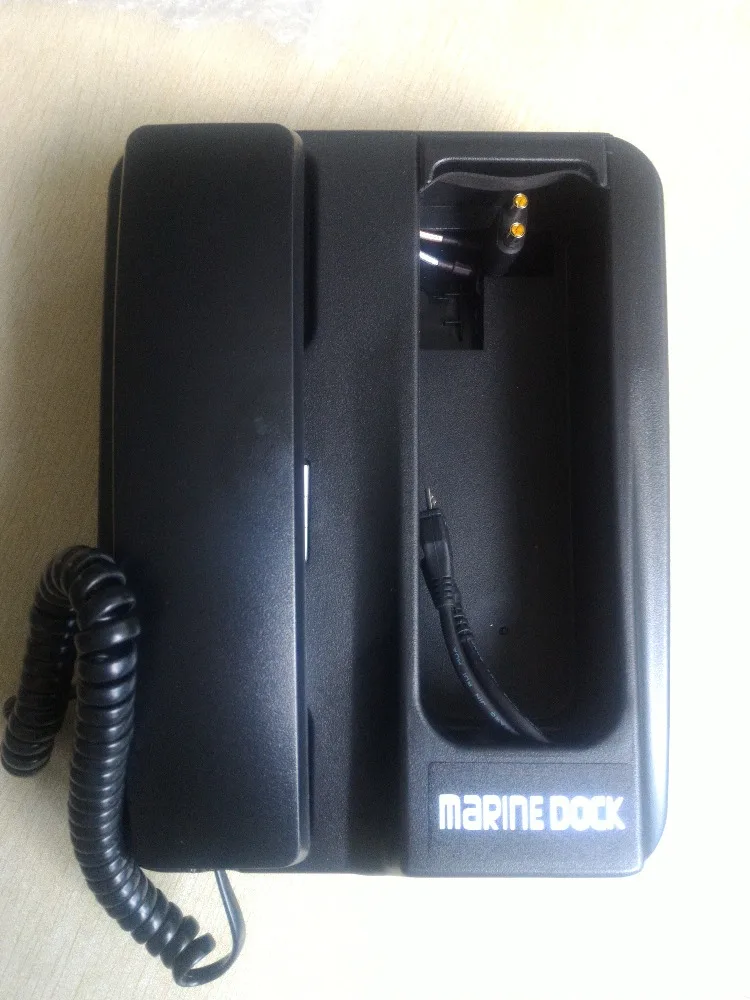

ISD-190 Docking station for Inmarsat satellite phone

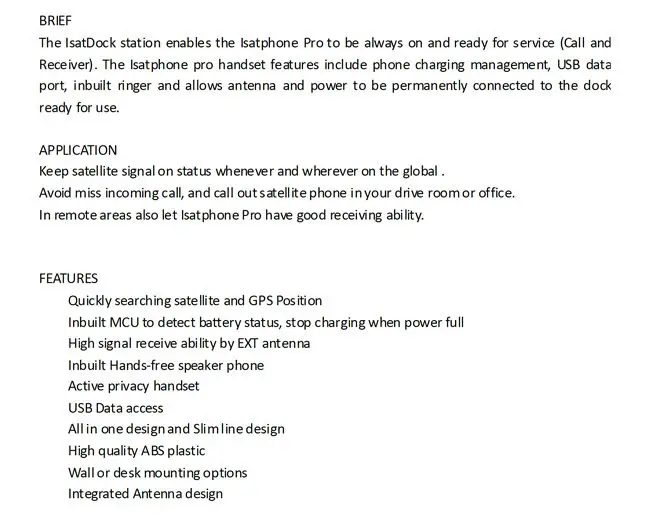

BRIEF

The IsatDock station enables the Isatphone Pro to be always on and ready for service (Call and Receiver). The Isatphone pro handset features include phone charging management, USB data port, inbuilt ringer and allows antenna and power to be permanently connected to the dock ready for use.



APPLICATION

   Keep satellite signal on status whenever and wherever on the global .

   Avoid miss incoming call, and call out satellite phone in your drive room or office.

   In remote areas also let Isatphone Pro have good receiving ability.



FEATURES

   Quickly searching satellite and GPS Position

   Inbuilt MCU to detect battery status, stop charging when power full

   High signal receive ability by EXT antenna

   Inbuilt Hands-free speaker phone

   Active Satellite Antenna

   USB Data access

   All in one design and Slim line design

   High quality ABS plastic

   Wall or desk mounting options

   Integrated Antenna design

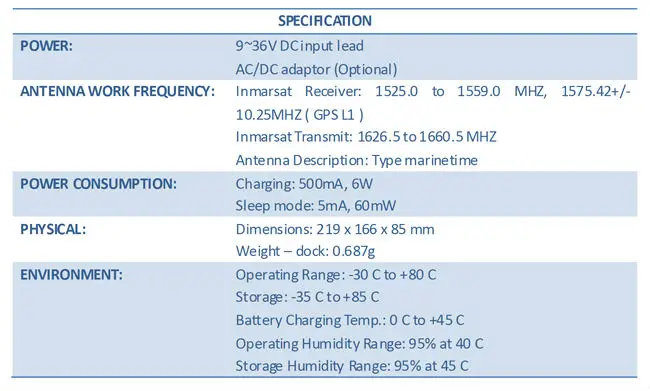

SPECIFICATION:

POWER

9~36V DC input lead

AC/DC adaptor (Optional)



ANTENNA WORK FREQUENCY

Inmarsat Receiver: 1525.0 to 1559.0 MHZ, 1575.42+/- 10.25MHZ ( GPS L1 )

Inmarsat Transmit: 1626.5 to 1660.5 MHZ

Antenna Description: Type marinetime



POWER CONSUMPTION

Charging: 500mA, 6W

Sleep mode: 5mA, 60mW



PHYSICAL

Dimensions: 219 x 166 x 85 mm

Weight – dock: 0.687g



ENVIRONMENT

Operating Range: -30 C to +80 C

Storage: -35 C to +85 C

Battery Charging Temp.: 0 C to +45 C

Operating Humidity Range: 95% at 40 C

Storage Humidity Range: 95% at 45 C

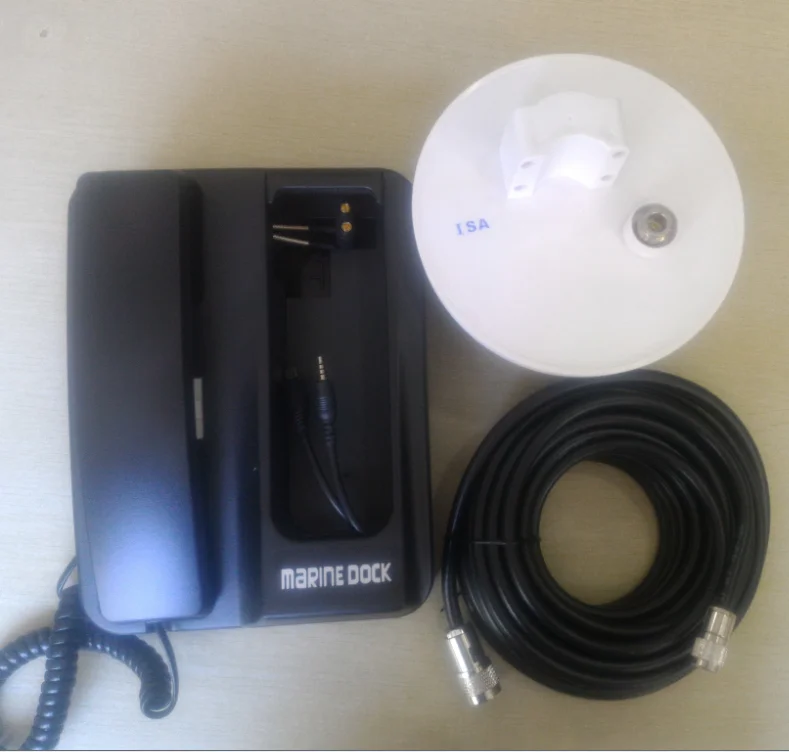

IN THE BOX

1. IsatDock station main unit                     x 1

2. Privacy handset                              x 1

3. DC Power Cable / Lead                      x 1

4. Active Satellite Antenna                         x 1

5. Satellite Antenna Mounting bracket               x 2

6. 5M/10M Antenna Cable                         x 1

7. Installation Spare Parts                         x 1

8. User manual                                   x 1
