TAIAN brand multifunction Mini Skid steer loader MS500 with many tools small garden loader
- Category: >>>
- Supplier: Taian Dongyue Carrying Machinery Co. Ltd.
Share on (60434861556):
Product Overview
Description

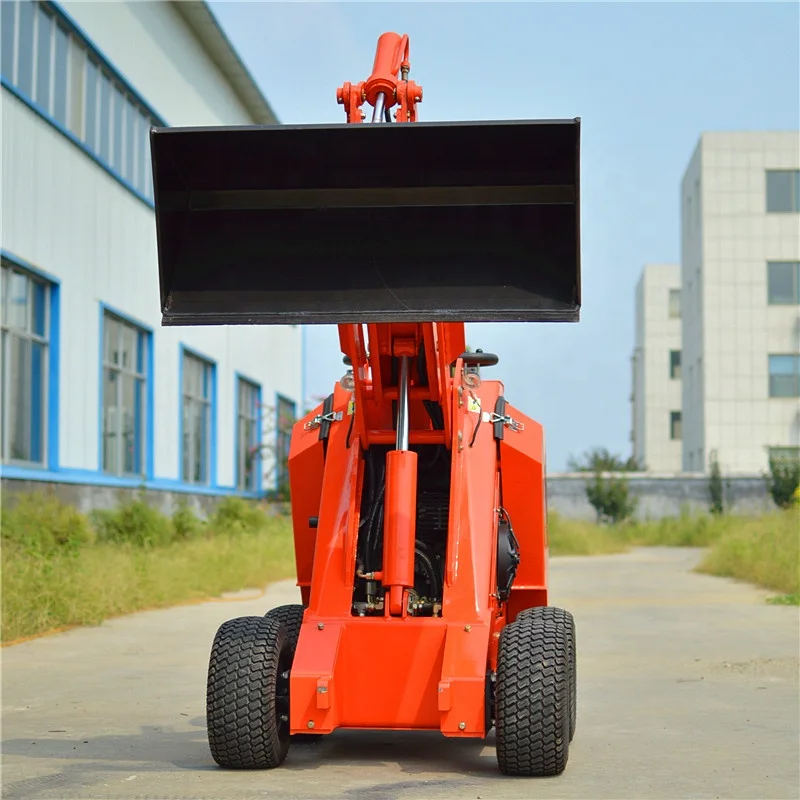

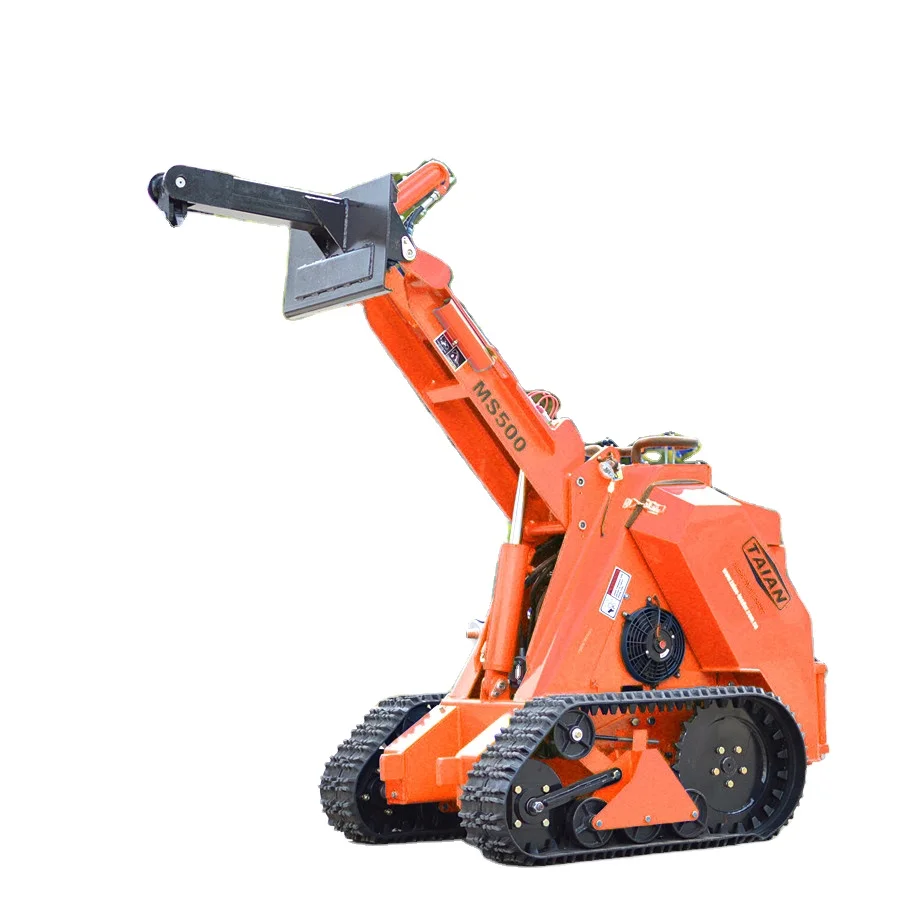

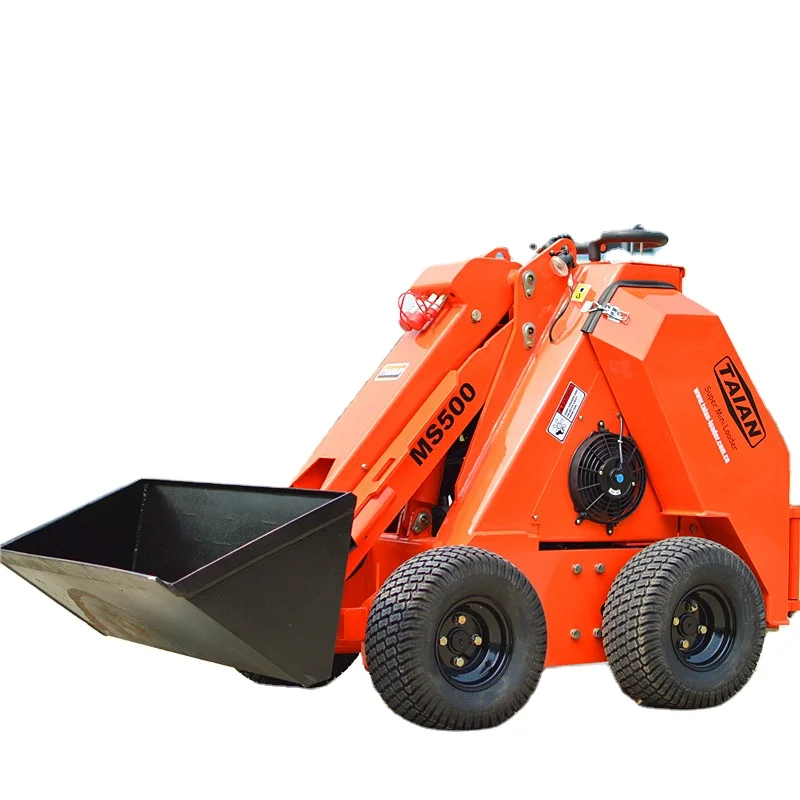

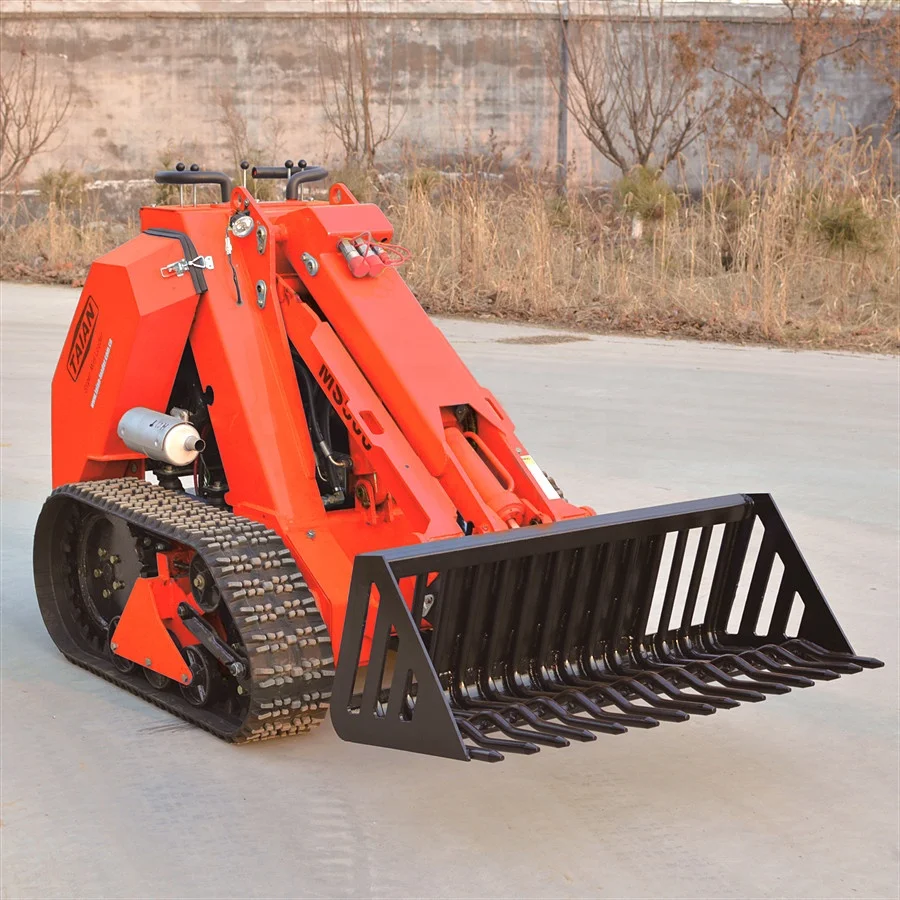

TAIAN brand multifunction Mini Skid steer loader MS500 with many tools small garden loader:
Company Information
Our company was established in 2001, and since then we have been focus on all kinds of loaders development, good innovation ability enable us to keep developing and stand out from other similar products. We have been awarded with 4 patents till now, variable products can meet customers different requirements.
Features:
1. With CE certificate
3. Extremely compact design, light weight, easy to transport and smart in narrow working environment.
4. Self levering.
5. Standard quick coupling system can use hundreds of different attachments.
6. The main hydraulic components were famous oversea products which guarantee that it is a powerful and reliable machine.
Model | MS500 |
Moving type | Crawler or Wheel |
Max. Length (without bucket) | 1760 mm |
Max. width | 1100 mm |
Max. height | 1295 mm |
Speed | 5km/h |
Rated loading capacity | 520kg (including attachment) |
Tipping load | 1040kg |
Max. reach | 1800mm |
Pushing power | 8.2KN |
Weight (without attachment) | 1200kg |
Hydraulic oil flow | 31L/min |
Track oil flow | 46L/min |
Oil tank capacity | 38L |
Oil mode | L-HL46 |
Gasoline oil capacity | 28L/min |
Battery capacity | 45Ah |
Voltage | 12v |
Engine | Kohler CH752, 27HP(20.1kw) |
Engine type | Gasoline, Four-cycle, V-twin cylinder, Air- cooled |
Rotation speed | 3000r/min |
Optional Chinese Diesel Engine 1 | |
Engine model | Changchai 3M78, 21.76HP |
Engine type | Diesel, 3 cylinders, water cooled
|
Engine speed | 3000r/min |
Machine Size(LxWxH/mm) without bucket | 1910mmx1150mmx1345mm |
Weight (without attachment) | 1240KG |
Optional Imported Diesel Engine 2 | |
Engine model | Yanmar 3TNV76F |
Engine Power | 25HP |
Rotation speed | 2800r/min |
Engine type | Diesel, 3 cylinders, water cooled |
WELCOME TO VISIT OUR FACTORY!!
finished products
Packaging
