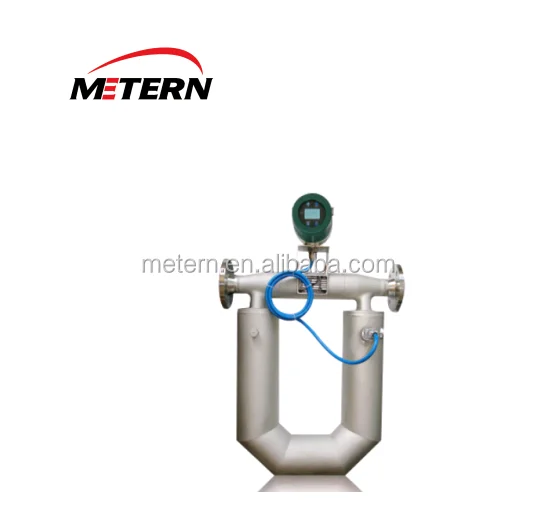

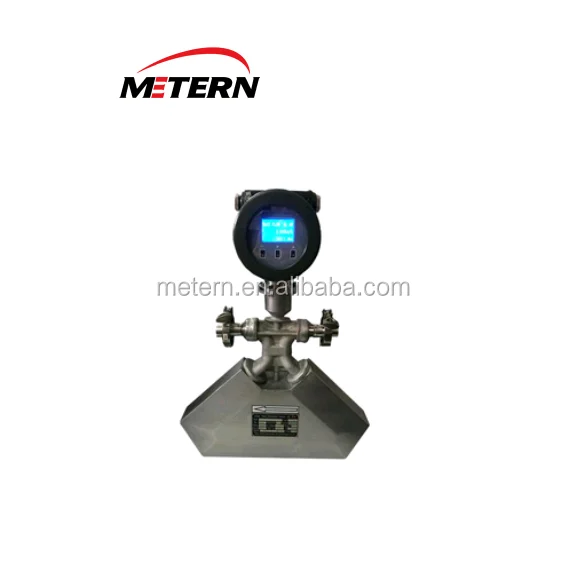

LPG/LNG mass coriolis flow meter flowmeter
- Category: >>>
- Supplier: Dalian Metern Measurement And Control System Co. Ltd.
Share on (60435004124):
Product Overview
Description
Overview
LPG/LNG mass coriolis flow meter flowmeter Overview
Metern High pressure MTCMF Coriolis mass flowmeters are the leading precision flow and density measurement solution offering the most accurate and repeatable mass measurement for liquids, or slurries. High pressure MTCMF meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.
LPG coriolis mass flow meter flowmeter Ultimate real world performance Unchallengeable High pressure MTCMF performance on liquid mass flow, volume flow, and density measurement
Unique design delivers unparalleled measurement sensitivity and stability
Guarantees consistent, reliable performance over the widest flow range
Designed to minimize process, mounting, and environmental effect
LPG/LNG mass coriolis flow meter flowmeter Superior performance in the most challenging applications
| Low Flow Precision Measurement | Precision Measurement & Process Control | High Capacity Precision Measurement |
| Flavoring Vials Chemical injection | Kg/min – tons/hr Truck loading Internal allocation Leak detection Produced fluids with chlorides | Up to 3,200 tons/hr Custody transfer Ship loading Railcar loading Pipeline measurement Marine bunkering Feedstock and fuel blending |
Liquid Flow Rates
LPG/LNG mass coriolis flow meter flowmeter High pressure Liquid flow rates
| Model | Nominal Size (mm) | Flow rate (t/hr) | Zero stability (kg/hr) |
| MTCMF-003 | 3 | 0~0.15~0.18 | 0.018 |
| MTCMF-006 | 6 | 0~0.56~0.7 | 0.07 |
| MTCMF-008 | 8 | 0~0.96~1.2 | 0.12 |
| MTCMF-010 | 10 | 0~1.8~2.1 | 0.21 |
| MTCMF-015 | 15 | 0~3.6~4.5 | 0.45 |
| MTCMF-020 | 20 | 0~6~7.2 | 0.72 |
| MTCMF-025 | 25 | 0~9.6~12 | 1.2 |
| MTCMF-032 | 32 | 0~18~21 | 2.1 |
| MTCMF-040 | 40 | 0~30~36 | 3.6 |
| MTCMF-050 | 50 | 0~48~60 | 6 |
| MTCMF-080 | 80 | 0~150~180 | 18 |
| MTCMF-100 | 100 | 0~240~280 | 28 |
| MTCMF-150 | 150 | 0~480~600 | 60 |
Technical Parameters
LPG/LNG mass coriolis flow meter flowmeter Performance specifications for High pressure sensor
| Accuracy | ±0.2%, ±0.1% optional |
| Repeatability | ±0.1~0.25% |
| Density measurement range | 0.5~2g/cm3, Accuracy: ±0.002 g/cm3 |
| Operating temperature | -50~+200℃ |
| Ambient temperature | -40~+60℃ or -20~+55℃ |
| The measuring tube material | SS316L; The housing material: SS304 |
| Nominal pressure | 4.0MPa |
| Ex-proof | Exd (ia)ⅡC T6Gb |
Performance specifications for High pressure transmitter
FT-522 Transmitter
| Display | LCD local display |
| Display variable | mass flow, volume flow, density, temperature |
| Ambient temperature | -20~+55℃ |
| Output signal | Pulse+4~20mA+RS485 |
| Communication | Modbus |
| Power supply | 18~36VDC power≥7W; 85~265VAC power: 10W |
| Protection level | IP65 |
| Ex-proof | Exd (ia)ⅡC T6Gb |
FT-523 Transmitter
| Display | LCD local display |
| Display variable | mass flow, volume flow, density |
| Ambient temperature | -40~+60℃ |
| Output signal | Pulse+4~20mA+RS485 |
| Communication | Modbus |
| Power supply | 18~36VDC power≥7W; 85~265VAC power: 10W |
| Protection level | IP65 |
| Ex-proof | Exd (ia)ⅡC T6Gb |
Company information
Company information
Be founded in 1998.
Registered capital: USD 10 million
Building area: 30000m2
Established R&D of Coriolis mass flow meter since 2005
Started production and sales of Coriolis mass flow meter since 2008
Products are exported to Italy, Spain, Belgium, Brazil, Colombia, Malaysia, ect.
Product details
Product details
Production process
Production Process
• Have two separate flow rate calibration devices
• Have four sets of digital industrial electronic scales
• Have 10 experimental pipeline, which can calibrate maximum flow rate of 450000kg/h
• System accuracy: 0.03%
