  • 55inch outdoor wall mounted lcd display waterproof high brightness multi touch screen narrow frame Android WiFi play advertising
55inch outdoor wall mounted lcd display waterproof high brightness multi touch screen narrow frame Android WiFi play advertising
55inch outdoor wall mounted lcd display waterproof high brightness multi touch screen narrow frame Android WiFi play advertising
55inch outdoor wall mounted lcd display waterproof high brightness multi touch screen narrow frame Android WiFi play advertising
55inch outdoor wall mounted lcd display waterproof high brightness multi touch screen narrow frame Android WiFi play advertising
55inch outdoor wall mounted lcd display waterproof high brightness multi touch screen narrow frame Android WiFi play advertising
55inch outdoor wall mounted lcd display waterproof high brightness multi touch screen narrow frame Android WiFi play advertising
55inch outdoor wall mounted lcd display waterproof high brightness multi touch screen narrow frame Android WiFi play advertising

55inch outdoor wall mounted lcd display waterproof high brightness multi touch screen narrow frame Android WiFi play advertising

Share on (60435116244):


Price:RUB 89,192.52

Quantity:


Product Overview

Description

Model
Windows Version
Android Version
Screen
Panel Brand
Full New 100% A+ Grade Brand Panel
Panel Size
55 inch
Display Size
1209.6mm(H)x 680.4mm(V)
Display Ratio
16:9
Resolution
1920*1080
View Angel
178°/178° (H/V)
Color
16.7M
Backlight
LED
Brightness
2500nits
Contrast
1500:1
OS System
Standard Main Board: Celeron J1900
Standard Main Board: RK3288
RAM
4G
RAM
2G
Hard Disk
128G SSD
Storage
8G
Network
LAN&WIFI
Network
LAN&WIFI
OS Version
Win7/8/10
OS Version
5.1/6.0/7.1
3G/4G function are optional
Touch Screen System
Multi point PCAP touch screen
Power Instructions
Power Consumption
130W
Power Consumption
120W
Voltage
AC 100-240V
50/60Hz
Voltage
AC 100-240V
50/60Hz
Temperature
0-50 ℃
Temperature
0-50 ℃
Material
Metal Sheet, Temper Glass
Material
Metal Sheet, Temper Glass
Surface
Powder Painting
Surface
Powder Painting
Size
1028*632*845mm
Size
1028*632*845mm
Weight:
133KG
Weight
133KG

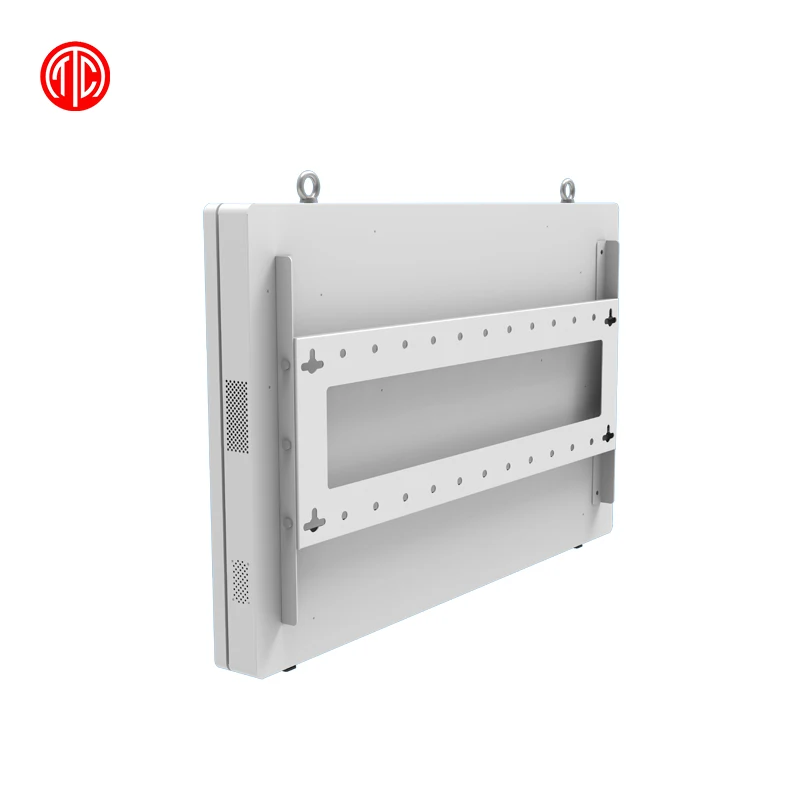

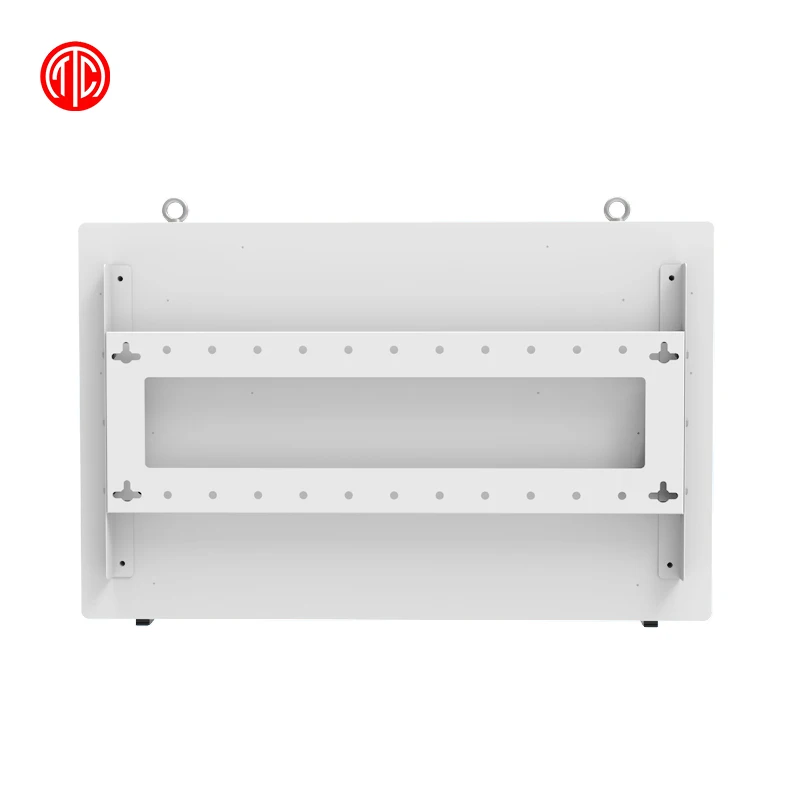

Outer shell:
1. IK10 and IP65 level outer shell is made by galvanized sheet.
2. With a protection layer of high-penetrating Tempered glass (with 5-8mm thickness) on the surface of the LCD Panel.
3. Surface finishing: heavy industrial grade of powder coating with an anti-wear texture for Outdoor using.
4. Water-proof, dust-proof double layer outer shell,vandal proof.
Android Solution （RK3288）
1,CPU: Quad core Cortex-A17,
2.0GHZ 2,GPU: ARM Mali-T764 GPU
3,DDR: DDR3 2G
4,ROM NAND FLASH: 8G
5,External ROM Support up to 32G bytes sd card
6,WiFi Support 802.11b/g/n wifi module
Outdoor OMC system (outdoor maintenance and management cloud software system):
1. Every product inlcudes 10 kinds of sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration
sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor).
2. Problem and staus monitoring software included.
3. Touble shooting by software included.
4. Use softwae Remote Check key working performance by Group
5. 5.Unnormal work alarm generation.
Control interface supporting
1. RS232 Marve provide API and instruction protocol.
2. TCP/IP Marvel provide technical supporting.
Cloud service supporting
1. CMS ://inf.marveltechgroup.com
2.OMC://omc.marveltechgroup.com
3.Marvel can support to help Customer to setup their own server.
Working Environment
-10°C~50°C
Power supply
Industiral High level Power moduel AC100~240V 50 /60 HZ
