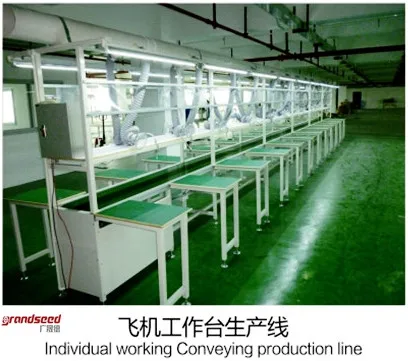

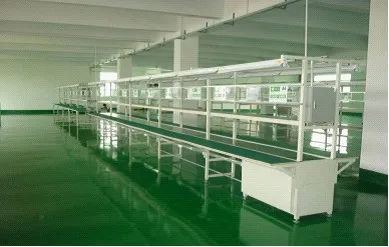

smart phone tablet PC assembly line

ITEM

 SIZE

GSD-HX350 Strip the production line10m

L15M*W1.18M*H1.95M

Driving system

1.Hanghai 1HP motor,Xiangpai 70 tooth box

2.HP aidely speed-regulate,speed:0-6m/min

3.Active roller 6 inch *400mm, Driven roller 3 inch*400mm

Line Body Structure

1.stand is made of40*40*1.5mm Iron FangTong, working face height :720+/-20mm

2.both sides of the line is made of aluminum

3..the lamp holder is made of 40mm*40mm iron material,the light adopted 40W Fluorescent lamp , the lamp adopted 25*50mm Iron flat the

4.Power system:the line is adopted GB line,trunking is adopted30*60 galvanized iron trunking ;every station fix 220V ,three holes a bar socket.

5.Independent workbench specification:it is made of 30*30*1.5mm Iron FangTong ,bedplate: wide 350mm,green Anti-static rubber stuck in table-board, Half a log overlock;

6.Greenδ2*400PVC convey belt is produced in Netherlands, seamless connected,adoptφ25*400 galvanized support roller transportation belt every one meter,the middle have galvanized board foil

7.The looking board is adopted 20mm*8mm AL,a A4 glue set every station

8.The lamp holder fix 30*28 the wind group of aluminum

9.H holder fix 6 points  strengthen support and 6 gas-distributing pipe,which station fix a quick interface.

10.Instrument desk: wide 400mm,table-board is adopted δ16mm board,the surface stick White fire prevention board,Half logs overlock.
