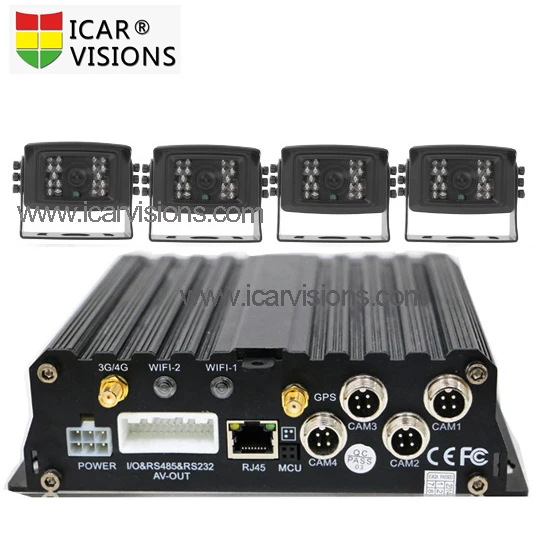

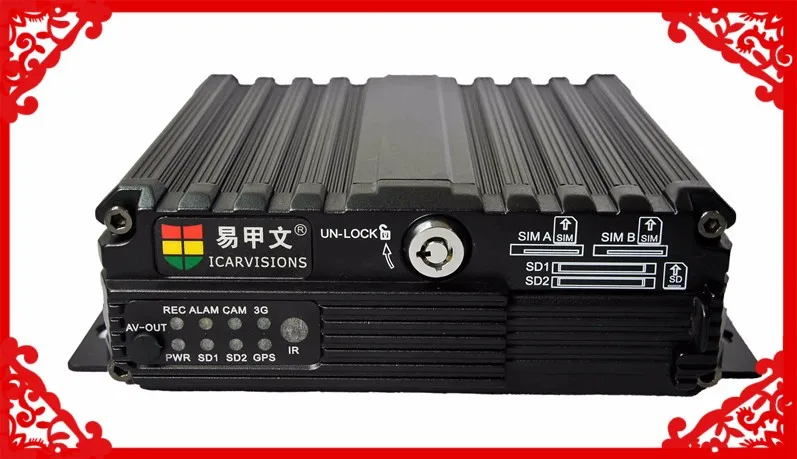

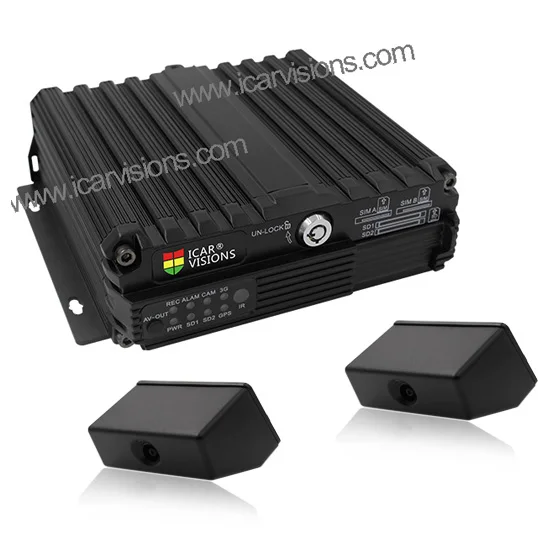

4ch 8ch 1080P AHD mdvr with gps 3g wifi car dvr car recorder live monitoring

Product Overview

Description

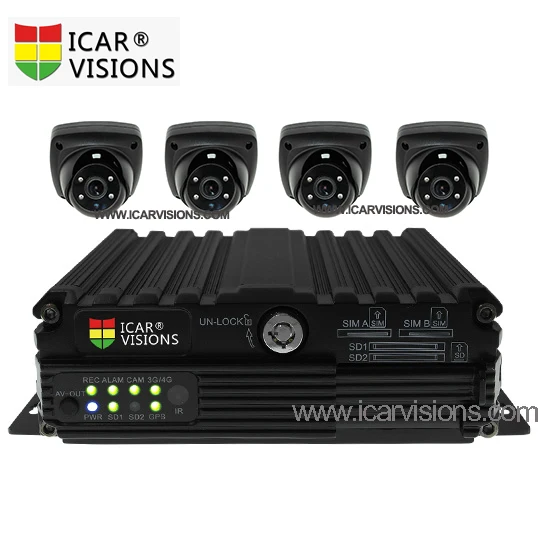

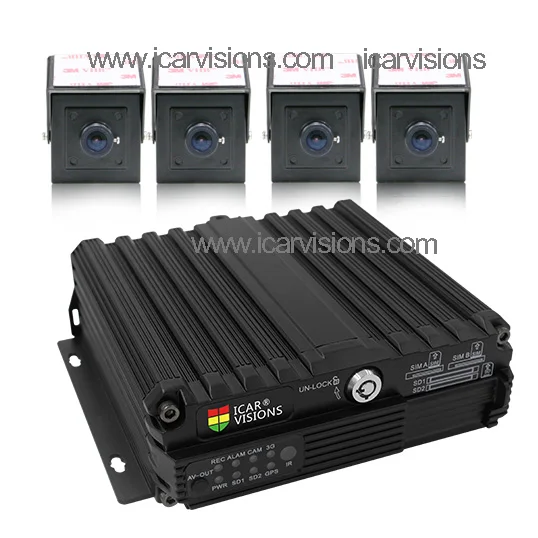

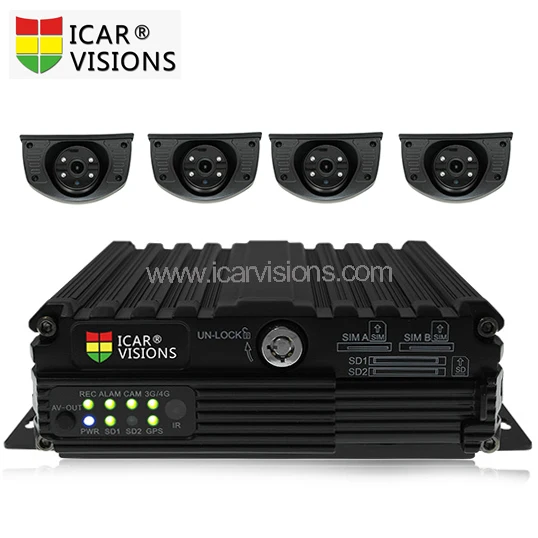

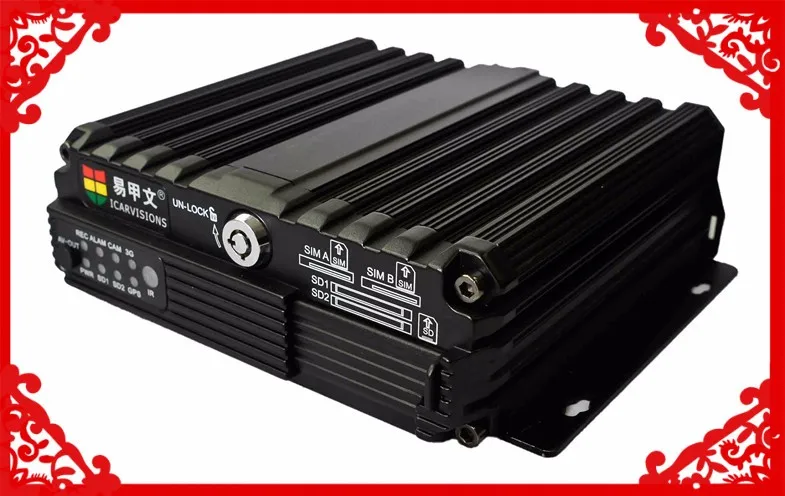

New product H.264 GPS/GSM/3G/WIFI/4G ahd mobile dvr



Company Profile

ICARVISIONS(Shenzhen)Technology Co.,Ltd. is a global leader in designing, manufacturing and deploying innovative range of Mobile Digital Video Recorder (MDVR) and vehicle monitoring site solutions.



The company was established by a group of experts in wireless digital video vehicle monitoring system industry with more than 8 years experience. We develop our own exceptional core technology and sustainable R&D strength, specializing in hard disk Mobile DVR, SD card Mobile DVR, vehicular camera, 3G portable mobile monitoring system, monitoring software platform, inside Car Camera etc. Icarvisions products are so reliable and cost effective which are widely used in more than 40 countries and regions, such as Russia police car project, Latvia tour bus project, Australia taxi project, Canada tanker truck project and other projects.



Icarvisions shares the belief that things can always be done better for our customers. Our products and full service are all designed, manufactured and delivered with this in mind.

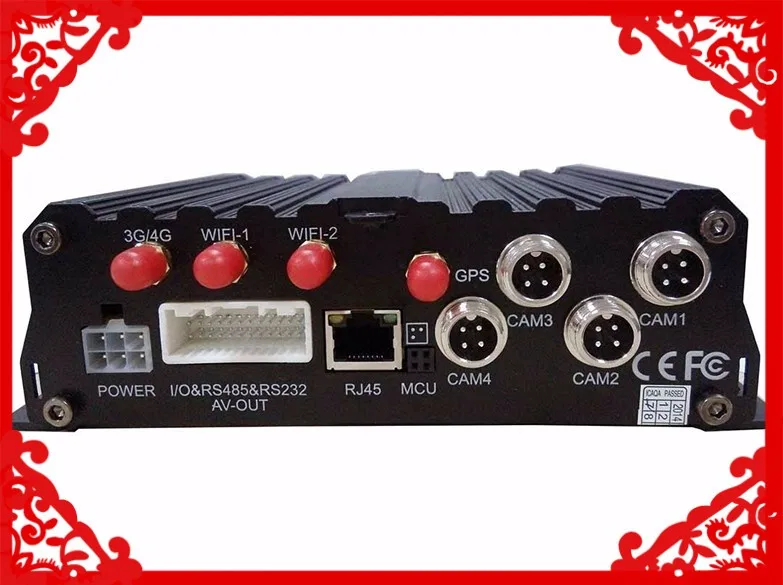

1.Product Introduction





Function		Performance
System	Language	English / Chinese
	Operation Interface	Graphical menu operation interface(OSD menu)
	Password security	Permissions setting of administrator & user
Video	Video input	4 channels  support CIF/HD1/D1/960H/720P AHD camera
		RJ45 X 1, for IP camera or external Wi-Fi module (802.11ac)
	Video output	2 channels (1 as φ3.5 Phone Jack, 1 at 24pin connector)
	Video display	Single picture,5 pictures
	Signal system	PAL / NTSC
	Image compression	H.264 Main profile
Audio	Audio input	4 channels
	Audio output	2 channels (1 as φ3.5 Phone Jack, 1 in the 24pin connector)
	Record format	Synchronized video & audio recording
Recording& Storage	Video resolution	Support 4 channels CIF/HD1/D1/960H/720P AHD camera Video input Support 2-CH 720P AHD + 2-CH 960H analog mixing Video input Support 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H Video input need high fast SD card,speed over 80MB/S
	Video coding	ISO14496-10
	Video bit rate	CIF: 1536Kbps ~ 128Kbps,
		D1: 2048Kbps ~ 400Kbps,
		960H: 2048Kbps ~ 400Kbps, 720P:4096Kbps ~ 400Kbps
		8 grades of image quality optional, Grade1 as best, Grade8 as lowest
	Audio bit rate	8KB/s
	Storage	2 SD card storage optional, up to 128 GB / card
Alarm	Alarm input	8 channels, alarm activated by low voltage (<1V) or high voltage (>5V)
	Alarm output	1 channel, 12V output
Communication Ports	RS485	RS485 ×1
	RS232	RS232 ×2
GPS	Built-in GPS module. Real-time geographic coordinates, speed information
G-Sensor	Built-in G-Sensor
Wireless Communication	3G	Built-in 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) module optional
	4G	Built-in 4G(TDD-LTE / FDD-LTE) module optional
	Wi-Fi	Built-in Wi-Fi( 2.4 / 5.8 Ghz) optional
Software	PC playback	Video files playback in PC with analysis of the vehicle status
	CMSV6 / IVMS	Wireless real-time video & audio monitoring, GPS, alarm, etc.
Software Upgrade	Upgrade through SD card





2. Features



- 4 channels synchronized video & audio recording and playback,

-Support 4 channels CIF/HD1/D1/960H/720P AHD camera Video input
Support 2-CH 720P AHD + 2-CH 960H analog mixing Video input
Support 1-CH 720P/1080P IPC + 4-CH 960H/D1/CIF Video input
Note: 4 channels 720P AHD or 1-CH 720P/1080P IPC + 4-CH 960H

Video input need high fast SD card,speed over 80MB/S
- Dual SD card storage, support 128GB SDHC card and Class10 SDxc card
- Build-in G-sensor module
- Built-in GPS module,3G/4G module,WiFi module with 2 WiFi Antennas for strong signal
- Automatic downloading video files
- 8 seconds delay power-off for data protection
- 8V-36V wide voltage power supply
- Dimension(L×W×H): 188×170×50 mm

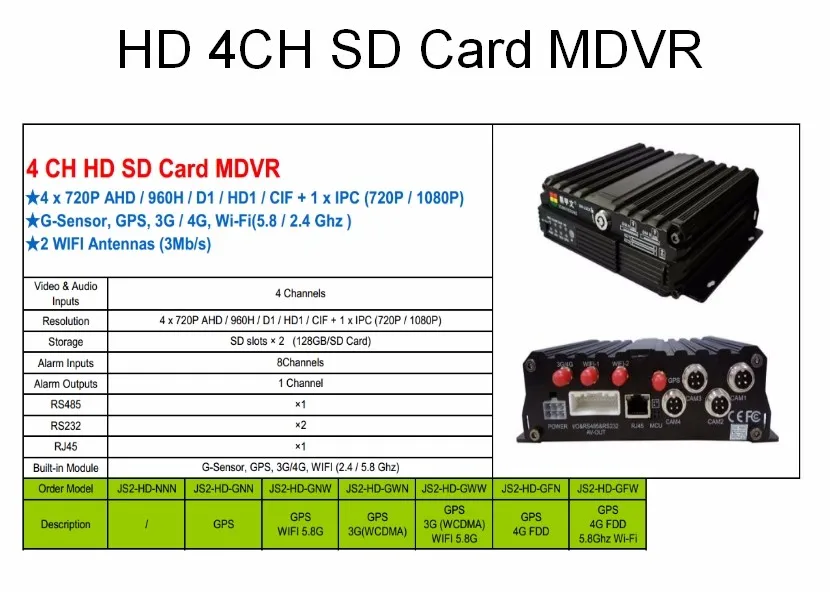

3. Model for option

4. Certification

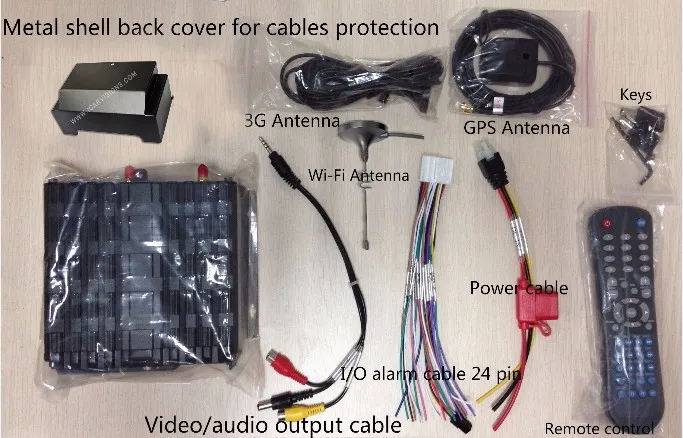

5. Accessories

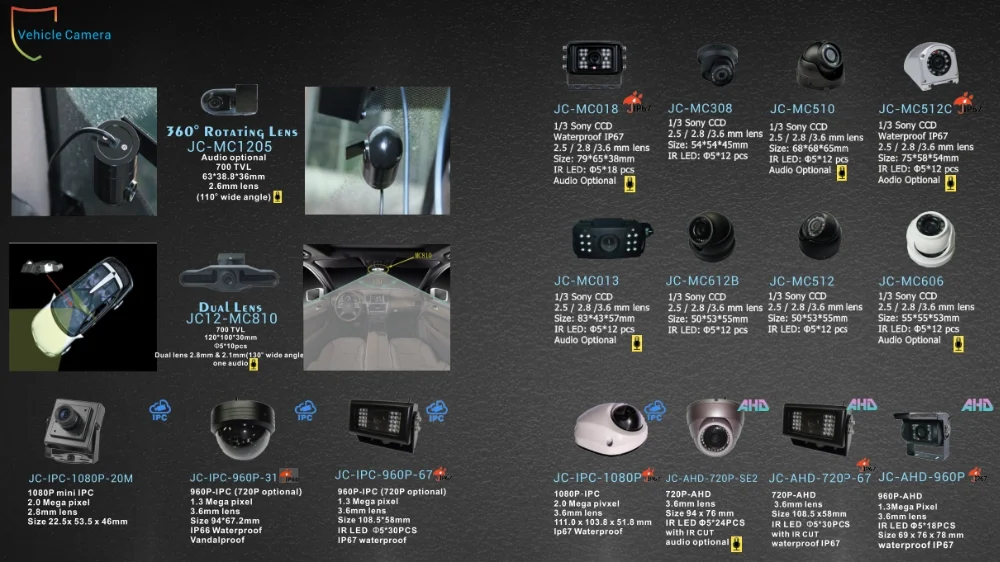

6.Cameras

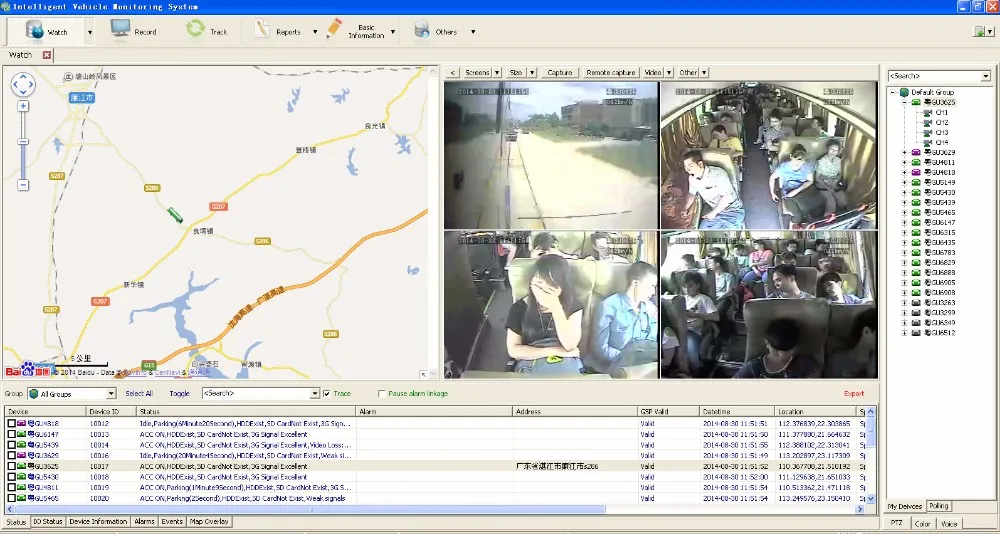

7. Software

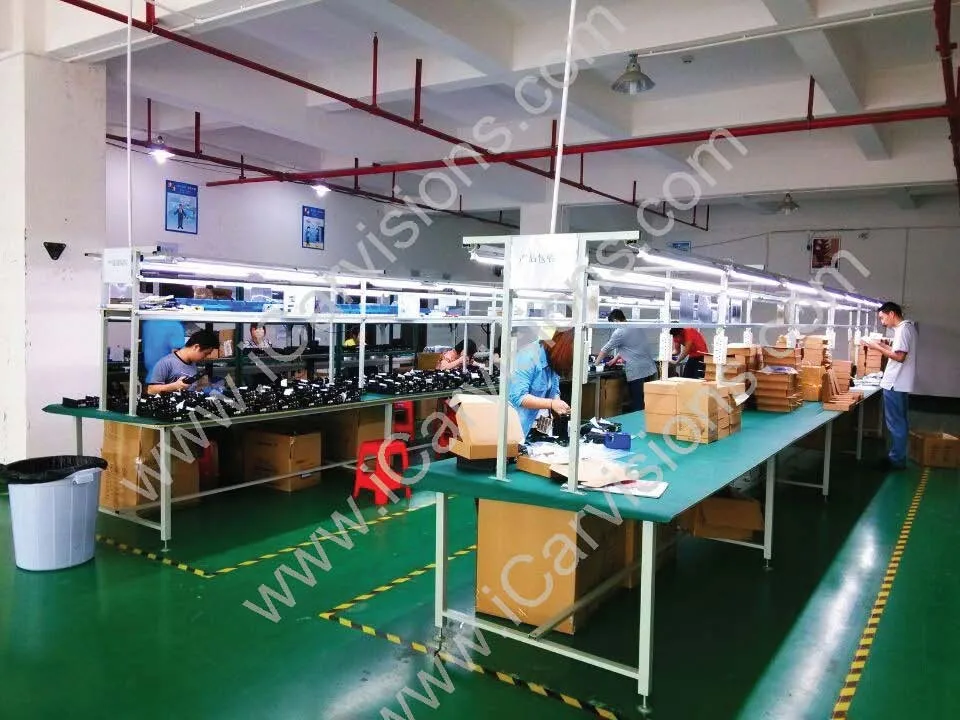

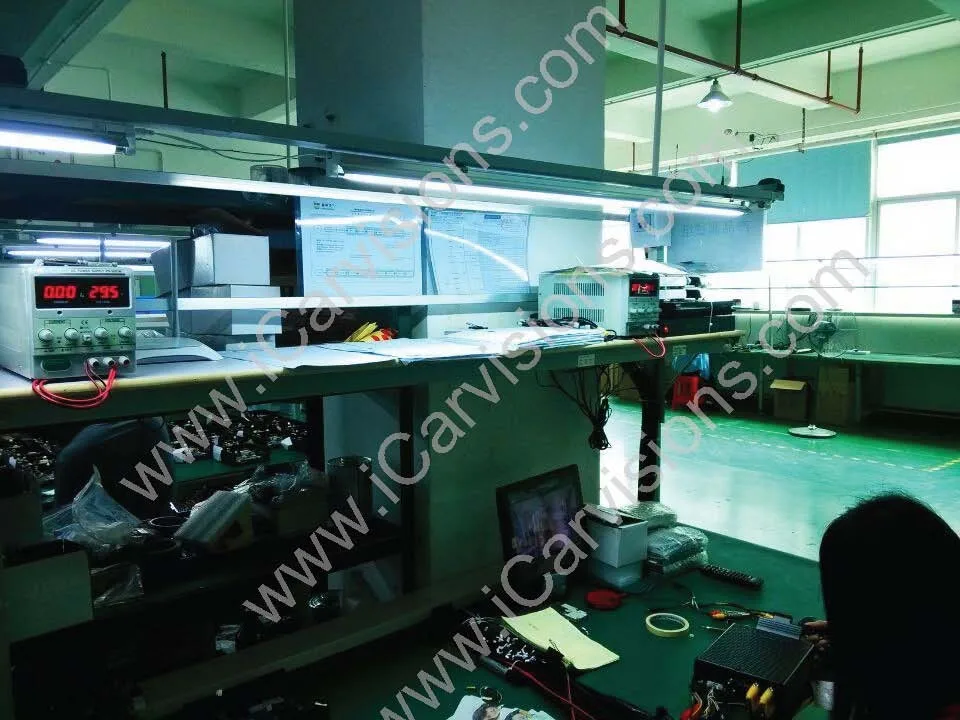

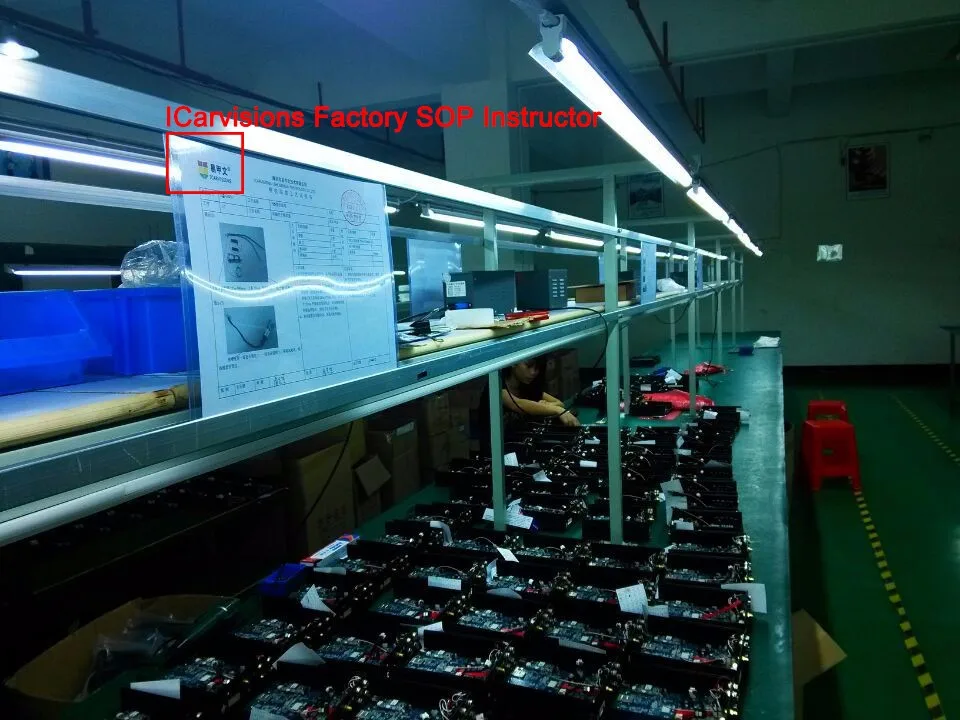

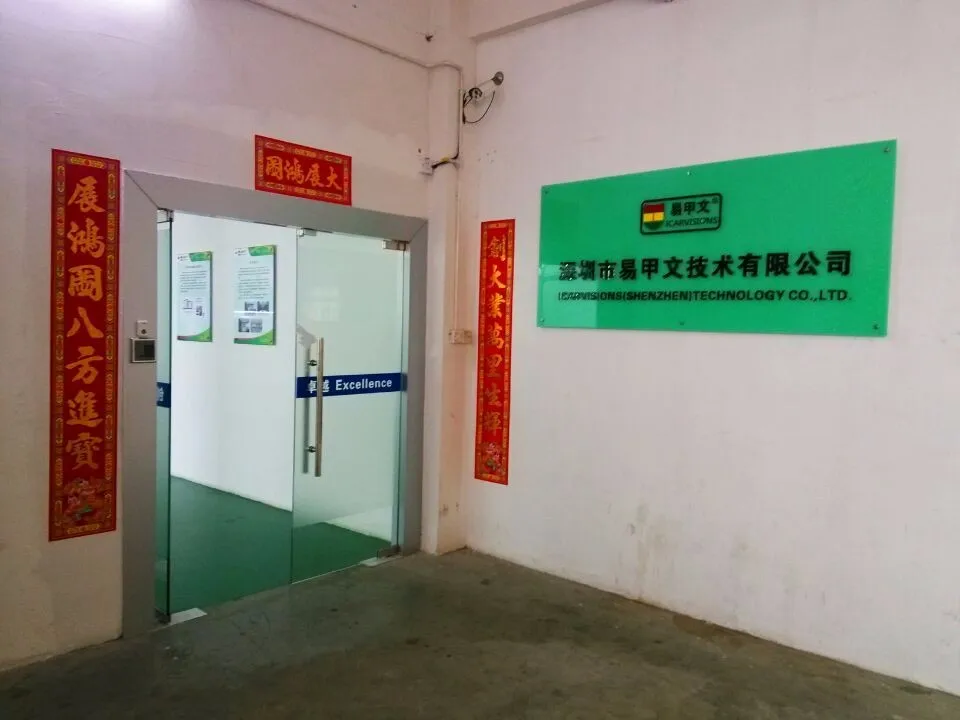

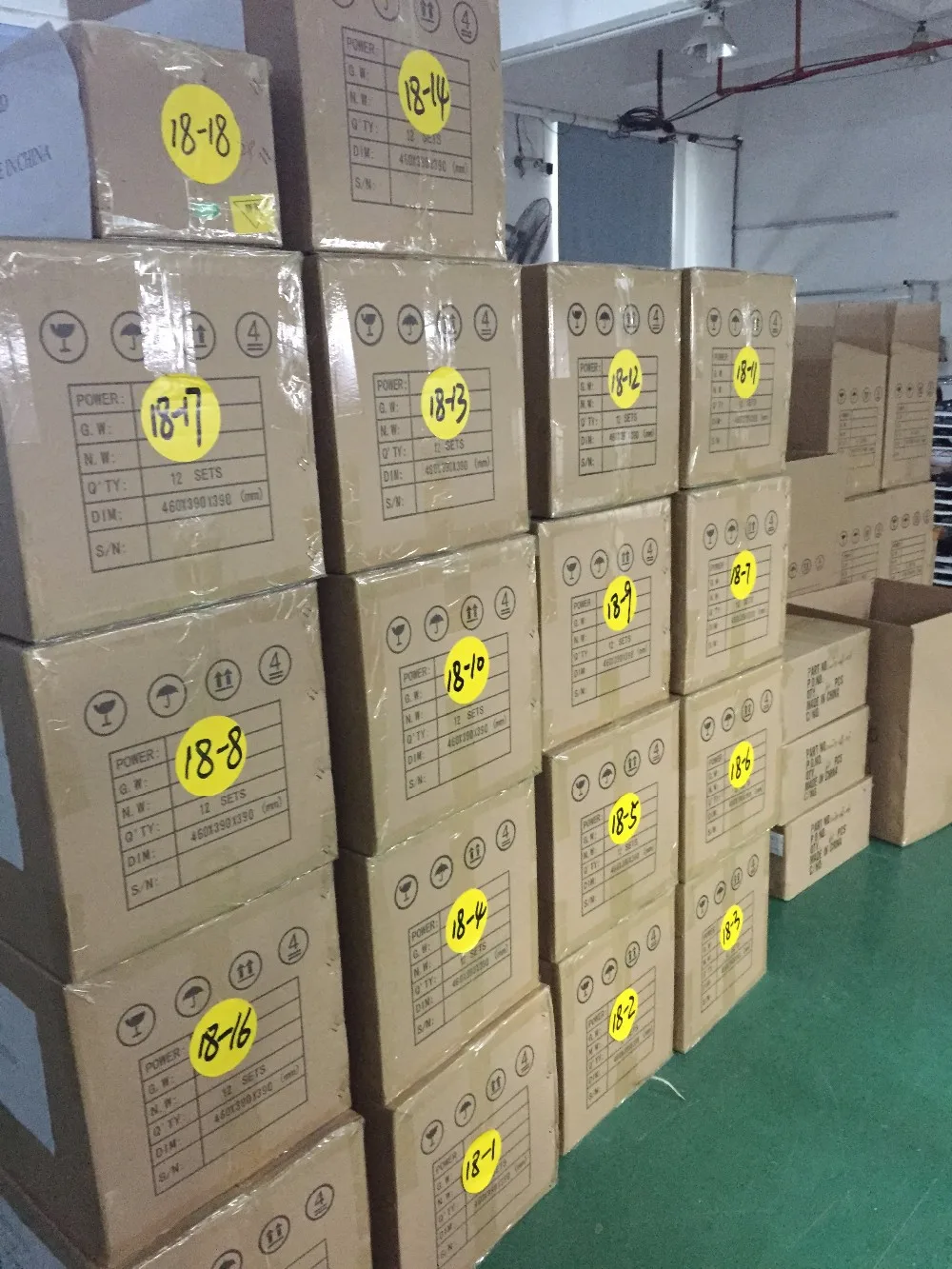

8. Factory

How to choose a Mobile DVR for vehicle SURVEILLANCE?



ICARVISIONS is one of the leading vehicle surveillance solutions providers in China. We have our own R&D, production and sales departments. Let's share with you some ideas of how to choose a right Mobile DVR.



A complete vehicle surveillance solution includes Mobile DVR, camera, hard drive, cable, display and related platform software.



Below questions may help you choose the right model of Mobile DVR for your projects.



1) What kinds of vehicles will be using Mobile DVR?



The first thing we need to confirm is that what kind of vehicle needs to install the Mobile DVR. Such as buses, trucks, school buses, or taxis.

Because ICARVISIONS has many successful cases in both overseas and domestic markets. We can provide professional suggestion and solution for different vehicles or different projects.

In this way, we help our clients save a lot of time.



2) Any special function needed in the projects?



This question reflected the professional side of ICARVISIONS. Because most customers have some special functional requirements for Mobile DVR.

ICARVISIONS has a strong development capability. We can provide customized solutions for our customers. Including the hardware and platform software.



3) How many cameras needed to install inside and outside of the vehicle?



The number and style of cameras that need to be install inside the vehicle and outside the vehicle could be a little different. Therefore, ICARVISIONS offers a variety of options for customers to choose from. For example, Mobile DVR can support 2 channels, 4 channels, 5 channels, 8 channels, 9 channels and 16 channels.



4) Which resolution of camera do you think it's the best for your market? Full HD 1080p / HD 720p? / Analog 960H?



The diversified demand for different video resolution is often a challenge for many customers. Our Mobile DVR supports 1080P, 720P, and 960H video inputs. If you are doing wholesale business, you should make a reasonable choice according to your local market.



5) How many hours of video data needed to store in the Mobile DVR?



   We know that the data storage medium of the Mobile DVR is hard disk. so, the capacity of video that Mobile DVR will store is determined by the capacity of the hard disk. So, the time you want to save the video determines the capacity of hard drive you need to buy. Buying the right hard drive can avoid unnecessary investment.



6) Which of these functions may be useful for your projects? Wi-Fi / GPS / 3G or 4G?



I believe many people have heard about the topic of 5G. But some countries are facing expensive 4G data, and some countries are still using 3G. Even in some developing country they have a low mobile network coverage. Therefore, ICARVISIONS offers a variety of options for customers to choose from. For example, the Mobile DVR can choose to be with 3G or 4G. Of course, you can also choose the Mobile DVR with GPS only if you don't need to watch the live video when the vehicle is driving. There also some customers may say that I only need to know the specific location of these vehicles when replaying the video.



7) In which country the Mobile DVR will be used? (We want to make sure the Mobile DVR with the correct frequency of 3G / 4G band)



Our customers could come from different counties. Therefore, we use different 3G and different 4G modules for different users for different regions. In order to ensure that Mobile DVR has a comprehensive 3G or 4G band coverage.



8) How many vehicles need to install Mobile DVR in your projects?



The configuration of the server can also refer to the number of quantities of the Mobile DVR can reach. For example, a server with 500 Mobile DVRs and a server with 20,000 Mobile DVRs could be different for server parameter configuration. ICARVISIONS will give the most reasonable advice based on the number of Mobile DVRs the customer plans to use. ICARVISIONS will assist customers in purchasing the most cost-effective servers.



So, when you have confirmation of the above points, it will be easy to determine which Mobile DVR is the right model for your projects.

If you need more advice, please contact us. Skype micheal251714
