Chow Mein Semi Auto Nest Noodle Maker Machine

Professional Noodle Machine Manufacturer in Dried Chow Mein Noodle Machine Production Line

Henan B.R.O Machinery Co.,Ltd is a professional noodle machinery manufacturer for noodle Plant over 20 years.

B.R.O Chow Mein Semi Auto Nest Noodle Maker Machine  has 6 main group

---Flour Mixing Part

---Rolling and Slitting Part

---Steaming part (auto & semi-auto)

---Cutting  and Dividing Part (auto)

---Drying Part  (auto & semi-auto)

---Cooling Part

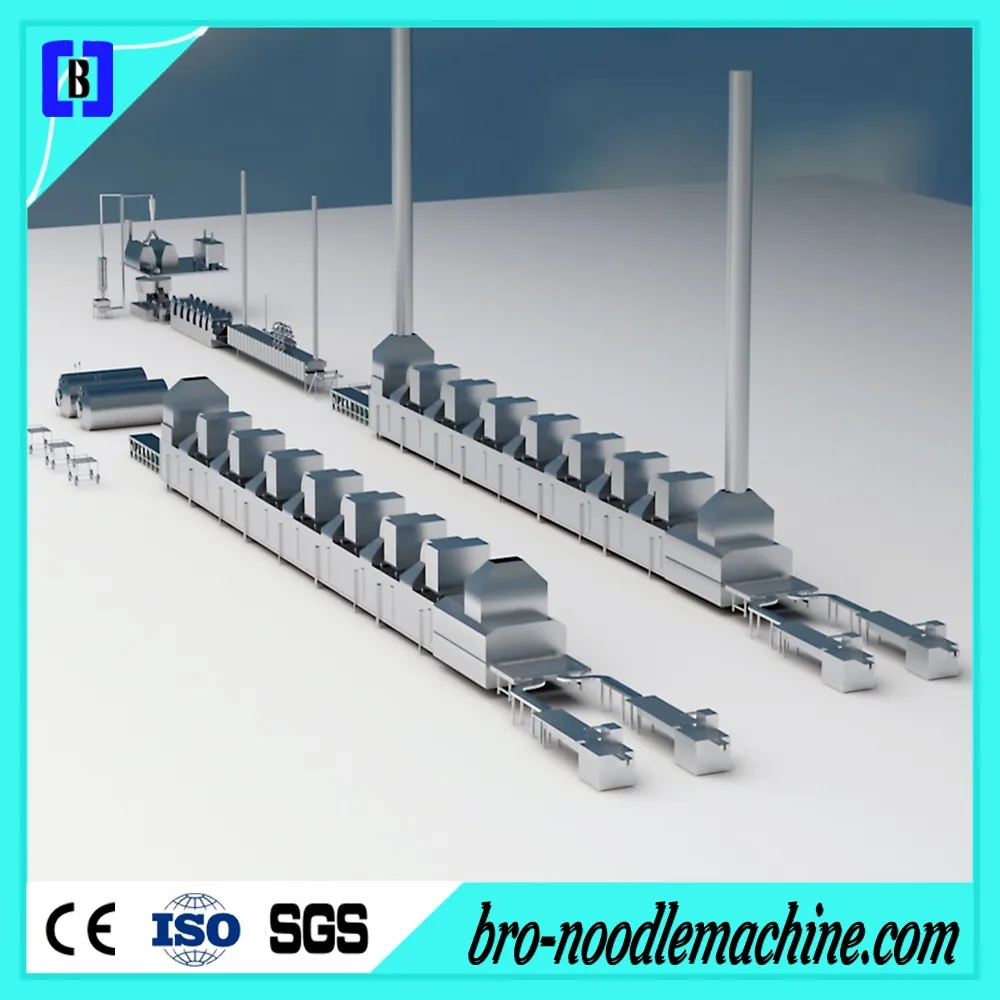

Flowchart of  Chow Mein Semi Auto Nest Noodle Maker Machine

As one of Top 10 chowmein noodle machine manufacturer in China, we have over 20 years manufacture and service experience in noodle making industry. We produce and supply 20000--260000pcs/8h Dried chwo mein  noodle plants.

 Chowmein noodle Machine mainly including flour mixing system, rolling and slitting system,  steaming system, cutting and dividing system, noodle drying system and cooling system.

Chow Mein Semi Auto Nest Noodle Maker Machine

  Chow Mein Semi Auto Nest Noodle Maker Machine

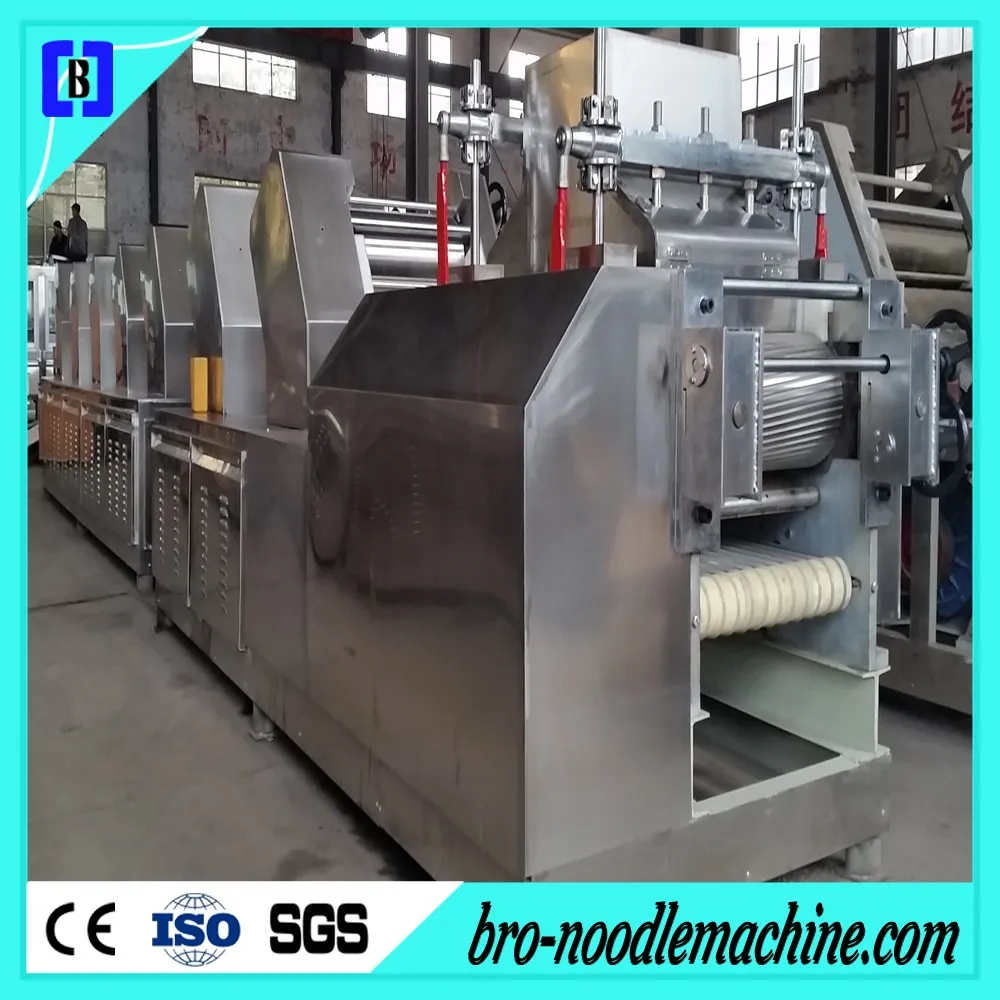

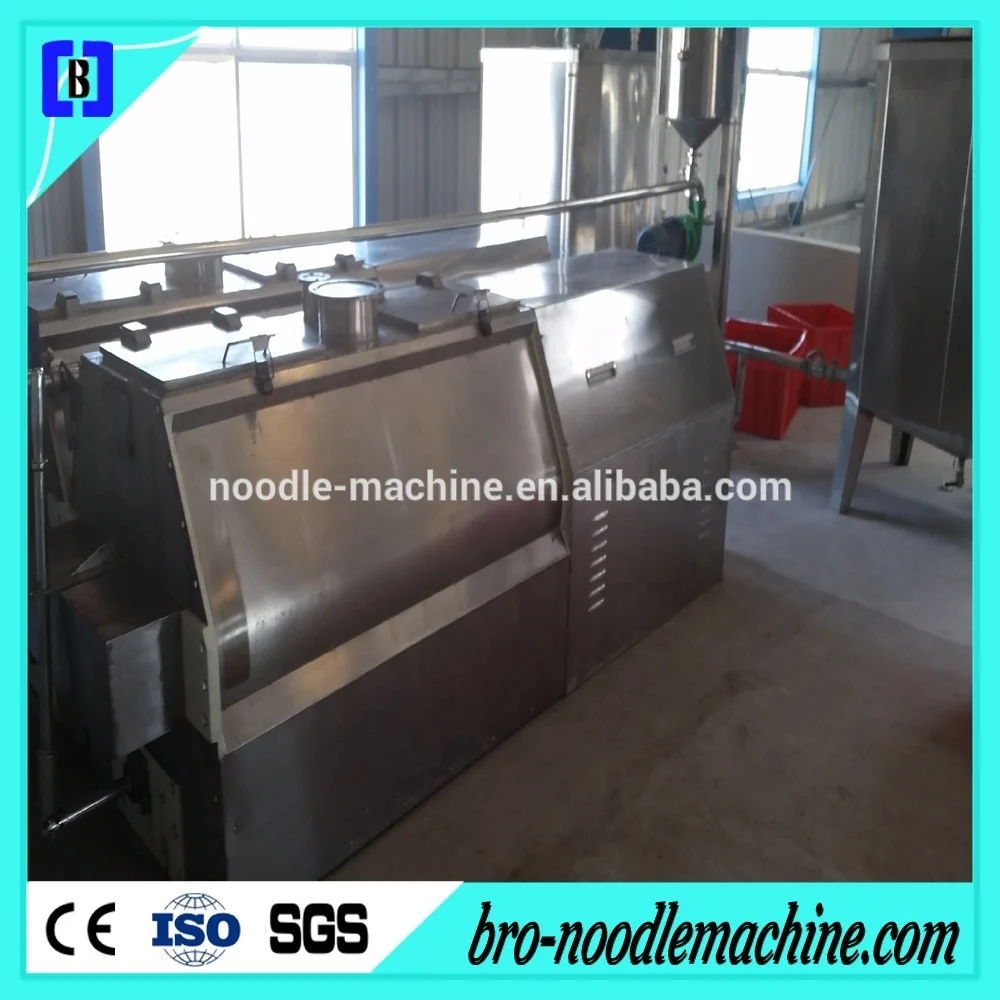

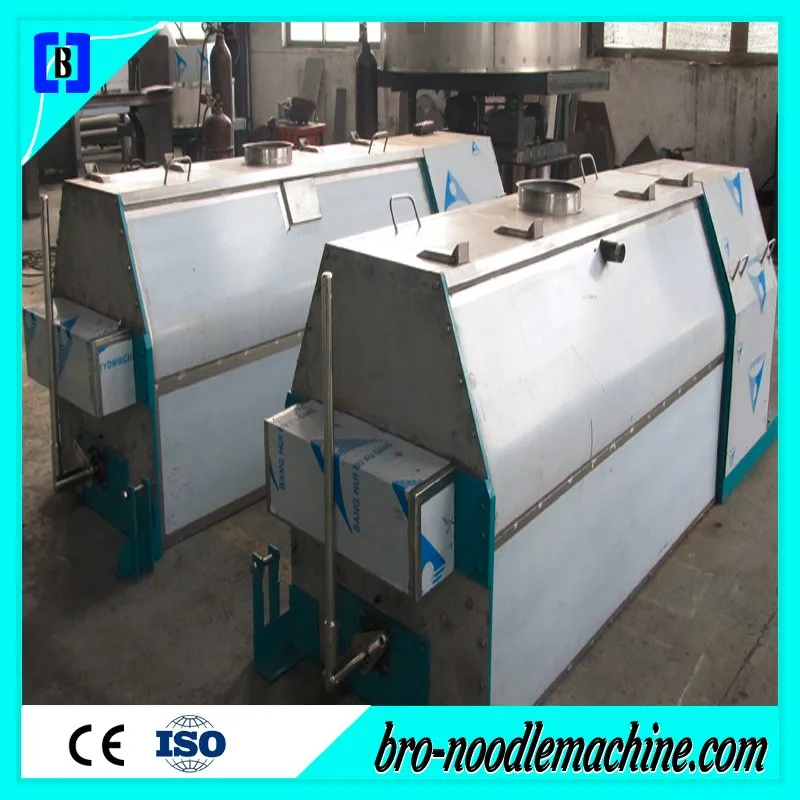

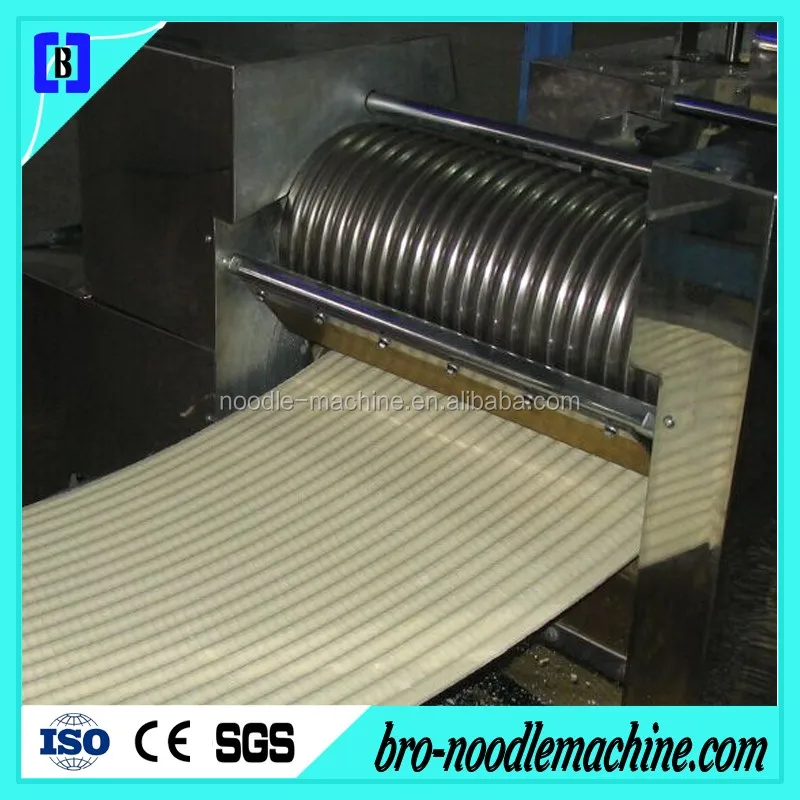

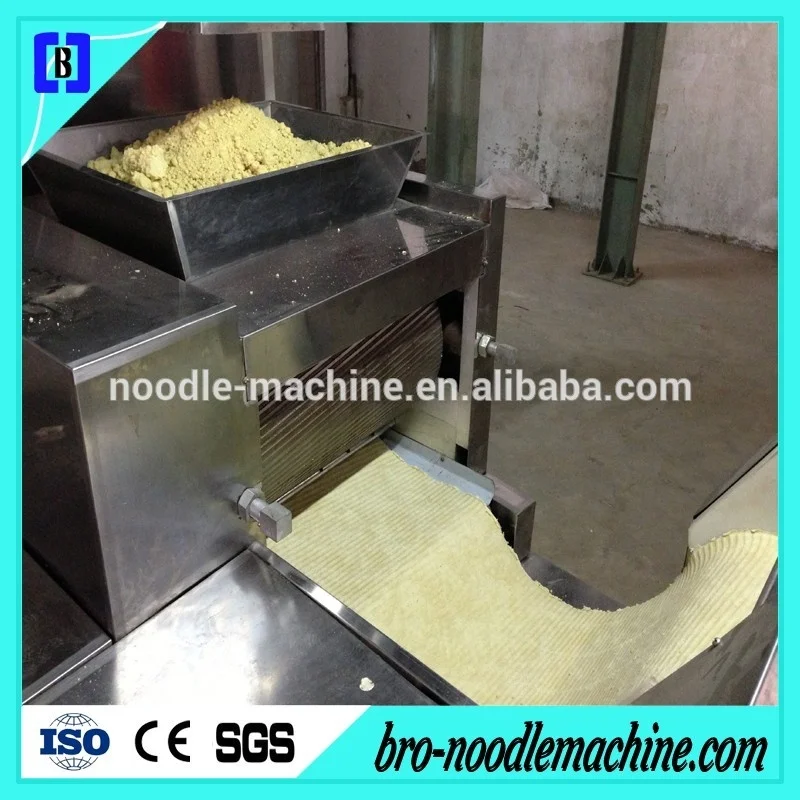

                       NOODLE MACHINE MIXING SYSTEM                                            NOODLE MACINE ROLLING SYSTEM

                           A. capacity: 100-350kg per batch                                                 A. roller width: 200-1000mm

                           B. power: 7.5-22kw with frequency control                               B. roller material: hard alloy steel

                           C. material: SUS304  T=4mm                                                         C. worm gear gap adjustment

                           D. continuous mixer avalible                                                          D. SEW motor avalible

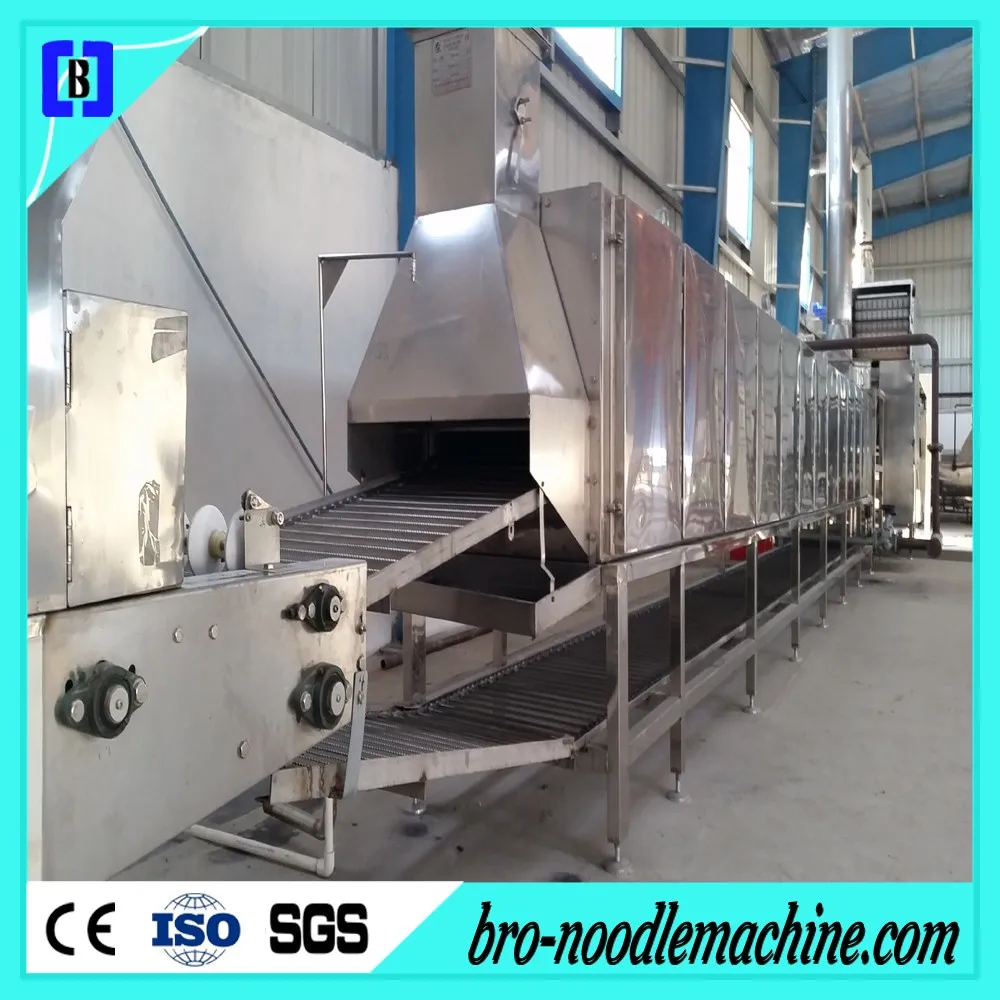

       NOODLE MACHINE STEAMING SYSTEM  (AUTO)                        NOODLE MACHINE CUTTING AND DIVIDING SYSTEM (AUTO)

              A. capacity: 80-200kg per  hour                                                                     A. cutting lanes: 2-10 lanes

              B. material: sus304   N>8%                                                                              B. divding lanes: 4-20 lanes

              C. steam pressure: 0.8-1.0Mpa                                                                      C. cutting speed: 30-80 cuts per min

              D. steam temp: 99-110C                                                                                   D. cutting length: adjustable

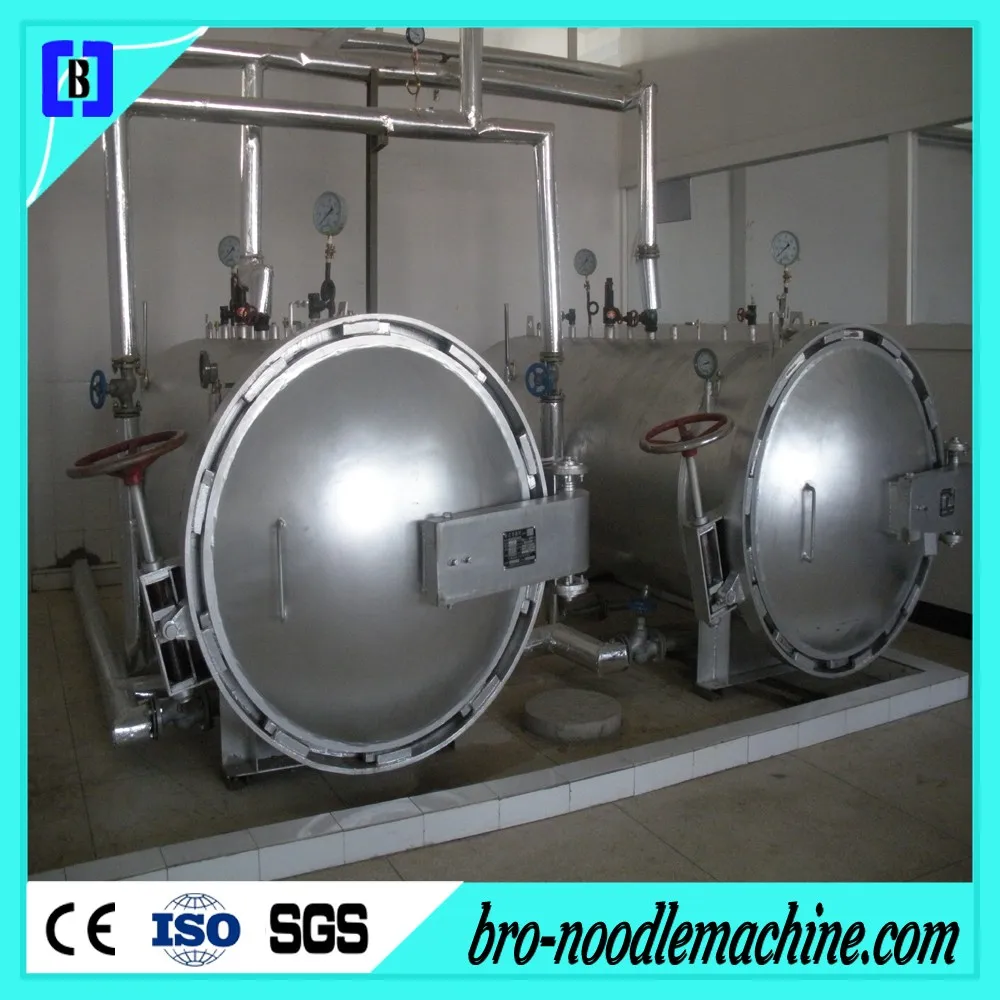

     NOODLE MACHINE STEAMING SYSTEM  (SEMI-AUTO)                          IN DRYING CASING BOX MANUALLY  (SEMI-AUTO)

              A. capacity: 80-200kg per  hour                                                                     A. cake weight: 20-70 g

              B. material: sus304   N>8%                                                                              B. material: food grade plastic

              C. steam pressure: 0.8-1.0Mpa                                                                      C. noodle type: round,square,bird's nest

              D. steam temp: 100-150C                                                                                D. length: adjustable

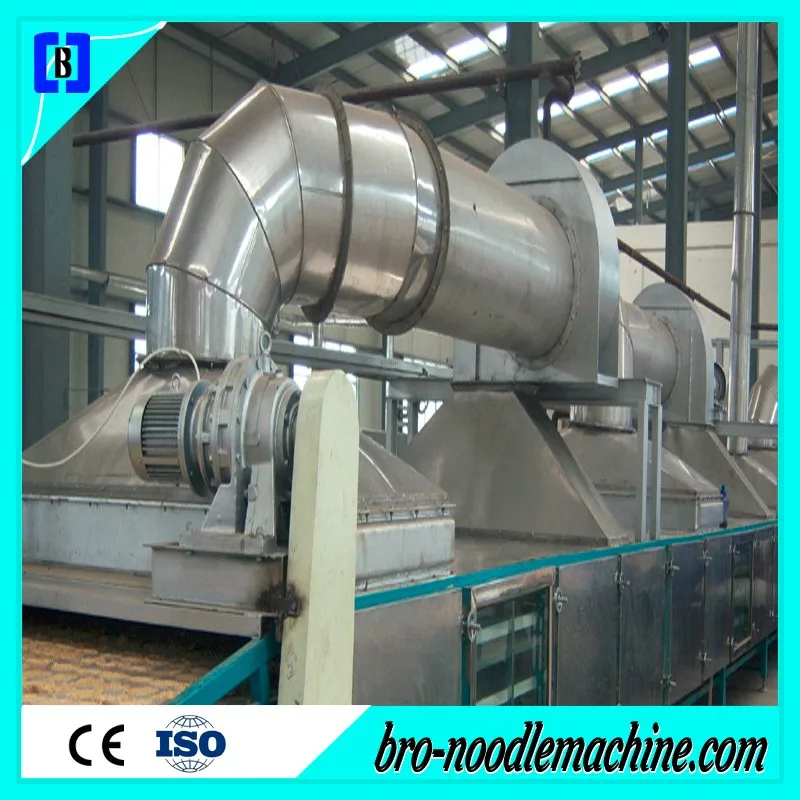

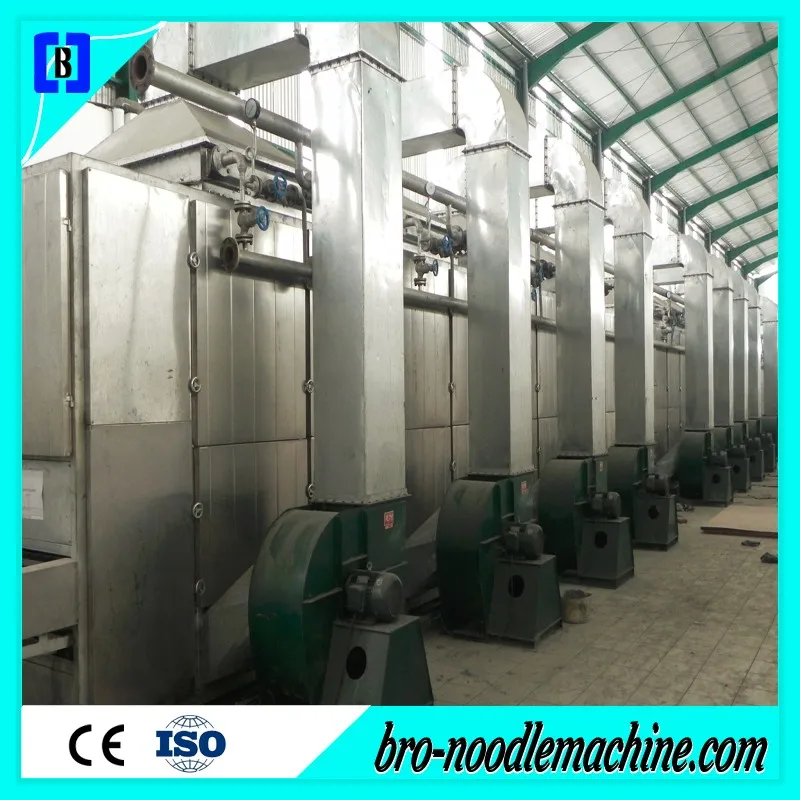

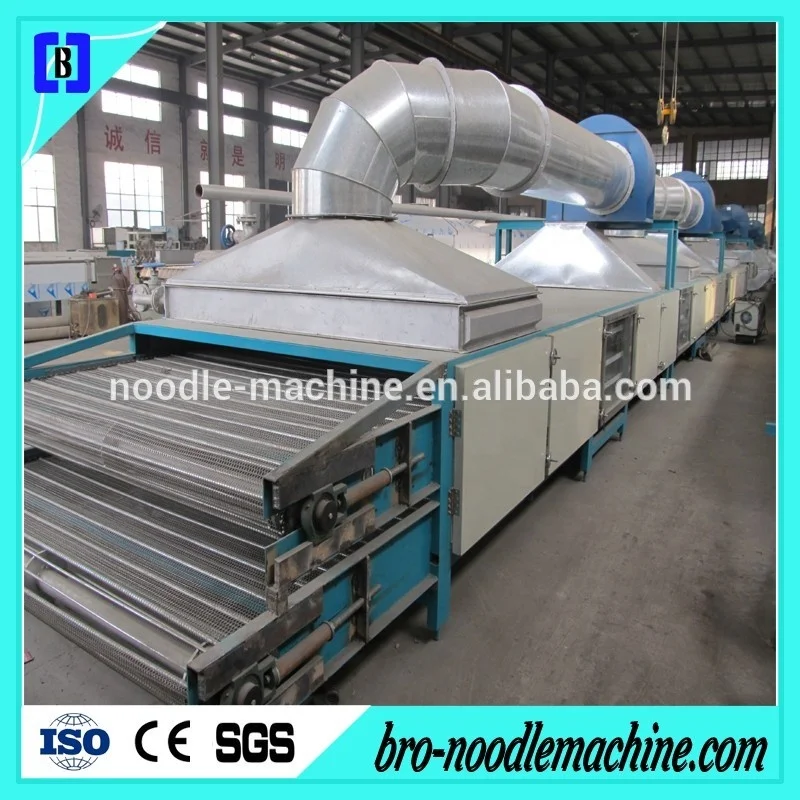

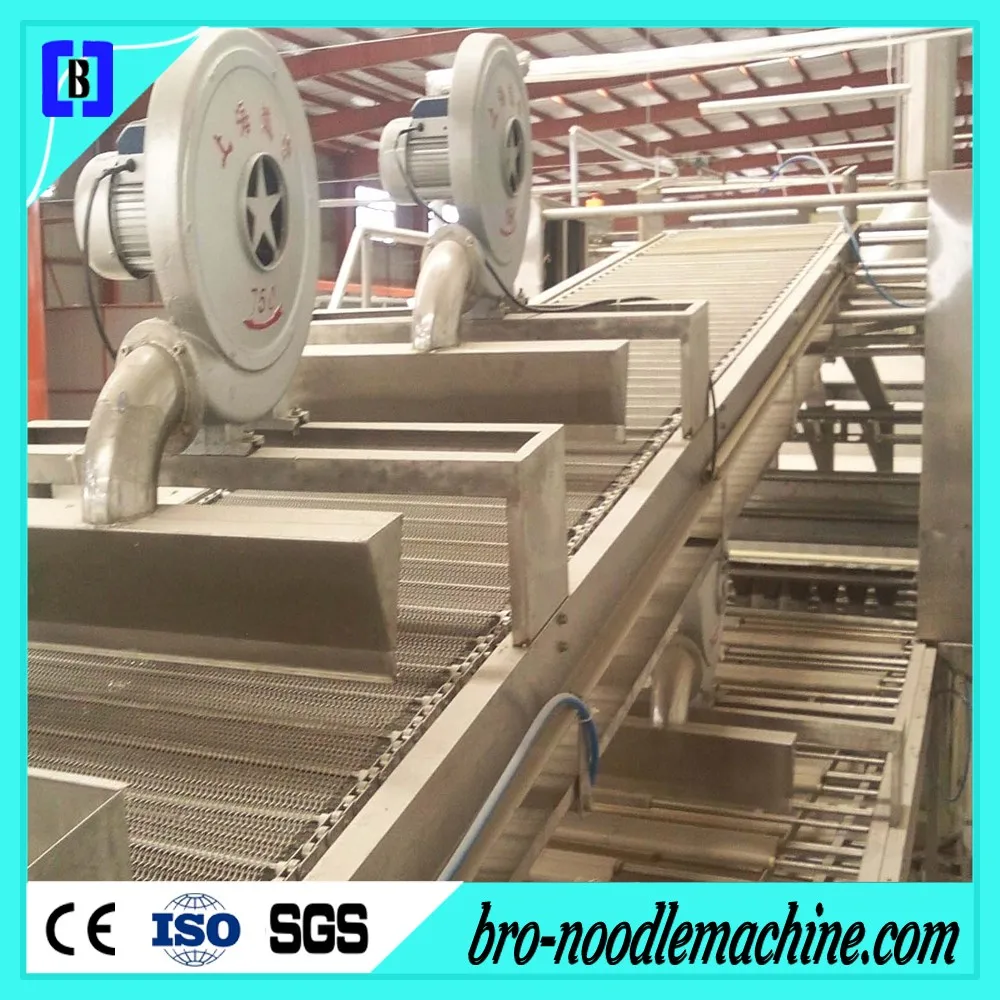

 DYRYING IN BOX SYSTEM (AUTO)                        MESH DRYING (SEMI-AUTO)                             COOLING  SYSTEM

 A.1000 - 30000 cakes per hour                            A.1000 - 30000 cakes per hour             A. cooling type: air blow
 B. material: CS/SUS304                                          B. material: CS/SUS304                           B. length: one layer 8m, three layer 4m

 C. drying time: 40-50 mins                                     C. drying time: 40-50 mins                      C. material: SUS304

 D. drying temp: 50-90°c                                          D. drying temp: 40-80°c                           D. air flow flitering avalible

Henan B.R.O Machinery Co.,Ltd(fromer Mazhai Noodle Machine Factory in 1970). is one leading manufacturer in noodle machinery industry in China, is located at Henan Province, China. Covering above 15,000 square meters and registering capital of RMB1million. Including subsidiary company ---Henan Guojian Machinery Co., Ltd., Totally, including 79 technical engineers; currently, annual output value is about RMB 20 million.

We care every step of manufacture process, and pay attention for quality inspection. Make each manufacture step be perfect.

We sell more than 150~180 sets noodle machine to domestic and overseas every year, each set we will test installation in our factory, make sure not any little problem happen in buyer's jobsite.

INSTANT NOODLE MACHINE QUALITY CONTROL

Highly skilled and educated employees manufacture products in a modern facility, which incorporates C.A.D. (Computer Aided Design), C.A.M. (Computer Aided Manufacturing) and C.N.C. (Computer Numeric Controlled) manufacturing techniques. Quality management system follows ISO9001/ISO14001, and our products are with CE certificate.

OVERSEAS SERVICE AND CLIENTS

With advanced technology and prompt service, we build long business with world customers, such as Poland, Rumania, Russia, Australia, New Zealand, Canada, Panama, Ecuador, Peru, Chile, Algeria, Kenya, South Africa, Zimbabwe, Philippines, Indonesia, Kazakhstan, Mongolia, Egypt, etc.

Q: I am a fresh man in noodles industry and without any experience .

A: The key is you must have passion only, the rest is our job : site vist,design, feasibility Report,cost analyst,deal or make friend only,installing,training,servicing of noodle machine,free technical formula available.

Q: How about your noodle machine quality?

A: Seeing is beliving , we not only accept inspection by third party ,but also  quality guarantee deposit , extended guarantee period with low charge.

Q:China noodle machine is cheap,but poor quality.

A:Indeed one bad egg can rot the whole barrel , however, we have the complete quality control system: reasonable design, excellent manufacture, factory inspection,high reputation related supplier.

Q: My recent noodle machine is still working but high wastage.

A: Basicly,you don't have to replace it if not extend bussibess, we do machine upgrade ,free service check.

Q: I need noodle machine spare parts.

A: We make all kinds of noodle machine spare parts: roller,slitter set, brass comb, divider,SUS304(316) mesh net, noodle casing box and cover,chain,scraper, food grade souping pallet,chain gears etc.

Q:Is it possible to visit you and see your running factory?

A: Of course , you can visit our domestic customer's noodle factory and oversea's both.

Q: I want small capacity noodle machine.

A: Available, low cost but good quality desigh for you.

Expecting your new question......
