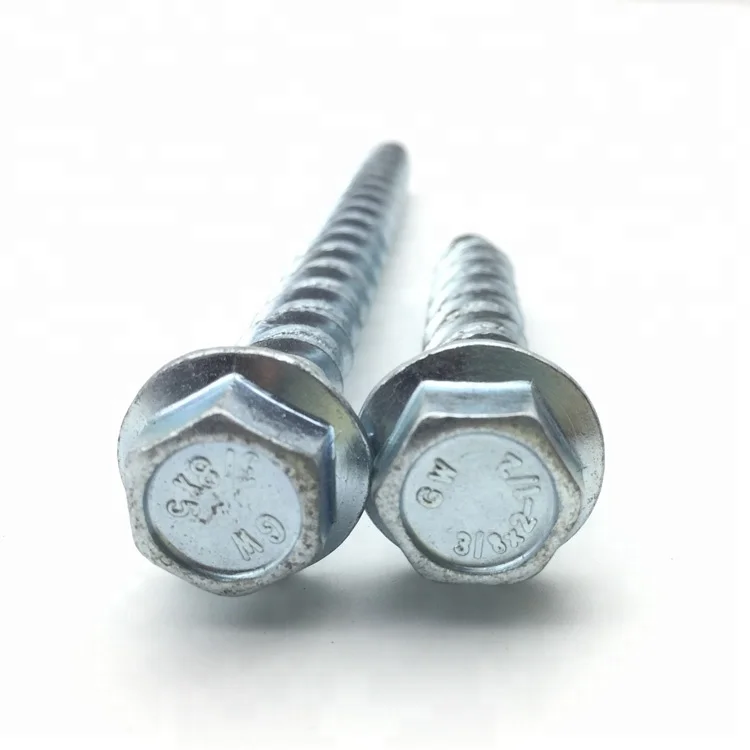

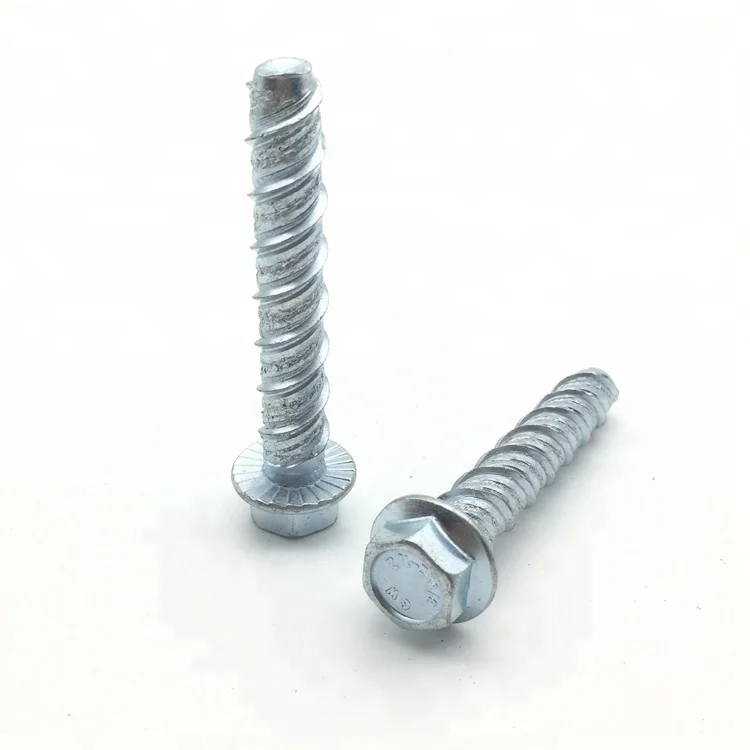

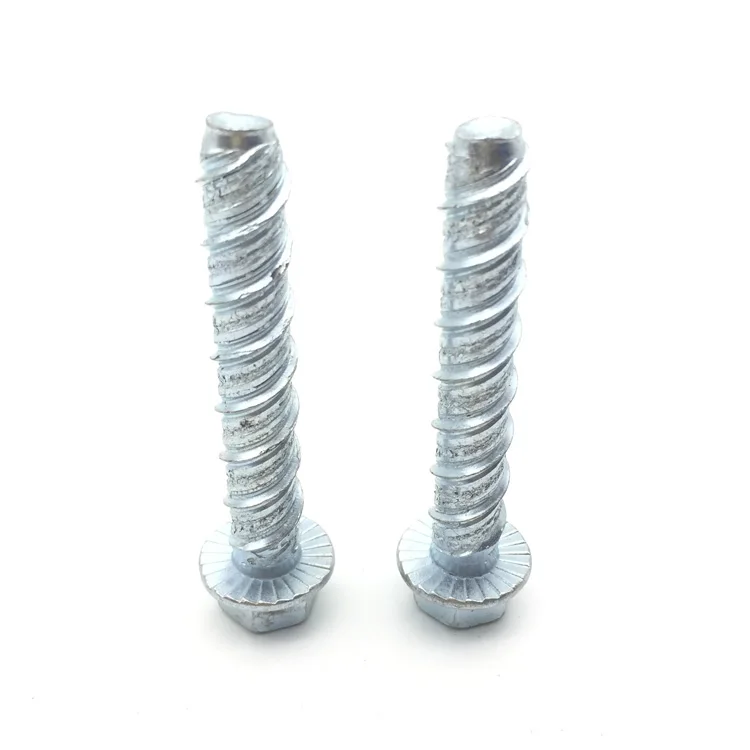

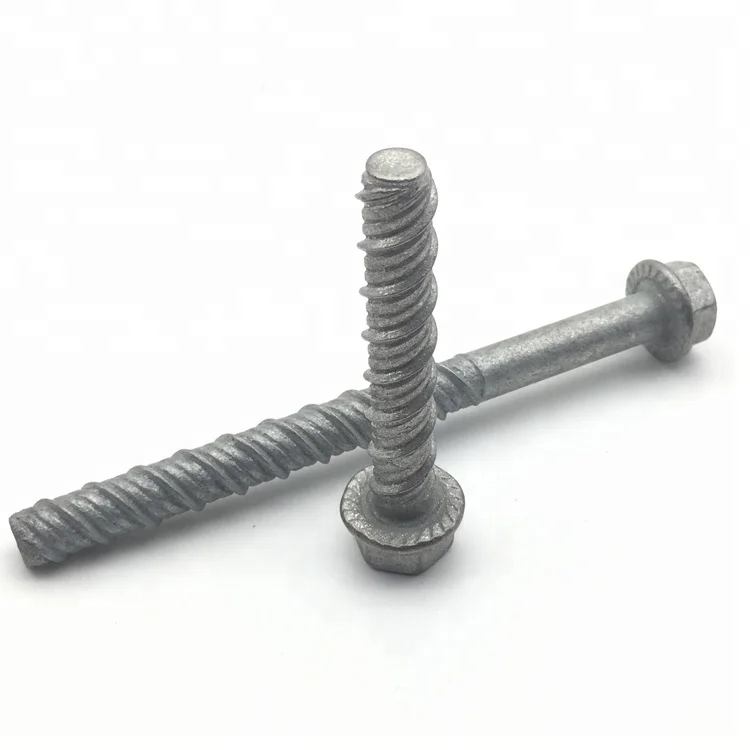

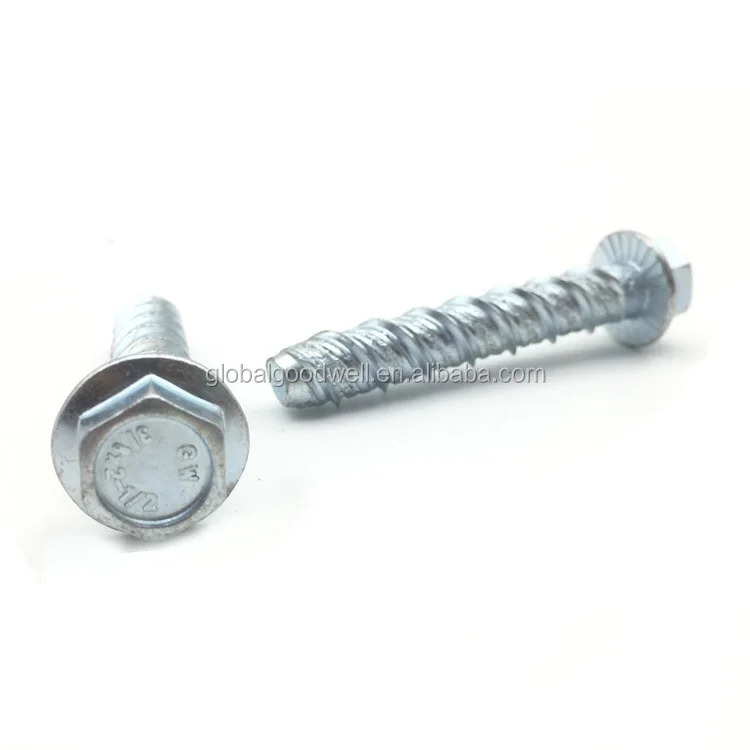

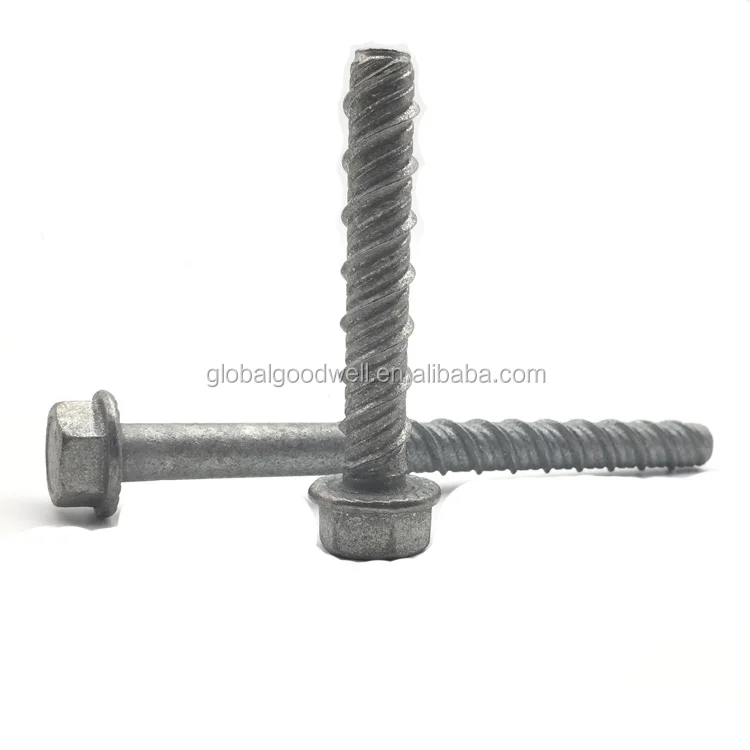

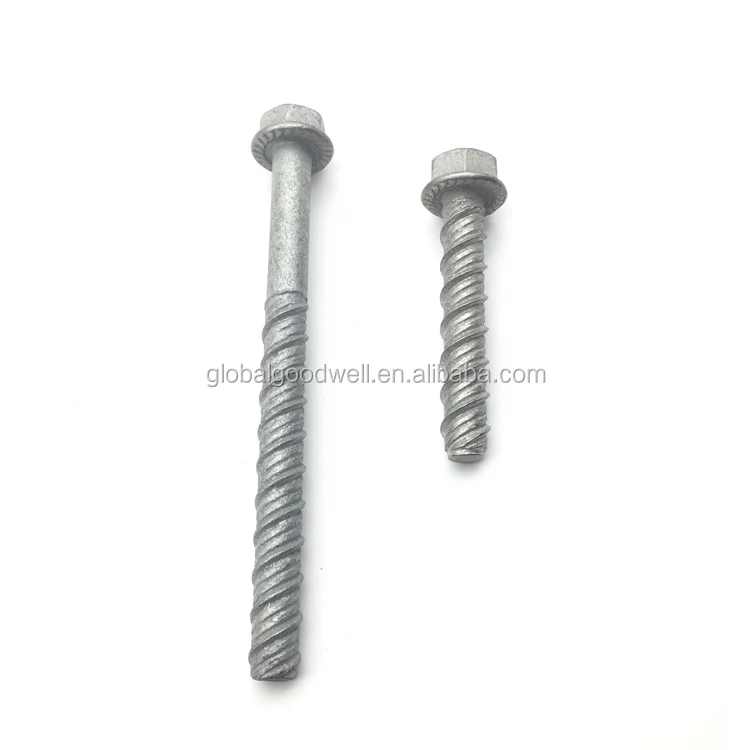

Galvanised Hex Flange Head Concrete Screw bolt

Product Overview

Description

Galvanised Hex Flange Head Concrete Screw bolt

Specification



The Concrete Screw bolt cut their own thread into the concrete or brick as they are screwed in.

They have less strength than a dynabolt, but are quick to install and useful for lighter loads.



1.Used to anchor into concrete, brick and blocks. Concrete Screw are ideal for fastening into Hollow Bricks.

2.Creates a thread into the material enableing the bolt to be removed without damage to the hole.

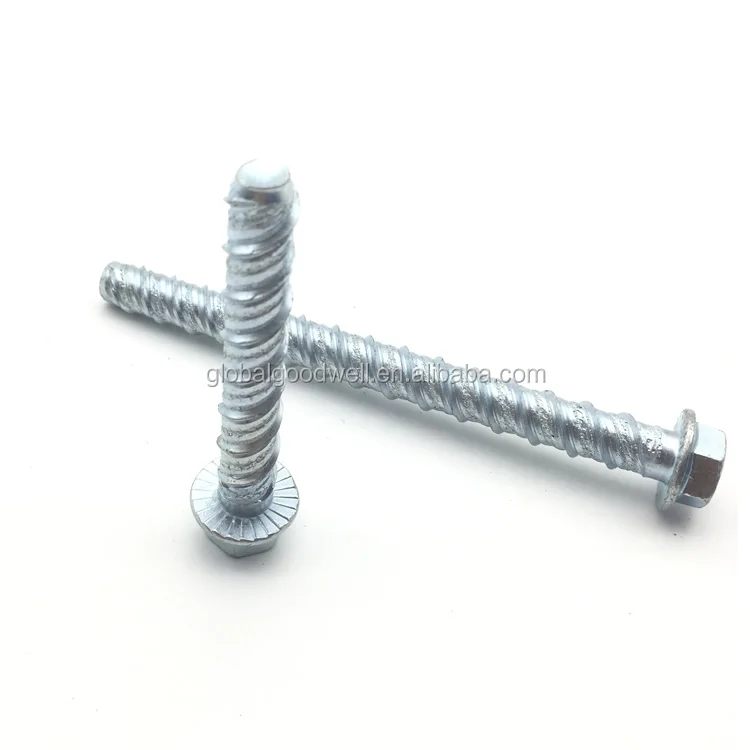

3.The galvanised coating is suitable for most outdoor applications.the zinc yellow coating is suitable for most indoor applications.





ANSI Standard inch



Diameter  inch	Length inch	Material
3/8 "	1-3/4",2-1/2", 3" ,4''	Steel, zinc plated or galvanised
1/2"	3" ,4'',5''	Steel, zinc plated or galvanised
5/8"	3" ,4'',5'',6''	Steel, zinc plated or galvanised
3/4"	4-1/2'',5-1/2'',6-1/4''	Steel, zinc plated or galvanised





 DIN Standard  mm



Drilling and Fixing Information for Screw Bolt/concrete screw
Size	Drill Size (mm)	Fasten Material (mm)
8mm X 50	8	15
8mm X 75	8	40
8mm X 100	8	65
10mm X 60	10	20
10mm X 75	10	35
10mm X 100	10	60
10mm X 120	10	80
12mm X 75	12	25
12mm X 100	12	50
12mm X 150	12	100
16mm X 100	16	35
16mm X 150	16	85

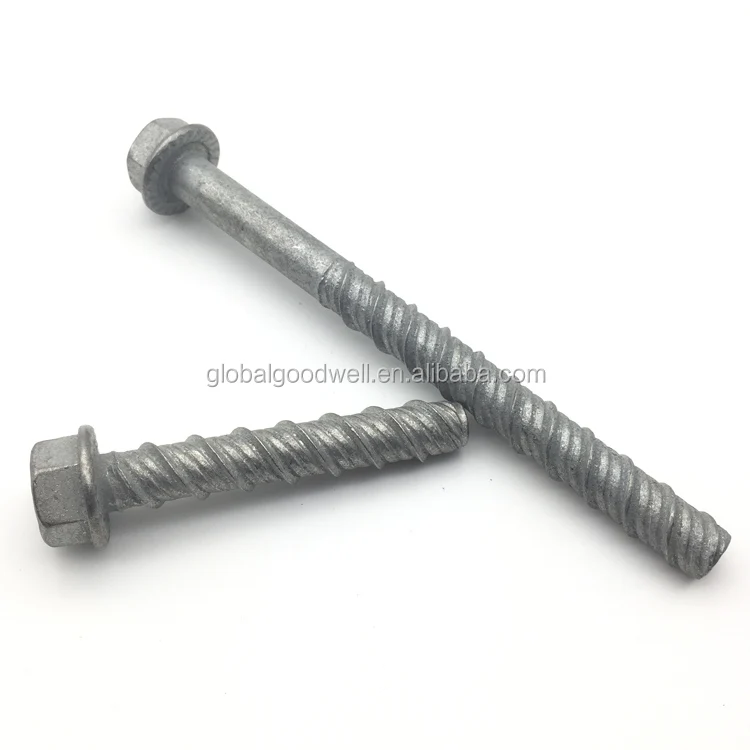

Galvanised Hex Flange Head Concrete Masonry Screw Anchor , Concrete Screw Bolts







Features

• Used to anchor into concrete, brick and blocks. Concrete Screw are ideal for fastening into Hollow Bricks.


• Creates a thread into the material enableing the bolt to be removed without damage to the hole.


• The galvanised coating is suitable for most outdoor applications.the zinc yellow coating is suitable for most indoor applications.
