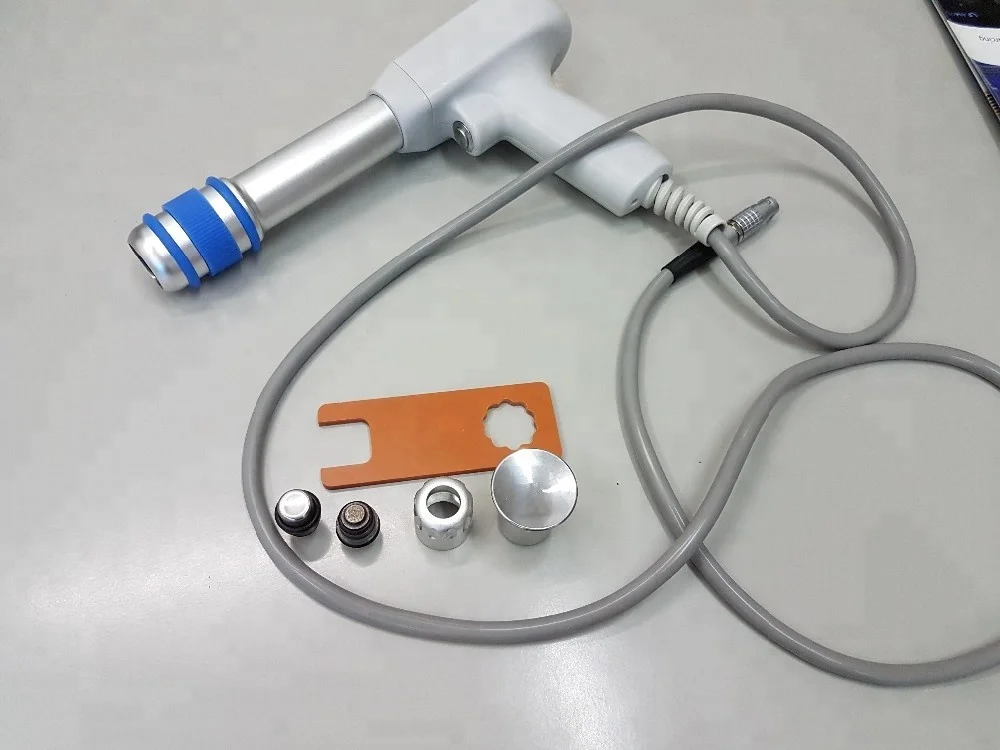

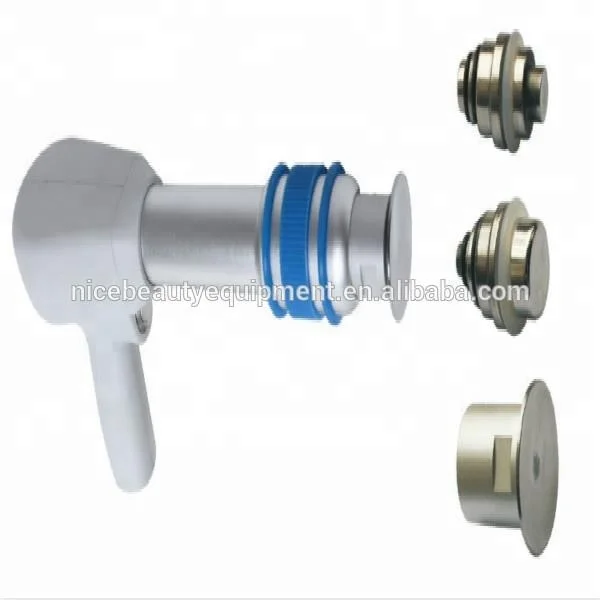

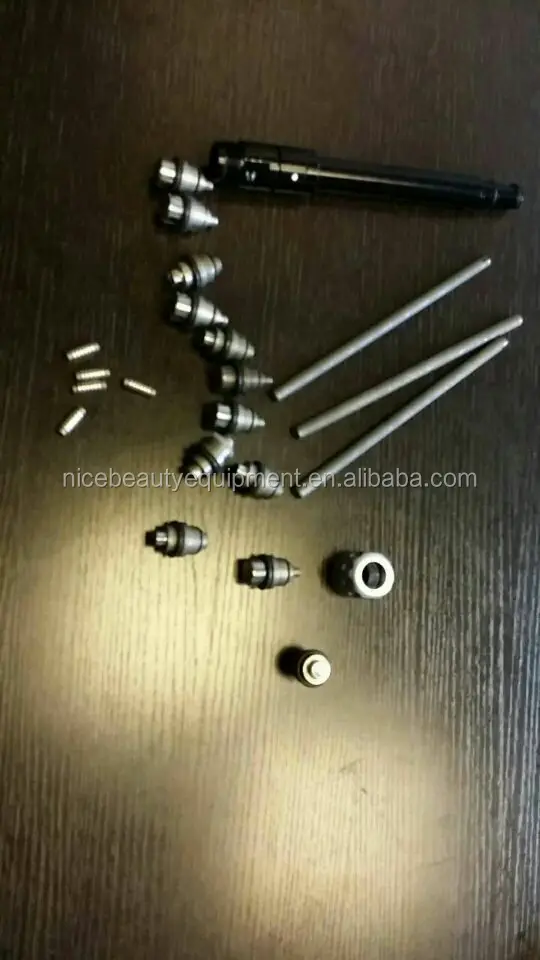

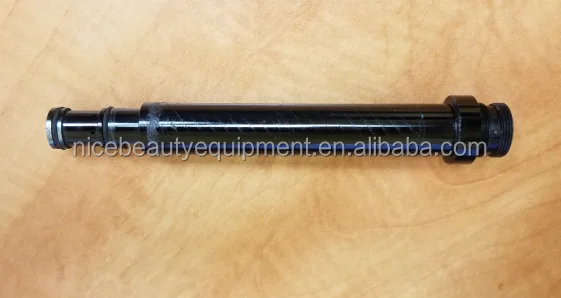

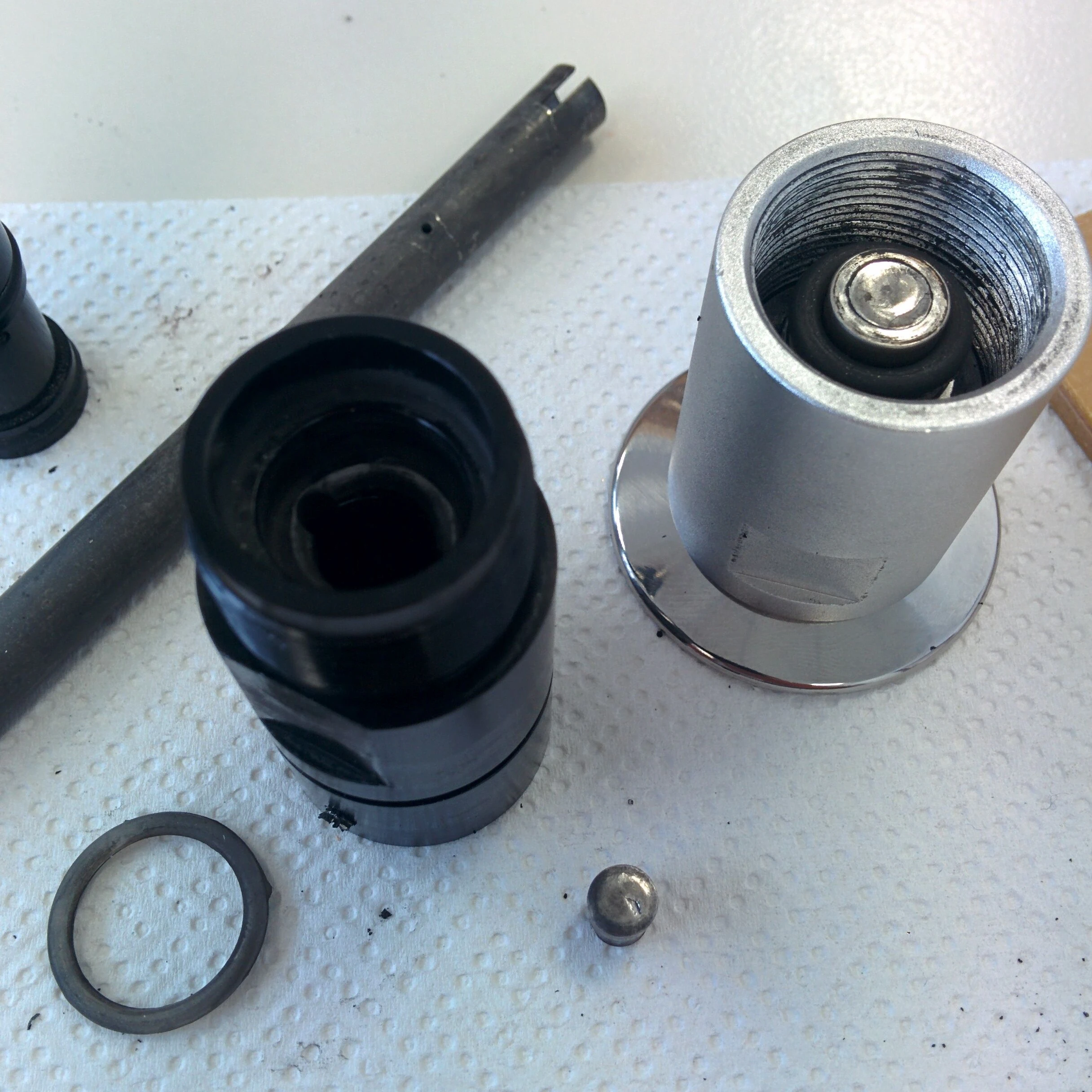

SW9 Shockwave Spare parts Handle, Treatment heads, Bullet, Tube

Product Overview

Description

SW9 Shockwave Spare parts Handle, Treatment heads, Bullet, Tube







Shockwave Therapy work therapy:
Shockwave SW6 system uses the ballistic principle of shockwave generation: A pressure wave is formed via
a projectile by using accelerated compressed air. The compressed air is generated by an
electronically-controlled ballistic-pressure compressor. Using elastic impact, the kinetic
energy of the projectile is transferred into the probe of the applicator and then into the
client's body. Consequently, during the treatment, the end of the applicator must be in
direct -contact with the skin and subcutaneous tissue.

Features:
1. Ingrowth of Neovascularization, Reversal of Chronic Inflammation, Stimulation of
Collagen

2. Ballistic pneumatic shockwave with multiple tips on applicator

3. Max energy up to 4Bar and frequency up to 21Hz

4. Support continuous working mode and burst pulse mode

5. User can save settings and rename the settings.

Applications:
1.Plantar Fasciitis
2.Achillodynia/Achillobursitis
3.Inflammations and calcification of shoulder joint tendons.
4.Pain in the groin area.
5.Epicondylitis (Tennis and Golf Elbow)
6.Apex Patellae Syndrome and Tibial Stress Syndrome.
7.Pain in the hip area and/or the iliotibial tract.
8.Jumper's Knee (Patellar Tendinitis)
9.Pain in the hamstring insertions and palmar side of the wrist
10.Exostoses of small hand joints from Grade 1 Arthrosis.
11.Acupuncture
12. Pain trigger-points or painful points in muscles

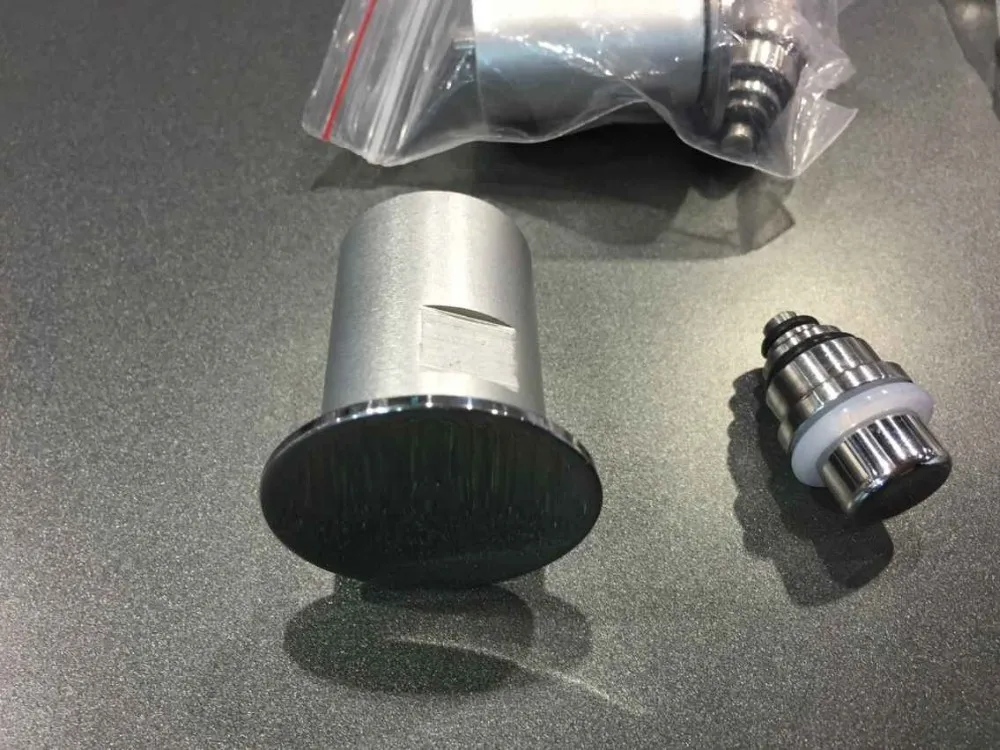

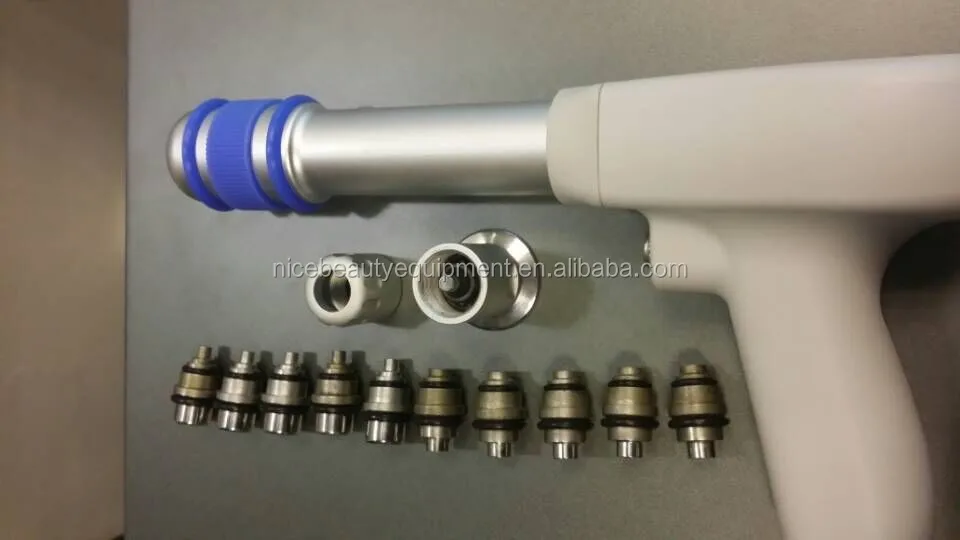

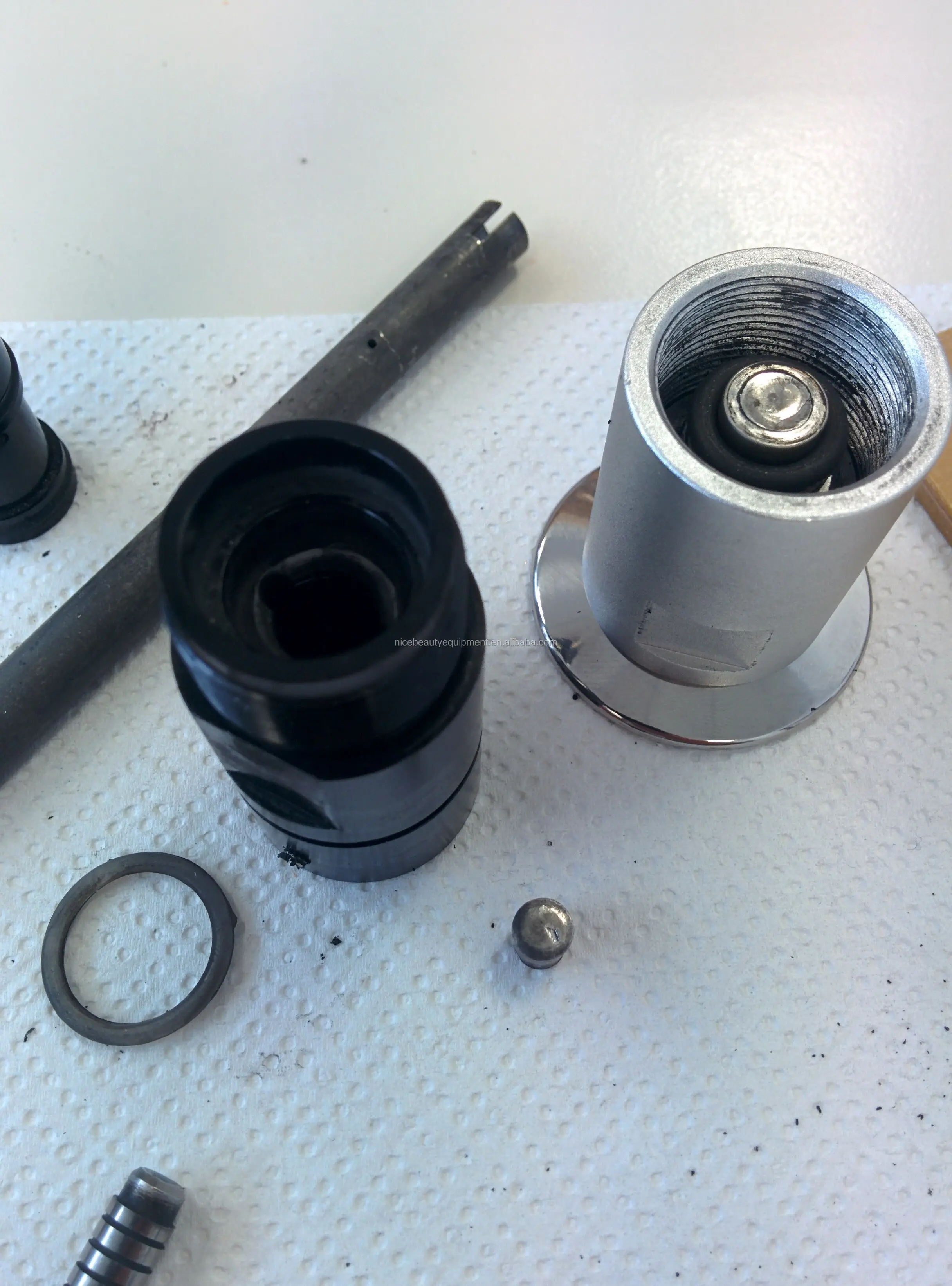

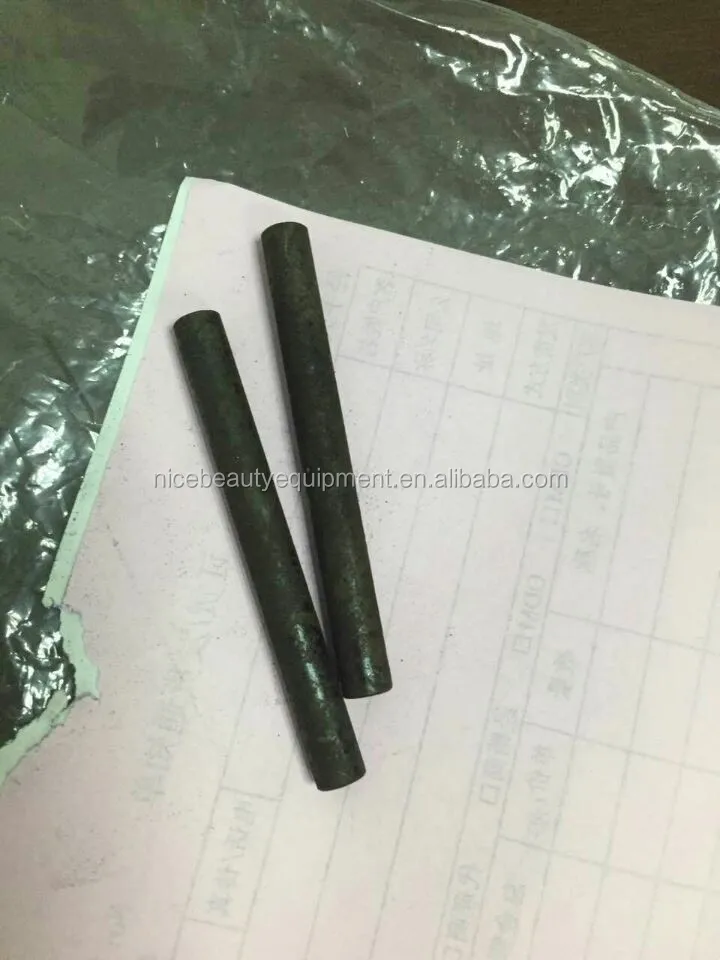

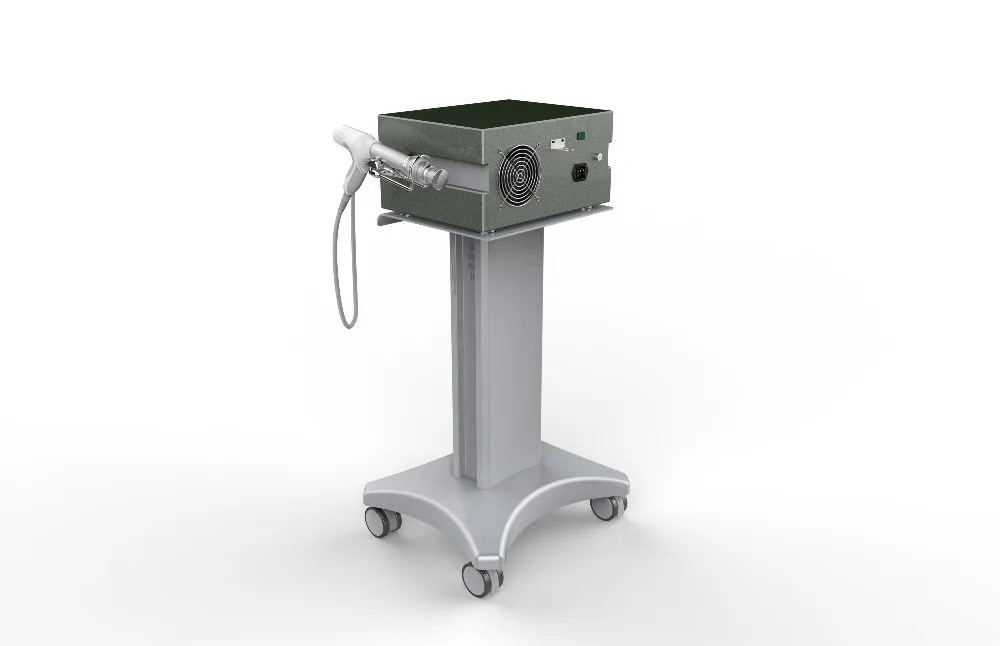

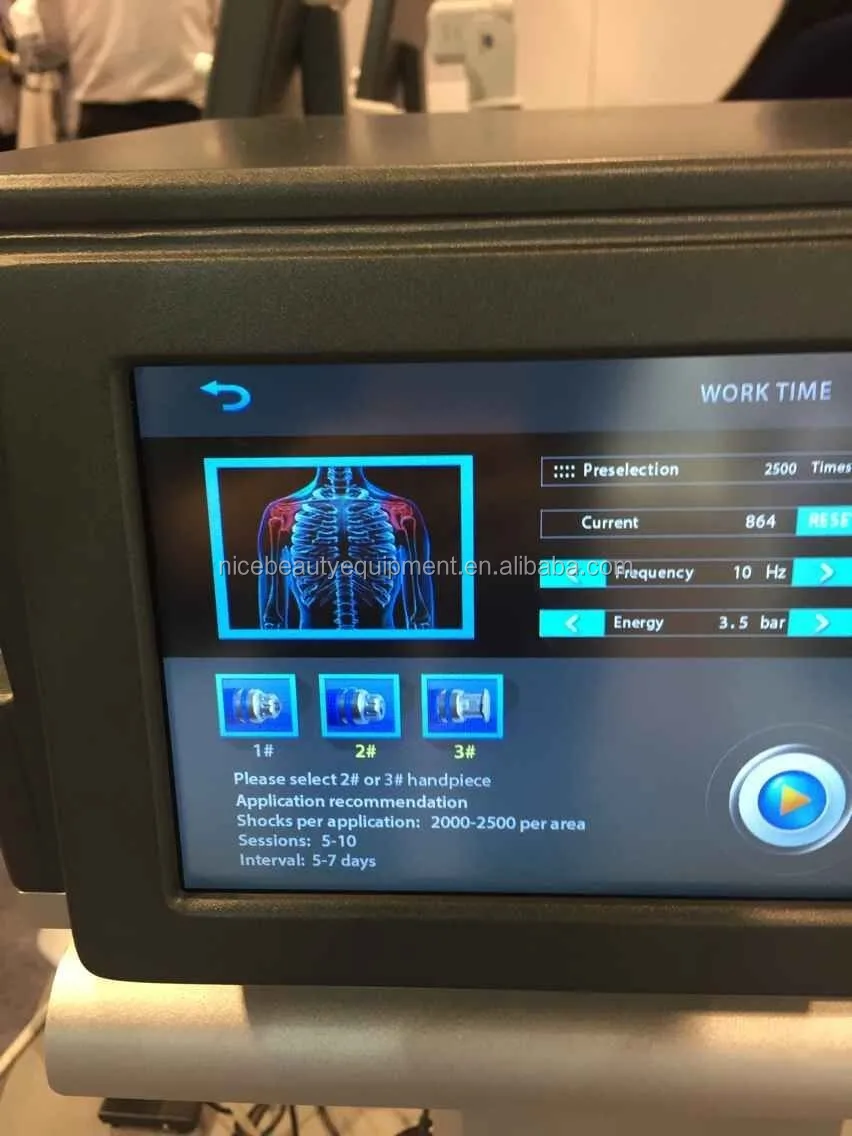

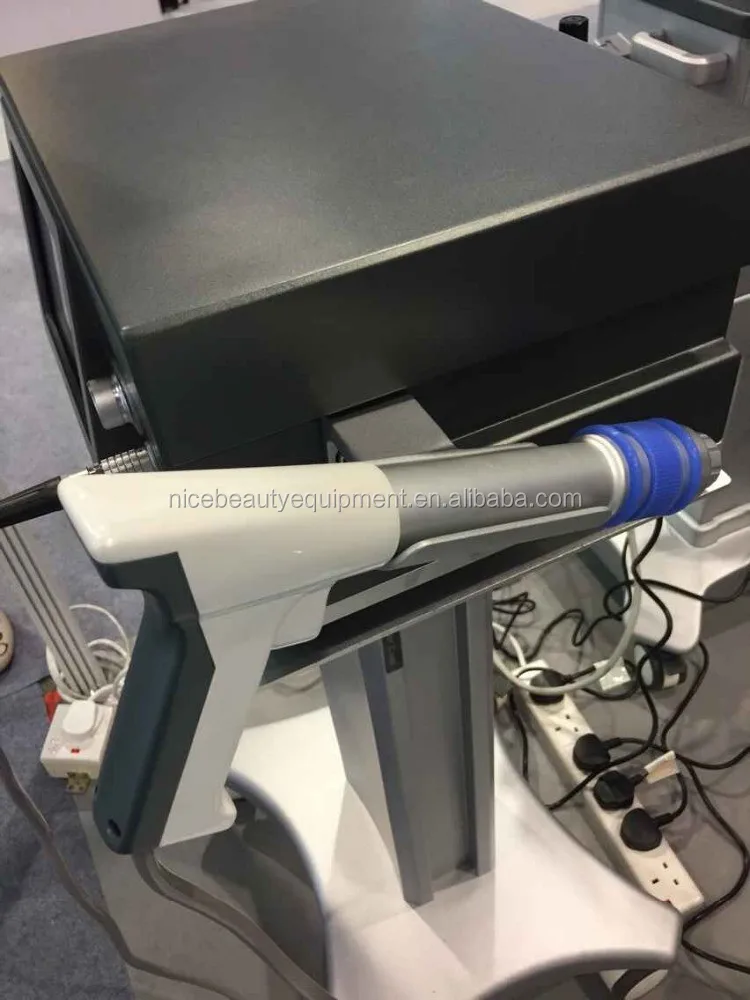

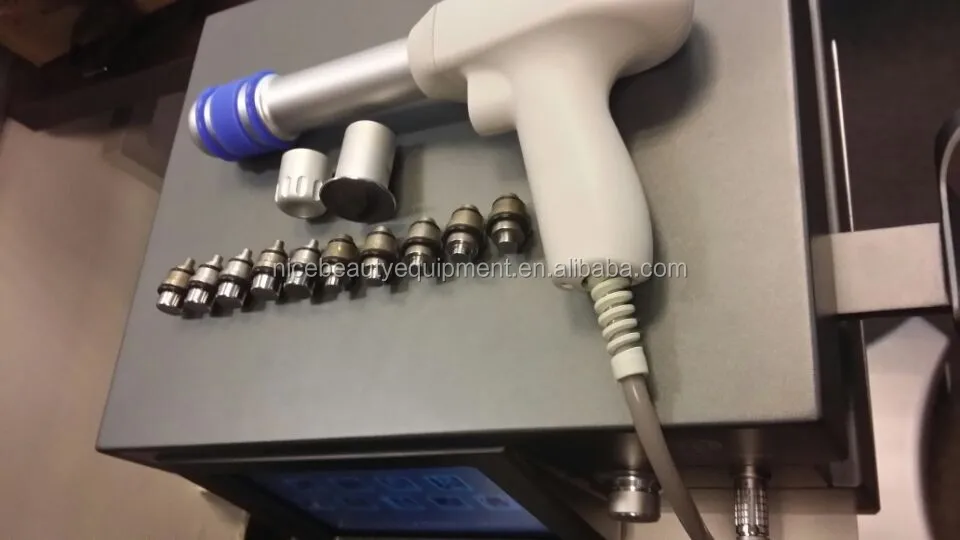

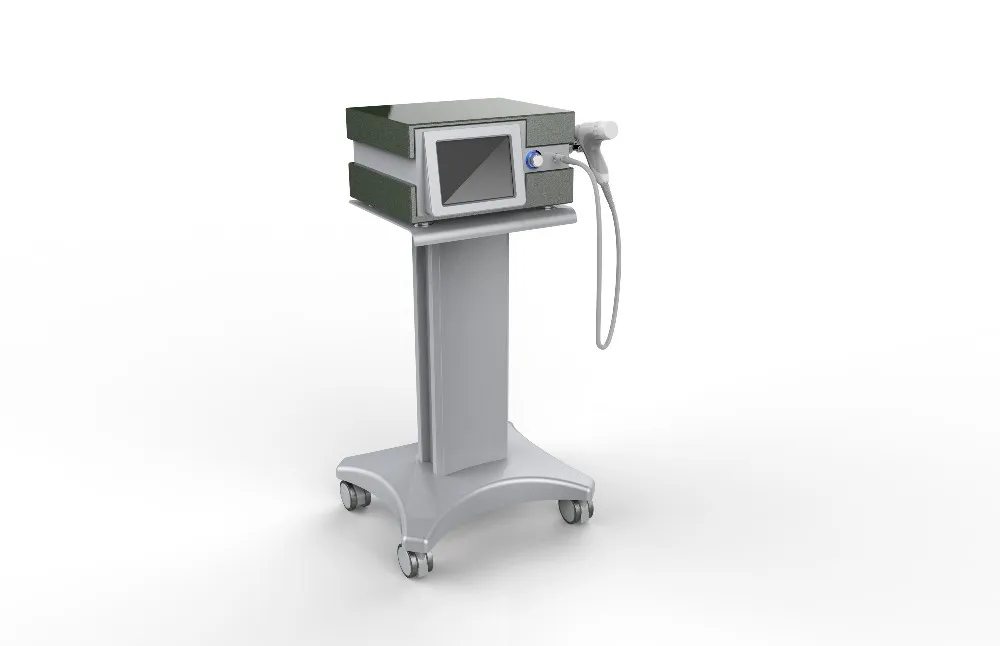

Machine photos:

Specification:



Operating mode Continuous	4/8/16 pulses
Power Levels / Energy	60 to 185 mJ(equivalent to 1-3 bar)
Frequencies	1-16Hz
Suggestion for treatment parts Exceeds	25 preset treatment suggestion
Power	500VA(350W)
Dimensions	52.5X53X95.5 CM(L/W/H)
Weight	23 kg (device only)
Power supply	AC100V-110V/AC220V-230V,50Hz/60Hz
shots times	2500000 times



What is shock wave?



A shockwave is a pressure wave – any action that displaces its surrounding medium is a shockwave. The ripple created when a stone is thrown into a pond is a shockwave. The shockwaves used in equine medicine are generated in a fluid medium inside a transducer head and are then transmitted readily through skin, fat, and muscle. The high energy waves are focused within the transducer head so that the shockwave can be directed to the precise area of the injury. When shockwaves hit an area of higher acoustic impedance, such as bone, the waves slow dramatically and a large amount of energy is released into the surrounding tissue.







How Long Does Treatment Last?



The therapy session takes about 15 minutes depending on the disorder that is treated. In general, 3-5 sessions are necessary at weekly intervals. The greatest success rate when dealing with problem areas is achieved by following a 12 week treatment program.



After only 3 sessions, over 80% of patients report painlessness or significant pain reduction. This pain reduction/elimination leads to restoration of full mobility and thus improving quality of life. Repeated treatments may enhance efficacy.



• 90% improvement for plantar fasciitis (Journal of Orthopaedics Research 2005)



• 91% improvement for calcific tendonitis (Journal of American Medical Association 2003)



• 77% improvement for tennis elbow (Journal of Orthopaedics 2005)







ARE ALL SHOCKWAVE MACHINES EQUAL?



Absolutely not. There are several machines currently marketed as shockwave machines that do not generate a true shockwave. They generate what is called a ballistic or radial wave. The physics of this type of wave are completely different from that of a true shockwave. A ballistic or radial wave is created when a projectile is rapidly accelerated by compressed air – it looks like a small jackhammer. The problem with this type of wave is that all of the energy is deposited at the skin, and the energy drops off rapidly as you move away from the skin. The result being that unless the injury is at the skin, the injured area is not receiving the necessary energy to help the healing process. Additionally, since the wave is not focused with this type of machine, the entire area around the treatment site is receiving the wave, which can potentially have harmful effects.







What signs indicate this therapy is needed?



Shock wave therapy may treat conditions such as degenerated tendons (Achilles tendonitis), heel pain (plantar fasciitis) and tennis elbow (lateral epicondylitis).
