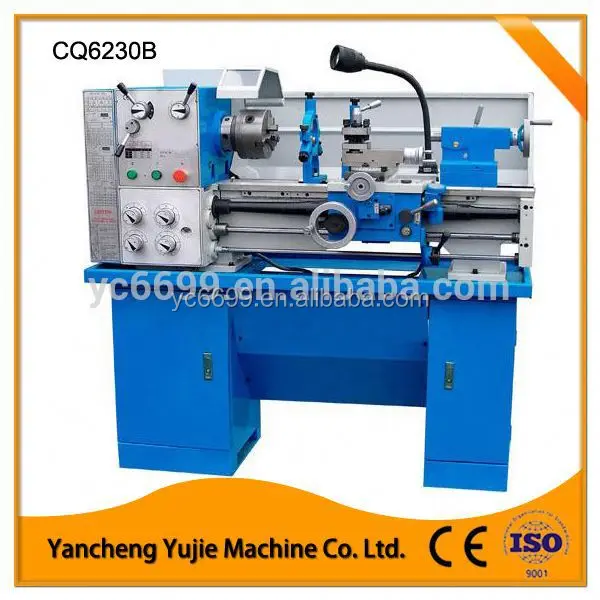

high precision universal lathe machine CQ6230B CQ6232B
- Category: >>>
- Supplier: Yancheng Yujie Machine Co. Ltd. [Jiangsu China]Yancheng
Share on (60435878910):
Product Overview
Description
Product Description
Specification
Parameters As Following
CQ6230B/CQ6232B Light Duty Lathe | ||||
Model | CQ6230B | CQ6232B | ||
Max.swing over bed | Φ300mm | Φ320mm | ||
Max.swing over cross slide | Φ180mm | Φ198mm | ||
Max. swing over gap | Φ430mm | Φ476mm | ||
Distance between centers | 750mm/910mm/1000mm | |||
Spindle bore | Φ38mm | |||
Taper of spindle bore | MT5 | |||
Range of spindle speeds | 65-1400 RPM(Or 65-1810RPM) | |||
Taper of tail-stock | MT3 | |||
Metric threads can be cut | 0.4-7mm(32) | |||
Inch threads can be cut | 4-60T.P.I.(54) | |||
Range of longitudinal feeds | 0.079-1.291mm/rev | |||
Range of cross feeds | 0.017-0.276mm/rev | |||
Max. travel of tail-stock quill | 100mm | |||
Motor power | 1.1KW(1.5PH) OR 1.5KW(2PH) | |||
Standard accessories: | Optional accessories: |
3 Jaw chuck(Φ160mm) | 4 Jaw chuck(Φ200mm) |
Change Gears Set | Face Plate |
M.T.#3 Dead Centers | Steady Rest + Follow Rest |
M.T.#5/3 Reduction Sleeve | Digital Readout(2 Axis) |
Oil gun | Work Light |
Splash Guard | Foot Brake System |
Foot stands | Coolant System |
Tool Box&Tools | Live Center |
Oil Tray | Drill Chuck+Drill Arbor |
| Lead-screw Guard + Chuck Guard |
| Quick Change Tool Post |
| Clutch For Feed Rod |
Company Information
Packaging & Shipping
Our Services
- 24 hours technical support by e-mail or mobile, free instruction and problem solving.
- User manual ( English version) and detailed video.
- On-the-spot training and installation can be met if required.
- 12 months warranty period, any quality problem, please contact us.
