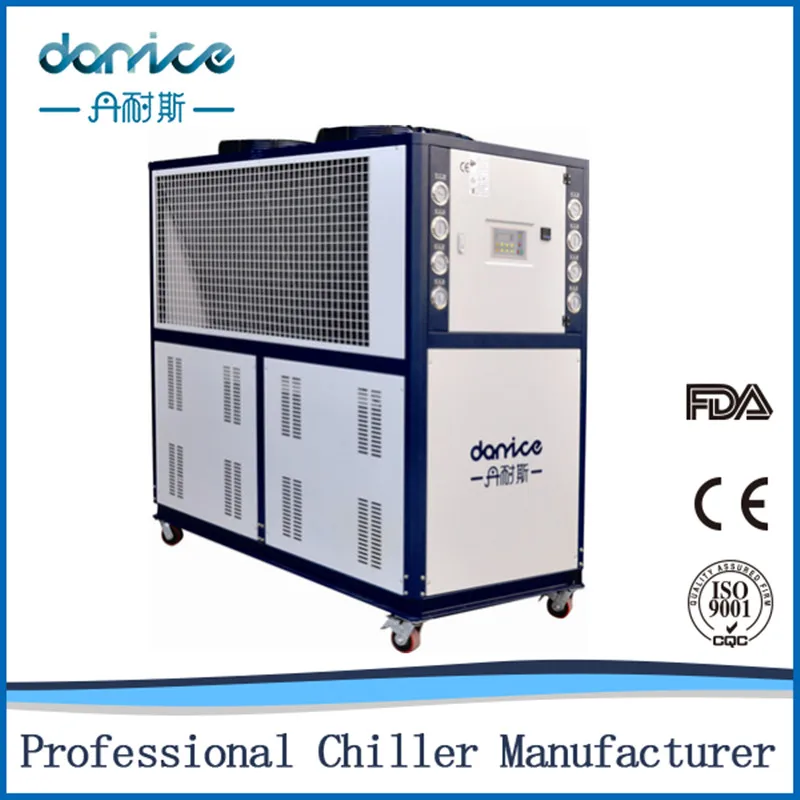

DANNICE Brand 25HP Chiller 220V 380V 415V 67500Kcal/Hr manufacturer
Product Description
1.Air cooled chiller is with two compressors,which has fans on the top of chiller.
2.Industrial Copeland chiller is shell and tube evaporator/plate type evaporator/copper coil in ss water tank evaporator,environmental friendly R407c /R410a refrigerant.
3.Chiller can make 380v~415v-50hz-3ph/220v-60hz-3ph/380v-60hz-3ph(the power supply can be optional).
Specifications
Model | DNC-25AF | |||
nominal cooling capacity | kcal/h 50HZ/60HZ | 58136/69763 | ||
Kw 50HZ/60HZ | 67.1/81.12 | |||
Max power consumption | kw | 24.8 | ||
Full load | Amp | 61.3 | ||
power source |
| 3PH - 380V/415V - 50HZ /60NZ 3PH -200V/220V - 50HZ /60NZ | ||
refrigerant | type |
| R22/R407c/134a/404A/410A | |
control |
| Capillary/external balance of thermal expansion valve | ||
compressor | type |
| hermetic scroll/Piston | |
power | kw | 5.25×4 | ||
condenser | type |
| Efficient aluminum finned copper sleeve+low noise external rotor fan | |
air volume | m3/h | 25000 | ||
fan motor | kw | 0.78×2 | ||
evaporator | type |
| Tank coil/Dry shell and tube /Stainless steel plate evaporate | |
Tank volume | L | 350 | ||
coolant flow | m3/h | 11.62 | ||
inlet and outlet connection(BSP) | inch | 2-1/2 | ||
Pump | Power | Kw | 2.2 | |
Max flow rate | m3/h | 25.2 | ||
Max head | M | 28 | ||
safety devices | Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection | |||
dimension | mm | 2020*850*2000 | ||
weight | kg | 810 | ||
Notes:1.Cooling capacity is based on:chiller water inlet and outlet water temperature of 12℃/7℃,the cooling water inlet and outlet water temperature of 30℃/35℃
2.Scope of work:chilled water temperature range:5℃to35℃;chiller water out of the water temperature:3℃to8℃
The cooling temperature is not higher than 35℃ environment
The above can be customized according to customer requirements to produce
Specification dimension above are subject to change without notice

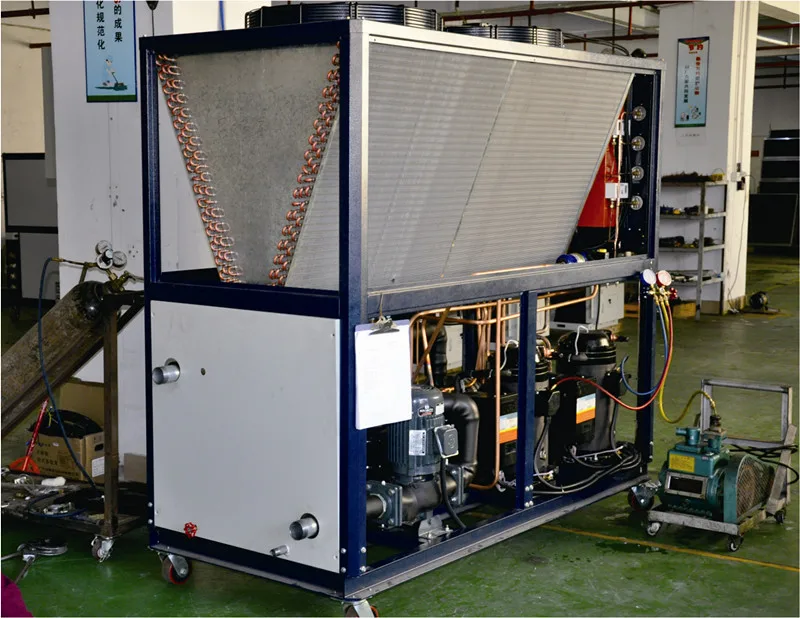

Workshop
Sales Process
CE Certification

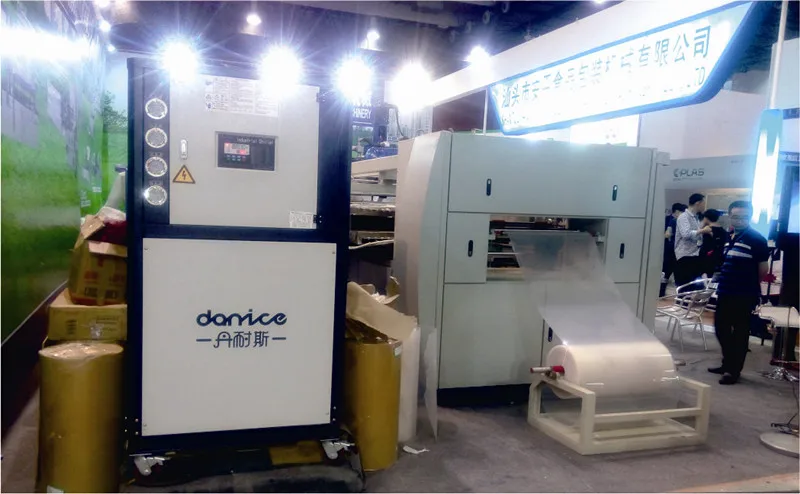

Exhibition
FAQ
Q
Are you a factory or trading company?
A
We are a factory. Our factory is located in Building D, Tongfu Handa Innovation Park, no.10 Jiangfu Road, Jiangshi Community, Gongming Town, Guangming New District, Shenzhen.
Q
What about the guarantee?
A W W
With a one-year warranty, you can provide overseas service.
Q
What can I get the price?
A
We usually quote within 24 hours after receiving your inquiry. If you are in urgent need of this price, please tell us in your email, we will give priority to your inquiry.
Q
What are your delivery terms?
A
Honestly, it depends on the order quantity and the season you place the order.
