XY 1 core drilling machine/Hard rock drilling machine/stone drilling machine
- Category: >>>
- Supplier: Shijiazhuang Jindi Drilling Machinery Co. Ltd.
Share on (60436112116):
Product Overview
Description
Product Description

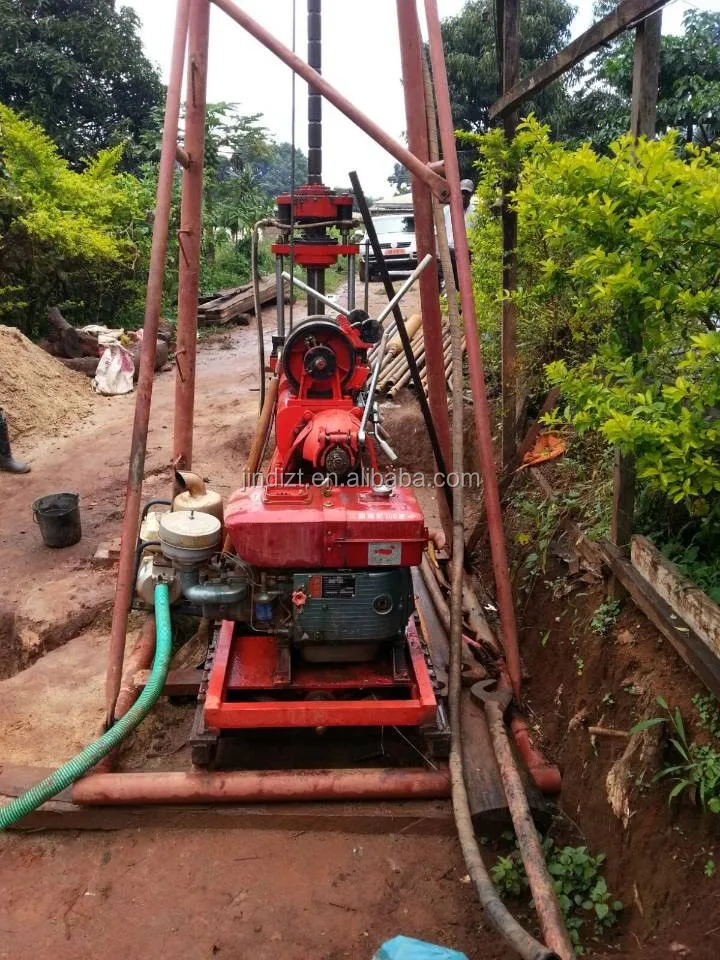

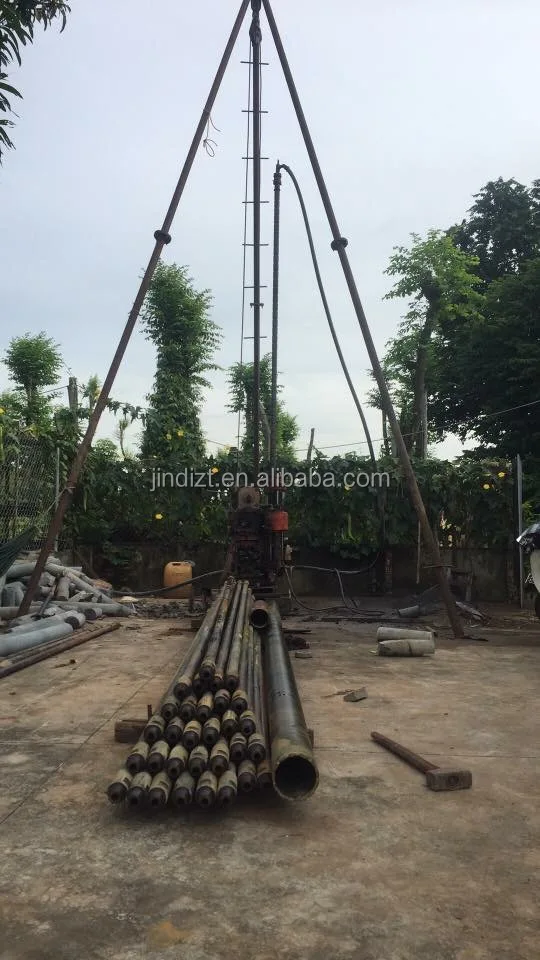

XY-1 core drilling machine/XY-1A water well drill rig
drilling rig is a kind portable drilling rig with hydraulic feeding.
1.1 Rig Application:
1.1.1 The rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling bits projects.
1.1.2 Drilling bits can be chosen according to different strata .
1.1.3. Suitable for the 2-9 grade sandy clay and bedrock.
1.1.4 Rated drilling depth 100m, the deepest can not exceed 120m. Nominal hole diameter of 110mm, the maximum opening straight Diameter allowed to be 130mm, the final hole diameter of 75mm, drilling depth according to ground conditions.
1.2 Rig Features
1.2.1 hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.
1.2.2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.
1.2.3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.
1.2.4 The handle centralized, easy to operate.
1.2.5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.
2.1. Basic parameters
Drilling rig | |
Depth | 100m |
Drill pipe dia | 42mm |
Open hole dia | 110mm |
End hole dia | 75mm |
Angle of hole | 90°-75° |
Dimensions(L* W* H) | 1640x1030x1440(mm) |
Weight(without power unit) | 500kg |
StrokeXY-1(JD) | 350mm |
Rotary | |
Spindle speed(3 speed) | 142,285,570r/min |
Spindle stroke | 450mm |
Upward max speed of spindle(no load) | 0.05m/s |
Downward max speed of spindle(no load) | 0.067m/s |
Max feeding force | 15KN |
Max lifting force | 25KN |
Hoist(winch) | |
Max.lifting capacity(1-speed ,single rope) | 10KN |
Cable volume(number)of hoisting drum | 27m |
Wire rope dia | 9.3mm |
Mud pump | |
Model | Horizontal reciprocating single-acting piston pump |
Displacement max.(equipped with diesel engine) | 95L/min |
Equipped with motor | 77L/min |
Allowable max working pressure | 1.2Mpa |
Continuous working pressure | 0.7Mpa |
Suction pipe dia | 32mm |
Discharge pipe dia | 25mm |
Oil pump | |
Model | YBC-12/125 |
Rated pressure | 12.5Mpa |
Displacement | 8ml/r |
Rated speed | 800-2500r/min |
Power(diesel engine or motor) | |
Diesel engine model | ZS1100 |
Rated power | 12.1KW |
Rated speed | 2200r/min |
Motor model | Y132M-4 |
Rated power | 7.5KW |
Rated speed | 1440r/min |
NOTE: This drill is equipped with diesel engines, but also can be equipped with electrical motor, pls confirm before ordering.
