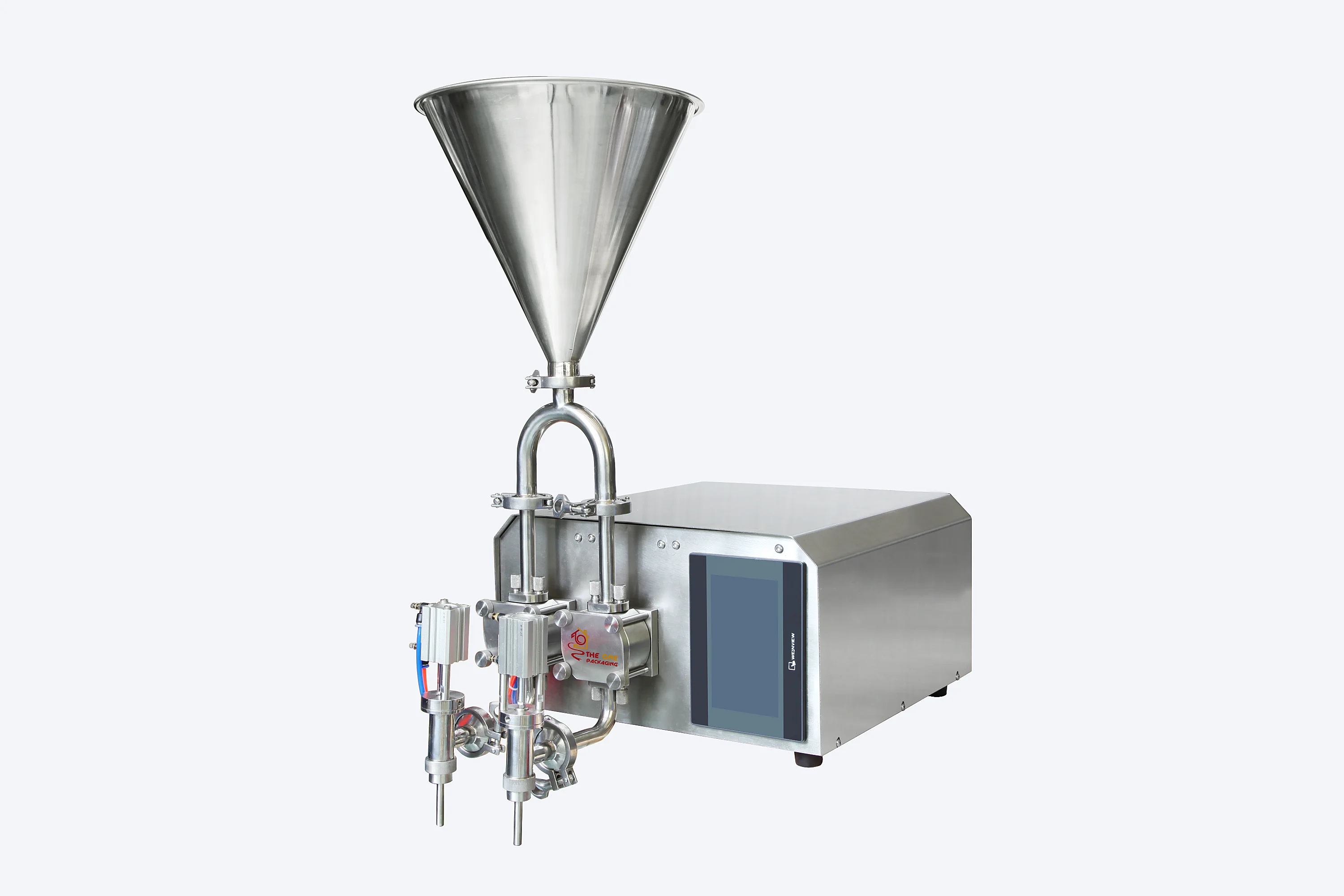

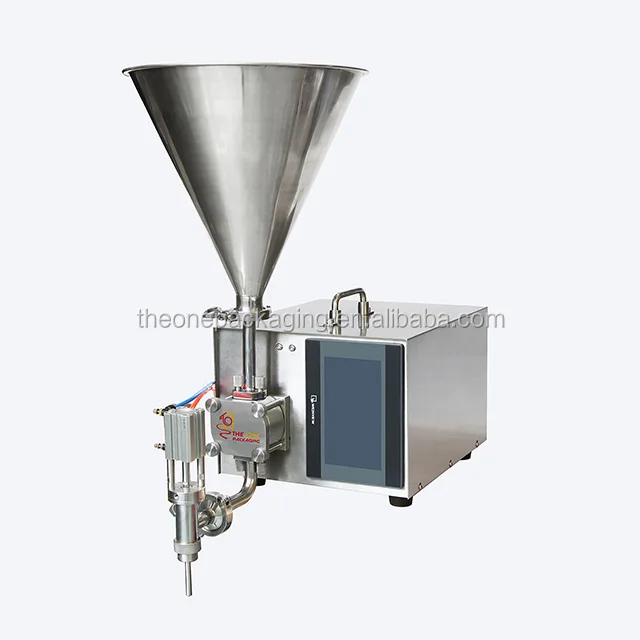

Semi Automatic Shampoo Liquid Soap Detergent Filling Machine TODF 200

Product Overview

Description

Semi-Automatic Shampoo Liquid Soap Detergent Filling Machine TODF-200



Specification:
The Digital Filling Machine uses a gear pump concept as a metering device to fill correct amounts of gels or liquids into containers.
The volume, speed the time between of filling can be designed.
Each filling can be fast first and slow later, bubble cam be eliminated.
Human interface is achieved using a combined keypad and LCD display configuration.
20 sizes data can be stored.
Pump unit easily dismantled for cleaning.

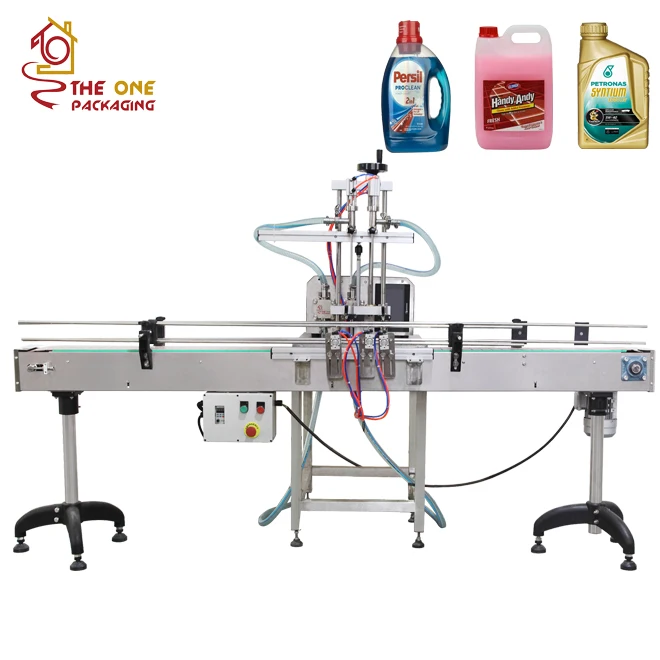

Can be extend to use in conveyor on line.





Main Technical Specification:



Volume	10ml-11000ml
Accuracy	0.5-1%
Filling Speed	100ml 24b/min 300ml 16b/min 1000ml 10b/min
Supply Power	1P 220V 50-60Hz 400W
Size	310×480×310mm
Net Weight	18Kg







Touch Screen Display:	Will display bottle fill count, selected program number. Pump speed. delay time between fill. fill mode. system error. etc.
Function keys(F1-F4):	Used to select commands displayed on L.C.D.
STOP Button:	Immediate cycle stop, clear displayed error and also use to prime pump.
START Button:	Start cycle and used to prime pump.
Volume Key:	Will Increase or Decrease the fill volume.
Fill-L.E.D.	Lit when pump inverter is activated,
Speed Key:	Will Increase or decrease the pump speed.
Power-L.E.D:	Lit when main switch is ON.
Delay Key:	Will Increase or Decrease the delay between fills.























    We are one of the fastest growing packaging machinery companies. We have constantly followed a path created by our own will, hard work and determination. We are involved in research, manufacturing and marketing of packaging machines.

     We are specialized in packing and packaging machines including bag packaging machines, horizontal packaging machines, vertical packaging machines, rotary packaging machines, bottle packaging machines, cappers, fillers, rinsers, unscramblers, fillers and cappers, tube packaging machines, labelers, processing machines, mixers, pumps, vacuum homogenizers, production lines, monoblocks, nonstandard machines and other kinds of packaging machines.

     Our vision is to build the leading name of packaging machines of China with technology, creativity and enthusiasm. We will further grow to be a worldwide packaging machinery name through close cooperation with our international partners. Today, our machines have been installed in various countries in the world and are well appraised by our overseas customers. We have achieved the very important first step towards our vision.

     We approach not only to supply high-quality packaging machines, but also to provide high-quality services. Today's growth of our company is a result of regular technologies improvement and observance of the quality concept. We will try our best to meet all requirements of clients about packaging machines.

     We hope to get your inquiries and we will have happy cooperation soon!

















Q1: How to choose the most suitable machine and get the final suitable price?
A1: For Cigarette Filling Machine,you’d better reply us the following questions:
1. What kind of machine product for packing?
2. What’s dimension of your bag?
3. Can you send us picture of your bag?
4. What speed do you need?


Q2: Do you have videos or manual for us to know the machine better?
A2: Yes, of course. Please email us and ask for it. We will send you soon.

Q3: How about your machine’s quality?
A3: Every machine is applied with CE certificate, SGS certificate, highly meets requirement of GMP; Machine is fully made of SUS 304 for food packaging; SUS316 for pharmaceutical products packaging. Inspect certificate is available.

Q4: How is your machine’s price?
A4: We promise the price we give out is lowest if same application, only to enlarge the market share.

Q5: What’s the delivery time?
A5: Depending on your order: for whole production line it is 40~60 days. bottle or tube filling machine, labeling machine, capping machine, unscrambling machine, emulsifying machine will be 30~40 days. Other simple equipment will be around 7~15 days. The above delivery time is calculated after receiving the down payment as well as sample bottles / tubes and materials.

Q6: Is there MOQ for your machine?
A6: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.:)

Q7: How to install the machine?
A7: Please do not worry. We will send you detailed video and instruction manual for your reference. Customer also can appoint your engineers to our factory to learn. Our engineers also can go abroad to install the machine well, however, customer needs to pay round air tickets, hotel and service expenses.

Q8: What is your warranty for the machine?
A8: The valid time for the warranty of our machine is one year; we will provide the spare parts to the buyer total for free in one year, which do not include those damaged or broken parts caused by human. And the vulnerable and consumptive spare parts are also out of the range of guarantee.Buyer needs to pay for the shipping or air charges.
