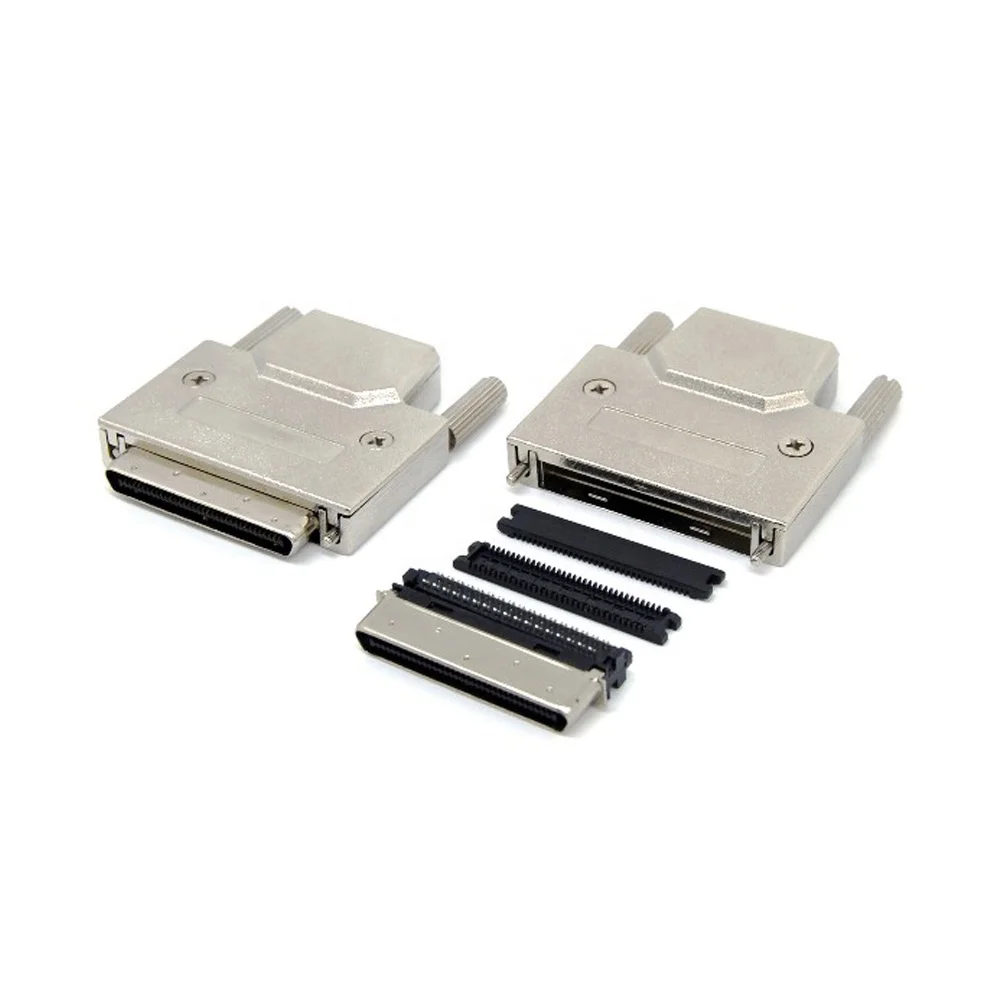

VHDCI 50 Pin Female SCSI PCB Plug Ribbon Type Plug Connector Receptacles Headers Right Angle Mount Type Connector
- Category: >>>
- Supplier: Shenzhen Hengzhan Shidai Technology Co. Ltd.
Share on (60436452169):
Product Overview
Description
VHDCI 50 Pin Female SCSI PCB Plug Ribbon Type Plug Connector Receptacles Headers Right-Angle Mount Type Connector
Product Description
Product description:
SCSI - VHDCI Ribbon Type Cable Connector Plug,
Appearance : SCSI - HPCN, Zinc alloy shell screw type Male Connector Plug,
Shape : Male Plug Connector IDE Type,
Spacing : contact point spacing (0.8 mm/1mm),
Connector Materials:
Insulation material : Plastic Thermoplastic P.B.T UL94v-0
Contact material : Gold-plated copper alloy
Contact terminal : Phosphor Bronze
Front Shell: Steel, Nickel Plated Over Copper
Shell Materials
Back Shell: Zinc Alloy, Nickel Plated Over Copper
Jackscrews: Steel, Nickel Plated Over Copper
Flat Screws: Steel, Nickel Plated Over Copper
Cable Clipper: Steel, Nickel Plated Over Copper
Entry Hole Sizes: φ6.5mm(36P) / / φ6.7*5.5mm(28P) / φ8.0mm(68P-Off Set) / φ9.0mm(50 / 68 / 68P-Off Set) / φ11.0mm(68P) / φ21.5*5.4mm(68P-4C) /φ16.0*7.4mm(68P-8C)
RoHS Compliant
Product specification:
Connector Electrical Characteristics
Contact Current Rating: 0.5Amp
Dielectric Withstanding Voltage: 500V AC
Insulation Resistance: >500MΩ/ Min
Contact Resistance: 35mΩ/ Max
Operation Temperature: -55°C ~+85°C
Size
Packaging & Shipping
Packaging Details: SCSI VHDCI Connector will be packed in one small bag and then put in one box.If you need custom package, we will do as your requirest.
Delivery Detail: about 7 workdays after payments
Our Services
We supply M5 M8 M9 M12 M16 M23 M40 5015 cable connector, heavy duty connectors, SP EV MIL connector and SCSI connector and subsea connector and other many kinds of connectors. If you need cable harness, we also can supply harness processing, you just need let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
Why Choose Us?
1 Our factory has 10 years experience and strong and professional research and development capabilities.Advanced development and management, comprehensive R&D testing and highly automatic production line make our products high reliability and high performance.
2 Our connector can be perfectly compatible with Amphenol Lemoes and ODUES connectors.
3 Competitive price.
4 Service concept: Making all efforts to offer value-added connector products and services to strengthen client’s competitive advantages.
Quantity control and our service:
1) We test each item before shipping to ensure they are in good condition.
2) We offer you fast shipping, usually around 7-10 days preparation.
(This is an approximate time, your shipment date would be up to your specific orders.)
3) We would let you know the tracking number once we have delivered your products.
Applications
1. SCSI-Small Computer System Interface (Small Computer System Interface), is a kind of more special interface bus, equipped with a variety of types of peripherals to communicate.
2. SCSI uses ASPI (Advanced SCSI Programming Interface) standard software interface to make the drive and the computer Internal SCSI adapters to communicate. SCSI interface is a widely used high-speed data transmission on minicomputer technology. SCSI interface has a wide range of applications, multitasking, large bandwidth, CPU occupancy rate, as well as hot and so on.
3. SCSI connectors are also used in automotive wiring harness connector and a plurality of multi-car Ethernet.
4. SCSI harness connector is also used for communication connections of industrial machinery and equipment
