Free sample IP65 warehouse industrial 400w led meanwell high bay light

Product Overview

Description

 Free sample IP65 warehouse industrial 400w led meanwell high bay light



Specification

Model	LS-GKD-1301	LS-GKD-1301	LS-GKD-1301
Material	Aluminum	Aluminum	Aluminum
Size/mm	L380xW360xH500	L380xW360xH500	L380xW360xH500
Power/W	300W	400W	500W
Led Qty/Pcs	132	176	220
LED Chip	Cree	Cree	Cree
Lumen/Lm	15180	20240	25300
Average Illuminance(8M)	86Lux	97Lux	118Lux
Input Voltage	AC220-240V	AC220-240V	AC220-240V
Safe Grade	Grade 1	Grade 1	Grade 1
Emitting Angle	25/60/120°	25/60/120°	25/60/120°
Lens Type	round	round	round
Control Way	CC 350mA	CC 350mA	CC 350mA
Lifespan/hour	50000h	50000h	50000h
Protecting Grade	IP65	IP65	IP65

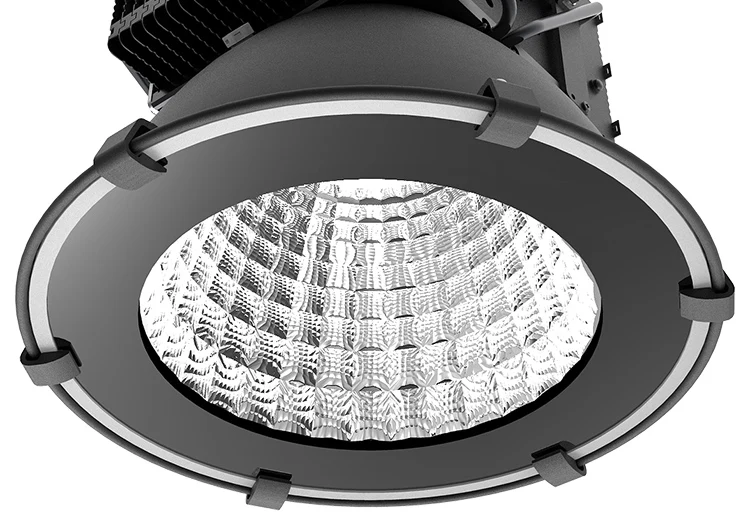

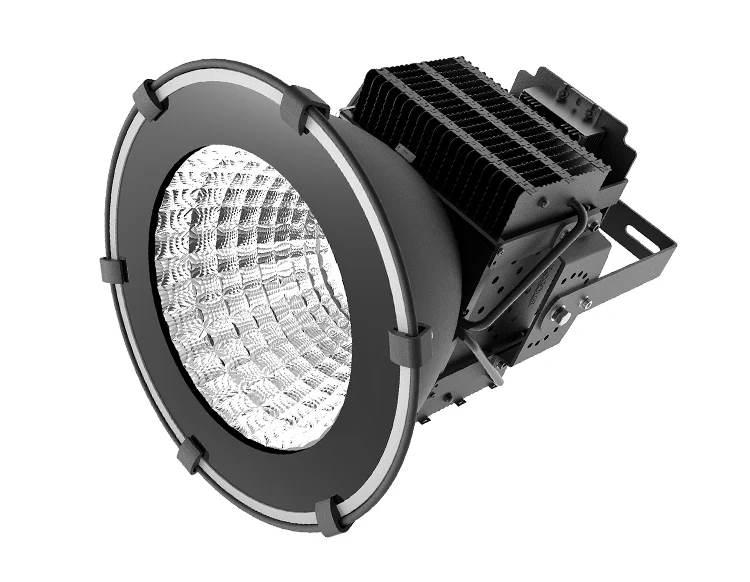

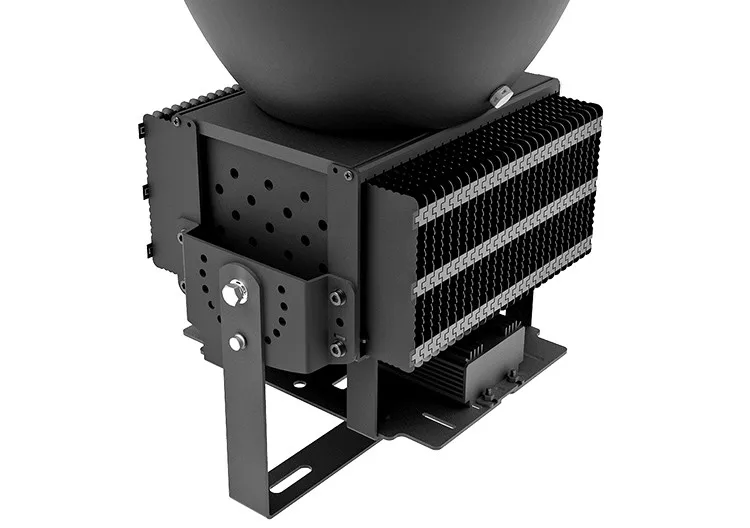

 Product display

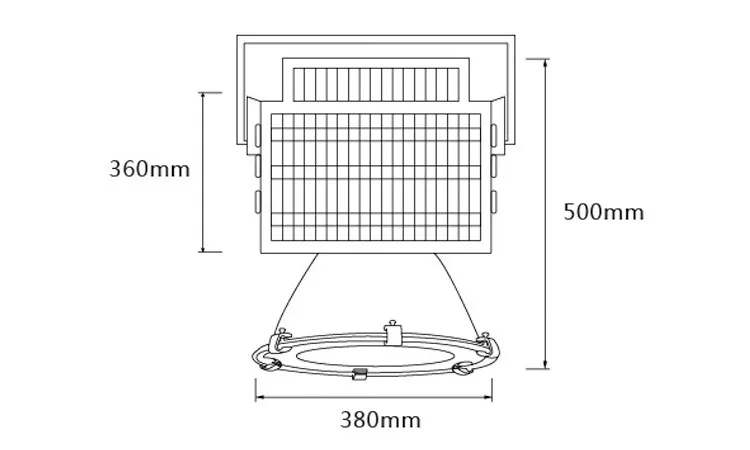

Product size

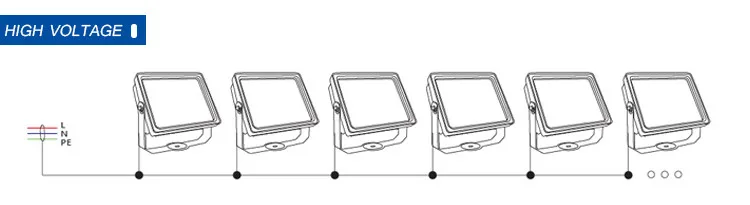

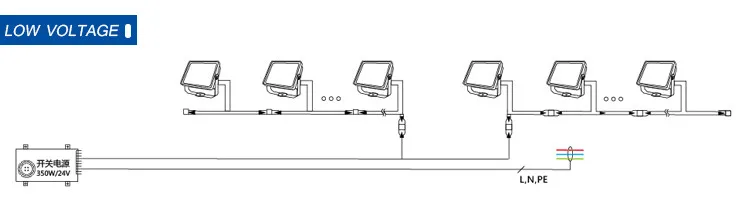

Control system

  Description:
         1, In DC24V scenario, the power supply to the lamps and lanterns connected with RVV2 * 4 square cable. The number of connected lamp depend on the power of lamps and lanterns.
         2, In AC220V scenario, the docking of lamps and lanterns should not more than 20, each of the high voltage circuit should not more than 50 Taiwan. Should adopt YJV3 * 4 square cable connection.
         3, Lamps and lanterns at the beginning or the end of connector dangling to do waterproof processing.
