1HP 1.5HP 2HP surface vertical centrifugal solar water pump for irrigation

Product Overview

Description

1HP 1.5HP 2HP surface vertical centrifugal solar water pump for irrigation



Product Details

Product Introduction

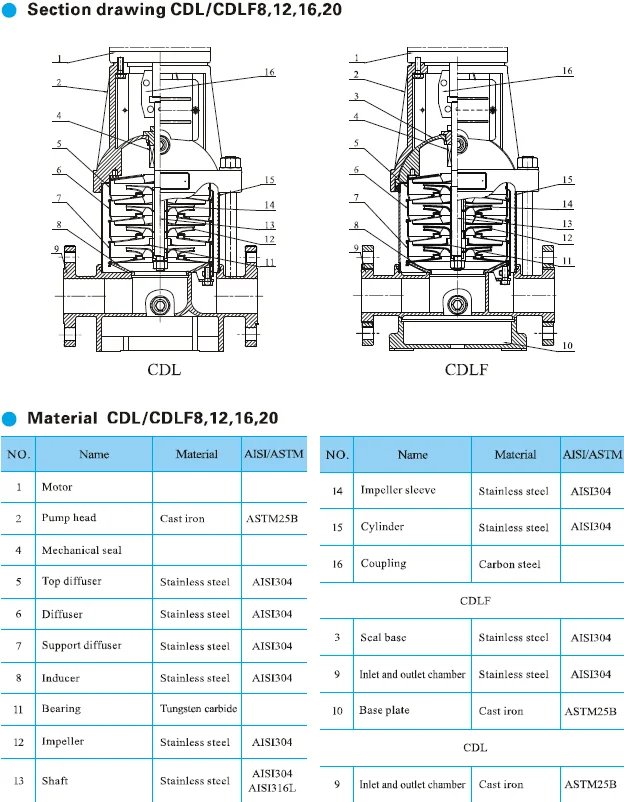

• CDL.CDLF pump is a vertical multistage centrifugal pump with a ducted construction that ensures the pump can be mounted directly into a horizontal piping system.


• CDL.CDLF pumps have different pump size and different stage to meet the required flow and pressure.


• CDL.CDLF is a versatile product that can transport a wide range of media from tap water to industrial liquids for a wide range of temperatures,flows and pressures.


• CDLF is suitable for non-corrosive liquids,and SDL is suitable for mildly corrosive liquids.


• Water supply:water plant filtration and transportation,water plant district water supply supervisory network pressurization,high-rise buildings,hotel,etc.


• Industrial liquid transportation:cooling and air conditioning systems,boiler feed water and condensing systems,machine tools.



Typical Application

• Cooling water system


• Municipal water supply and boosting


• Domestic water supply


• Irrigation


• General industrial service


• Washing plants



Operating Condition

Solid grain or fiber free dilute clean nonflammable and non-combustible liquid
Liquid temperature	normal: -15℃ to +70℃
	hot-water: -15℃ to +120℃
Maximum external temperature: +40℃
Maximum elevation: 1000 meters
Head lift: 6-305 meter
Flow: 0.4-200m3/h
Power: 0.37-110KW
Daily water supply: 1-1000 tons

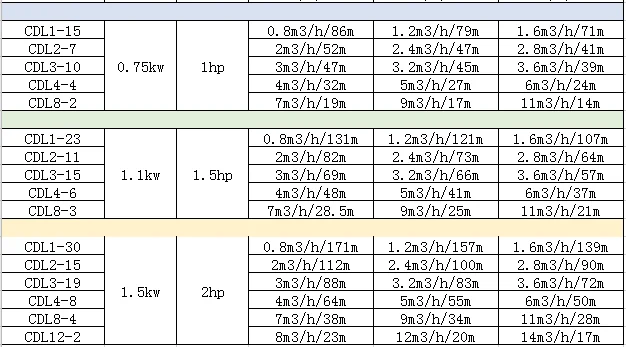

Technical parameters
