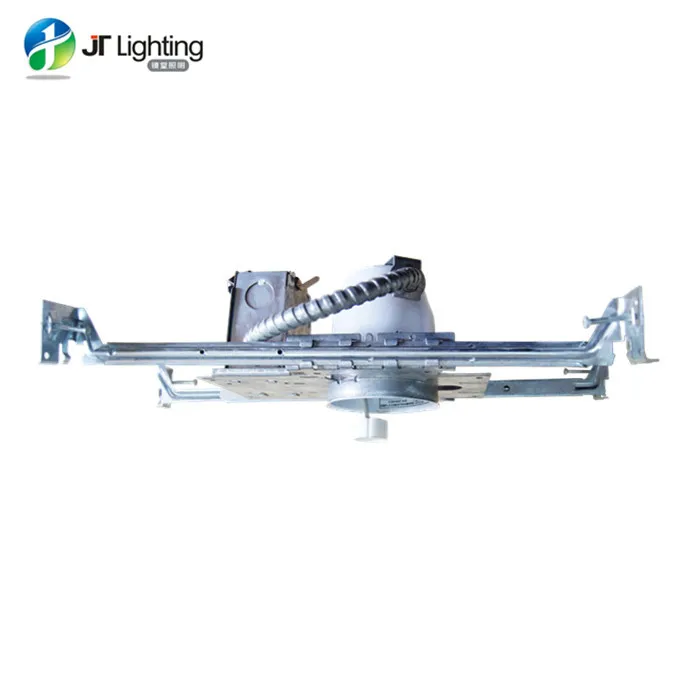

ETL 3 inch non ic new construction recess housing GU10 lamps white painted

Housing

Die-formed aluminum for maximum heat dissipation and rust protection.

Designed for new construction installations and suitable for using in non-insulation covered ceilings.

Housing can be installed in 1/2" to 1-3/8" thick ceilings.

Housing is Non-IC rated must be kept at least 3" away from insulation.

Hanger Bar

Allow housing to be positioned and locked at nay point within a 24" joist span.

Can be shortened for 12" joists.

Can be positioned on long or short axis of the housing.

Contain integral nail.

Hanger fit onto T-bar spline for quick alignment.

Junction Box

ETL listed for through branch wiring 2 in-2 out or 4 in-4 out J-box for your better choices.

Designed for straight through conduit runs 1/2" and 3/4" romex wiring knockouts.

Pre-wired junction box provided with removable access plate.

Knockouts equipped with pry out slots.

All leads are #18AWG wire, ground wire is connected to the bottom, quick connectors are supplied on all leads.
