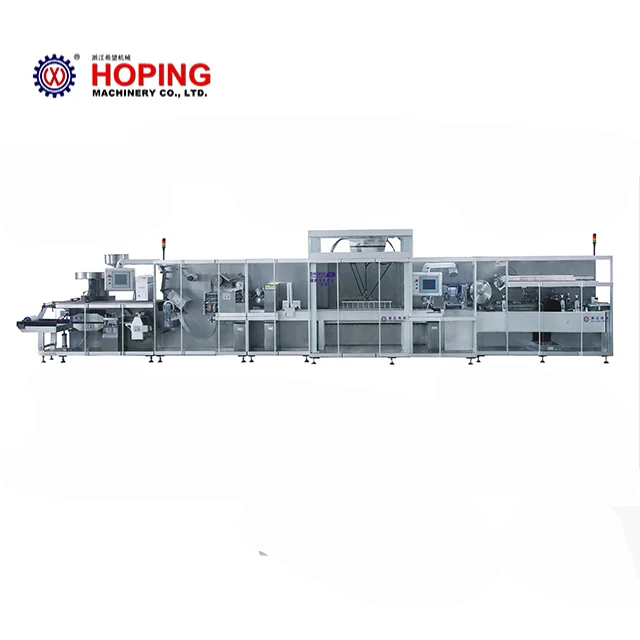

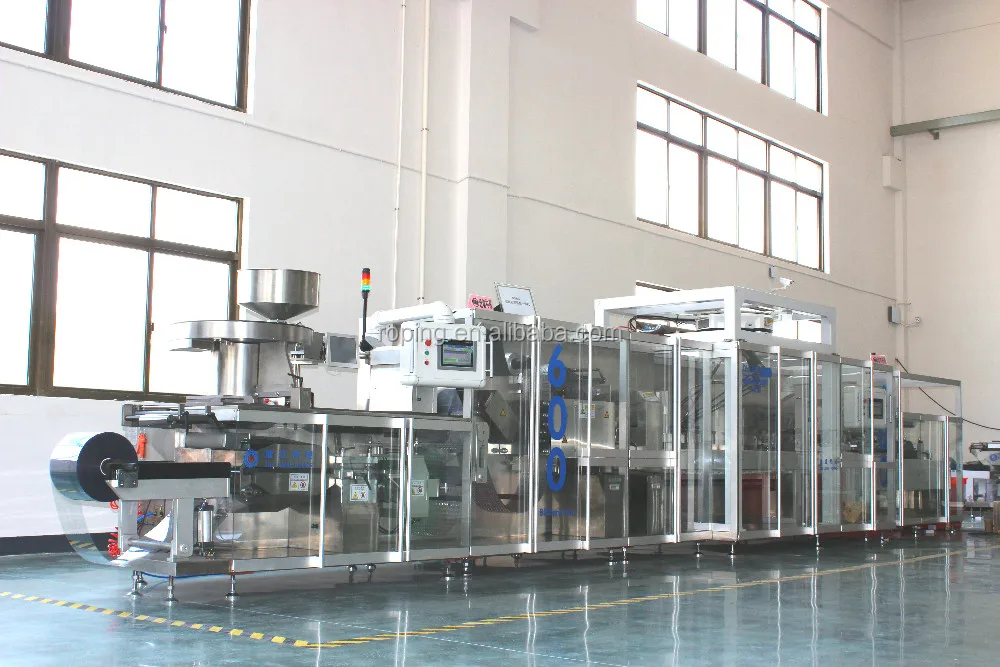

The production capacity of DHL600 High Speed BlisterCartoning Link Machine can Reach 600 blisters
/min and 300 boxes/min, suitable for mass production. The whole production line with the concept, of
advanced technology , original create link machine (1-5) blister cartoning production new pattern,can
complete switchover (1-5) blister cartoning within one minute, high speedtransferredby intelligent flex
picker, complete blister cartoning; Leaflet folder can accomplish 300 pages/min (A4 paper); Human-Machine Interface can be industrial control network, remote monitoring, complete data transmission, parameter modification, collection, storage and printing; High-Speed BlisterCartoning Link Machine adopts
the balcony type structure design, the drive device installed in the rear of machine,easy to clean and
conform to GMP requirements.
Main Technical Parameter
Capacity
300-600 blisters/min
100-300 boxes/min
Range of stroke
20-120 mm
Packing Material
Pharmacy PVC(mm) (0.2-0.4)×320
PTP alu foil(mm) (0.02-0.05)×320
Box dimension (70-190)×(35-75)×(15-70) mm
Carboard of box required 300-350 g/m2
Leaflet dimension (100-260)×(100-190) mm
Clean compressed air (pressure)
0.5~0.7 Mpa
Air consumption
≥0.6 m3/min
Power
AC380V 50HZ 27KW
Water chiller for moulds
1.5P with 60L/h consumption
Overall dimension (L×W×H)
11000 ×1800 × 2150 mm
Net weight
9200 kg
Machine parts
Forming Station Feeder station HMI
Sealing station
Blister Suck&Load Robot Device
Circuit Board
Germany GUK High-speed Leaflet Folding Machine
Servo Carton Conveyor
Insert Big Tounge Device
High-speed Rotate Carton Sucking Device
Our services
The company equipped with professional technical support and after-sales service, also send technician to the customer’s enterprise to adjusting machines, supervise technique and training the stuff etc.
Packaging & Delivery
Packaging details:exporting standard wooden case, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
Within 45 days after receipt of 30% payment by T/T.
Company Information
Hoping Company takes Zhejiang Hoping Machinery Co, Ltd as the leader, dominates Ruian City Wonder International Trading Co.,Ltd and is a high-tech enterprise integrating R&D, production, sales and relevant service of pharmaceutical machinery, packagingmachinery, food machinery and cosmetics machinery.
Main products include flat type aluminum-plastic, aluminum-aluminum andaluminum-plastic-aluminum packaging machines, roller typehigh speedblister packaging machines,automatic cartoning machine series, automatic blister-carton packaging production lines, mask and eye pad packaging machines, and labeling machines, etc.
Certification
Hoping Company, as a professional manufacturer of blister packaging machines, has rich technology and production experience, and is a member of China Association for Pharmaceutical Equipment. Our packaging products have filled up domestic blank, passed the appraisal ofauthorities, and obtained national patents, and meet the requirements of GMP. Our company was first certified to ISO9001 Quality Management System and EU CE requirements, and our products were affirmed as "China Famous Brand".
